Wt::WTabWidget Class Reference

A widget that organizes contents in tab panes. More...

#include <Wt/WTabWidget.h>

Inheritance diagram for Wt::WTabWidget:

Public Member Functions
	WTabWidget ()
	Creates a new tab widget.
WMenuItem *	addTab (std::unique_ptr< WWidget > child, const WString &label, ContentLoading loadPolicy=ContentLoading::Lazy)
	Adds a new tab, with child as content, and the given label. More...
WMenuItem *	insertTab (int index, std::unique_ptr< WWidget > child, const WString &label, ContentLoading loadPolicy=ContentLoading::Lazy)
	Inserts a new tab, with child as content, and the given label. More...
std::unique_ptr< WWidget >	removeTab (WWidget *widget)
	Removes a tab item. More...
int	count () const
	Returns the number of tabs.
WWidget *	widget (int index) const
	Returns the content widget at the given tab index.
WMenuItem *	itemAt (int index) const
	Returns the item at the given tab index.
int	indexOf (WWidget *widget) const
	Returns the index of the tab of the given content widget. More...
void	setCurrentIndex (int index)
	Activates the tab at index.
int	currentIndex () const
	Returns the index of the activated tab.
void	setCurrentWidget (WWidget *widget)
	Activates the tab showing the given widget
WWidget *	currentWidget () const
	Returns the widget of the activated tab.
WMenuItem *	currentItem () const
	Returns the item of the activated tab.
void	setTabEnabled (int index, bool enable)
	Enables or disables a tab. More...
bool	isTabEnabled (int index) const
	Returns whether a tab is enabled. More...
void	setTabHidden (int index, bool hidden)
	Hides or shows a tab. More...
bool	isTabHidden (int index) const
	Returns whether a tab is hidden.
void	setTabCloseable (int index, bool closeable)
	Make it possible to close a tab interactively or by closeTab. More...
bool	isTabCloseable (int index)
	Returns whether a tab is closeable. More...
void	setTabText (int index, const WString &label)
	Changes the label for a tab.
WString	tabText (int index) const
	Returns the label for a tab. More...
void	setTabToolTip (int index, const WString &tip)
	Sets the tooltip for a tab. More...
WString	tabToolTip (int index) const
	Returns the tooltip for a tab. More...
void	setInternalPathEnabled (const std::string &basePath="")
	Enables internal paths for items. More...
bool	internalPathEnabled () const
	Returns whether internal paths are enabled. More...
void	setInternalBasePath (const std::string &path)
	Sets the internal base path. More...
const std::string &	internalBasePath () const
	Returns the internal base path. More...
Signal< int > &	currentChanged ()
	Signal emitted when the user activates a tab. More...
void	closeTab (int index)
	Closes a tab at index. More...
Signal< int > &	tabClosed ()
	Signal emitted when the user closes a tab. More...
WStackedWidget *	contentsStack () const
	Returns the contents stack. More...
void	setOverflow (Overflow overflow, WFlags< Orientation > orientation=(Orientation::Horizontal|Orientation::Vertical))
	Sets how overflow of contained children must be handled.
Public Member Functions inherited from Wt::WCompositeWidget
	WCompositeWidget ()
	Creates a WCompositeWidget. More...
	WCompositeWidget (std::unique_ptr< WWidget > implementation)
	Creates a WCompositeWidget with given implementation. More...
virtual std::vector< WWidget * >	children () const override
	Returns child widgets. More...
virtual std::unique_ptr< WWidget >	removeWidget (WWidget *widget) override
	Removes a child widget.
virtual void	setObjectName (const std::string &name) override
	Sets an object name. More...
virtual std::string	objectName () const override
	Returns the object name. More...
virtual const std::string	id () const override
	Returns the (unique) identifier for this object. More...
virtual void	setPositionScheme (PositionScheme scheme) override
	Sets the CSS position scheme. More...
virtual PositionScheme	positionScheme () const override
	Returns the CSS position scheme. More...
virtual void	setOffsets (const WLength &offset, WFlags< Side > sides=AllSides) override
	Sets CSS offsets for a non-statically positioned widget. More...
virtual WLength	offset (Side s) const override
	Returns a CSS offset. More...
virtual void	resize (const WLength &width, const WLength &height) override
	Resizes the widget. More...
virtual WLength	width () const override
	Returns the width. More...
virtual WLength	height () const override
	Returns the height. More...
virtual void	setMinimumSize (const WLength &width, const WLength &height) override
	Sets a minimum size. More...
virtual WLength	minimumWidth () const override
	Returns the minimum width. More...
virtual WLength	minimumHeight () const override
	Returns the minimum height. More...
virtual void	setMaximumSize (const WLength &width, const WLength &height) override
	Sets a maximum size. More...
virtual WLength	maximumWidth () const override
	Returns the maximum width. More...
virtual WLength	maximumHeight () const override
	Returns the maximum height. More...
virtual void	setLineHeight (const WLength &height) override
	Sets the CSS line height for contained text.
virtual WLength	lineHeight () const override
	Returns the CSS line height for contained text. More...
virtual void	setFloatSide (Side s) override
	Specifies a CSS float side. More...
virtual Side	floatSide () const override
	Returns the CSS float side. More...
virtual void	setClearSides (WFlags< Side > sides) override
	Sets the sides that should be cleared of floats. More...
virtual WFlags< Side >	clearSides () const override
	Returns the sides that should remain empty. More...
virtual void	setMargin (const WLength &margin, WFlags< Side > sides=AllSides) override
	Sets CSS margins around the widget. More...
virtual WLength	margin (Side side) const override
	Returns a CSS margin set. More...
virtual void	setHiddenKeepsGeometry (bool enabled) override
	Sets whether the widget keeps its geometry when hidden. More...
virtual bool	hiddenKeepsGeometry () const override
	Returns whether the widget keeps its geometry when hidden. More...
virtual void	setHidden (bool hidden, const WAnimation &animation=WAnimation()) override
	Hides or shows the widget. More...
virtual bool	isHidden () const override
	Returns whether the widget is set hidden. More...
virtual bool	isVisible () const override
	Returns whether the widget is visible. More...
virtual void	setDisabled (bool disabled) override
	Sets whether the widget is disabled. More...
virtual bool	isDisabled () const override
	Returns whether the widget is set disabled. More...
virtual bool	isEnabled () const override
	Returns whether the widget is enabled. More...
virtual void	setPopup (bool popup) override
	Lets the widget overlay over other sibling widgets. More...
virtual bool	isPopup () const override
	Returns whether the widget is overlayed. More...
virtual void	setInline (bool isInline) override
	Sets whether the widget is displayed inline or as a block. More...
virtual bool	isInline () const override
	Returns whether the widget is displayed inline or as block. More...
virtual void	setDecorationStyle (const WCssDecorationStyle &style) override
	Sets a CSS decoration style. More...
virtual WCssDecorationStyle &	decorationStyle () override
	Returns the decoration style of this widget. More...
virtual void	setStyleClass (const WString &styleClass) override
	Sets (one or more) CSS style classes. More...
virtual WString	styleClass () const override
	Returns the CSS style class. More...
virtual void	addStyleClass (const WString &styleClass, bool force=false) override
	Adds a CSS style class. More...
virtual void	removeStyleClass (const WString &styleClass, bool force=false) override
	Removes a CSS style class. More...
virtual bool	hasStyleClass (const WString &styleClass) const override
	Returns whether the widget has a style class.
virtual void	setVerticalAlignment (AlignmentFlag alignment, const WLength &length=WLength::Auto) override
	Sets the vertical alignment. More...
virtual AlignmentFlag	verticalAlignment () const override
	Returns the vertical alignment. More...
virtual WLength	verticalAlignmentLength () const override
	Returns the fixed vertical alignment that was set. More...
virtual void	setToolTip (const WString &text, TextFormat textFormat=TextFormat::Plain) override
	Sets a tooltip. More...
virtual WString	toolTip () const override
	Returns the tooltip.
virtual void	setDeferredToolTip (bool enable, TextFormat textFormat=TextFormat::Plain) override
	Enable deferred tooltip. More...
virtual void	refresh () override
	Refresh the widget. More...
virtual void	setAttributeValue (const std::string &name, const WString &value) override
	Sets an attribute value. More...
virtual WString	attributeValue (const std::string &name) const override
	Returns an attribute value. More...
virtual void	setJavaScriptMember (const std::string &name, const std::string &value) override
	Sets a JavaScript member. More...
virtual std::string	javaScriptMember (const std::string &name) const override
	Returns the value of a JavaScript member. More...
virtual void	callJavaScriptMember (const std::string &name, const std::string &args) override
	Calls a JavaScript member. More...
virtual void	load () override
	Loads content just before the widget is used. More...
virtual bool	loaded () const override
	Returns whether this widget has been loaded. More...
virtual void	setCanReceiveFocus (bool enabled) override
	Sets whether the widget can receive focus. More...
virtual bool	canReceiveFocus () const override
	Returns whether the widget can receive focus. More...
virtual void	setFocus (bool focus) override
	Sets focus. More...
virtual bool	setFirstFocus () override
	Set focus on the widget's first descendant. More...
virtual bool	hasFocus () const override
	Returns whether the widget currently has the focus.
virtual void	setTabIndex (int index) override
	Sets the tab index. More...
virtual int	tabIndex () const override
	Returns the tab index. More...
virtual void	setId (const std::string &id) override
	Sets the CSS Id. More...
virtual WWidget *	find (const std::string &name) override
	Finds a descendent widget by name. More...
virtual WWidget *	findById (const std::string &name) override
	Finds a descendent widget by id.
virtual void	setSelectable (bool selectable) override
	Sets as selectable. More...
virtual void	doJavaScript (const std::string &js) override
	Executes the given JavaScript statements when the widget is rendered or updated. More...
virtual void	propagateSetEnabled (bool enabled) override
	Propagates that a widget was enabled or disabled through children. More...
virtual bool	scrollVisibilityEnabled () const final override
	Returns whether scroll visibility detection is enabled for this widget. More...
virtual void	setScrollVisibilityEnabled (bool enabled) final override
	Sets whether scroll visibility detection is enabled for this widget. More...
virtual int	scrollVisibilityMargin () const final override
	Returns the margin around the viewport within which the widget is considered visible. More...
virtual void	setScrollVisibilityMargin (int margin) final override
	Sets the margin around the viewport within which the widget is considered visible. More...
virtual Signal< bool > &	scrollVisibilityChanged () final override
	Signal triggered when the scroll visibility of this widget changes. More...
virtual bool	isScrollVisible () const final override
	Returns whether this widget is currently considered scroll visible. More...
virtual void	setThemeStyleEnabled (bool enabled) final override
	Sets whether theme styling for a widget is enabled or disabled. More...
virtual bool	isThemeStyleEnabled () const final override
	Returns whether this widget is currently styled by the chosen theme. More...
virtual std::unique_ptr< WWidget >	removeWidget (WWidget *widget)
	Removes a child widget.
template<typename Widget >
std::unique_ptr< Widget >	removeWidget (Widget *widget)
	Removes a child widget. More...
void	setFocus ()
	Sets focus. More...
virtual void	setFocus (bool focus)=0
	Sets focus. More...
Public Member Functions inherited from Wt::WWidget
virtual	~WWidget ()
	Destructor. More...
WWidget *	parent () const
	Returns the parent widget.
template<typename Widget >
std::unique_ptr< Widget >	removeWidget (Widget *widget)
	Removes a child widget. More...
std::unique_ptr< WWidget >	removeFromParent ()
	Removes the widget from its parent. More...
void	setWidth (const WLength &width)
	Sets the width. More...
void	setHeight (const WLength &height)
	Sets the height. More...
virtual void	positionAt (const WWidget *widget, Orientation orientation=Orientation::Vertical)
	Positions a widget next to another widget. More...
virtual void	toggleStyleClass (const WString &styleClass, bool add, bool force=false)
	Toggles a CSS style class.
std::string	jsRef () const
	Returns a JavaScript expression to the corresponding DOM node. More...
void	setFocus ()
	Sets focus. More...
virtual void	acceptDrops (const std::string &mimeType, const WString &hoverStyleClass=WString())
	Sets a mime type to be accepted for dropping. More...
virtual void	stopAcceptDrops (const std::string &mimeType)
	Indicates that a mime type is no longer accepted for dropping. More...
virtual void	htmlText (std::ostream &out)
	Streams the (X)HTML representation. More...
bool	isRendered () const
	Returns whether the widget is rendered. More...
void	hide ()
	Hides the widget. More...
void	animateHide (const WAnimation &animation)
	Hides the widget using an animation. More...
void	show ()
	Shows the widget. More...
void	animateShow (const WAnimation &animation)
	Shows the widget using an animation. More...
void	enable ()
	Enables the widget. More...
void	disable ()
	Disable thes widget. More...
bool	layoutSizeAware () const
	Returns whether the widget is layout size aware. More...
Public Member Functions inherited from Wt::WObject
void	addChild (std::unique_ptr< WObject > child)
	Add a child WObject whose lifetime is determined by this WObject.
template<typename Child >
Child *	addChild (std::unique_ptr< Child > child)
	Add a child WObject, returning a raw pointer. More...
std::unique_ptr< WObject >	removeChild (WObject *child)
	Remove a child WObject, so its lifetime is no longer determined by this WObject.
template<typename Child >
std::unique_ptr< Child >	removeChild (Child *child)
	Remove a child WObject, so its lifetime is no longer determined by this WObject. More...
void	resetLearnedSlots ()
	Resets learned stateless slot implementations. More...
template<class T >
void	resetLearnedSlot (void(T::*method)())
	Resets a learned stateless slot implementation. More...
template<class T >
WStatelessSlot *	implementStateless (void(T::*method)())
	Declares a slot to be stateless and learn client-side behaviour on first invocation. More...
template<class T >
WStatelessSlot *	implementStateless (void(T::*method)(), void(T::*undoMethod)())
	Declares a slot to be stateless and learn client-side behaviour in advance. More...
void	isNotStateless ()
	Marks the current function as not stateless. More...
template<class T >
WStatelessSlot *	implementJavaScript (void(T::*method)(), const std::string &jsCode)
	Provides a JavaScript implementation for a method. More...
Public Member Functions inherited from Wt::Core::observable
	observable () noexcept
	Default constructor.
virtual	~observable ()
	Destructor. More...
template<typename... Args, typename C >
auto	bindSafe (void(C::*method)(Args...)) noexcept
	Protects a method call against object destruction. More...
template<typename... Args, typename C >
auto	bindSafe (void(C::*method)(Args...) const) const noexcept
	Protects a const method call against object destruction. More...
template<typename Function >
auto	bindSafe (const Function &function) noexcept
	Protects a function against object destruction. More...

Additional Inherited Members
Public Types inherited from Wt::WObject
typedef void(WObject::*	Method) ()
	Typedef for a WObject method without arguments.
Static Public Member Functions inherited from Wt::WWidget
static WString	tr (const char *key)
	Short hand for WString::tr() More...
Protected Member Functions inherited from Wt::WCompositeWidget
virtual void	enableAjax () override
	Progresses to an Ajax-enabled widget. More...
void	setImplementation (std::unique_ptr< WWidget > widget)
	Set the implementation widget. More...
template<typename Widget >
Widget *	setImplementation (std::unique_ptr< Widget > widget)
	Sets the implementation widget, returning a raw pointer. More...
template<typename W , typename... Args>
W *	setNewImplementation (Args &&... args)
	Creates the implementation widget and sets it, returning a raw pointer. More...
WWidget *	implementation ()
	Get the implementation widget. More...
virtual int	boxPadding (Orientation orientation) const override
	Returns the widget's built-in padding. More...
virtual int	boxBorder (Orientation orientation) const override
	Returns the widget's built-in border width. More...
virtual void	render (WFlags< RenderFlag > flags) override
	Renders the widget. More...
Protected Member Functions inherited from Wt::WWidget
void	setLayoutSizeAware (bool sizeAware)
	Sets the widget to be aware of its size set by a layout manager. More...
virtual void	layoutSizeChanged (int width, int height)
	Virtual method that indicates a size change. More...
	WWidget ()
	Creates a widget.
virtual void	dropEvent (WDropEvent dropEvent)
	Handles a drop event. More...
void	scheduleRender (WFlags< RepaintFlag > flags=None)
	Schedules rerendering of the widget. More...
virtual WStatelessSlot *	getStateless (Method method) override
	On-demand stateless slot implementation. More...

Detailed Description

A widget that organizes contents in tab panes.

This widget combines a horizontal WMenu with a WStackedWidget, and a tab-like look.

A tab widget will place the tab bar on top of the contents, and fit the contents below it.

Usage example:

Wt::WTabWidget *examples = addWidget(std::make_unique<Wt::WTabWidget>());

examples->addTab(helloWorldExample(), "Hello World");
examples->addTab(chartExample(), "Charts");
examples->addTab(std::make_unique<Wt::WText>("A WText"), "WText");

examples->currentChanged().connect(this, &MyClass::logInternalPath);
examples->setInternalPathEnabled();
examples->setInternalBasePath("/examples");

CSS

The tab widget is styled by the current CSS theme.

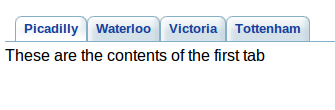

An example WTabWidget (default)

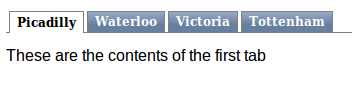

An example WTabWidget (polished)

Member Function Documentation

addTab()

WMenuItem * Wt::WTabWidget::addTab	(	std::unique_ptr< WWidget >	child,
		const WString &	label,
		ContentLoading	loadPolicy = ContentLoading::Lazy
	)

Adds a new tab, with child as content, and the given label.

Returns the menu item that implements the tab item.

closeTab()

void Wt::WTabWidget::closeTab

(

int

index

)

Closes a tab at index.

A tab that has been closed is marked as hidden, but not removed from the menu.

See also

removeTab(), setTabHidden()

contentsStack()

WStackedWidget * Wt::WTabWidget::contentsStack

(

)

const

Returns the contents stack.

The tab widget is implemented as a WMenu + WStackedWidget which displays the contents. This method returns a reference to this contents stack.

currentChanged()

Signal<int>& Wt::WTabWidget::currentChanged

(

)

Signal emitted when the user activates a tab.

The index of the newly activated tab is passed as an argument.

indexOf()

int Wt::WTabWidget::indexOf

(

WWidget *

widget

)

const

Returns the index of the tab of the given content widget.

If the widget is not in this tab widget, then -1 is returned.

insertTab()

WMenuItem * Wt::WTabWidget::insertTab	(	int	index,
		std::unique_ptr< WWidget >	child,
		const WString &	label,
		ContentLoading	loadPolicy = ContentLoading::Lazy
	)

Inserts a new tab, with child as content, and the given label.

Returns the menu item that implements the tab item.

internalBasePath()

const std::string & Wt::WTabWidget::internalBasePath

(

)

const

Returns the internal base path.

The default value is the application's internalPath (WApplication::internalPath()) that was recorded when setInternalPathEnabled() was called, and together with each WMenuItem::pathComponent() determines the paths for each item.

For example, if internalBasePath() is "/examples/" and pathComponent() for a particular item is "charts/", then the internal path for that item will be "/examples/charts/".

See also

setInternalPathEnabled()

internalPathEnabled()

bool Wt::WTabWidget::internalPathEnabled

(

)

const

Returns whether internal paths are enabled.

See also

setInternalPathEnabled()

isTabCloseable()

bool Wt::WTabWidget::isTabCloseable

(

int

index

)

Returns whether a tab is closeable.

See also

setTabCloseable()

isTabEnabled()

bool Wt::WTabWidget::isTabEnabled

(

int

index

)

const

Returns whether a tab is enabled.

See also

WMenu::enableItem(), WMenu::disableItem()

removeTab()

std::unique_ptr< WWidget > Wt::WTabWidget::removeTab

(

WWidget *

widget

)

Removes a tab item.

See also

WMenu::removeItem()

setInternalBasePath()

void Wt::WTabWidget::setInternalBasePath

(

const std::string &

path

)

Sets the internal base path.

A '/' is appended to turn it into a folder, if needed.

See also

setInternalPathEnabled(), internalBasePath()

setInternalPathEnabled()

void Wt::WTabWidget::setInternalPathEnabled

(

const std::string &

basePath = ""

)

Enables internal paths for items.

The menu participates in the internal path by changing the internal path when an item has been selected, and listening for path changes to react to path selections. As a consequence this allows the user to bookmark the current menu selection and revisit it later, use back/forward buttons to navigate through history of visited menu items, and allows indexing of pages.

For each menu item, WMenuItem::pathComponent() is appended to the basePath, which defaults to the internal path (WApplication::internalPath()). A '/' is appended to the base path, to turn it into a folder, if needed.

By default, menu interaction does not change the application internal path.

See also

WMenuItem::setPathComponent().

setTabCloseable()

void Wt::WTabWidget::setTabCloseable	(	int	index,
		bool	closeable
	)

Make it possible to close a tab interactively or by closeTab.

A tab that has been closed is marked as hidden, but not removed from the menu.

See also

removeTab()

setTabEnabled()

void Wt::WTabWidget::setTabEnabled	(	int	index,
		bool	enable
	)

Enables or disables a tab.

Enables or disables the tab at index. A disabled tab cannot be activated.

setTabHidden()

void Wt::WTabWidget::setTabHidden	(	int	index,
		bool	hidden
	)

Hides or shows a tab.

Hides or shows the tab at index.

setTabToolTip()

void Wt::WTabWidget::setTabToolTip	(	int	index,
		const WString &	tip
	)

Sets the tooltip for a tab.

The tooltip is shown when the user hovers over the label.

tabClosed()

Signal<int>& Wt::WTabWidget::tabClosed

(

)

Signal emitted when the user closes a tab.

The index of the closed tab is passed as an argument.

See also

closeTab(), setTabCloseable()

tabText()

WString Wt::WTabWidget::tabText

(

int

index

)

const

Returns the label for a tab.

See also

setTabText()

tabToolTip()

WString Wt::WTabWidget::tabToolTip

(

int

index

)

const

Returns the tooltip for a tab.

See also

setTabToolTip()
