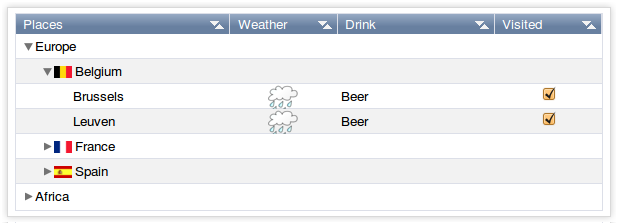

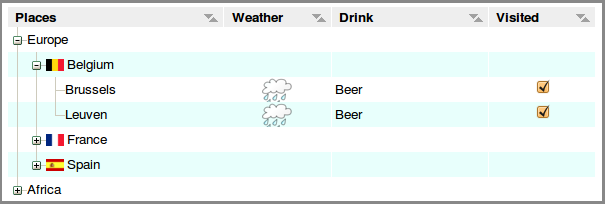

A view class that displays a model as a tree or tree table. More...

#include <Wt/WTreeView.h>

Inheritance diagram for Wt::WTreeView:

Public Member Functions
	WTreeView ()
	Creates a new tree view.

void	setExpanded (const WModelIndex &, bool expanded)
	Expands or collapses a node. More...

bool	isExpanded (const WModelIndex &index) const
	Returns whether a node is expanded. More...

void	collapse (const WModelIndex &index)
	Collapses a node. More...

void	collapseAll ()
	Collapse all expanded nodes. More...

void	expand (const WModelIndex &index)
	Expands a node. More...

void	expandToDepth (int depth)
	Expands all nodes to a depth. More...

void	setRootIsDecorated (bool show)
	Sets whether toplevel items are decorated. More...

bool	rootIsDecorated () const
	Returns whether toplevel items are decorated. More...

virtual void	resize (const WLength &width, const WLength &height) override
	Resizes the widget. More...

Signal< WModelIndex > &	collapsed ()
	Signal emitted when a node is collapsed. More...

Signal< WModelIndex > &	expanded ()
	Signal emitted when a node is expanded. More...

virtual WWidget *	itemWidget (const WModelIndex &index) const override
	Returns the widget that renders an item. More...

virtual void	setModel (const std::shared_ptr< WAbstractItemModel > &model) override
	Sets the model. More...

virtual void	setColumnWidth (int column, const WLength &width) override
	Sets the column width. More...

virtual void	setAlternatingRowColors (bool enable) override
	Sets if alternating row colors are to be used. More...

virtual void	setRowHeight (const WLength &rowHeight) override
	Sets the row height. More...

virtual void	setHeaderHeight (const WLength &height) override
	Sets the header height. More...

virtual void	setColumnHidden (int column, bool hidden) override
	Changes the visibility of a column. More...

virtual void	setRowHeaderCount (int count) override
	Configures the number of columns that are used as row headers. More...

virtual int	pageCount () const override
	Returns the number of pages. More...

virtual int	pageSize () const override
	Returns the page size. More...

virtual int	currentPage () const override
	Returns the current page. More...

virtual void	setCurrentPage (int page) override
	Sets the current page. More...

virtual void	scrollTo (const WModelIndex &index, ScrollHint hint=ScrollHint::EnsureVisible) override
	Scrolls the view to an item. More...

virtual EventSignal< WScrollEvent > &	scrolled () override
	Signal emitted when scrolling. More...

virtual void	setId (const std::string &id) override
	Sets the CSS Id. More...

virtual void	setHeaderHeight (const WLength &height)
	Sets the header height. More...

Public Member Functions inherited from Wt::WAbstractItemView
std::shared_ptr< WAbstractItemModel >	model () const
	Returns the model. More...

void	setRootIndex (const WModelIndex &rootIndex)
	Sets the root index. More...

const WModelIndex &	rootIndex () const
	Returns the root index. More...

void	setItemDelegate (const std::shared_ptr< WAbstractItemDelegate > &delegate)
	Sets the default item delegate. More...

std::shared_ptr< WAbstractItemDelegate >	itemDelegate () const
	Returns the default item delegate. More...

void	setItemDelegateForColumn (int column, const std::shared_ptr< WAbstractItemDelegate > &delegate)
	Sets the delegate for a column. More...

std::shared_ptr< WAbstractItemDelegate >	itemDelegateForColumn (int column) const
	Returns the delegate that was set for a column. More...

std::shared_ptr< WAbstractItemDelegate >	itemDelegate (const WModelIndex &index) const
	Returns the delegate for rendering an item. More...

std::shared_ptr< WAbstractItemDelegate >	itemDelegate (int column) const
	Returns the delegate for a column. More...

void	setHeaderItemDelegate (const std::shared_ptr< WAbstractItemDelegate > &delegate)
	Sets the header item delegate. More...

std::shared_ptr< WAbstractItemDelegate >	headerItemDelegate () const
	Returns the header item delegate. More...

virtual void	setColumnAlignment (int column, AlignmentFlag alignment)
	Sets the content alignment for a column. More...

virtual AlignmentFlag	columnAlignment (int column) const
	Returns the content alignment for a column. More...

virtual void	setHeaderAlignment (int column, WFlags< AlignmentFlag > alignment)
	Sets the header alignment for a column. More...

AlignmentFlag	horizontalHeaderAlignment (int column) const
	Returns the horizontal header alignment for a column. More...

AlignmentFlag	verticalHeaderAlignment (int column) const
	Returns the vertical header alignment for a column. More...

void	setHeaderWordWrap (int column, bool enabled)
	Configures header text wrapping. More...

virtual bool	alternatingRowColors () const
	Returns whether alternating row colors are used. More...

void	sortByColumn (int column, SortOrder order)
	Sorts the data according to a column. More...

int	sortColumn () const
	Returns the current sorting columm. More...

SortOrder	sortOrder () const
	Returns the current sorting order. More...

void	setSortingEnabled (bool enabled)
	Enables or disables sorting for all columns. More...

void	setSortingEnabled (int column, bool enabled)
	Enables or disables sorting for a single column. More...

bool	isSortingEnabled () const
	Returns whether sorting is enabled. More...

bool	isSortingEnabled (int column) const
	Returns whether sorting is enabled for a single column. More...

void	setColumnResizeEnabled (bool enabled)
	Enables interactive column resizing. More...

void	setColumnResizeEnabled (bool enabled, int column)
	Enables interactive column resizing. More...

bool	isColumnResizeEnabled () const
	Returns whether column resizing is enabled for new columns. More...

bool	isColumnResizeEnabled (int column) const
	Returns whether column resizing is enabled for a single column. More...

void	setSelectionBehavior (SelectionBehavior behavior)
	Changes the selection behaviour. More...

SelectionBehavior	selectionBehavior () const
	Returns the selection behaviour. More...

void	setSelectionMode (SelectionMode mode)
	Sets the selection mode. More...

SelectionMode	selectionMode () const
	Returns the selection mode. More...

WItemSelectionModel *	selectionModel () const
	Returns the selection model. More...

void	setSelectedIndexes (const WModelIndexSet &indexes)
	Sets the selected items. More...

void	clearSelection ()
	Clears the selection. More...

void	select (const WModelIndex &index, SelectionFlag option=SelectionFlag::Select)
	Selects a single item. More...

bool	isSelected (const WModelIndex &index) const
	Returns wheter an item is selected. More...

WModelIndexSet	selectedIndexes () const
	Returns the set of selected items. More...

void	setDragEnabled (bool enable)
	Enables the selection to be dragged (drag & drop). More...

void	setDropsEnabled (bool enable)
	Enables drop operations (drag & drop). More...

void	setEnabledDropLocations (WFlags< DropLocation > droplocation)
	Enables drop operations (drag & drop). More...

WFlags< DropLocation >	enabledDropLocations () const
	Returns the enabled drop locations.

const WLength &	rowHeight () const
	Returns the row height.

WLength	columnWidth (int column) const
	Returns the column width. More...

bool	isColumnHidden (int column) const
	Returns if a column is hidden. More...

void	hideColumn (int column)
	Hides a column. More...

void	showColumn (int column)
	Shows a column. More...

const WLength &	headerHeight () const
	Returns the header height. More...

void	setEditTriggers (WFlags< EditTrigger > editTriggers)
	Configures what actions should trigger editing. More...

WFlags< EditTrigger >	editTriggers () const
	Returns the editing triggers. More...

void	setEditOptions (WFlags< EditOption > options)
	Configures editing options. More...

WFlags< EditOption >	editOptions () const
	Returns the editing options. More...

void	edit (const WModelIndex &index)
	Opens an editor for the given index. More...

void	closeEditor (const WModelIndex &index, bool saveData=true)
	Closes the editor for the given index. More...

void	closeEditors (bool saveData=true)
	Closes all open editors. More...

ValidationState	validateEditor (const WModelIndex &index)
	Validates the editor for the given index. More...

ValidationState	validateEditors ()
	Validates all editors. More...

bool	isEditing (const WModelIndex &index) const
	Returns whether an editor is open for a given index. More...

bool	isValid (const WModelIndex &index) const
	Returns whether an editor's state is valid.

Signal< WModelIndex, WMouseEvent > &	clicked ()
	Signal emitted when clicked. More...

Signal< WModelIndex, WMouseEvent > &	doubleClicked ()
	Signal emitted when double clicked. More...

Signal< WModelIndex, WMouseEvent > &	mouseWentDown ()
	Signal emitted when a mouse button is pressed down. More...

Signal< WModelIndex, WMouseEvent > &	mouseWentUp ()
	Signal emitted when the mouse button is released. More...

Signal< WModelIndex, WTouchEvent > &	touchStart ()
	Signal emitted when a finger is placed on the screen. More...

Signal< std::vector< WModelIndex >, WTouchEvent > &	touchStarted ()
	Signal emitted when one or more fingers are placed on the screen. More...

Signal< std::vector< WModelIndex >, WTouchEvent > &	touchMoved ()
	Signal emitted when one or more fingers are moved on the screen. More...

Signal< std::vector< WModelIndex >, WTouchEvent > &	touchEnded ()
	Signal emitted when one or more fingers are removed from the screen. More...

Signal &	selectionChanged ()
	Signal emitted when the selection is changed. More...

Signal &	pageChanged ()
	Signal emitted when page information was updated. More...

Signal< int, WLength > &	columnResized ()
	Returns the signal emitted when a column is resized by the user. More...

bool	sortEnabled ()
	Returns whether the view is sortable. More...

void	setHeaderClickSortEnabled (bool enabled)
	Alow to sort. More...

Signal< int, WMouseEvent > &	headerClicked ()
	Signal emitted when a header item is clicked. More...

Signal< int, WMouseEvent > &	headerDoubleClicked ()
	Signal emitted when a header item is double clicked. More...

Signal< int, WMouseEvent > &	headerMouseWentDown ()
	Signal emitted when a mouse button is pressed on a header item More...

Signal< int, WMouseEvent > &	headerMouseWentUp ()
	Signal emitted when a mouse button is released on a header item More...

int	rowHeaderCount () const
	Returns the number of columns that are used as row headers. More...

EventSignal< WKeyEvent > &	keyWentDown ()
	Event signal emitted when a keyboard key is pushed down. More...

EventSignal< WKeyEvent > &	keyPressed ()
	Event signal emitted when a "character" was entered. More...

EventSignal< WKeyEvent > &	keyWentUp ()
	Event signal emitted when a keyboard key is released. More...

Public Member Functions inherited from Wt::WCompositeWidget
	WCompositeWidget ()
	Creates a WCompositeWidget. More...

	WCompositeWidget (std::unique_ptr< WWidget > implementation)
	Creates a WCompositeWidget with given implementation. More...

virtual std::vector< WWidget * >	children () const override
	Returns child widgets. More...

virtual std::unique_ptr< WWidget >	removeWidget (WWidget *widget) override
	Removes a child widget.

virtual void	setObjectName (const std::string &name) override
	Sets an object name. More...

virtual std::string	objectName () const override
	Returns the object name. More...

virtual const std::string	id () const override
	Returns the (unique) identifier for this object. More...

virtual void	setPositionScheme (PositionScheme scheme) override
	Sets the CSS position scheme. More...

virtual PositionScheme	positionScheme () const override
	Returns the CSS position scheme. More...

virtual void	setOffsets (const WLength &offset, WFlags< Side > sides=AllSides) override
	Sets CSS offsets for a non-statically positioned widget. More...

virtual WLength	offset (Side s) const override
	Returns a CSS offset. More...

virtual WLength	width () const override
	Returns the width. More...

virtual WLength	height () const override
	Returns the height. More...

virtual void	setMinimumSize (const WLength &width, const WLength &height) override
	Sets a minimum size. More...

virtual WLength	minimumWidth () const override
	Returns the minimum width. More...

virtual WLength	minimumHeight () const override
	Returns the minimum height. More...

virtual void	setMaximumSize (const WLength &width, const WLength &height) override
	Sets a maximum size. More...

virtual WLength	maximumWidth () const override
	Returns the maximum width. More...

virtual WLength	maximumHeight () const override
	Returns the maximum height. More...

virtual void	setLineHeight (const WLength &height) override
	Sets the CSS line height for contained text.

virtual WLength	lineHeight () const override
	Returns the CSS line height for contained text. More...

virtual void	setFloatSide (Side s) override
	Specifies a CSS float side. More...

virtual Side	floatSide () const override
	Returns the CSS float side. More...

virtual void	setClearSides (WFlags< Side > sides) override
	Sets the sides that should be cleared of floats. More...

virtual WFlags< Side >	clearSides () const override
	Returns the sides that should remain empty. More...

virtual void	setMargin (const WLength &margin, WFlags< Side > sides=AllSides) override
	Sets CSS margins around the widget. More...

virtual WLength	margin (Side side) const override
	Returns a CSS margin set. More...

virtual void	setHiddenKeepsGeometry (bool enabled) override
	Sets whether the widget keeps its geometry when hidden. More...

virtual bool	hiddenKeepsGeometry () const override
	Returns whether the widget keeps its geometry when hidden. More...

virtual void	setHidden (bool hidden, const WAnimation &animation=WAnimation()) override
	Hides or shows the widget. More...

virtual bool	isHidden () const override
	Returns whether the widget is set hidden. More...

virtual bool	isVisible () const override
	Returns whether the widget is visible. More...

virtual void	setDisabled (bool disabled) override
	Sets whether the widget is disabled. More...

virtual bool	isDisabled () const override
	Returns whether the widget is set disabled. More...

virtual bool	isEnabled () const override
	Returns whether the widget is enabled. More...

virtual void	setPopup (bool popup) override
	Lets the widget overlay over other sibling widgets. More...

virtual bool	isPopup () const override
	Returns whether the widget is overlayed. More...

virtual void	setInline (bool isInline) override
	Sets whether the widget is displayed inline or as a block. More...

virtual bool	isInline () const override
	Returns whether the widget is displayed inline or as block. More...

virtual void	setDecorationStyle (const WCssDecorationStyle &style) override
	Sets a CSS decoration style. More...

virtual WCssDecorationStyle &	decorationStyle () override
	Returns the decoration style of this widget. More...

virtual void	setStyleClass (const WString &styleClass) override
	Sets (one or more) CSS style classes. More...

virtual WString	styleClass () const override
	Returns the CSS style class. More...

virtual void	addStyleClass (const WString &styleClass, bool force=false) override
	Adds a CSS style class. More...

virtual void	removeStyleClass (const WString &styleClass, bool force=false) override
	Removes a CSS style class. More...

virtual bool	hasStyleClass (const WString &styleClass) const override
	Returns whether the widget has a style class.

virtual void	setVerticalAlignment (AlignmentFlag alignment, const WLength &length=WLength::Auto) override
	Sets the vertical alignment. More...

virtual AlignmentFlag	verticalAlignment () const override
	Returns the vertical alignment. More...

virtual WLength	verticalAlignmentLength () const override
	Returns the fixed vertical alignment that was set. More...

virtual void	setToolTip (const WString &text, TextFormat textFormat=TextFormat::Plain) override
	Sets a tooltip. More...

virtual WString	toolTip () const override
	Returns the tooltip.

virtual void	setDeferredToolTip (bool enable, TextFormat textFormat=TextFormat::Plain) override
	Enable deferred tooltip. More...

virtual void	refresh () override
	Refresh the widget. More...

virtual void	setAttributeValue (const std::string &name, const WString &value) override
	Sets an attribute value. More...

virtual WString	attributeValue (const std::string &name) const override
	Returns an attribute value. More...

virtual void	setJavaScriptMember (const std::string &name, const std::string &value) override
	Sets a JavaScript member. More...

virtual std::string	javaScriptMember (const std::string &name) const override
	Returns the value of a JavaScript member. More...

virtual void	callJavaScriptMember (const std::string &name, const std::string &args) override
	Calls a JavaScript member. More...

virtual void	load () override
	Loads content just before the widget is used. More...

virtual bool	loaded () const override
	Returns whether this widget has been loaded. More...

virtual void	setCanReceiveFocus (bool enabled) override
	Sets whether the widget can receive focus. More...

virtual bool	canReceiveFocus () const override
	Returns whether the widget can receive focus. More...

virtual void	setFocus (bool focus) override
	Sets focus. More...

virtual bool	setFirstFocus () override
	Set focus on the widget's first descendant. More...

virtual bool	hasFocus () const override
	Returns whether the widget currently has the focus.

virtual void	setTabIndex (int index) override
	Sets the tab index. More...

virtual int	tabIndex () const override
	Returns the tab index. More...

virtual WWidget *	find (const std::string &name) override
	Finds a descendent widget by name. More...

virtual WWidget *	findById (const std::string &name) override
	Finds a descendent widget by id.

virtual void	setSelectable (bool selectable) override
	Sets as selectable. More...

virtual void	doJavaScript (const std::string &js) override
	Executes the given JavaScript statements when the widget is rendered or updated. More...

virtual void	propagateSetEnabled (bool enabled) override
	Propagates that a widget was enabled or disabled through children. More...

virtual bool	scrollVisibilityEnabled () const final override
	Returns whether scroll visibility detection is enabled for this widget. More...

virtual void	setScrollVisibilityEnabled (bool enabled) final override
	Sets whether scroll visibility detection is enabled for this widget. More...

virtual int	scrollVisibilityMargin () const final override
	Returns the margin around the viewport within which the widget is considered visible. More...

virtual void	setScrollVisibilityMargin (int margin) final override
	Sets the margin around the viewport within which the widget is considered visible. More...

virtual Signal< bool > &	scrollVisibilityChanged () final override
	Signal triggered when the scroll visibility of this widget changes. More...

virtual bool	isScrollVisible () const final override
	Returns whether this widget is currently considered scroll visible. More...

virtual void	setThemeStyleEnabled (bool enabled) final override
	Sets whether theme styling for a widget is enabled or disabled. More...

virtual bool	isThemeStyleEnabled () const final override
	Returns whether this widget is currently styled by the chosen theme. More...

virtual std::unique_ptr< WWidget >	removeWidget (WWidget *widget)
	Removes a child widget.

template<typename Widget >
std::unique_ptr< Widget >	removeWidget (Widget *widget)
	Removes a child widget. More...

void	setFocus ()
	Sets focus. More...

virtual void	setFocus (bool focus)=0
	Sets focus. More...

Public Member Functions inherited from Wt::WWidget
virtual	~WWidget ()
	Destructor. More...

WWidget *	parent () const
	Returns the parent widget.

template<typename Widget >
std::unique_ptr< Widget >	removeWidget (Widget *widget)
	Removes a child widget. More...

std::unique_ptr< WWidget >	removeFromParent ()
	Removes the widget from its parent. More...

void	setWidth (const WLength &width)
	Sets the width. More...

void	setHeight (const WLength &height)
	Sets the height. More...

virtual void	positionAt (const WWidget *widget, Orientation orientation=Orientation::Vertical)
	Positions a widget next to another widget. More...

virtual void	toggleStyleClass (const WString &styleClass, bool add, bool force=false)
	Toggles a CSS style class.

std::string	jsRef () const
	Returns a JavaScript expression to the corresponding DOM node. More...

void	setFocus ()
	Sets focus. More...

virtual void	acceptDrops (const std::string &mimeType, const WString &hoverStyleClass=WString())
	Sets a mime type to be accepted for dropping. More...

virtual void	stopAcceptDrops (const std::string &mimeType)
	Indicates that a mime type is no longer accepted for dropping. More...

virtual void	htmlText (std::ostream &out)
	Streams the (X)HTML representation. More...

bool	isRendered () const
	Returns whether the widget is rendered. More...

void	hide ()
	Hides the widget. More...

void	animateHide (const WAnimation &animation)
	Hides the widget using an animation. More...

void	show ()
	Shows the widget. More...

void	animateShow (const WAnimation &animation)
	Shows the widget using an animation. More...

void	enable ()
	Enables the widget. More...

void	disable ()
	Disable thes widget. More...

bool	layoutSizeAware () const
	Returns whether the widget is layout size aware. More...

Public Member Functions inherited from Wt::WObject
void	addChild (std::unique_ptr< WObject > child)
	Add a child WObject whose lifetime is determined by this WObject.

template<typename Child >
Child *	addChild (std::unique_ptr< Child > child)
	Add a child WObject, returning a raw pointer. More...

std::unique_ptr< WObject >	removeChild (WObject *child)
	Remove a child WObject, so its lifetime is no longer determined by this WObject.

template<typename Child >
std::unique_ptr< Child >	removeChild (Child *child)
	Remove a child WObject, so its lifetime is no longer determined by this WObject. More...

void	resetLearnedSlots ()
	Resets learned stateless slot implementations. More...

template<class T >
void	resetLearnedSlot (void(T::*method)())
	Resets a learned stateless slot implementation. More...

template<class T >
WStatelessSlot *	implementStateless (void(T::*method)())
	Declares a slot to be stateless and learn client-side behaviour on first invocation. More...

template<class T >
WStatelessSlot *	implementStateless (void(T::method)(), void(T::undoMethod)())
	Declares a slot to be stateless and learn client-side behaviour in advance. More...

void	isNotStateless ()
	Marks the current function as not stateless. More...

template<class T >
WStatelessSlot *	implementJavaScript (void(T::*method)(), const std::string &jsCode)
	Provides a JavaScript implementation for a method. More...

Public Member Functions inherited from Wt::Core::observable
	observable () noexcept
	Default constructor.

virtual	~observable ()
	Destructor. More...

template<typename... Args, typename C >
auto	bindSafe (void(C::*method)(Args...)) noexcept
	Protects a method call against object destruction. More...

template<typename... Args, typename C >
auto	bindSafe (void(C::*method)(Args...) const) const noexcept
	Protects a const method call against object destruction. More...

template<typename Function >
auto	bindSafe (const Function &function) noexcept
	Protects a function against object destruction. More...

Protected Member Functions
virtual void	render (WFlags< RenderFlag > flags) override
	Renders the widget. More...

virtual void	enableAjax () override
	Progresses to an Ajax-enabled widget. More...

Protected Member Functions inherited from Wt::WAbstractItemView
	WAbstractItemView ()
	Creates a new item view.

virtual void	dropEvent (const WDropEvent &event, const WModelIndex &target)
	Handles a drop event (drag & drop). More...

virtual void	dropEvent (const WDropEvent &event, const WModelIndex &index, Wt::Side side)
	Handles a drop event (drag & drop). More...

virtual std::unique_ptr< WWidget >	createExtraHeaderWidget (int column)
	Create an extra widget in the header. More...

WWidget *	extraHeaderWidget (int column)
	Returns the extra header widget. More...

virtual std::unique_ptr< WWidget >	createPageNavigationBar ()
	Returns a page navigation widget. More...

virtual void	handleClick (const WModelIndex &index, const WMouseEvent &event)
	Handles a click event. More...

virtual void	handleDoubleClick (const WModelIndex &index, const WMouseEvent &event)
	Handles a double click event. More...

virtual void	handleMouseDown (const WModelIndex &index, const WMouseEvent &event)
	Handles a mouse down event. More...

virtual void	handleMouseUp (const WModelIndex &index, const WMouseEvent &event)
	Handles a mouse up event. More...

virtual void	handleTouchSelect (const std::vector< WModelIndex > &indices, const WTouchEvent &event)
	Handles a touch select event.

virtual void	handleTouchStart (const std::vector< WModelIndex > &indices, const WTouchEvent &event)
	Handles a touch started event.

virtual void	handleTouchMove (const std::vector< WModelIndex > &indices, const WTouchEvent &event)
	Handles a touch moved event.

virtual void	handleTouchEnd (const std::vector< WModelIndex > &indices, const WTouchEvent &event)
	Handles a touch ended event.

virtual void	dropEvent (WDropEvent dropEvent)
	Handles a drop event. More...

Protected Member Functions inherited from Wt::WCompositeWidget
void	setImplementation (std::unique_ptr< WWidget > widget)
	Set the implementation widget. More...

template<typename Widget >
Widget *	setImplementation (std::unique_ptr< Widget > widget)
	Sets the implementation widget, returning a raw pointer. More...

template<typename W , typename... Args>
W *	setNewImplementation (Args &&... args)
	Creates the implementation widget and sets it, returning a raw pointer. More...

WWidget *	implementation ()
	Get the implementation widget. More...

virtual int	boxPadding (Orientation orientation) const override
	Returns the widget's built-in padding. More...

virtual int	boxBorder (Orientation orientation) const override
	Returns the widget's built-in border width. More...

Protected Member Functions inherited from Wt::WWidget
void	setLayoutSizeAware (bool sizeAware)
	Sets the widget to be aware of its size set by a layout manager. More...

virtual void	layoutSizeChanged (int width, int height)
	Virtual method that indicates a size change. More...

	WWidget ()
	Creates a widget.

virtual void	dropEvent (WDropEvent dropEvent)
	Handles a drop event. More...

void	scheduleRender (WFlags< RepaintFlag > flags=None)
	Schedules rerendering of the widget. More...

virtual WStatelessSlot *	getStateless (Method method) override
	On-demand stateless slot implementation. More...

Additional Inherited Members
Public Types inherited from Wt::WObject
typedef void(WObject::*	Method) ()
	Typedef for a WObject method without arguments.

Static Public Member Functions inherited from Wt::WWidget
static WString	tr (const char *key)
	Short hand for WString::tr() More...

Detailed Description

A view class that displays a model as a tree or tree table.

The view displays data from a WAbstractItemModel in a tree or tree table. It provides incremental rendering, allowing the display of data models of any size efficiently, without excessive use of client- or serverside resources.

The rendering (and editing) of items is handled by a WAbstractItemDelegate, by default it uses WItemDelegate which renders data of all predefined roles (see also Wt::ItemDataRole), including text, icons, checkboxes, and tooltips.

The view may support editing of items, if the model indicates support (see the Wt::ItemFlag::Editable flag). You can define triggers that initiate editing of an item using setEditTriggers(). The actual editing is provided by the item delegate (you can set an appropriate delegate for one column using setItemDelegateForColumn()). Using setEditOptions() you can customize if and how the view deals with multiple editors.

By default, all but the first columns are given a width of 150px, and the first column takes the remaining size. Note that this may have as consequence that the first column's size is reduced to 0. Column widths of all columns, including the first column, can be set through the API method setColumnWidth(), and also by the user using handles provided in the header.

Optionally, the treeview may be configured so that the first column is always visible while scrolling through the other columns, which may be convenient if you wish to display a model with many columns. Use setColumn1Fixed() to enable this behaviour.

If the model supports sorting (WAbstractItemModel::sort()), such as the WStandardItemModel, then you can enable sorting buttons in the header, using setSortingEnabled().

You can allow selection on row or item level (using setSelectionBehavior()), and selection of single or multiple items (using setSelectionMode()), and listen for changes in the selection using the selectionChanged() signal.

You may enable drag & drop support for this view, with awareness of the items in the model. When enabling dragging (see setDragEnabled()), the current selection may be dragged, but only when all items in the selection indicate support for dragging (controlled by the ItemFlag::DragEnabled flag), and if the model indicates a mime-type (controlled by WAbstractItemModel::mimeType()). Likewise, by enabling support for dropping (see setDropsEnabled()), the treeview may receive a drop event on a particular item, at least if the item indicates support for drops (controlled by the ItemFlag::DropEnabled flag).

You may also react to mouse click events on any item, by connecting to one of the clicked() or doubleClicked() signals.

Usage example:

// WTreeView will display the data of a model
std::shared_ptr<Wt::WAbstractItemModel> model = ...

// Create the WTreeView
auto gitView = std::make_unique<Wt::WTreeView>();
gitView->resize(300, Wt::WLength::Auto);
gitView->setSortingEnabled(false);
gitView->setModel(model);
gitView->setSelectionMode(SelectionMode::Single);

Graceful degradation

The view provides a virtual scrolling behavior which relies on Ajax availability. When Ajax is not available, a page navigation bar is used instead, see createPageNavigationBar(). In that case, the widget needs to be given an explicit height using resize() which determines the number of rows that are displayed at a time.

A snapshot of the WTreeView:

WTreeView example (default)

WTreeView example (polished)

Member Function Documentation

◆ collapse()

void Wt::WTreeView::collapse ( const WModelIndex & index )

Collapses a node.

See also: setExpanded(), expand()

Note: until 3.3.4, selection was removed from within nodes that were collapsed. This (inconsistent) behavior has been removed in 3.3.4.

◆ collapseAll()

void Wt::WTreeView::collapseAll ( )

Collapse all expanded nodes.

See also: collapse(), expand()

◆ collapsed()

Signal<WModelIndex>& Wt::WTreeView::collapsed ( )

Signal emitted when a node is collapsed.

See also: setExpanded(), expanded()

◆ currentPage()

virtual int Wt::WTreeView::currentPage ( ) const

overridevirtual

Returns the current page.

When Ajax/JavaScript is not available, the view will use a paging navigation bar to allow scrolling through the data. This returns the current page (between 0 and pageCount() - 1).

See also: createPageNavigationBar(), pageChanged()

Implements Wt::WAbstractItemView.

◆ enableAjax()

virtual void Wt::WTreeView::enableAjax ( )

overrideprotectedvirtual

Progresses to an Ajax-enabled widget.

This method is called when the progressive bootstrap method is used, and support for AJAX has been detected. The default behavior will upgrade the widget's event handling to use AJAX instead of full page reloads, and propagate the call to its children.

You may want to reimplement this method if you want to make changes to widget when AJAX is enabled. You should always call the base implementation.

See also: WApplication::enableAjax()

Reimplemented from Wt::WAbstractItemView.

◆ expand()

void Wt::WTreeView::expand ( const WModelIndex & index )

Expands a node.

See also: setExpanded(), collapse()

◆ expanded()

Signal<WModelIndex>& Wt::WTreeView::expanded ( )

Signal emitted when a node is expanded.

See also: setExpanded(), collapsed()

◆ expandToDepth()

void Wt::WTreeView::expandToDepth ( int depth )

Expands all nodes to a depth.

Expands all nodes to the given depth. A depth of 1 corresponds to the top level nodes.

See also: expand()

◆ isExpanded()

bool Wt::WTreeView::isExpanded ( const WModelIndex & index ) const

Returns whether a node is expanded.

See also: setExpanded()

◆ itemWidget()

virtual WWidget* Wt::WTreeView::itemWidget ( const WModelIndex & index ) const

overridevirtual

Returns the widget that renders an item.

This returns the widget that renders the given item. This may return 0 if the item is currently not rendered.

This widget has been created by an item delegate, and usually an item delegate is involved when updating it.

Implements Wt::WAbstractItemView.

◆ pageCount()

virtual int Wt::WTreeView::pageCount ( ) const

overridevirtual

Returns the number of pages.

When Ajax/JavaScript is not available, the view will use a paging navigation bar to allow scrolling through the data. This returns the number of pages currently shown.

See also: createPageNavigationBar(), pageChanged()

Implements Wt::WAbstractItemView.

◆ pageSize()

virtual int Wt::WTreeView::pageSize ( ) const

overridevirtual

Returns the page size.

When Ajax/JavaScript is not available, the view will use a paging navigation bar to allow scrolling through the data. This returns the number of items per page.

See also: createPageNavigationBar(), pageChanged()

Implements Wt::WAbstractItemView.

◆ render()

virtual void Wt::WTreeView::render ( WFlags< RenderFlag > flags )

overrideprotectedvirtual

Renders the widget.

This function renders the widget (or an update for the widget), after this has been scheduled using scheduleRender().

The default implementation will render the widget by serializing changes to JavaScript and HTML. You may want to reimplement this widget if you have been postponing some of the layout / rendering implementation until the latest moment possible. In that case you should make sure you call the base implementation however.

Reimplemented from Wt::WCompositeWidget.

◆ resize()

virtual void Wt::WTreeView::resize	(	const WLength &	width,
		const WLength &	height
	)

overridevirtual

Resizes the widget.

Specifies a fixed size for this widget, setting CSS width and height properties. By default a widget has automatic width and height, which sets a size for the widget following CSS rules.

When the widget is not managed by a layout manager, the automatic (natural) size of a widget depends on whether they widget is a block or inline widget:

a block widget takes by default the width of the parent, and the height that it needs based on its contents
an inline widget takes the width and height that it needs based on its contents (possibly wrapping over multiple lines). The width and height of an inline widget cannot be changed (by the letter of CSS, although most browsers will react to it in varying ways).

When inserted in a layout manager, the size set will be used as a widget's preferred size, but the widget may be given a different size by the layout manager based on available space and stretch factors. The actual size given by a layout manager may be retrieved by making the widget "layout size aware", using setLayoutSizeAware(). If you have defined a "wtResize()" JavaScript method for the widget, then this method will also be called.

The default width and height of a widget is WLength::Auto.

See also: width(), height()

Reimplemented from Wt::WCompositeWidget.

◆ rootIsDecorated()

bool Wt::WTreeView::rootIsDecorated ( ) const

Returns whether toplevel items are decorated.

See also: setRootIsDecorated()

◆ scrolled()

virtual EventSignal<WScrollEvent>& Wt::WTreeView::scrolled ( )

overridevirtual

Signal emitted when scrolling.

Note: Works only if ajax is available.

Implements Wt::WAbstractItemView.

◆ scrollTo()

virtual void Wt::WTreeView::scrollTo	(	const WModelIndex &	index,
		ScrollHint	hint = `ScrollHint::EnsureVisible`
	)

overridevirtual

Scrolls the view to an item.

Scrolls the view to ensure that the item which represents the provided index is visible. A hint may indicate how the item should appear in the viewport (if possible).

Note: Currently only implemented to scroll to the correct row, not taking into account the column.

Implements Wt::WAbstractItemView.

◆ setAlternatingRowColors()

virtual void Wt::WTreeView::setAlternatingRowColors ( bool enable )

overridevirtual

Sets if alternating row colors are to be used.

Configure whether rows get alternating background colors, defined by the current CSS theme.

The default value is false.

Reimplemented from Wt::WAbstractItemView.

◆ setColumnHidden()

virtual void Wt::WTreeView::setColumnHidden	(	int	column,
		bool	hide
	)

overridevirtual

Changes the visibility of a column.

See also: isColumnHidden()

Reimplemented from Wt::WAbstractItemView.

◆ setColumnWidth()

virtual void Wt::WTreeView::setColumnWidth	(	int	column,
		const WLength &	width
	)

overridevirtual

Sets the column width.

For a model with columnCount() == N, the initial width of columns 1..N is set to 150 pixels, and column 0 will take all remaining space.

Note: The actual space occupied by each column is the column width augmented by 7 pixels for internal padding and a border.

See also: setRowHeight()

Implements Wt::WAbstractItemView.

◆ setCurrentPage()

virtual void Wt::WTreeView::setCurrentPage ( int page )

overridevirtual

Sets the current page.

When Ajax/JavaScript is not available, the view will use a paging navigation bar to allow scrolling through the data. This method can be used to change the current page.

See also: createPageNavigationBar(), pageChanged()

Implements Wt::WAbstractItemView.

◆ setExpanded()

void Wt::WTreeView::setExpanded	(	const WModelIndex &	,
		bool	expanded
	)

Expands or collapses a node.

See also: expand(), collapse()

◆ setHeaderHeight() [1/2]

void Wt::WAbstractItemView::setHeaderHeight

Sets the header height.

The default value is 20 pixels.

Note: The height must be specified in LengthUnit::Pixel units.

◆ setHeaderHeight() [2/2]

virtual void Wt::WTreeView::setHeaderHeight ( const WLength & height )

overridevirtual

Sets the header height.

The default value is 20 pixels.

Note: The height must be specified in LengthUnit::Pixel units.

Reimplemented from Wt::WAbstractItemView.

◆ setId()

virtual void Wt::WTreeView::setId ( const std::string & id )

overridevirtual

Sets the CSS Id.

Sets a custom Id. Note that the Id must be unique across the whole widget tree, can only be set right after construction and cannot be changed. This is mostly useful for in tests using a test plan that manipulates DOM elements by Id.

By default, auto-generated id's are used.

Note: An id must start with a letter ([A-Za-z]), followed by one or more letters, digits ([0-9]), hyphens ("-"), underscores ("_"), colons (":"), and periods (".").

Warning: We recommend that you leave the id of a widget unchanged. Wt uses the id to identify widgets in the JavaScript it generates, and this can often leads to bugs. If you do change the id, only change the id right after widget construction. However, usually there's a more preferable alternative, like setting the object name (WObject::setObjectName), or adding style classes (WWidget::addStyleClass).

See also: WObject::id()

Reimplemented from Wt::WCompositeWidget.

◆ setModel()

virtual void Wt::WTreeView::setModel ( const std::shared_ptr< WAbstractItemModel > & model )

overridevirtual

Sets the model.

The View will display data of the given model and changes in the model are reflected by the View.

The initial model is 0.

See also: setRootIndex()

Reimplemented from Wt::WAbstractItemView.

◆ setRootIsDecorated()

void Wt::WTreeView::setRootIsDecorated ( bool show )

Sets whether toplevel items are decorated.

By default, top level nodes have expand/collapse and other lines to display their linkage and offspring, like any node.

By setting show to false, you can hide these decorations for root nodes, and in this way mimic a plain list. You could also consider using a WTableView instead.

◆ setRowHeaderCount()

virtual void Wt::WTreeView::setRowHeaderCount ( int count )

overridevirtual

Configures the number of columns that are used as row headers.

An item view does not use the vertical header data from the model in any way, but instead you can configure data in the first column(s) to be used as a row headers.

These columns will not scroll horizontally together with the rest of the model.

The default value is 0.

Note: Currently, this property must be set before any other settings of the view and only a value of 0 or 1 is supported.

Reimplemented from Wt::WAbstractItemView.

◆ setRowHeight()

virtual void Wt::WTreeView::setRowHeight ( const WLength & rowHeight )

overridevirtual

Sets the row height.

The view renders all rows with a same height. This method configures this row height.

The default value is 20 pixels.

Note: The height must be specified in LengthUnit::Pixel units.

See also: setColumnWidth()

Reimplemented from Wt::WAbstractItemView.

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Graceful degradation

Member Function Documentation

◆ collapse()

◆ collapseAll()

◆ collapsed()

◆ currentPage()

◆ enableAjax()

◆ expand()

◆ expanded()

◆ expandToDepth()

◆ isExpanded()

◆ itemWidget()

◆ pageCount()

◆ pageSize()

◆ render()

◆ resize()

◆ rootIsDecorated()

◆ scrolled()

◆ scrollTo()

◆ setAlternatingRowColors()

◆ setColumnHidden()

◆ setColumnWidth()

◆ setCurrentPage()

◆ setExpanded()

◆ setHeaderHeight() [1/2]

◆ setHeaderHeight() [2/2]

◆ setId()

◆ setModel()

◆ setRootIsDecorated()

◆ setRowHeaderCount()

◆ setRowHeight()
