A proxy model for Wt's item models that provides column aggregation. More...

#include <Wt/WAggregateProxyModel>

Inheritance diagram for Wt::WAggregateProxyModel:

Public Member Functions
	WAggregateProxyModel (WObject *parent=0)
	Constructor. More...

virtual	~WAggregateProxyModel ()
	Destructor.

void	addAggregate (int parentColumn, int firstColumn, int lastColumn)
	Adds a new column aggregation definition. More...

virtual WModelIndex	mapFromSource (const WModelIndex &sourceIndex) const
	Maps a source model index to the proxy model. More...

virtual WModelIndex	mapToSource (const WModelIndex &proxyIndex) const
	Maps a proxy model index to the source model. More...

virtual void	setSourceModel (WAbstractItemModel *sourceModel)
	Sets the source model. More...

virtual void	expandColumn (int column)
	Expands a column. More...

virtual void	collapseColumn (int column)
	Collapses a column. More...

virtual int	columnCount (const WModelIndex &parent=WModelIndex()) const
	Returns the number of columns. More...

virtual int	rowCount (const WModelIndex &parent=WModelIndex()) const
	Returns the number of rows. More...

virtual WFlags< HeaderFlag >	headerFlags (int section, Orientation orientation=Horizontal) const
	Returns the flags for a header. More...

virtual bool	setHeaderData (int section, Orientation orientation, const boost::any &value, int role=EditRole)
	Sets header data for a column or row. More...

virtual boost::any	headerData (int section, Orientation orientation=Horizontal, int role=DisplayRole) const
	Returns the row or column header data. More...

virtual WModelIndex	parent (const WModelIndex &index) const
	Returns the parent for a model index. More...

virtual WModelIndex	index (int row, int column, const WModelIndex &parent=WModelIndex()) const
	Returns the child index for the given row and column. More...

virtual void	sort (int column, SortOrder order=AscendingOrder)
	Sorts the model according to a particular column. More...

Public Member Functions inherited from Wt::WAbstractProxyModel
	WAbstractProxyModel (WObject *parent=0)
	Constructor.

WAbstractItemModel *	sourceModel () const
	Returns the source model. More...

virtual boost::any	data (const WModelIndex &index, int role=DisplayRole) const
	Returns the data at a specific model index. More...

virtual bool	setData (const WModelIndex &index, const boost::any &value, int role=EditRole)
	Sets the data at the given model index. More...

virtual bool	setItemData (const WModelIndex &index, const DataMap &values)
	Sets the data at the given model index. More...

virtual WFlags< ItemFlag >	flags (const WModelIndex &index) const
	Returns the flags for an item. More...

virtual bool	insertColumns (int column, int count, const WModelIndex &parent=WModelIndex())
	Inserts one or more columns. More...

virtual bool	removeColumns (int column, int count, const WModelIndex &parent=WModelIndex())
	Removes columns. More...

virtual std::string	mimeType () const
	Returns a mime-type for dragging a set of indexes. More...

virtual std::vector< std::string >	acceptDropMimeTypes () const
	Returns a list of mime-types that could be accepted for a drop event. More...

virtual void	dropEvent (const WDropEvent &e, DropAction action, int row, int column, const WModelIndex &parent)
	Handles a drop event. More...

virtual void *	toRawIndex (const WModelIndex &index) const
	Converts a model index to a raw pointer that remains valid while the model's layout is changed. More...

virtual WModelIndex	fromRawIndex (void *rawIndex) const
	Converts a raw pointer to a model index. More...

Public Member Functions inherited from Wt::WAbstractItemModel
	WAbstractItemModel (WObject *parent=0)
	Creates a new data model.

virtual bool	hasChildren (const WModelIndex &index) const
	Returns if there are children at an index. More...

virtual DataMap	itemData (const WModelIndex &index) const
	Returns all data at a specific index. More...

virtual WModelIndexList	match (const WModelIndex &start, int role, const boost::any &value, int hits=-1, WFlags< MatchFlag > flags=WFlags< MatchFlag >(MatchStartsWith\|MatchWrap)) const
	Returns an index list for data items that match. More...

boost::any	data (int row, int column, int role=DisplayRole, const WModelIndex &parent=WModelIndex()) const
	Returns the data item at the given column and row. More...

virtual bool	hasIndex (int row, int column, const WModelIndex &parent=WModelIndex()) const
	Returns if an index at the given position is valid (i.e. falls within the column-row bounds). More...

virtual bool	insertRows (int row, int count, const WModelIndex &parent=WModelIndex())
	Inserts one or more rows. More...

virtual bool	removeRows (int row, int count, const WModelIndex &parent=WModelIndex())
	Removes rows. More...

bool	setHeaderData (int section, const boost::any &value)
	Sets column header data. More...

bool	insertColumn (int column, const WModelIndex &parent=WModelIndex())
	Inserts one column. More...

bool	insertRow (int row, const WModelIndex &parent=WModelIndex())
	Inserts one row. More...

bool	removeColumn (int column, const WModelIndex &parent=WModelIndex())
	Removes one column. More...

bool	removeRow (int row, const WModelIndex &parent=WModelIndex())
	Removes one row. More...

bool	setData (int row, int column, const boost::any &value, int role=EditRole, const WModelIndex &parent=WModelIndex())
	Sets data at the given row and column. More...

virtual Signal< WModelIndex, int, int > &	columnsAboutToBeInserted ()
	Signal emitted before a number of columns will be inserted. More...

virtual Signal< WModelIndex, int, int > &	columnsAboutToBeRemoved ()
	Signal emitted before a number of columns will be removed. More...

virtual Signal< WModelIndex, int, int > &	columnsInserted ()
	Signal emitted after a number of columns were inserted. More...

virtual Signal< WModelIndex, int, int > &	columnsRemoved ()
	Signal emitted after a number of columns were removed. More...

virtual Signal< WModelIndex, int, int > &	rowsAboutToBeInserted ()
	Signal emitted before a number of rows will be inserted. More...

virtual Signal< WModelIndex, int, int > &	rowsAboutToBeRemoved ()
	Signal emitted before a number of rows will be removed. More...

virtual Signal< WModelIndex, int, int > &	rowsInserted ()
	Signal emitted after a number of rows were inserted. More...

virtual Signal< WModelIndex, int, int > &	rowsRemoved ()
	Signal emitted after a number of rows were removed. More...

virtual Signal< WModelIndex, WModelIndex > &	dataChanged ()
	Signal emitted when some data was changed. More...

virtual Signal< Orientation, int, int > &	headerDataChanged ()
	Signal emitted when some header data was changed. More...

virtual Signal &	layoutAboutToBeChanged ()
	Signal emitted when the layout is about to be changed. More...

virtual Signal &	layoutChanged ()
	Signal emitted when the layout is changed. More...

virtual Signal &	modelReset ()
	Signal emitted when the model was reset. More...

Public Member Functions inherited from Wt::WObject
	WObject (WObject *parent=0)
	Create a WObject with a given parent object. More...

virtual	~WObject ()
	Destructor. More...

virtual const std::string	id () const
	Returns the (unique) identifier for this object. More...

virtual void	setObjectName (const std::string &name)
	Sets an object name. More...

virtual std::string	objectName () const
	Returns the object name. More...

void	resetLearnedSlots ()
	Resets learned stateless slot implementations. More...

template<class T >
void	resetLearnedSlot (void(T::*method)())
	Resets a learned stateless slot implementation. More...

template<class T >
WStatelessSlot *	implementStateless (void(T::*method)())
	Declares a slot to be stateless and learn client-side behaviour on first invocation. More...

template<class T >
WStatelessSlot *	implementStateless (void(T::method)(), void(T::undoMethod)())
	Declares a slot to be stateless and learn client-side behaviour in advance. More...

void	isNotStateless ()
	Marks the current function as not stateless. More...

template<class T >
WStatelessSlot *	implementJavaScript (void(T::*method)(), const std::string &jsCode)
	Provides a JavaScript implementation for a method. More...

void	addChild (WObject *child)
	Adds a child object. More...

virtual void	removeChild (WObject *child)
	Removes a child object. More...

const std::vector< WObject * > &	children () const
	Returns the children.

WObject *	parent () const
	Returns the parent object.

Additional Inherited Members
Public Types inherited from Wt::WAbstractItemModel
typedef std::map< int, boost::any >	DataMap
	Data map. More...

Public Types inherited from Wt::WObject
typedef void(WObject::*	Method) ()
	Typedef for a WObject method without arguments.

Protected Types inherited from Wt::WAbstractProxyModel
typedef std::map< WModelIndex, BaseItem * >	ItemMap
	A map for items. More...

Protected Member Functions inherited from Wt::WAbstractProxyModel
WModelIndex	createSourceIndex (int row, int column, void *ptr) const
	Create a source model index. More...

void	startShiftModelIndexes (const WModelIndex &sourceParent, int start, int count, ItemMap &items)
	Utility methods to shift items in an item map. More...

Protected Member Functions inherited from Wt::WAbstractItemModel
void	reset ()
	Resets the model and invalidate any data. More...

WModelIndex	createIndex (int row, int column, void *ptr) const
	Creates a model index for the given row and column. More...

WModelIndex	createIndex (int row, int column,::uint64_t id) const
	Creates a model index for the given row and column. More...

void	beginInsertColumns (const WModelIndex &parent, int first, int last)
	Method to be called before inserting columns. More...

void	beginInsertRows (const WModelIndex &parent, int first, int last)
	Method to be called before inserting rows. More...

void	beginRemoveColumns (const WModelIndex &parent, int first, int last)
	Method to be called before removing columns. More...

void	beginRemoveRows (const WModelIndex &parent, int first, int last)
	Method to be called before removing rows. More...

void	endInsertColumns ()
	Method to be called after inserting columns. More...

void	endInsertRows ()
	Method to be called after inserting rows. More...

void	endRemoveColumns ()
	Method to be called after removing columns. More...

void	endRemoveRows ()
	Method to be called after removing rows. More...

Protected Member Functions inherited from Wt::WObject
virtual WStatelessSlot *	getStateless (Method method)
	On-demand stateless slot implementation. More...

Static Protected Member Functions inherited from Wt::WObject
static WObject *	sender ()
	Returns the sender of the current slot call. More...

Detailed Description

A proxy model for Wt's item models that provides column aggregation.

This proxy model does not store data itself, but presents data from a source model, and presents methods to organize columns using aggregation, through which a user may navigate (usually to obtain more detailed results related to a single aggregate quantity).

To use this proxy model, you should provide a source model using setSourceModel(), and define column ranges that can be aggregated using addAggregate().

Example:

int COLS = 18;
int ROWS = 20;
// set up the source model
model_ = new WStandardItemModel(0, COLS);
std::string columns[] = {
  "Supplier",
  "2004",
    "Q1",
      "January",
      "February",
      "March",
    "Q2",
      "April",
      "May",
      "June",
    "Q3",
      "July",
      "August",
      "September",
    "Q4",
      "October",
      "November",
      "December"
};
for (unsigned i = 0; i < COLS; ++i) {
  model_->setHeaderData(i, Horizontal, columns[i]);
}
for (unsigned i = 0; i < ROWS; ++i) {
  model_->insertRow(i);
  for (unsigned j = 0; j < COLS; ++j)
    model_->setData(i, j, "col " + boost::lexical_cast<std::string>(j));
}
// set up the proxy model
WAggregateProxyModel *proxy = new WAggregateProxyModel();
proxy->setSourceModel(model_);
proxy->addAggregate(1, 2, 17);
proxy->addAggregate(2, 3, 5);
proxy->addAggregate(6, 7, 9);
proxy->addAggregate(10, 11, 13);
proxy->addAggregate(14, 15, 17);

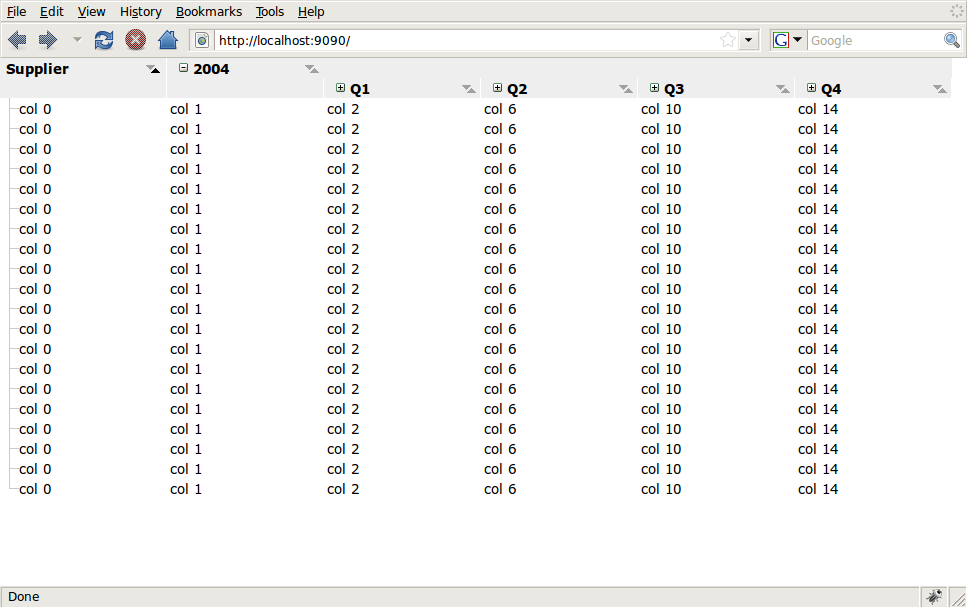

proxy->expandColumn(1); // expand 2004 -> Q1 Q2 Q3 Q4
// define a view
treeView_ = new WTreeView(root());
treeView_->setColumnBorder(Wt::black);
treeView_->setModel(proxy);
treeView_->setColumnWidth(0, 160);
treeView_->setColumnResizeEnabled(true);
treeView_->setSortingEnabled(true);

This example would render like this:

A WTreeView using a WAggregateProxyModel

Note: This model does not support dynamic changes to the column definition of the source model (i.e. insertions or deletions of source model columns).

Constructor & Destructor Documentation

Wt::WAggregateProxyModel::WAggregateProxyModel ( WObject * parent = 0 )

Constructor.

Sets up the proxy without aggregation functionality.

Member Function Documentation

void Wt::WAggregateProxyModel::addAggregate	(	int	parentColumn,
		int	firstColumn,
		int	lastColumn
	)

Adds a new column aggregation definition.

The parentColumn is the column index in the source model that acts as an aggregate for columns firstColumn to lastColumn. parentColumn must border the range defined by firstColumn to lastColumn:

parentColumn == firstColumn - 1 || parentColumn == lastColumn + 1

Note that column parameters reference column indexes in the source model.

Aggregation definitions can be nested, but should be strictly hierarchical.

The aggregate column will initially be collapsed.

Only one aggregate can be defined per parentColumn.

void Wt::WAggregateProxyModel::collapseColumn ( int column )

virtual

Collapses a column.

Collapses a column. This may only be called by a view when the Wt::ColumnIsExpandedLeft or Wt::ColumnIsExpandedRight flag is set.

The default implementation does nothing.

See also: WAggregateProxyModel

Reimplemented from Wt::WAbstractItemModel.

int Wt::WAggregateProxyModel::columnCount ( const WModelIndex & parent = WModelIndex() ) const

virtual

Returns the number of columns.

This returns the number of columns at index parent.

See also: rowCount()

Implements Wt::WAbstractItemModel.

void Wt::WAggregateProxyModel::expandColumn ( int column )

virtual

Expands a column.

Expands a column. This may only be called by a view when the Wt::ColumnIsCollapsed flag is set.

The default implementation does nothing.

See also: WAggregateProxyModel

Reimplemented from Wt::WAbstractItemModel.

boost::any Wt::WAggregateProxyModel::headerData	(	int	section,
		Orientation	orientation = `Horizontal`,
		int	role = `DisplayRole`
	)		const

virtual

Returns the row or column header data.

The default proxy implementation constructs a dummy WModelIndex with the row set to 0 and column set to section if the orientation is Wt::Horizontal, or with the row set to section and the column set to 0 if the orientation is Wt::Vertical.

The resulting section that is forwarded to sourceModel()->headerData() depends on how the WModelIndex is transformed with mapToSource().

Reimplemented from Wt::WAbstractProxyModel.

WFlags< HeaderFlag > Wt::WAggregateProxyModel::headerFlags	(	int	section,
		Orientation	orientation = `Horizontal`
	)		const

virtual

Returns the flags for a header.

The default proxy implementation constructs a dummy WModelIndex with the row set to 0 and column set to section if the orientation is Wt::Horizontal, or with the row set to section and the column set to 0 if the orientation is Wt::Vertical.

The resulting section that is forwarded to sourceModel()->headerFlags() depends on how the WModelIndex is transformed with mapToSource().

Reimplemented from Wt::WAbstractProxyModel.

WModelIndex Wt::WAggregateProxyModel::index	(	int	row,
		int	column,
		const WModelIndex &	parent = `WModelIndex()`
	)		const

virtual

Returns the child index for the given row and column.

When implementing this method, you can use createIndex() to create an index that corresponds to the item at row and column within parent.

If the location is invalid (out of bounds at the parent), then an invalid index must be returned.

See also: parent()

Implements Wt::WAbstractItemModel.

WModelIndex Wt::WAggregateProxyModel::mapFromSource ( const WModelIndex & sourceIndex ) const

virtual

Maps a source model index to the proxy model.

This method returns a model index in the proxy model that corresponds to the model index sourceIndex in the source model. This method must only be implemented for source model indexes that are mapped and thus are the result of mapToSource().

See also: mapToSource()

Implements Wt::WAbstractProxyModel.

WModelIndex Wt::WAggregateProxyModel::mapToSource ( const WModelIndex & proxyIndex ) const

virtual

Maps a proxy model index to the source model.

This method returns a model index in the source model that corresponds to the proxy model index proxyIndex.

See also: mapFromSource()

Implements Wt::WAbstractProxyModel.

WModelIndex Wt::WAggregateProxyModel::parent ( const WModelIndex & index ) const

virtual

Returns the parent for a model index.

An implementation should use createIndex() to create a model index that corresponds to the parent of a given index.

Note that the index itself may be stale (referencing a row/column within the parent that is outside the model geometry), but its parent (identified by the WModelIndex::internalPointer()) is referencing an existing parent. A stale index can only be used while the model geometry is being updated, i.e. during the emission of the corresponding [rows/columns](Being)[Removed/Inserted]() signals.

See also: index()

Implements Wt::WAbstractItemModel.

int Wt::WAggregateProxyModel::rowCount ( const WModelIndex & parent = WModelIndex() ) const

virtual

Returns the number of rows.

This returns the number of rows at index parent.

See also: columnCount()

Implements Wt::WAbstractItemModel.

bool Wt::WAggregateProxyModel::setHeaderData	(	int	section,
		Orientation	orientation,
		const boost::any &	value,
		int	role = `EditRole`
	)

virtual

Sets header data for a column or row.

Returns true if the operation was successful.

See also: headerData()

Reimplemented from Wt::WAbstractItemModel.

void Wt::WAggregateProxyModel::setSourceModel ( WAbstractItemModel * sourceModel )

virtual

Sets the source model.

The source model provides the actual data for the proxy model.

Ownership of the source model is not transferred.

Note that the source model's signals are not forwarded to the proxy model by default, but some specializations, like WBatchEditProxyModel and WSortFilterProxyModel do. If you want to reimplement data() with no changes to row or column indices, consider the use of WIdentityProxyModel.

Reimplemented from Wt::WAbstractProxyModel.

void Wt::WAggregateProxyModel::sort	(	int	column,
		Wt::SortOrder	order = `AscendingOrder`
	)

virtual

Sorts the model according to a particular column.

If the model supports sorting, then it should emit the layoutAboutToBeChanged() signal, rearrange its items, and afterwards emit the layoutChanged() signal.

See also: layoutAboutToBeChanged(), layoutChanged()

Reimplemented from Wt::WAbstractItemModel.

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
