Wt::Ext::Dialog Class Reference

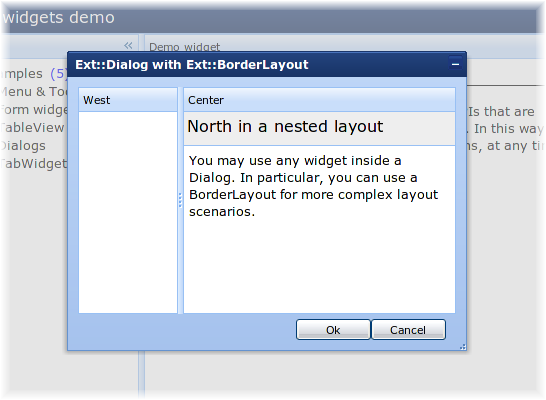

A dialog emulates a modal window that blocks the user-interface. More...

#include <Wt/Ext/Dialog>

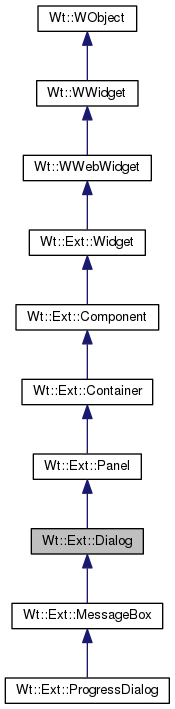

Inheritance diagram for Wt::Ext::Dialog:

Public Types
Public Types inherited from Wt::WObject
typedef void(WObject::*	Method) ()
	Typedef for a WObject method without arguments.

Public Member Functions
	Dialog (const WString &windowTitle=WString())
	Construct a Dialog with a given window title. More...
	~Dialog ()
	Destruct a Dialog.
void	setWindowTitle (const WString &windowTitle)
	Set the dialog window title. More...
const WString &	windowTitle () const
	Return the dialog window title. More...
WContainerWidget *	contents () const
	Return the dialog contents container. More...
DialogCode	exec ()
	Execute the dialog in a recursive event loop. More...
virtual void	done (DialogCode r)
	Stop a recursive event loop. More...
virtual void	accept ()
	Stop a recursive event loop with result Accepted. More...
virtual void	reject ()
	Stop a recursive event loop with result Rejected. More...
Signal< DialogCode > &	finished ()
	Signal emitted when the recursive event loop is ended. More...
DialogCode	result () const
	Return the result that was set for this dialog. More...
virtual void	setHidden (bool hidden, const WAnimation &animation=WAnimation())
	Hides or shows the widget. More...
void	addButton (Button *button)
	Add a button at the bottom of this dialog. More...
void	removeButton (Button *button)
	Remove a button from the bottom of this dialog. More...
const std::vector< Button * > &	buttons () const
	Return the list of buttons at the bottom of this dialog. More...
void	setDefaultButton (Button *button)
	Configure a default button for this dialog. More...
Button *	defaultButton () const
	Return the default button for this dialog. More...
void	setSizeGripEnabled (bool enabled)
	Configure a size grip to allow the user to resize this dialog. More...
bool	isSizeGripEnabled () const
	Return if the size grip is enabled. More...
Public Member Functions inherited from Wt::Ext::Panel
	Panel (WContainerWidget *parent=0)
	Create a new panel. More...
	~Panel ()
	Destruct a panel.
void	setTopToolBar (ToolBar *toolBar)
	Set a tool bar at the top of the panel. More...
ToolBar *	topToolBar () const
	Return the top tool bar. More...
void	setBottomToolBar (ToolBar *bottomBar)
	Set a tool bar at the bottom of the panel. More...
ToolBar *	bottomToolBar () const
	Return the top tool bar. More...
void	addFooterButton (Button *button)
	Add a button to the footer of the panel. More...
void	removeFooterButton (Button *button)
	Remove a button from the footer of the panel. More...
const std::vector< Button * > &	footerButtons () const
	Retrn the list of footer buttons. More...
void	setTitle (const WString &title)
	Set a title. More...
const WString &	title () const
	Get the title. More...
void	setTitleBar (bool enable)
	Show or hide a title bar for the panel. More...
bool	titleBar () const
	Get the title bar. More...
void	setAnimate (bool on)
	Set to use animations for the expand/collapse operation. More...
bool	animate () const
	Return if using animations for expand/collapse. More...
void	setAutoScrollBars (bool on)
	Option to show scroll bars when needed. More...
bool	autoScrollBars () const
	Return if showing scroll bars when needed. More...
void	setBorder (bool show)
	Change the border around the panel. More...
bool	border () const
	Get the border setting. More...
void	setCollapsed (bool on)
	Set the panel expanded or callapsed. More...
void	collapse ()
	Collapse the panel. More...
void	expand ()
	Expand the panel. More...
bool	isCollapsed () const
	Return if the panel is collapsed. More...
void	setCollapsible (bool on)
	Allow the user to collapse/expand the panel. More...
bool	isCollapsible () const
	Return if the user may collapse/expand the panel. More...
void	setResizable (bool on)
	Allow the user to resize the panel. More...
bool	isResizable () const
	Return if the user may resize the panel. More...
JSignal &	collapsed ()
	Signal emitted when the panel is collapsed. More...
JSignal &	expanded ()
	Signal emitted when the panel is expanded. More...
virtual void	refresh ()
	Refresh the widget. More...
Public Member Functions inherited from Wt::Ext::Container
	Container (WContainerWidget *parent=0)
	Create a new container. More...
virtual	~Container ()
	Destroy the container.
void	setLayout (WLayout *layout)
	Set a layout manager for the container. More...
WLayout *	layout ()
	Get the layout manager that was set for the container. More...
Public Member Functions inherited from Wt::Ext::Component
void	setEnabled (bool how)
	Enables or disables the widget. More...
void	enable ()
	Enables the widget.
void	disable ()
	Disables the widget.
Public Member Functions inherited from Wt::Ext::Widget
	~Widget ()
	Delete a widget.
Public Member Functions inherited from Wt::WWebWidget
	WWebWidget (WContainerWidget *parent=0)
	Construct a WebWidget with a given parent. More...
virtual void	setPositionScheme (PositionScheme scheme)
	Sets the CSS position scheme. More...
virtual PositionScheme	positionScheme () const
	Returns the CSS position scheme. More...
virtual void	setOffsets (const WLength &offset, WFlags< Side > sides=All)
	Sets CSS offsets for a non-statically positioned widget. More...
virtual WLength	offset (Side s) const
	Returns a CSS offset. More...
virtual void	resize (const WLength &width, const WLength &height)
	Resizes the widget. More...
virtual WLength	width () const
	Returns the width. More...
virtual WLength	height () const
	Returns the height. More...
virtual void	setMinimumSize (const WLength &width, const WLength &height)
	Sets a minimum size. More...
virtual WLength	minimumWidth () const
	Returns the minimum width. More...
virtual WLength	minimumHeight () const
	Returns the minimum height. More...
virtual void	setMaximumSize (const WLength &width, const WLength &height)
	Sets a maximum size. More...
virtual WLength	maximumWidth () const
	Returns the maximum width. More...
virtual WLength	maximumHeight () const
	Returns the maximum height. More...
virtual void	setLineHeight (const WLength &height)
	Sets the CSS line height for contained text.
virtual WLength	lineHeight () const
	Returns the CSS line height for contained text. More...
virtual void	setFloatSide (Side s)
	Specifies a CSS float side. More...
virtual Side	floatSide () const
	Returns the CSS float side. More...
virtual void	setClearSides (WFlags< Side > sides)
	Sets the sides that should be cleared of floats. More...
virtual WFlags< Side >	clearSides () const
	Returns the sides that should remain empty. More...
virtual void	setMargin (const WLength &margin, WFlags< Side > sides=All)
	Sets CSS margins around the widget. More...
virtual WLength	margin (Side side) const
	Returns a CSS margin set. More...
virtual void	setHiddenKeepsGeometry (bool enabled)
	Sets whether the widget keeps its geometry when hidden. More...
virtual bool	hiddenKeepsGeometry () const
	Returns whether the widget keeps its geometry when hidden. More...
virtual bool	isHidden () const
	Returns whether the widget is set hidden. More...
virtual bool	isVisible () const
	Returns whether the widget is visible. More...
virtual void	setDisabled (bool disabled)
	Sets whether the widget is disabled. More...
virtual bool	isDisabled () const
	Returns whether the widget is set disabled. More...
virtual bool	isEnabled () const
	Returns whether the widget is enabled. More...
virtual void	setPopup (bool popup)
	Lets the widget overlay over other sibling widgets. More...
virtual bool	isPopup () const
	Returns whether the widget is overlayed. More...
virtual void	setInline (bool isInline)
	Sets whether the widget is displayed inline or as a block. More...
virtual bool	isInline () const
	Returns whether the widget is displayed inline or as block. More...
virtual void	setDecorationStyle (const WCssDecorationStyle &style)
	Sets a CSS decoration style. More...
virtual WCssDecorationStyle &	decorationStyle ()
	Returns the decoration style of this widget. More...
virtual void	setStyleClass (const WString &styleClass)
	Sets (one or more) CSS style classes. More...
virtual WString	styleClass () const
	Returns the CSS style class. More...
virtual void	addStyleClass (const WString &styleClass, bool force=false)
	Adds a CSS style class. More...
virtual void	removeStyleClass (const WString &styleClass, bool force=false)
	Removes a CSS style class. More...
virtual bool	hasStyleClass (const WString &styleClass) const
	Returns whether the widget has a style class.
virtual void	setVerticalAlignment (AlignmentFlag alignment, const WLength &length=WLength())
	Sets the vertical alignment. More...
virtual AlignmentFlag	verticalAlignment () const
	Returns the vertical alignment. More...
virtual WLength	verticalAlignmentLength () const
	Returns the fixed vertical alignment that was set. More...
virtual void	setToolTip (const WString &text, TextFormat textFormat=PlainText)
	Sets a tooltip. More...
virtual void	setDeferredToolTip (bool enable, TextFormat textFormat=PlainText)
	Enable deferred tooltip. More...
virtual WString	toolTip () const
	Returns the tooltip.
virtual void	setAttributeValue (const std::string &name, const WString &value)
	Sets an attribute value. More...
virtual WString	attributeValue (const std::string &name) const
	Returns an attribute value. More...
virtual void	setJavaScriptMember (const std::string &name, const std::string &value)
	Sets a JavaScript member. More...
virtual std::string	javaScriptMember (const std::string &name) const
	Returns the value of a JavaScript member. More...
virtual void	callJavaScriptMember (const std::string &name, const std::string &args)
	Calls a JavaScript member. More...
virtual void	load ()
	Loads content just before the widget is used. More...
virtual bool	loaded () const
	Returns whether this widget has been loaded. More...
virtual void	setId (const std::string &id)
	Sets the CSS Id. More...
virtual WWidget *	find (const std::string &name)
	Finds a descendent widget by name. More...
virtual WWidget *	findById (const std::string &id)
	Finds a descendent widget by id.
virtual void	setSelectable (bool selectable)
	Sets as selectable. More...
virtual void	doJavaScript (const std::string &javascript)
	Executes the given JavaScript statements when the widget is rendered or updated. More...
virtual const std::string	id () const
	Returns the (unique) identifier for this object. More...
void	setLoadLaterWhenInvisible (bool)
	Change the way the widget is loaded when invisible. More...
std::string	htmlTagName () const
	returns the current html tag name More...
void	setHtmlTagName (const std::string &tag)
	set the custom HTML tag name More...
const std::vector< WWidget * > &	children () const
	Returns contained widgets. More...
Signal &	childrenChanged ()
	Signal emitted when children have been added or removed. More...
virtual void	setCanReceiveFocus (bool enabled)
	Sets whether the widget can receive focus. More...
virtual bool	canReceiveFocus () const
	Returns whether the widget can receive focus. More...
virtual bool	setFirstFocus ()
	Set focus on the widget's first descendant. More...
virtual void	setFocus (bool focus)
	Sets focus. More...
virtual bool	hasFocus () const
	Returns whether the widget currently has the focus.
virtual void	setTabIndex (int index)
	Sets the tab index. More...
virtual int	tabIndex () const
	Returns the tab index. More...
EventSignal &	blurred ()
	Signal emitted when the widget lost focus. More...
EventSignal &	focussed ()
	Signal emitted when the widget recieved focus. More...
virtual bool	scrollVisibilityEnabled () const WT_CXX11ONLY(finaloverride)
	Returns whether scroll visibility detection is enabled for this widget. More...
virtual void	setScrollVisibilityEnabled (bool enabled) WT_CXX11ONLY(finaloverride)
	Sets whether scroll visibility detection is enabled for this widget. More...
virtual int	scrollVisibilityMargin () const WT_CXX11ONLY(finaloverride)
	Returns the margin around the viewport within which the widget is considered visible. More...
virtual void	setScrollVisibilityMargin (int margin) WT_CXX11ONLY(finaloverride)
	Sets the margin around the viewport within which the widget is considered visible. More...
virtual Signal< bool > &	scrollVisibilityChanged () WT_CXX11ONLY(finaloverride)
	Signal triggered when the scroll visibility of this widget changes. More...
virtual bool	isScrollVisible () const WT_CXX11ONLY(finaloverride)
	Returns whether this widget is currently considered scroll visible. More...
virtual void	setThemeStyleEnabled (bool enabled)
	Sets whether theme styling for a widget is enabled or disabled. More...
virtual bool	isThemeStyleEnabled () const
	Returns whether this widget is currently styled by the chosen theme. More...
Public Member Functions inherited from Wt::WWidget
virtual	~WWidget ()
	Destructor. More...
WWidget *	parent () const
	Returns the parent widget. More...
virtual void	removeChild (WObject *child)
	Removes a child object. More...
void	setWidth (const WLength &width)
	Sets the width. More...
void	setHeight (const WLength &height)
	Sets the height. More...
virtual void	positionAt (const WWidget *widget, Orientation orientation=Vertical)
	Positions a widget next to another widget. More...
virtual void	toggleStyleClass (const WString &styleClass, bool add, bool force=false)
	Toggles a CSS style class.
std::string	jsRef () const
	Returns a JavaScript expression to the corresponding DOM node. More...
void	setFocus ()
	Sets focus. More...
virtual void	acceptDrops (const std::string &mimeType, const WString &hoverStyleClass=WString())
	Sets a mime type to be accepted for dropping. More...
virtual void	stopAcceptDrops (const std::string &mimeType)
	Indicates that a mime type is no longer accepted for dropping. More...
virtual void	setObjectName (const std::string &name)
	Sets an object name. More...
virtual void	htmlText (std::ostream &out)
	Streams the (X)HTML representation. More...
bool	isRendered () const
	Returns whether the widget is rendered. More...
void	hide ()
	Hides the widget. More...
void	animateHide (const WAnimation &animation)
	Hides the widget using an animation. More...
void	show ()
	Shows the widget. More...
void	animateShow (const WAnimation &animation)
	Shows the widget using an animation. More...
void	enable ()
	Enables the widget. More...
void	disable ()
	Disable thes widget. More...
bool	layoutSizeAware () const
	Returns whether the widget is layout size aware. More...
Public Member Functions inherited from Wt::WObject
	WObject (WObject *parent=0)
	Create a WObject with a given parent object. More...
virtual	~WObject ()
	Destructor. More...
virtual std::string	objectName () const
	Returns the object name. More...
void	resetLearnedSlots ()
	Resets learned stateless slot implementations. More...
template<class T >
void	resetLearnedSlot (void(T::*method)())
	Resets a learned stateless slot implementation. More...
template<class T >
WStatelessSlot *	implementStateless (void(T::*method)())
	Declares a slot to be stateless and learn client-side behaviour on first invocation. More...
template<class T >
WStatelessSlot *	implementStateless (void(T::*method)(), void(T::*undoMethod)())
	Declares a slot to be stateless and learn client-side behaviour in advance. More...
void	isNotStateless ()
	Marks the current function as not stateless. More...
template<class T >
WStatelessSlot *	implementJavaScript (void(T::*method)(), const std::string &jsCode)
	Provides a JavaScript implementation for a method. More...
void	addChild (WObject *child)
	Adds a child object. More...
const std::vector< WObject * > &	children () const
	Returns the children.
WObject *	parent () const
	Returns the parent object.

Additional Inherited Members
Static Public Member Functions inherited from Wt::WWebWidget
static WString	escapeText (const WString &text, bool newlinesToo=false)
	Escape HTML control characters in the text, to display literally (deprecated). More...
static std::string &	escapeText (std::string &text, bool newlinestoo=false)
	Escape HTML control characters in the text, to display literally (deprecated). More...
static bool	removeScript (WString &text)
	Remove tags/attributes from text that are not passive (deprecated). More...
static std::string	jsStringLiteral (const std::string &v, char delimiter= '\'')
	Turn a UTF8 encoded string into a JavaScript string literal. More...
Static Public Member Functions inherited from Wt::WWidget
static WString	tr (const char *key)
	Short hand for WString::tr() More...
Protected Member Functions inherited from Wt::Ext::Component
virtual void	propagateSetEnabled (bool enabled)
	Propagates that a widget was enabled or disabled through children. More...
Protected Member Functions inherited from Wt::WWebWidget
virtual void	enableAjax ()
	Progresses to an Ajax-enabled widget. More...
virtual WStatelessSlot *	getStateless (Method method)
	On-demand stateless slot implementation. More...
virtual void	render (WFlags< RenderFlag > flags)
	Renders the widget. More...
Protected Member Functions inherited from Wt::WWidget
void	setLayoutSizeAware (bool sizeAware)
	Sets the widget to be aware of its size set by a layout manager. More...
virtual void	layoutSizeChanged (int width, int height)
	Virtual method that indicates a size change. More...
	WWidget (WContainerWidget *parent=0)
	Creates a widget. More...
virtual void	dropEvent (WDropEvent dropEvent)
	Handles a drop event. More...
virtual int	boxPadding (Orientation orientation) const
	Returns the widget's built-in padding. More...
virtual int	boxBorder (Orientation orientation) const
	Returns the widget's built-in border width. More...
void	scheduleRender (WFlags< RepaintFlag > flags=0)
	Schedules rerendering of the widget. More...
Static Protected Member Functions inherited from Wt::WObject
static WObject *	sender ()
	Returns the sender of the current slot call. More...

Detailed Description

A dialog emulates a modal window that blocks the user-interface.

A modal window blocks the user interface, and does not allow the user to interact with any other part of the user interface until the dialog is closed.

There are two ways for using a Dialog window.

The easiest way is using the exec() method: after creating a Dialog window, call the exec() method which blocks until the dialog window is closed, and returns the dialog result. Typically, an OK button will be connected to the accept() slot, and a Cancel button to the reject() slot. This solution has the drawback that it is not scalable to many concurrent sessions, since every recursive event loop (which is running during the exec() method) locks a thread. Therefore it is only suitable for software that doesn't need to scale (to thousands of users).

A second way is by treating the Dialog as another widget. The dialog may be closed by calling accept(), reject() or done() (or connecting a signal to one of these methods). This will hide the dialog and emit the finished() signal, which you then can listen for to process the dialog result and delete the dialog. Unlike other widgets, a dialog is hidden by default. You must use the method show() or setHidden(true) to show the dialog.

Since Dialog is a Panel, the dialog contents may be layed out inside the dialog using layout managers. To be compatible with WDialog howevere, a contents() method is provided which creates a WFitLayout that fits a single WContainerWidget widget inside the dialog.

Only one Dialog window may exist at any time in a single application. An attempt to instantiate a second dialog will result in undefined behaviour.

The API is a superset of the WDialog API:

• has additional methods to manage standard buttons (addButton(), removeButton(), buttons());
• may be resized by the user (unless disabled using setSizeGripEnabled()).

An example Dialog using BorderLayouts

Member Enumeration Documentation

enum Wt::Ext::Dialog::DialogCode

The result of a modal dialog execution.

Enumerator
Rejected	Dialog closed with reject()
Accepted	Dialog closed with accept()

Constructor & Destructor Documentation

Wt::Ext::Dialog::Dialog

(

const WString &

windowTitle = WString()

)

Construct a Dialog with a given window title.

Only a single Dialog may be constructed at any time. Unlike other widgets, a dialog should not need be added to a container widget to be displayed.

Member Function Documentation

void Wt::Ext::Dialog::accept ( )

virtual

Stop a recursive event loop with result Accepted.

See also

done(DialogCode), reject()

void Wt::Ext::Dialog::addButton

(

Button *

button

)

Add a button at the bottom of this dialog.

Is the same as Panel::addFooterButton()

const std::vector<Button *>& Wt::Ext::Dialog::buttons

(

)

const

Return the list of buttons at the bottom of this dialog.

Is the same as Panel::footerButtons()

WContainerWidget * Wt::Ext::Dialog::contents

(

)

const

Return the dialog contents container.

The first invocation to this method creates a single WContainerWidget that is fitted in the panel content area, like this:

WContainerWidget *contents = new WContainerWidget();
dialog->setLayout(new WFitLayout());
dialog->layout()->addWidget(contents);

Button * Wt::Ext::Dialog::defaultButton

(

)

const

Return the default button for this dialog.

See also

setDefaultButton(), Button::isDefault()

void Wt::Ext::Dialog::done ( DialogCode  r )

virtual

Stop a recursive event loop.

Sets the dialog result, and ends a recursive event loop that was started using the exec() method.

Dialog::DialogCode Wt::Ext::Dialog::exec

(

)

Execute the dialog in a recursive event loop.

Executes the dialog. This blocks the current thread of execution until one of done(DialogCode), accept() or reject() is called.

Warning: using exec() does not scale to many concurrent sessions, since the thread is locked.

See also

done(DialogCode r), accept(), reject()

Signal<DialogCode>& Wt::Ext::Dialog::finished

(

)

Signal emitted when the recursive event loop is ended.

See also

done(DialogCode), accept(), reject()

bool Wt::Ext::Dialog::isSizeGripEnabled

(

)

const

Return if the size grip is enabled.

See also

setSizeGripEnabled()

void Wt::Ext::Dialog::reject ( )

virtual

Stop a recursive event loop with result Rejected.

See also

done(DialogCode), accept()

void Wt::Ext::Dialog::removeButton

(

Button *

button

)

Remove a button from the bottom of this dialog.

The button must have been previously added using addButton(). Is the same as Panel::removeFooterButton()

DialogCode Wt::Ext::Dialog::result

(

)

const

Return the result that was set for this dialog.

See also

done(DialogCode)

void Wt::Ext::Dialog::setDefaultButton

(

Button *

button

)

Configure a default button for this dialog.

The button must have been previously added using addButton(). A default button is activated when the user presses Return in the dialog.

See also

Button::setDefault()

void Wt::Ext::Dialog::setHidden ( bool  hidden, const WAnimation &  animation = WAnimation()  )

virtual

Hides or shows the widget.

Hides or show the widget (including all its descendant widgets). When setting hidden = false, this widget and all descendant widgets that are not hidden will be shown. A widget is only visible if it and all its ancestors in the widget tree are visible, which may be checked using isVisible().

Note

hide() and show() are considered to be stateless slots by default. If you override setHidden() and need to modify server state whenever it is called, you'll need to call WObject::isNotStateless().

Reimplemented from Wt::Ext::Widget.

Reimplemented in Wt::Ext::MessageBox.

void Wt::Ext::Dialog::setSizeGripEnabled

(

bool

enabled

)

Configure a size grip to allow the user to resize this dialog.

When a size grip is enabled, then the user may resize the dialog window.

The default is true.

void Wt::Ext::Dialog::setWindowTitle

(

const WString &

windowTitle

)

Set the dialog window title.

Is the same as Panel::setTitle(const WString&)

const WString& Wt::Ext::Dialog::windowTitle

(

)

const

Return the dialog window title.

Is the same as Panel::title()
