An OAuth authorization (and authentication) service provider. More...

#include <Wt/Auth/OAuthService>

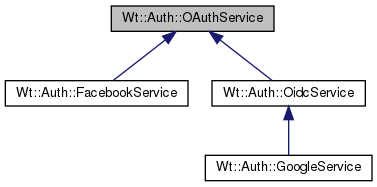

Inheritance diagram for Wt::Auth::OAuthService:

Public Member Functions
	OAuthService (const AuthService &baseAuth)
	Constructor. More...

virtual	~OAuthService ()
	Destructor.

const AuthService &	baseAuth () const
	Returns the basic authentication service.

virtual OAuthProcess *	createProcess (const std::string &scope) const =0
	Creates a new authorization process. More...

virtual std::string	name () const =0
	Returns the provider name. More...

virtual WString	description () const =0
	Returns the provider description. More...

virtual int	popupWidth () const =0
	Returns the desired width for the popup window. More...

virtual int	popupHeight () const =0
	Returns the desired height for the popup window. More...

virtual std::string	authenticationScope () const =0
	Returns the scope needed for authentication. More...

virtual std::string	redirectEndpoint () const =0
	Returns the redirection endpoint URL. More...

virtual std::string	redirectEndpointPath () const
	Returns the deployment path of the redirection endpoint. More...

virtual std::string	authorizationEndpoint () const =0
	Returns the authorization endpoint URL. More...

virtual std::string	tokenEndpoint () const =0
	Returns the token endpoint URL. More...

virtual std::string	clientId () const =0
	Returns the client ID. More...

virtual std::string	clientSecret () const =0
	Returns the client secret. More...

virtual std::string	encodeState (const std::string &sessionId) const
	Derives a state value from the session ID. More...

virtual std::string	decodeState (const std::string &state) const
	Validates and decodes a state parameter. More...

virtual Http::Method	tokenRequestMethod () const
	Returns the HTTP method used for the token request. More...

virtual ClientSecretMethod	clientSecretMethod () const =0
	Returns the method to transfer the client secret. More...

void	configureRedirectEndpoint () const
	Configures the static resource implementing the redirect endpoint. More...

Detailed Description

An OAuth authorization (and authentication) service provider.

This class implements an OAuth client (2.0 draft), which can be used to allow the user to authorize access to information provided by a third-party OAuth service provider. This allows, among other things, for a user to safely authenticate with your web application without needing to store or even handle his authorization credentials (such as a password), a pattern called "OAuth2 connect".

The OAuth protocol provides a standard for a user to authorize access to protected resources made available by a third party service. The process starts with the user authenticating on an "authorization page" and authorizing access. This results eventually in an access token for the web application. The actual use of this token, to obtain certain information (such as an authenticated identity) from the third party is however not standardized, and there are many other uses of OAuth besides authentication.

Because the focus of the Wt::Auth library is authentication, the OAuth class also contains the implementation for using the access token for authentication (OAuthProcess::getIdentity()).

Like all service classes, this class holds only configuration state. Thus, once configured, it can be safely shared between multiple sessions since its state (the configuration) is read-only. A "const OAuthService" object is thus thread-safe.

The OAuth authorization protocol, including the subsequent use for authentication, consists of a number of consecutive steps, some of which require user interaction, and some which require the use of remote web services. The state machine for this process is implemented in an OAuthProcess. To use OAuth, you need to create such a process and listen for state changes.

Usage example:

const OAuthService *oauth = ...;
// Creates an icon which prompts for authentication using this OAuth service.
WImage *icon = new WImage("css/oauth-" + auth->name() + ".png", icons);
icon->setToolTip(auth->description());
// Creates a new process for authentication, which is started by a click on the icon
process = oauth->createProcess(oauth->authenticationScope());
icon->clicked().connect(process_, &OAuthProcess::startAuthenticate);
// And capture the result in a method.
process_->authenticated().connect(this, &MyWidget::oauthDone);

Constructor & Destructor Documentation

◆ OAuthService()

Wt::Auth::OAuthService::OAuthService ( const AuthService & baseAuth )

Constructor.

Creates a new OAuth service.

Member Function Documentation

◆ authenticationScope()

virtual std::string Wt::Auth::OAuthService::authenticationScope ( ) const

pure virtual

Returns the scope needed for authentication.

This returns the scope that is needed (and sufficient) for obtaining identity information, and thus to authenticate the user.

See also: OAuthProcess::getIdentity(), OAuthProcess::startAuthenticate()

Implemented in Wt::Auth::OidcService, and Wt::Auth::FacebookService.

◆ authorizationEndpoint()

virtual std::string Wt::Auth::OAuthService::authorizationEndpoint ( ) const

pure virtual

Returns the authorization endpoint URL.

This is a remote URL which hosts the OAuth authorization user interface. This URL is loaded in the popup window at the start of an authorization process.

Implemented in Wt::Auth::OidcService, and Wt::Auth::FacebookService.

◆ clientId()

virtual std::string Wt::Auth::OAuthService::clientId ( ) const

pure virtual

Returns the client ID.

This is the identification for this web application with the OAuth authorization server.

Implemented in Wt::Auth::OidcService, and Wt::Auth::FacebookService.

◆ clientSecret()

virtual std::string Wt::Auth::OAuthService::clientSecret ( ) const

pure virtual

Returns the client secret.

This is the secret credentials for this web application with the OAuth authorization server.

Implemented in Wt::Auth::OidcService, and Wt::Auth::FacebookService.

◆ clientSecretMethod()

virtual ClientSecretMethod Wt::Auth::OAuthService::clientSecretMethod ( ) const

pure virtual

Returns the method to transfer the client secret.

Some implementations (like Facebook) encode the secret in the GET request parameters, while this is explicitly not allowed in the OAuth 2.0 specification.

The default implementation returns HttpAuthorizationBasic (the recommended method).

Implemented in Wt::Auth::OidcService, and Wt::Auth::FacebookService.

◆ configureRedirectEndpoint()

void Wt::Auth::OAuthService::configureRedirectEndpoint ( ) const

Configures the static resource implementing the redirect endpoint.

By default, this endpoint is configured whenever it's necessary, but one may also configure it in advance, for example in a multi-process deployment (FastCGI).

◆ createProcess()

virtual OAuthProcess* Wt::Auth::OAuthService::createProcess ( const std::string & scope ) const

pure virtual

Creates a new authorization process.

This creates a new authorization process for the indicated scope. Valid names for the scope are service provider dependent.

See also: authenticationScope()

Implemented in Wt::Auth::OidcService, and Wt::Auth::FacebookService.

◆ decodeState()

std::string Wt::Auth::OAuthService::decodeState ( const std::string & state ) const

virtual

Validates and decodes a state parameter.

This function returns the sessionId that is encoded in the state, if the signature validates that it is an authentic state generated by encodeState().

◆ description()

virtual WString Wt::Auth::OAuthService::description ( ) const

pure virtual

Returns the provider description.

This returns a description useful for e.g. tool tips on a login icon.

See also: name()

Implemented in Wt::Auth::OidcService, and Wt::Auth::FacebookService.

◆ encodeState()

std::string Wt::Auth::OAuthService::encodeState ( const std::string & sessionId ) const

virtual

Derives a state value from the session ID.

The state value protects the authorization protocol against misuse, and is used to connect an authorization code response with a particular request.

In the default implementation the state is the sessionId, crytpographically signed. This signature is verified in decodeState().

◆ name()

virtual std::string Wt::Auth::OAuthService::name ( ) const

pure virtual

Returns the provider name.

This is a short identifier.

See also: description()

Implemented in Wt::Auth::OidcService, and Wt::Auth::FacebookService.

◆ popupHeight()

virtual int Wt::Auth::OAuthService::popupHeight ( ) const

pure virtual

Returns the desired height for the popup window.

See also: popupWidth()

Implemented in Wt::Auth::OidcService, and Wt::Auth::FacebookService.

◆ popupWidth()

virtual int Wt::Auth::OAuthService::popupWidth ( ) const

pure virtual

Returns the desired width for the popup window.

See also: popupHeight()

Implemented in Wt::Auth::OidcService, and Wt::Auth::FacebookService.

◆ redirectEndpoint()

virtual std::string Wt::Auth::OAuthService::redirectEndpoint ( ) const

pure virtual

Returns the redirection endpoint URL.

This is the local URL to which the browser is redirect from the service provider, after the authorization process. You need to configure this URL with the third party authentication service.

A static resource will be deployed at this URL.

See also: WServer::addResource()

Implemented in Wt::Auth::OidcService, and Wt::Auth::FacebookService.

◆ redirectEndpointPath()

std::string Wt::Auth::OAuthService::redirectEndpointPath ( ) const

virtual

Returns the deployment path of the redirection endpoint.

This returns the path at which the static resource is deployed that corresponds to the redirectEndpoint().

The default implementation will derive this path from the redirectEndpoint() URL.

Reimplemented in Wt::Auth::FacebookService, and Wt::Auth::GoogleService.

◆ tokenEndpoint()

virtual std::string Wt::Auth::OAuthService::tokenEndpoint ( ) const

pure virtual

Returns the token endpoint URL.

This is a remote URL which hosts a web-service that generates access tokens.

Implemented in Wt::Auth::OidcService, and Wt::Auth::FacebookService.

◆ tokenRequestMethod()

Http::Method Wt::Auth::OAuthService::tokenRequestMethod ( ) const

virtual

Returns the HTTP method used for the token request.

While the current OAuth 2.0 draft mandates the use of POST, some implementations (like Facebook) use URL-encoding and a GET request.

The default implementation returns Http::Post (corresponding to the current draft).

Reimplemented in Wt::Auth::FacebookService.
