A widget which popups to assist in editing a textarea or lineedit. More...

#include <Wt/WSuggestionPopup.h>

Inheritance diagram for Wt::WSuggestionPopup:

Classes
struct	Options
	A configuration object to generate a matcher and replacer JavaScript function. More...

Public Types
typedef PopupTrigger	Trigger
	Typedef for enum Wt::PopupTrigger.

Public Types inherited from Wt::WObject
typedef void(WObject::*	Method) ()
	Typedef for a WObject method without arguments.

Public Member Functions
	WSuggestionPopup (const Options &options)
	Creates a suggestion popup. More...

	WSuggestionPopup (const std::string &matcherJS, const std::string &replacerJS)
	Creates a suggestion popup with given matcherJS and replacerJS. More...

void	forEdit (WFormWidget *edit, WFlags< PopupTrigger > popupTriggers=PopupTrigger::Editing)
	Lets this suggestion popup assist in editing an edit field. More...

void	removeEdit (WFormWidget *edit)
	Removes the edit field from the list of assisted editors. More...

void	showAt (WFormWidget *edit)
	Shows the suggestion popup at an edit field. More...

void	clearSuggestions ()
	Clears the list of suggestions. More...

void	addSuggestion (const WString &suggestionText, const WString &suggestionValue=WString::Empty)
	Adds a new suggestion. More...

void	setModel (const std::shared_ptr< WAbstractItemModel > &model)
	Sets the model to be used for the suggestions. More...

std::shared_ptr< WAbstractItemModel >	model () const
	Returns the data model. More...

void	setModelColumn (int index)
	Sets the column in the model to be used for the items. More...

void	setDefaultIndex (int row)
	Sets a default selected value. More...

int	defaultIndex () const
	Returns the default value. More...

void	setFilterLength (int count)
	Sets the minimum input length before showing the popup. More...

int	filterLength () const
	Returns the filter length. More...

Signal< WString > &	filterModel ()
	Signal that indicates that the model should be filtered. More...

Signal< int, WFormWidget * > &	activated ()
	Signal emitted when a suggestion was selected. More...

void	setDropDownIconUnfiltered (bool isUnfiltered)
	When drop down icon is clicked the popup content will be unfiltered. More...

void	setAutoSelectEnabled (bool enabled)
	When the popup is opened the first item is automatically selected. More...

int	currentItem () const
	Returns the last activated index. More...

void	setEditRole (ItemDataRole role)
	Sets the role used for editing the line edit with a chosen item. More...

ItemDataRole	editRole () const

Public Member Functions inherited from Wt::WPopupWidget
	WPopupWidget (std::unique_ptr< WWidget > impl)
	Constructor. More...

virtual	~WPopupWidget ()
	Destructor.

void	setAnchorWidget (WWidget *widget, Orientation orientation=Orientation::Vertical)
	Sets an anchor widget. More...

Orientation	orientation () const
	Returns the orientation. More...

void	setTransient (bool transient, int autoHideDelay=0)
	Sets transient property. More...

bool	isTransient () const
	Returns whether the popup is transient. More...

int	autoHideDelay () const
	Returns the auto-hide delay. More...

virtual void	setHidden (bool hidden, const WAnimation &animation=WAnimation()) override
	Hides or shows the widget. More...

Signal &	hidden ()
	Signal emitted when the popup is hidden. More...

Signal &	shown ()
	Signal emitted when the popup is shown. More...

Public Member Functions inherited from Wt::WCompositeWidget
	WCompositeWidget ()
	Creates a WCompositeWidget. More...

	WCompositeWidget (std::unique_ptr< WWidget > implementation)
	Creates a WCompositeWidget with given implementation. More...

virtual std::vector< WWidget * >	children () const override
	Returns child widgets. More...

virtual std::unique_ptr< WWidget >	removeWidget (WWidget *widget) override
	Removes a child widget.

virtual void	setObjectName (const std::string &name) override
	Sets an object name. More...

virtual std::string	objectName () const override
	Returns the object name. More...

virtual const std::string	id () const override
	Returns the (unique) identifier for this object. More...

virtual void	setPositionScheme (PositionScheme scheme) override
	Sets the CSS position scheme. More...

virtual PositionScheme	positionScheme () const override
	Returns the CSS position scheme. More...

virtual void	setOffsets (const WLength &offset, WFlags< Side > sides=AllSides) override
	Sets CSS offsets for a non-statically positioned widget. More...

virtual WLength	offset (Side s) const override
	Returns a CSS offset. More...

virtual void	resize (const WLength &width, const WLength &height) override
	Resizes the widget. More...

virtual WLength	width () const override
	Returns the width. More...

virtual WLength	height () const override
	Returns the height. More...

virtual void	setMinimumSize (const WLength &width, const WLength &height) override
	Sets a minimum size. More...

virtual WLength	minimumWidth () const override
	Returns the minimum width. More...

virtual WLength	minimumHeight () const override
	Returns the minimum height. More...

virtual void	setMaximumSize (const WLength &width, const WLength &height) override
	Sets a maximum size. More...

virtual WLength	maximumWidth () const override
	Returns the maximum width. More...

virtual WLength	maximumHeight () const override
	Returns the maximum height. More...

virtual void	setLineHeight (const WLength &height) override
	Sets the CSS line height for contained text.

virtual WLength	lineHeight () const override
	Returns the CSS line height for contained text. More...

virtual void	setFloatSide (Side s) override
	Specifies a CSS float side. More...

virtual Side	floatSide () const override
	Returns the CSS float side. More...

virtual void	setClearSides (WFlags< Side > sides) override
	Sets the sides that should be cleared of floats. More...

virtual WFlags< Side >	clearSides () const override
	Returns the sides that should remain empty. More...

virtual void	setMargin (const WLength &margin, WFlags< Side > sides=AllSides) override
	Sets CSS margins around the widget. More...

virtual WLength	margin (Side side) const override
	Returns a CSS margin set. More...

virtual void	setHiddenKeepsGeometry (bool enabled) override
	Sets whether the widget keeps its geometry when hidden. More...

virtual bool	hiddenKeepsGeometry () const override
	Returns whether the widget keeps its geometry when hidden. More...

virtual bool	isHidden () const override
	Returns whether the widget is set hidden. More...

virtual bool	isVisible () const override
	Returns whether the widget is visible. More...

virtual void	setDisabled (bool disabled) override
	Sets whether the widget is disabled. More...

virtual bool	isDisabled () const override
	Returns whether the widget is set disabled. More...

virtual bool	isEnabled () const override
	Returns whether the widget is enabled. More...

virtual void	setPopup (bool popup) override
	Lets the widget overlay over other sibling widgets. More...

virtual bool	isPopup () const override
	Returns whether the widget is overlayed. More...

virtual void	setInline (bool isInline) override
	Sets whether the widget is displayed inline or as a block. More...

virtual bool	isInline () const override
	Returns whether the widget is displayed inline or as block. More...

virtual void	setDecorationStyle (const WCssDecorationStyle &style) override
	Sets a CSS decoration style. More...

virtual WCssDecorationStyle &	decorationStyle () override
	Returns the decoration style of this widget. More...

virtual void	setStyleClass (const WString &styleClass) override
	Sets (one or more) CSS style classes. More...

virtual WString	styleClass () const override
	Returns the CSS style class. More...

virtual void	addStyleClass (const WString &styleClass, bool force=false) override
	Adds a CSS style class. More...

virtual void	removeStyleClass (const WString &styleClass, bool force=false) override
	Removes a CSS style class. More...

virtual bool	hasStyleClass (const WString &styleClass) const override
	Returns whether the widget has a style class.

virtual void	setVerticalAlignment (AlignmentFlag alignment, const WLength &length=WLength::Auto) override
	Sets the vertical alignment. More...

virtual AlignmentFlag	verticalAlignment () const override
	Returns the vertical alignment. More...

virtual WLength	verticalAlignmentLength () const override
	Returns the fixed vertical alignment that was set. More...

virtual void	setToolTip (const WString &text, TextFormat textFormat=TextFormat::Plain) override
	Sets a tooltip. More...

virtual WString	toolTip () const override
	Returns the tooltip.

virtual void	setDeferredToolTip (bool enable, TextFormat textFormat=TextFormat::Plain) override
	Enable deferred tooltip. More...

virtual void	refresh () override
	Refresh the widget. More...

virtual void	setAttributeValue (const std::string &name, const WString &value) override
	Sets an attribute value. More...

virtual WString	attributeValue (const std::string &name) const override
	Returns an attribute value. More...

virtual void	setJavaScriptMember (const std::string &name, const std::string &value) override
	Sets a JavaScript member. More...

virtual std::string	javaScriptMember (const std::string &name) const override
	Returns the value of a JavaScript member. More...

virtual void	callJavaScriptMember (const std::string &name, const std::string &args) override
	Calls a JavaScript member. More...

virtual void	load () override
	Loads content just before the widget is used. More...

virtual bool	loaded () const override
	Returns whether this widget has been loaded. More...

virtual void	setCanReceiveFocus (bool enabled) override
	Sets whether the widget can receive focus. More...

virtual bool	canReceiveFocus () const override
	Returns whether the widget can receive focus. More...

virtual void	setFocus (bool focus) override
	Sets focus. More...

virtual bool	setFirstFocus () override
	Set focus on the widget's first descendant. More...

virtual bool	hasFocus () const override
	Returns whether the widget currently has the focus.

virtual void	setTabIndex (int index) override
	Sets the tab index. More...

virtual int	tabIndex () const override
	Returns the tab index. More...

virtual void	setId (const std::string &id) override
	Sets the CSS Id. More...

virtual WWidget *	find (const std::string &name) override
	Finds a descendent widget by name. More...

virtual WWidget *	findById (const std::string &name) override
	Finds a descendent widget by id.

virtual void	setSelectable (bool selectable) override
	Sets as selectable. More...

virtual void	doJavaScript (const std::string &js) override
	Executes the given JavaScript statements when the widget is rendered or updated. More...

virtual void	propagateSetEnabled (bool enabled) override
	Propagates that a widget was enabled or disabled through children. More...

virtual bool	scrollVisibilityEnabled () const final override
	Returns whether scroll visibility detection is enabled for this widget. More...

virtual void	setScrollVisibilityEnabled (bool enabled) final override
	Sets whether scroll visibility detection is enabled for this widget. More...

virtual int	scrollVisibilityMargin () const final override
	Returns the margin around the viewport within which the widget is considered visible. More...

virtual void	setScrollVisibilityMargin (int margin) final override
	Sets the margin around the viewport within which the widget is considered visible. More...

virtual Signal< bool > &	scrollVisibilityChanged () final override
	Signal triggered when the scroll visibility of this widget changes. More...

virtual bool	isScrollVisible () const final override
	Returns whether this widget is currently considered scroll visible. More...

virtual void	setThemeStyleEnabled (bool enabled) final override
	Sets whether theme styling for a widget is enabled or disabled. More...

virtual bool	isThemeStyleEnabled () const final override
	Returns whether this widget is currently styled by the chosen theme. More...

virtual std::unique_ptr< WWidget >	removeWidget (WWidget *widget)
	Removes a child widget.

template<typename Widget >
std::unique_ptr< Widget >	removeWidget (Widget *widget)
	Removes a child widget. More...

void	setFocus ()
	Sets focus. More...

virtual void	setFocus (bool focus)=0
	Sets focus. More...

Public Member Functions inherited from Wt::WWidget
virtual	~WWidget ()
	Destructor. More...

WWidget *	parent () const
	Returns the parent widget.

template<typename Widget >
std::unique_ptr< Widget >	removeWidget (Widget *widget)
	Removes a child widget. More...

std::unique_ptr< WWidget >	removeFromParent ()
	Removes the widget from its parent. More...

void	setWidth (const WLength &width)
	Sets the width. More...

void	setHeight (const WLength &height)
	Sets the height. More...

virtual void	positionAt (const WWidget *widget, Orientation orientation=Orientation::Vertical)
	Positions a widget next to another widget. More...

virtual void	toggleStyleClass (const WString &styleClass, bool add, bool force=false)
	Toggles a CSS style class.

std::string	jsRef () const
	Returns a JavaScript expression to the corresponding DOM node. More...

void	setFocus ()
	Sets focus. More...

virtual void	acceptDrops (const std::string &mimeType, const WString &hoverStyleClass=WString())
	Sets a mime type to be accepted for dropping. More...

virtual void	stopAcceptDrops (const std::string &mimeType)
	Indicates that a mime type is no longer accepted for dropping. More...

virtual void	htmlText (std::ostream &out)
	Streams the (X)HTML representation. More...

bool	isRendered () const
	Returns whether the widget is rendered. More...

void	hide ()
	Hides the widget. More...

void	animateHide (const WAnimation &animation)
	Hides the widget using an animation. More...

void	show ()
	Shows the widget. More...

void	animateShow (const WAnimation &animation)
	Shows the widget using an animation. More...

void	enable ()
	Enables the widget. More...

void	disable ()
	Disable thes widget. More...

bool	layoutSizeAware () const
	Returns whether the widget is layout size aware. More...

Public Member Functions inherited from Wt::WObject
void	addChild (std::unique_ptr< WObject > child)
	Add a child WObject whose lifetime is determined by this WObject.

template<typename Child >
Child *	addChild (std::unique_ptr< Child > child)
	Add a child WObject, returning a raw pointer. More...

std::unique_ptr< WObject >	removeChild (WObject *child)
	Remove a child WObject, so its lifetime is no longer determined by this WObject.

template<typename Child >
std::unique_ptr< Child >	removeChild (Child *child)
	Remove a child WObject, so its lifetime is no longer determined by this WObject. More...

void	resetLearnedSlots ()
	Resets learned stateless slot implementations. More...

template<class T >
void	resetLearnedSlot (void(T::*method)())
	Resets a learned stateless slot implementation. More...

template<class T >
WStatelessSlot *	implementStateless (void(T::*method)())
	Declares a slot to be stateless and learn client-side behaviour on first invocation. More...

template<class T >
WStatelessSlot *	implementStateless (void(T::method)(), void(T::undoMethod)())
	Declares a slot to be stateless and learn client-side behaviour in advance. More...

void	isNotStateless ()
	Marks the current function as not stateless. More...

template<class T >
WStatelessSlot *	implementJavaScript (void(T::*method)(), const std::string &jsCode)
	Provides a JavaScript implementation for a method. More...

Public Member Functions inherited from Wt::Core::observable
	observable () noexcept
	Default constructor.

virtual	~observable ()
	Destructor. More...

template<typename... Args, typename C >
auto	bindSafe (void(C::*method)(Args...)) noexcept
	Protects a method call against object destruction. More...

template<typename... Args, typename C >
auto	bindSafe (void(C::*method)(Args...) const) const noexcept
	Protects a const method call against object destruction. More...

template<typename Function >
auto	bindSafe (const Function &function) noexcept
	Protects a function against object destruction. More...

Static Public Member Functions
static std::string	generateMatcherJS (const Options &options)
	Creates a standard matcher JavaScript function. More...

static std::string	generateReplacerJS (const Options &options)
	Creates a standard replacer JavaScript function. More...

Static Public Member Functions inherited from Wt::WWidget
static WString	tr (const char *key)
	Short hand for WString::tr() More...

Protected Member Functions
virtual void	render (WFlags< RenderFlag > flags) override
	Renders the widget. More...

Protected Member Functions inherited from Wt::WCompositeWidget
virtual void	enableAjax () override
	Progresses to an Ajax-enabled widget. More...

void	setImplementation (std::unique_ptr< WWidget > widget)
	Set the implementation widget. More...

template<typename Widget >
Widget *	setImplementation (std::unique_ptr< Widget > widget)
	Sets the implementation widget, returning a raw pointer. More...

template<typename W , typename... Args>
W *	setNewImplementation (Args &&... args)
	Creates the implementation widget and sets it, returning a raw pointer. More...

WWidget *	implementation ()
	Get the implementation widget. More...

virtual int	boxPadding (Orientation orientation) const override
	Returns the widget's built-in padding. More...

virtual int	boxBorder (Orientation orientation) const override
	Returns the widget's built-in border width. More...

Protected Member Functions inherited from Wt::WWidget
void	setLayoutSizeAware (bool sizeAware)
	Sets the widget to be aware of its size set by a layout manager. More...

virtual void	layoutSizeChanged (int width, int height)
	Virtual method that indicates a size change. More...

	WWidget ()
	Creates a widget.

virtual void	dropEvent (WDropEvent dropEvent)
	Handles a drop event. More...

void	scheduleRender (WFlags< RepaintFlag > flags=None)
	Schedules rerendering of the widget. More...

virtual WStatelessSlot *	getStateless (Method method) override
	On-demand stateless slot implementation. More...

Detailed Description

A widget which popups to assist in editing a textarea or lineedit.

This widget may be associated with one or more WFormWidgets (typically a WLineEdit or a WTextArea).

The popup provides the user with suggestions to enter input. The popup can be used by one or more editors, using forEdit(). The popup will show when the user starts editing the edit field, or when the user opens the suggestions explicitly using a drop down icon or with the down key. The popup positions itself intelligently just below or just on top of the edit field. It offers a list of suggestions that match in some way with the current edit field, and dynamically adjusts this list. The implementation for matching individual suggestions with the current text is provided through a JavaScript function. This function may also highlight part(s) of the suggestions to provide feed-back on how they match.

WSuggestionPopup is an MVC view class, using a simple WStringListModel by default. You can set a custom model using setModel(). The model can provide different text for the suggestion text (Wt::ItemDataRole::Display) and value (editRole()). The member methods clearSuggestions() and addSuggestion() manipulate this model.

By default, the popup implements all filtering client-side. To support large datasets, you may enable server-side filtering of suggestions based on the input. The server-side filtering may provide a coarse filtering using a fixed size prefix of the entered text, and complement the client-side filtering. To enable server-side filtering, use setFilterLength() and listen to filter notification using the modelFilter() signal. Whenever a filter event is generated you can adjust the model's content according to the filter (e.g. using a WSortFilterProxyModel). By using setMaximumSize() you can also limit the maximum height of the popup, in which case scrolling is supported (similar to a combo-box).

The class is initialized with an Options struct which configures how suggestion filtering and result editing is done. Alternatively, you can provide two JavaScript functions, one for filtering the suggestions, and one for editing the value of the textarea when a suggestion is selected.

The matcherJS function must have the following JavaScript signature:

function (editElement) {
  // fetch the location of cursor and current text in the editElement.

  // return a function that matches a given suggestion with the current value of the editElement.
  return function(suggestion) {

    // 1) if suggestion is null, simply return the current text 'value'
    // 2) check suggestion if it matches
    // 3) add highlighting markup to suggestion if necessary

    return { match : ...,      // does the suggestion match ? (boolean)
             suggestion : ...  // modified suggestion with highlighting
            };
  }
}

The replacerJS function that edits the value has the following JavaScript signature.

function (editElement, suggestionText, suggestionValue) {
  // editElement is the form element which must be edited.
  // suggestionText is the displayed text for the matched suggestion.
  // suggestionValue is the stored value for the matched suggestion.

  // computed modifiedEditValue and modifiedPos ...

  editElement.value = modifiedEditValue;
  editElement.selectionStart = edit.selectionEnd = modifiedPos;
}

To style the suggestions, you should style the <span> element inside this widget, and the <span>."sel" element to style the current selection.

Usage example:

// options for email address suggestions
Wt::WSuggestionPopup::Options contactOptions
= { "<b>",         // highlightBeginTag
    "</b>",        // highlightEndTag
    ',',           // listSeparator      (for multiple addresses)
    " \n",        // whitespace
    "-., \"@\n;", // wordSeparators     (within an address)
    ", "           // appendReplacedText (prepare next email address)
   };

Wt::WSuggestionPopup *popup = addNew<Wt::WSuggestionPopup>(contactOptions);
Wt::WTextArea *textEdit = addNew<Wt::WTextArea>();
popup->forEdit(textEdit);

// load popup data
for (unsigned i = 0; i < contacts.size(); ++i)
  popup->addSuggestion(contacts[i].formatted(), contacts[i].formatted());

Note: This widget is not supposed to be added explicitly, as it is a global widget (much like WPopupWidget). Managing its lifetime can be achieved with WContainerWidget::addNew() or WObject::addChild(), where the former uses the latter. Do NOT bind it to a template using WTemplate::bindWidget(), WTemplate::bindNew() or WLayout::addWidget(). If bound this way, the placeholder is not replaced with the correct list of suggestions, since this causes the widget to be placed into the widget tree twice.

A screenshot of this example:

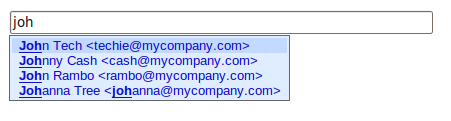

An example WSuggestionPopup (default)

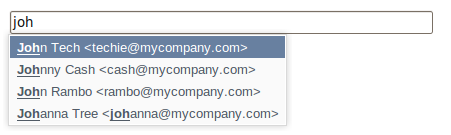

An example WSuggestionPopup (polished)

When using the DropDownIcon trigger, an additional style class is provided for the edit field: Wt-suggest-dropdown, which renders the icon to the right inside the edit field. This class may be used to customize how the drop down icon is rendered.

Note: This widget requires JavaScript support.

Constructor & Destructor Documentation

◆ WSuggestionPopup() [1/2]

Wt::WSuggestionPopup::WSuggestionPopup ( const Options & options )

Creates a suggestion popup.

The popup using a standard matcher and replacer implementation that is configured using the provided options.

See also: generateMatcherJS(), generateReplacerJS()

◆ WSuggestionPopup() [2/2]

Wt::WSuggestionPopup::WSuggestionPopup	(	const std::string &	matcherJS,
		const std::string &	replacerJS
	)

Creates a suggestion popup with given matcherJS and replacerJS.

See supra for the expected signature of the matcher and replace JavaScript functions.

Member Function Documentation

◆ activated()

Signal<int, WFormWidget *>& Wt::WSuggestionPopup::activated ( )

Signal emitted when a suggestion was selected.

The selected item is passed as the first argument and the editor as the second.

◆ addSuggestion()

void Wt::WSuggestionPopup::addSuggestion	(	const WString &	suggestionText,
		const WString &	suggestionValue = `WString::Empty`
	)

Adds a new suggestion.

This adds an entry to the underlying model. The suggestionText is set as Wt::ItemDataRole::Display and the suggestionValue (which is inserted into the edit field on selection) is set as editRole().

See also: clearSuggestions(), setModel()

◆ clearSuggestions()

void Wt::WSuggestionPopup::clearSuggestions ( )

Clears the list of suggestions.

This clears the underlying model.

See also: addSuggestion()

◆ currentItem()

int Wt::WSuggestionPopup::currentItem ( ) const

Returns the last activated index.

Returns -1 if the popup hasn't been activated yet.

See also: activated()

◆ defaultIndex()

int Wt::WSuggestionPopup::defaultIndex ( ) const

Returns the default value.

See also: setDefaultValue()

◆ editRole()

ItemDataRole Wt::WSuggestionPopup::editRole ( ) const

Returns the role used for editing the line edit.

setEditRole()

◆ filterLength()

int Wt::WSuggestionPopup::filterLength ( ) const

Returns the filter length.

See also: setFilterLength()

◆ filterModel()

Signal<WString>& Wt::WSuggestionPopup::filterModel ( )

Signal that indicates that the model should be filtered.

The argument is the initial input. When Editing is used as edit trigger, its length will always equal the filterLength(). When DropDownIcon is used as edit trigger, the input length may be less than filterLength(), and the the signal will be called repeatedly as the user provides more input.

For example, if you are using a WSortFilterProxyModel, you could react to this signal with:

void MyClass::filterSuggestions(const WString& filter)
{
  proxyModel->setFilterRegExp(filter + ".*");
}

◆ forEdit()

void Wt::WSuggestionPopup::forEdit	(	WFormWidget *	edit,
		WFlags< PopupTrigger >	popupTriggers = `PopupTrigger::Editing`
	)

Lets this suggestion popup assist in editing an edit field.

A single suggestion popup may assist in several edits by repeated calls of this method.

The popupTriggers control how editing is triggered (either by the user editing the field by entering keys or by an explicit drop down menu that is shown inside the edit).

See also: removeEdit()

◆ generateMatcherJS()

std::string Wt::WSuggestionPopup::generateMatcherJS ( const Options & options )

static

Creates a standard matcher JavaScript function.

This returns a JavaScript function that provides a standard implementation for the matching input, based on the given options.

◆ generateReplacerJS()

std::string Wt::WSuggestionPopup::generateReplacerJS ( const Options & options )

static

Creates a standard replacer JavaScript function.

This returns a JavaScript function that provides a standard implementation for reacting to a match activation, editing the line edit text.

◆ model()

std::shared_ptr<WAbstractItemModel> Wt::WSuggestionPopup::model ( ) const

Returns the data model.

See also: setModel()

◆ removeEdit()

void Wt::WSuggestionPopup::removeEdit ( WFormWidget * edit )

Removes the edit field from the list of assisted editors.

The editor will no longer be assisted by this popup widget.

See also: forEdit().

◆ render()

void Wt::WSuggestionPopup::render ( WFlags< RenderFlag > flags )

overrideprotectedvirtual

Renders the widget.

This function renders the widget (or an update for the widget), after this has been scheduled using scheduleRender().

The default implementation will render the widget by serializing changes to JavaScript and HTML. You may want to reimplement this widget if you have been postponing some of the layout / rendering implementation until the latest moment possible. In that case you should make sure you call the base implementation however.

Reimplemented from Wt::WPopupWidget.

◆ setAutoSelectEnabled()

void Wt::WSuggestionPopup::setAutoSelectEnabled ( bool enabled )

When the popup is opened the first item is automatically selected.

This cannot be changed after the widget is rendered. The default value is true.

◆ setDefaultIndex()

void Wt::WSuggestionPopup::setDefaultIndex ( int row )

Sets a default selected value.

row is the model row that is selected by default (only if it matches the current input).

The default value is -1, indicating no default.

◆ setDropDownIconUnfiltered()

void Wt::WSuggestionPopup::setDropDownIconUnfiltered ( bool isUnfiltered )

When drop down icon is clicked the popup content will be unfiltered.

See also: forEdit() and enum PopupTrigger

◆ setEditRole()

void Wt::WSuggestionPopup::setEditRole ( ItemDataRole role )

Sets the role used for editing the line edit with a chosen item.

The default value is ItemDataRole::User.

◆ setFilterLength()

void Wt::WSuggestionPopup::setFilterLength ( int count )

Sets the minimum input length before showing the popup.

When the user has typed this much characters, filterModel() is emitted which allows you to filter the model based on the initial input. The filtering is done as long as the model indicates that results are partial by setting a ItemDataRole::StyleClass of "Wt-more-data" on the last item.

The default value is 0.

A value of -1 is a equivalent to 0 but filtering is always applied as if the last item always has "Wt-more-data" (for backwards compatibility)

See also: filterModel()

◆ setModel()

void Wt::WSuggestionPopup::setModel ( const std::shared_ptr< WAbstractItemModel > & model )

Sets the model to be used for the suggestions.

The model may not be 0.

The default value is a WStringListModel that is owned by the suggestion popup.

The Wt::ItemDataRole::Display is used for the suggestion text. The editRole() is used for the suggestion value, unless empty, in which case the suggestion text is used as value.

See also: setModelColumn(int)

◆ setModelColumn()

void Wt::WSuggestionPopup::setModelColumn ( int index )

Sets the column in the model to be used for the items.

The column index in the model will be used to retrieve data.
