A widget that holds and manages child widgets. More...

#include <Wt/WContainerWidget>

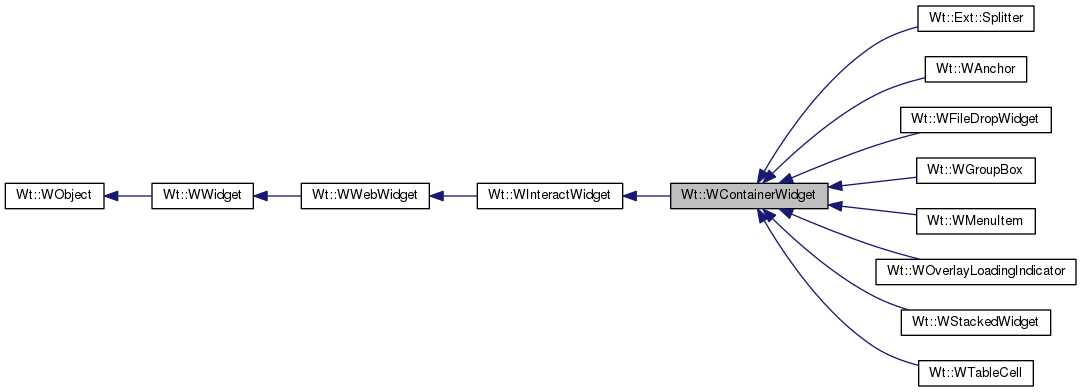

Inheritance diagram for Wt::WContainerWidget:

[legend]

Public Types
Public Types inherited from Wt::WObject
typedef void(WObject::*	Method) ()
	Typedef for a WObject method without arguments.

Public Member Functions
	WContainerWidget (WContainerWidget *parent=0)
	Creates a container with optional parent.

	~WContainerWidget ()
	Destructor.

void	setLayout (WLayout *layout)
	Sets a layout manager for the container. More...

void	setLayout (WLayout *layout, WFlags< AlignmentFlag > alignment)
	Sets a layout manager for the container (deprecated). More...

WLayout *	layout ()
	Returns the layout manager that was set for the container. More...

virtual void	addWidget (WWidget *widget)
	Adds a child widget to this container. More...

virtual void	insertBefore (WWidget widget, WWidget before)
	Inserts a child widget in this container, before another widget. More...

virtual void	insertWidget (int index, WWidget *widget)
	Inserts a child widget in this container at given index. More...

virtual void	removeWidget (WWidget *widget)
	Removes a child widget from this container. More...

virtual void	clear ()
	Removes and deletes all child widgets. More...

virtual int	indexOf (WWidget *widget) const
	Returns the index of a widget.

virtual WWidget *	widget (int index) const
	Returns the widget at index

virtual int	count () const
	Returns the number of widgets in this container.

void	setContentAlignment (WFlags< AlignmentFlag > contentAlignment)
	Specifies how child widgets must be aligned within the container. More...

void	setPadding (const WLength &padding, WFlags< Side > sides=All)
	Sets padding inside the widget. More...

WLength	padding (Side side) const
	Returns the padding set for the widget. More...

WFlags< AlignmentFlag >	contentAlignment () const
	Returns the alignment of children. More...

void	setOverflow (Overflow overflow, WFlags< Orientation > orientation=(Horizontal\|Vertical))
	Sets how overflow of contained children must be handled. More...

void	setList (bool list, bool ordered=false)
	Renders the container as an HTML list. More...

bool	isList () const
	Returns if this container is rendered as a List. More...

bool	isUnorderedList () const
	Returns if this container is rendered as an Unordered List. More...

bool	isOrderedList () const
	Returns if this container is rendered as an Ordered List. More...

EventSignal< WScrollEvent > &	scrolled ()
	Event signal emitted when scrolling in the widget. More...

int	scrollTop () const
	return the number of pixels the container is scrolled horizontally More...

int	scrollLeft () const
	return the number of pixels the container is scrolled vertically More...

Public Member Functions inherited from Wt::WInteractWidget
	WInteractWidget (WContainerWidget *parent=0)
	Create an InteractWidget with optional parent.

EventSignal< WKeyEvent > &	keyWentDown ()
	Event signal emitted when a keyboard key is pushed down. More...

EventSignal< WKeyEvent > &	keyPressed ()
	Event signal emitted when a "character" was entered. More...

EventSignal< WKeyEvent > &	keyWentUp ()
	Event signal emitted when a keyboard key is released. More...

EventSignal &	enterPressed ()
	Event signal emitted when enter was pressed. More...

EventSignal &	escapePressed ()
	Event signal emitted when escape was pressed. More...

EventSignal< WMouseEvent > &	clicked ()
	Event signal emitted when a mouse key was clicked on this widget. More...

EventSignal< WMouseEvent > &	doubleClicked ()
	Event signal emitted when a mouse key was double clicked on this widget. More...

EventSignal< WMouseEvent > &	mouseWentDown ()
	Event signal emitted when a mouse key was pushed down on this widget. More...

EventSignal< WMouseEvent > &	mouseWentUp ()
	Event signal emitted when a mouse key was released on this widget. More...

EventSignal< WMouseEvent > &	mouseWentOut ()
	Event signal emitted when the mouse went out of this widget. More...

EventSignal< WMouseEvent > &	mouseWentOver ()
	Event signal emitted when the mouse entered this widget. More...

EventSignal< WMouseEvent > &	mouseMoved ()
	Event signal emitted when the mouse moved over this widget. More...

EventSignal< WMouseEvent > &	mouseDragged ()
	Event signal emitted when the mouse is dragged over this widget. More...

EventSignal< WMouseEvent > &	mouseWheel ()
	Event signal emitted when the mouse scroll wheel was used. More...

EventSignal< WTouchEvent > &	touchStarted ()
	Event signal emitted when a finger is placed on the screen. More...

EventSignal< WTouchEvent > &	touchEnded ()
	Event signal emitted when a finger is removed from the screen. More...

EventSignal< WTouchEvent > &	touchMoved ()
	Event signal emitted when a finger, which is already placed on the screen, is moved across the screen. More...

EventSignal< WGestureEvent > &	gestureStarted ()
	Event signal emitted when a gesture is started. More...

EventSignal< WGestureEvent > &	gestureChanged ()
	Event signal emitted when a gesture is changed. More...

EventSignal< WGestureEvent > &	gestureEnded ()
	Event signal emitted when a gesture is ended. More...

void	setDraggable (const std::string &mimeType, WWidget dragWidget=0, bool isDragWidgetOnly=false, WObject sourceWidget=0)
	Configure dragging for drag and drop. More...

void	unsetDraggable ()
	Disable drag & drop for this widget. More...

void	setMouseOverDelay (int delay)
	Sets a delay for the mouse over event. More...

int	mouseOverDelay () const
	Returns the mouse over signal delay. More...

virtual void	setPopup (bool popup)
	Lets the widget overlay over other sibling widgets. More...

virtual void	load ()
	Loads content just before the widget is used. More...

virtual bool	isEnabled () const
	Returns whether the widget is enabled. More...

Public Member Functions inherited from Wt::WWebWidget
	WWebWidget (WContainerWidget *parent=0)
	Construct a WebWidget with a given parent. More...

virtual void	setPositionScheme (PositionScheme scheme)
	Sets the CSS position scheme. More...

virtual PositionScheme	positionScheme () const
	Returns the CSS position scheme. More...

virtual void	setOffsets (const WLength &offset, WFlags< Side > sides=All)
	Sets CSS offsets for a non-statically positioned widget. More...

virtual WLength	offset (Side s) const
	Returns a CSS offset. More...

virtual void	resize (const WLength &width, const WLength &height)
	Resizes the widget. More...

virtual WLength	width () const
	Returns the width. More...

virtual WLength	height () const
	Returns the height. More...

virtual void	setMinimumSize (const WLength &width, const WLength &height)
	Sets a minimum size. More...

virtual WLength	minimumWidth () const
	Returns the minimum width. More...

virtual WLength	minimumHeight () const
	Returns the minimum height. More...

virtual void	setMaximumSize (const WLength &width, const WLength &height)
	Sets a maximum size. More...

virtual WLength	maximumWidth () const
	Returns the maximum width. More...

virtual WLength	maximumHeight () const
	Returns the maximum height. More...

virtual void	setLineHeight (const WLength &height)
	Sets the CSS line height for contained text.

virtual WLength	lineHeight () const
	Returns the CSS line height for contained text. More...

virtual void	setFloatSide (Side s)
	Specifies a CSS float side. More...

virtual Side	floatSide () const
	Returns the CSS float side. More...

virtual void	setClearSides (WFlags< Side > sides)
	Sets the sides that should be cleared of floats. More...

virtual WFlags< Side >	clearSides () const
	Returns the sides that should remain empty. More...

virtual void	setMargin (const WLength &margin, WFlags< Side > sides=All)
	Sets CSS margins around the widget. More...

virtual WLength	margin (Side side) const
	Returns a CSS margin set. More...

virtual void	setHiddenKeepsGeometry (bool enabled)
	Sets whether the widget keeps its geometry when hidden. More...

virtual bool	hiddenKeepsGeometry () const
	Returns whether the widget keeps its geometry when hidden. More...

virtual void	setHidden (bool hidden, const WAnimation &animation=WAnimation())
	Hides or shows the widget. More...

virtual bool	isHidden () const
	Returns whether the widget is set hidden. More...

virtual bool	isVisible () const
	Returns whether the widget is visible. More...

virtual void	setDisabled (bool disabled)
	Sets whether the widget is disabled. More...

virtual bool	isDisabled () const
	Returns whether the widget is set disabled. More...

virtual bool	isPopup () const
	Returns whether the widget is overlayed. More...

virtual void	setInline (bool isInline)
	Sets whether the widget is displayed inline or as a block. More...

virtual bool	isInline () const
	Returns whether the widget is displayed inline or as block. More...

virtual void	setDecorationStyle (const WCssDecorationStyle &style)
	Sets a CSS decoration style. More...

virtual WCssDecorationStyle &	decorationStyle ()
	Returns the decoration style of this widget. More...

virtual void	setStyleClass (const WString &styleClass)
	Sets (one or more) CSS style classes. More...

virtual WString	styleClass () const
	Returns the CSS style class. More...

virtual void	addStyleClass (const WString &styleClass, bool force=false)
	Adds a CSS style class. More...

virtual void	removeStyleClass (const WString &styleClass, bool force=false)
	Removes a CSS style class. More...

virtual bool	hasStyleClass (const WString &styleClass) const
	Returns whether the widget has a style class.

virtual void	setVerticalAlignment (AlignmentFlag alignment, const WLength &length=WLength())
	Sets the vertical alignment. More...

virtual AlignmentFlag	verticalAlignment () const
	Returns the vertical alignment. More...

virtual WLength	verticalAlignmentLength () const
	Returns the fixed vertical alignment that was set. More...

virtual void	setToolTip (const WString &text, TextFormat textFormat=PlainText)
	Sets a tooltip. More...

virtual void	setDeferredToolTip (bool enable, TextFormat textFormat=PlainText)
	Enable deferred tooltip. More...

virtual WString	toolTip () const
	Returns the tooltip.

virtual void	refresh ()
	Refresh the widget. More...

virtual void	setAttributeValue (const std::string &name, const WString &value)
	Sets an attribute value. More...

virtual WString	attributeValue (const std::string &name) const
	Returns an attribute value. More...

virtual void	setJavaScriptMember (const std::string &name, const std::string &value)
	Sets a JavaScript member. More...

virtual std::string	javaScriptMember (const std::string &name) const
	Returns the value of a JavaScript member. More...

virtual void	callJavaScriptMember (const std::string &name, const std::string &args)
	Calls a JavaScript member. More...

virtual bool	loaded () const
	Returns whether this widget has been loaded. More...

virtual void	setId (const std::string &id)
	Sets the CSS Id. More...

virtual WWidget *	find (const std::string &name)
	Finds a descendent widget by name. More...

virtual WWidget *	findById (const std::string &id)
	Finds a descendent widget by id.

virtual void	setSelectable (bool selectable)
	Sets as selectable. More...

virtual void	doJavaScript (const std::string &javascript)
	Executes the given JavaScript statements when the widget is rendered or updated. More...

virtual const std::string	id () const
	Returns the (unique) identifier for this object. More...

void	setLoadLaterWhenInvisible (bool)
	Change the way the widget is loaded when invisible. More...

std::string	htmlTagName () const
	returns the current html tag name More...

void	setHtmlTagName (const std::string &tag)
	set the custom HTML tag name More...

const std::vector< WWidget * > &	children () const
	Returns contained widgets. More...

Signal &	childrenChanged ()
	Signal emitted when children have been added or removed. More...

virtual void	setCanReceiveFocus (bool enabled)
	Sets whether the widget can receive focus. More...

virtual bool	canReceiveFocus () const
	Returns whether the widget can receive focus. More...

virtual bool	setFirstFocus ()
	Set focus on the widget's first descendant. More...

virtual void	setFocus (bool focus)
	Sets focus. More...

virtual bool	hasFocus () const
	Returns whether the widget currently has the focus.

virtual void	setTabIndex (int index)
	Sets the tab index. More...

virtual int	tabIndex () const
	Returns the tab index. More...

EventSignal &	blurred ()
	Signal emitted when the widget lost focus. More...

EventSignal &	focussed ()
	Signal emitted when the widget recieved focus. More...

virtual bool	scrollVisibilityEnabled () const WT_CXX11ONLY(finaloverride)
	Returns whether scroll visibility detection is enabled for this widget. More...

virtual void	setScrollVisibilityEnabled (bool enabled) WT_CXX11ONLY(finaloverride)
	Sets whether scroll visibility detection is enabled for this widget. More...

virtual int	scrollVisibilityMargin () const WT_CXX11ONLY(finaloverride)
	Returns the margin around the viewport within which the widget is considered visible. More...

virtual void	setScrollVisibilityMargin (int margin) WT_CXX11ONLY(finaloverride)
	Sets the margin around the viewport within which the widget is considered visible. More...

virtual Signal< bool > &	scrollVisibilityChanged () WT_CXX11ONLY(finaloverride)
	Signal triggered when the scroll visibility of this widget changes. More...

virtual bool	isScrollVisible () const WT_CXX11ONLY(finaloverride)
	Returns whether this widget is currently considered scroll visible. More...

virtual void	setThemeStyleEnabled (bool enabled)
	Sets whether theme styling for a widget is enabled or disabled. More...

virtual bool	isThemeStyleEnabled () const
	Returns whether this widget is currently styled by the chosen theme. More...

Public Member Functions inherited from Wt::WWidget
virtual	~WWidget ()
	Destructor. More...

WWidget *	parent () const
	Returns the parent widget. More...

virtual void	removeChild (WObject *child)
	Removes a child object. More...

void	setWidth (const WLength &width)
	Sets the width. More...

void	setHeight (const WLength &height)
	Sets the height. More...

virtual void	positionAt (const WWidget *widget, Orientation orientation=Vertical)
	Positions a widget next to another widget. More...

virtual void	toggleStyleClass (const WString &styleClass, bool add, bool force=false)
	Toggles a CSS style class.

std::string	jsRef () const
	Returns a JavaScript expression to the corresponding DOM node. More...

void	setFocus ()
	Sets focus. More...

virtual void	acceptDrops (const std::string &mimeType, const WString &hoverStyleClass=WString())
	Sets a mime type to be accepted for dropping. More...

virtual void	stopAcceptDrops (const std::string &mimeType)
	Indicates that a mime type is no longer accepted for dropping. More...

virtual void	setObjectName (const std::string &name)
	Sets an object name. More...

virtual void	htmlText (std::ostream &out)
	Streams the (X)HTML representation. More...

bool	isRendered () const
	Returns whether the widget is rendered. More...

void	hide ()
	Hides the widget. More...

void	animateHide (const WAnimation &animation)
	Hides the widget using an animation. More...

void	show ()
	Shows the widget. More...

void	animateShow (const WAnimation &animation)
	Shows the widget using an animation. More...

void	enable ()
	Enables the widget. More...

void	disable ()
	Disable thes widget. More...

bool	layoutSizeAware () const
	Returns whether the widget is layout size aware. More...

Public Member Functions inherited from Wt::WObject
	WObject (WObject *parent=0)
	Create a WObject with a given parent object. More...

virtual	~WObject ()
	Destructor. More...

virtual std::string	objectName () const
	Returns the object name. More...

void	resetLearnedSlots ()
	Resets learned stateless slot implementations. More...

template<class T >
void	resetLearnedSlot (void(T::*method)())
	Resets a learned stateless slot implementation. More...

template<class T >
WStatelessSlot *	implementStateless (void(T::*method)())
	Declares a slot to be stateless and learn client-side behaviour on first invocation. More...

template<class T >
WStatelessSlot *	implementStateless (void(T::method)(), void(T::undoMethod)())
	Declares a slot to be stateless and learn client-side behaviour in advance. More...

void	isNotStateless ()
	Marks the current function as not stateless. More...

template<class T >
WStatelessSlot *	implementJavaScript (void(T::*method)(), const std::string &jsCode)
	Provides a JavaScript implementation for a method. More...

void	addChild (WObject *child)
	Adds a child object. More...

const std::vector< WObject * > &	children () const
	Returns the children.

WObject *	parent () const
	Returns the parent object.

Additional Inherited Members
Static Public Member Functions inherited from Wt::WWebWidget
static WString	escapeText (const WString &text, bool newlinesToo=false)
	Escape HTML control characters in the text, to display literally (deprecated). More...

static std::string &	escapeText (std::string &text, bool newlinestoo=false)
	Escape HTML control characters in the text, to display literally (deprecated). More...

static bool	removeScript (WString &text)
	Remove tags/attributes from text that are not passive (deprecated). More...

static std::string	jsStringLiteral (const std::string &v, char delimiter= '\'')
	Turn a UTF8 encoded string into a JavaScript string literal. More...

Static Public Member Functions inherited from Wt::WWidget
static WString	tr (const char *key)
	Short hand for WString::tr() More...

Protected Member Functions inherited from Wt::WInteractWidget
virtual void	propagateSetEnabled (bool enabled)
	Propagates that a widget was enabled or disabled through children. More...

Protected Member Functions inherited from Wt::WWebWidget
virtual void	enableAjax ()
	Progresses to an Ajax-enabled widget. More...

virtual WStatelessSlot *	getStateless (Method method)
	On-demand stateless slot implementation. More...

virtual void	render (WFlags< RenderFlag > flags)
	Renders the widget. More...

Protected Member Functions inherited from Wt::WWidget
void	setLayoutSizeAware (bool sizeAware)
	Sets the widget to be aware of its size set by a layout manager. More...

virtual void	layoutSizeChanged (int width, int height)
	Virtual method that indicates a size change. More...

	WWidget (WContainerWidget *parent=0)
	Creates a widget. More...

virtual void	dropEvent (WDropEvent dropEvent)
	Handles a drop event. More...

virtual int	boxPadding (Orientation orientation) const
	Returns the widget's built-in padding. More...

virtual int	boxBorder (Orientation orientation) const
	Returns the widget's built-in border width. More...

void	scheduleRender (WFlags< RepaintFlag > flags=0)
	Schedules rerendering of the widget. More...

Static Protected Member Functions inherited from Wt::WObject
static WObject *	sender ()
	Returns the sender of the current slot call. More...

Detailed Description

A widget that holds and manages child widgets.

A WContainerWidget acts as a container for child widgets. Child widgets may be added directly to the container or using a layout manager.

Use addWidget() or pass the container as constructor argument to a widget to directly add children to the container, without using a layout manager. In that case, CSS-based layout is used, and the resulting display is determined by properties of the children and the container. By default, a WContainerWidget is displayed as a block and manages its children within a rectangle. Inline child widgets are layed out in lines, wrapping around as needed, while block child widgets are stacked vertically. The container may add padding at the container edges using setPadding(), and provide alignment of contents using setContentAlignment(). A container is rendered by default using a HTML div tag, but this may be changed to an HTML ul or ol tag to make use of other CSS layout techniques, using setList(). In addition, specializations of this class as implemented by WAnchor, WGroupBox, WStackedWidget and WTableCell provide other alternative rendering of the container.

When setting the WContainerWidget inline the container only acts as a conceptual container, offering a common style to its children. Inline children are still layed out inline within the flow of the parent container of this container, as if they were inserted directly into that parent container. Block children are then not allowed (according to the HTML specification).

To use a layout manager instead of CSS-based layout, use setLayout() or pass the container as constructor argument to a layout manager. In that case you should not define any padding for the container, and widgets and nested layout managers must be added to the layout manager, instead of to the container directly.

Usage example:

// Example 1:
// Instantiate a container widget and add some children whose layout
// is governed based on HTML/CSS rules.
Wt::WContainerWidget *container1 = new Wt::WContainerWidget();
container1->addWidget(new Wt::WText("Some text"));
container1->addWidget(new Wt::WImage("images/img.png"));
Wt::WContainerWidget *child3 = new Wt::WContainerWidget(container1);
// Example 2:
// Instantiate a container widget which uses a layout manager
Wt::WContainerWidget *container2 = new Wt::WContainerWidget();
container2->resize(WLength::Auto, 600); // give the container a fixed height.
Wt::WVBoxLayout *layout = new Wt::WVBoxLayout();
layout->addWidget(new Wt::WText("Some text"));
layout->addWidget(new Wt::WImage("images/img.png"));
container2->setLayout(layout);      // set the layout to the container.

When using a layout manager, you need to carefully consider the alignment of the layout manager with respect to the container: when the container's height is unconstrained (not specified explicitly using resize() or a style class, and the container is not included in a layout manager), you should pass AlignTop to setLayout().

CSS

Depending on its configuration and usage, the widget corresponds to the following HTML tags:

By default, the widget corresponds to a <div> tag.
When configured with setInline(true), the widget corresponds to a <span>.
When configured with setList(true), the widget corresponds to a <ul>.
When configured with setList(true, true), the widget corresponds to a <ol>.
When inserted into a container widget that isList(), the widget corresponds to a <li>.

This widget does not provide styling, and can be styled using inline or external CSS as appropriate.

Member Enumeration Documentation

enum Wt::WContainerWidget::Overflow

How to handle overflow of inner content.

Enumerator
OverflowVisible	Show content that overflows.
OverflowAuto	Show scrollbars when needed.
OverflowHidden	Hide content that overflows.
OverflowScroll	Always show scroll bars.

Member Function Documentation

void Wt::WContainerWidget::addWidget ( WWidget * widget )

virtual

Adds a child widget to this container.

This is equivalent to passing this container as the parent when constructing the child. The widget is appended to the list of children, and thus also layed-out at the end.

Reimplemented in Wt::Ext::Splitter, and Wt::WStackedWidget.

void Wt::WContainerWidget::clear ( )

virtual

Removes and deletes all child widgets.

This deletes all children that have been added to this container.

If a layout was set, also the layout manager is deleted.

WFlags<AlignmentFlag> Wt::WContainerWidget::contentAlignment ( ) const

Returns the alignment of children.

See also: setContentAlignment(WFlags<AlignmentFlag>)

void Wt::WContainerWidget::insertBefore	(	WWidget *	widget,
		WWidget *	before
	)

virtual

Inserts a child widget in this container, before another widget.

The widget is inserted at the place of the before widget, and subsequent widgets are shifted.

See also: insertWidget(int index, WWidget *widget);

Reimplemented in Wt::Ext::Splitter.

void Wt::WContainerWidget::insertWidget	(	int	index,
		WWidget *	widget
	)

virtual

Inserts a child widget in this container at given index.

The widget is inserted at the given index, and subsequent widgets are shifted.

See also: insertBefore(WWidget *widget, WWidget *before);

Reimplemented in Wt::Ext::Splitter, and Wt::WStackedWidget.

bool Wt::WContainerWidget::isList ( ) const

Returns if this container is rendered as a List.

See also: setList(), isOrderedList(), isUnorderedList()

bool Wt::WContainerWidget::isOrderedList ( ) const

Returns if this container is rendered as an Ordered List.

See also: setList(), isList(), isUnorderedList()

bool Wt::WContainerWidget::isUnorderedList ( ) const

Returns if this container is rendered as an Unordered List.

See also: setList(), isList(), isOrderedList()

WLayout* Wt::WContainerWidget::layout ( )

virtual

Returns the layout manager that was set for the container.

If no layout manager was previously set using setLayout(WLayout *), 0 is returned.

See also: setLayout(WLayout *)

Reimplemented from Wt::WWidget.

WLength Wt::WContainerWidget::padding ( Side side ) const

Returns the padding set for the widget.

See also: setPadding(const WLength&, WFlags<Side>)

void Wt::WContainerWidget::removeWidget ( WWidget * widget )

virtual

Removes a child widget from this container.

This removes the widget from this container, but does not delete the widget !

EventSignal< WScrollEvent > & Wt::WContainerWidget::scrolled ( )

Event signal emitted when scrolling in the widget.

This event is emitted when the user scrolls in the widget (for setting the scroll bar policy, see setOverflow()). The event conveys details such as the new scroll bar position, the total contents height and the current widget height.

See also: setOverflow()

int Wt::WContainerWidget::scrollLeft ( ) const

return the number of pixels the container is scrolled vertically

This value is only set if setOverflow() has been called

See also: setOverflow(); scrollTop();

int Wt::WContainerWidget::scrollTop ( ) const

return the number of pixels the container is scrolled horizontally

This value is only set if setOverflow() has been called

See also: setOverflow(); scrollLeft();

void Wt::WContainerWidget::setContentAlignment ( WFlags< AlignmentFlag > contentAlignment )

Specifies how child widgets must be aligned within the container.

For a WContainerWidget, only specifes the horizontal alignment of child widgets. Note that there is no way to specify vertical alignment: children are always pushed to the top of the container.

For a WTableCell, this may also specify the vertical alignment. The default alignment is (Wt::AlignTop | Wt::AlignLeft).

void Wt::WContainerWidget::setLayout ( WLayout * layout )

virtual

Sets a layout manager for the container.

Note that you can nest layout managers inside each other, to create a complex layout hierarchy.

If a previous layout manager was already set, it is first deleted. In that case, you will need to make sure that you either readd all widgets that were part of the previous layout to the new layout, or delete them, to avoid memory leaks.

See also: layout()

Reimplemented from Wt::WWidget.

void Wt::WContainerWidget::setLayout	(	WLayout *	layout,
		WFlags< AlignmentFlag >	alignment
	)

Sets a layout manager for the container (deprecated).

The alignment argument determines how the layout is aligned inside the container. By default, the layout manager arranges children over the entire width and height of the container, corresponding to a value of AlignJustify.

In general, alignment is the logical OR of a horizontal and a vertical flag:

The horizontal alignment option may be one of Wt::AlignLeft, Wt::AlignCenter, Wt::AlignRight, or Wt::AlignJustify.
The vertical alignment option may be '0' (corresponding to vertical justification to the full height), or Wt::AlignTop.

When using a horizontal alignment different from Wt::AlignJustify, and a vertical alignment different from '0', the widget is sized in that direction to fit the contents, instead of the contents being adjusted to the widget size. This is useful when the container does not have a specific size in that direction and when the layout manager does not contain any widgets that wish to consume all remaining space in that direction.

The widget will take ownership of layout.

Deprecated:: using setLayout() instead, use spacers or a nested layout to control the overall alignment of the layout contents within the container, and use setMaximumSize() (if needed) to let the layout contents determine the size of the container.

See also: layout()

void Wt::WContainerWidget::setList	(	bool	list,
		bool	ordered = `false`
	)

Renders the container as an HTML list.

Setting renderList to true will cause the container to be using an HTML <ul> or <ol> type, depending on the value of orderedList. This must be set before the initial render of the container. When set, any contained WContainerWidget will be rendered as an HTML <li>. Adding non-WContainerWidget children results in unspecified behaviour.

Note that CSS default layout rules for <ul> and <ol> add margin and padding to the container, which may look odd if you do not use bullets.

By default, a container is rendered using a <div> element.

See also: isList(), isOrderedList(), isUnorderedList()

void Wt::WContainerWidget::setOverflow	(	Overflow	overflow,
		WFlags< Orientation >	orientation = `(Horizontal \| Vertical)`
	)

Sets how overflow of contained children must be handled.

This is an alternative (CSS-ish) way to configure scroll bars on a container widget, compared to wrapping inside a WScrollArea.

Unlike WScrollArea, horizontal scrolling does not work reliably when the container widget is inserted in a layout manager: the layout manager will overflow rather than use scrollbars for this container widget. A solution then is to use WScrollArea instead.

See also: WScrollArea

void Wt::WContainerWidget::setPadding	(	const WLength &	padding,
		WFlags< Side >	sides = `All`
	)

Sets padding inside the widget.

Setting padding has the effect of adding distance between the widget children and the border.

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

CSS

Member Enumeration Documentation

Member Function Documentation
