A widget which displays a decrementing number. More...

#include <CountDownWidget.h>

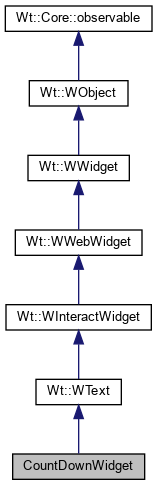

Inheritance diagram for CountDownWidget:

[legend]

Public Member Functions
	CountDownWidget (int start, int stop, unsigned msec, WContainerWidget *parent=0)
	Create a new CountDownWidget. More...

Wt::Signal< void > &	done ()
	Signal emitted when the countdown reached stop. More...

void	cancel ()
	Cancel the count down. More...

Public Member Functions inherited from Wt::WText
	WText ()

	WText (const WString &text)

	WText (const WString &text, TextFormat textFormat)

	~WText ()

const WString &	text () const

bool	setText (const WString &text)

bool	setTextFormat (TextFormat format)

TextFormat	textFormat () const

void	setWordWrap (bool wordWrap)

bool	wordWrap () const

void	setTextAlignment (AlignmentFlag textAlignment)

AlignmentFlag	textAlignment () const

void	setPadding (const WLength &padding, WFlags< Side > sides=Side::Left\|Side::Right)

WLength	padding (Side side) const

void	setInternalPathEncoding (bool enabled)

bool	hasInternalPathEncoding () const

virtual void	refresh () override

Public Member Functions inherited from Wt::WInteractWidget
	WInteractWidget ()

EventSignal< WKeyEvent > &	keyWentDown ()

EventSignal< WKeyEvent > &	keyPressed ()

EventSignal< WKeyEvent > &	keyWentUp ()

EventSignal &	enterPressed ()

EventSignal &	escapePressed ()

EventSignal< WMouseEvent > &	clicked ()

EventSignal< WMouseEvent > &	doubleClicked ()

EventSignal< WMouseEvent > &	mouseWentDown ()

EventSignal< WMouseEvent > &	mouseWentUp ()

EventSignal< WMouseEvent > &	mouseWentOut ()

EventSignal< WMouseEvent > &	mouseWentOver ()

EventSignal< WMouseEvent > &	mouseMoved ()

EventSignal< WMouseEvent > &	mouseDragged ()

EventSignal< WMouseEvent > &	mouseWheel ()

EventSignal< WTouchEvent > &	touchStarted ()

EventSignal< WTouchEvent > &	touchEnded ()

EventSignal< WTouchEvent > &	touchMoved ()

EventSignal< WGestureEvent > &	gestureStarted ()

EventSignal< WGestureEvent > &	gestureChanged ()

EventSignal< WGestureEvent > &	gestureEnded ()

void	setDraggable (const std::string &mimeType, WWidget dragWidget=nullptr, bool isDragWidgetOnly=false, WObject sourceWidget=nullptr)

void	unsetDraggable ()

void	setMouseOverDelay (int delay)

int	mouseOverDelay () const

virtual void	setPopup (bool popup) override

virtual void	load () override

virtual bool	isEnabled () const override

Public Member Functions inherited from Wt::WWebWidget
	WWebWidget ()

virtual std::vector< WWidget *>	children () const override

Signal &	childrenChanged ()

virtual void	setPositionScheme (PositionScheme scheme) override

virtual PositionScheme	positionScheme () const override

virtual void	setOffsets (const WLength &offset, WFlags< Side > sides=AllSides) override

virtual WLength	offset (Side s) const override

virtual void	resize (const WLength &width, const WLength &height) override

virtual WLength	width () const override

virtual WLength	height () const override

virtual void	setMinimumSize (const WLength &width, const WLength &height) override

virtual WLength	minimumWidth () const override

virtual WLength	minimumHeight () const override

virtual void	setMaximumSize (const WLength &width, const WLength &height) override

virtual WLength	maximumWidth () const override

virtual WLength	maximumHeight () const override

virtual void	setLineHeight (const WLength &height) override

virtual WLength	lineHeight () const override

virtual void	setFloatSide (Side s) override

virtual Side	floatSide () const override

virtual void	setClearSides (WFlags< Side > sides) override

virtual WFlags< Side >	clearSides () const override

virtual void	setMargin (const WLength &margin, WFlags< Side > sides=AllSides) override

virtual WLength	margin (Side side) const override

virtual void	setHiddenKeepsGeometry (bool enabled) override

virtual bool	hiddenKeepsGeometry () const override

virtual void	setHidden (bool hidden, const WAnimation &animation=WAnimation()) override

virtual bool	isHidden () const override

virtual bool	isVisible () const override

virtual void	setDisabled (bool disabled) override

virtual bool	isDisabled () const override

virtual bool	isPopup () const override

virtual void	setInline (bool isInline) override

virtual bool	isInline () const override

virtual void	setDecorationStyle (const WCssDecorationStyle &style) override

virtual WCssDecorationStyle &	decorationStyle () override

virtual void	setStyleClass (const WString &styleClass) override

virtual WString	styleClass () const override

virtual void	addStyleClass (const WString &styleClass, bool force=false) override

virtual void	removeStyleClass (const WString &styleClass, bool force=false) override

virtual bool	hasStyleClass (const WString &styleClass) const override

virtual void	setVerticalAlignment (AlignmentFlag alignment, const WLength &length=WLength()) override

virtual AlignmentFlag	verticalAlignment () const override

virtual WLength	verticalAlignmentLength () const override

virtual void	setToolTip (const WString &text, TextFormat textFormat=TextFormat::Plain) override

virtual void	setDeferredToolTip (bool enable, TextFormat textFormat=TextFormat::Plain) override

virtual WString	toolTip () const override

virtual void	setAttributeValue (const std::string &name, const WString &value) override

virtual WString	attributeValue (const std::string &name) const override

virtual void	setJavaScriptMember (const std::string &name, const std::string &value) override

virtual std::string	javaScriptMember (const std::string &name) const override

virtual void	callJavaScriptMember (const std::string &name, const std::string &args) override

virtual bool	loaded () const override

virtual void	setId (const std::string &id) override

virtual WWidget *	find (const std::string &name) override

virtual WWidget *	findById (const std::string &id) override

virtual void	setSelectable (bool selectable) override

virtual void	doJavaScript (const std::string &javascript) override

virtual const std::string	id () const override

void	setLoadLaterWhenInvisible (bool)

std::string	htmlTagName () const

void	setHtmlTagName (const std::string &tag)

virtual void	setCanReceiveFocus (bool enabled) override

virtual bool	canReceiveFocus () const override

virtual bool	setFirstFocus () override

virtual void	setFocus (bool focus) override

virtual bool	hasFocus () const override

virtual void	setTabIndex (int index) override

virtual int	tabIndex () const override

EventSignal &	blurred ()

EventSignal &	focussed ()

virtual bool	scrollVisibilityEnabled () const final override

virtual void	setScrollVisibilityEnabled (bool enabled) final override

virtual int	scrollVisibilityMargin () const final override

virtual void	setScrollVisibilityMargin (int margin) final override

virtual Signal< bool > &	scrollVisibilityChanged () final override

virtual bool	isScrollVisible () const final override

virtual void	setThemeStyleEnabled (bool enabled) final override

virtual bool	isThemeStyleEnabled () const final override

virtual void	setObjectName (const std::string &name) override

Public Member Functions inherited from Wt::WWidget
virtual	~WWidget ()

WWidget *	parent () const

virtual std::unique_ptr< WWidget >	removeWidget (WWidget *widget)

std::unique_ptr< Widget >	removeWidget (Widget *widget)

std::unique_ptr< WWidget >	removeFromParent ()

void	setWidth (const WLength &width)

void	setHeight (const WLength &height)

virtual void	positionAt (const WWidget *widget, Orientation orientation=Orientation::Vertical)

virtual void	toggleStyleClass (const WString &styleClass, bool add, bool force=false)

std::string	jsRef () const

void	setFocus ()

virtual void	acceptDrops (const std::string &mimeType, const WString &hoverStyleClass=WString())

virtual void	stopAcceptDrops (const std::string &mimeType)

virtual void	htmlText (std::ostream &out)

bool	isRendered () const

void	hide ()

void	animateHide (const WAnimation &animation)

void	show ()

void	animateShow (const WAnimation &animation)

void	enable ()

void	disable ()

bool	layoutSizeAware () const

Public Member Functions inherited from Wt::WObject
void	addChild (std::unique_ptr< WObject > child)

Child *	addChild (std::unique_ptr< Child > child)

std::unique_ptr< WObject >	removeChild (WObject *child)

std::unique_ptr< Child >	removeChild (Child *child)

virtual std::string	objectName () const

void	resetLearnedSlots ()

void	resetLearnedSlot (void(T::*method)())

WStatelessSlot *	implementStateless (void(T::*method)())

WStatelessSlot *	implementStateless (void(T::method)(), void(T::undoMethod)())

void	isNotStateless ()

WStatelessSlot *	implementJavaScript (void(T::*method)(), const std::string &jsCode)

Public Member Functions inherited from Wt::Core::observable
	observable () noexcept

virtual	~observable ()

auto	bindSafe (void(C::*method)(Args...)) noexcept

auto	bindSafe (void(C::*method)(Args...) const) const noexcept

auto	bindSafe (const Function &function) noexcept

Private Member Functions
void	timerTick ()
	Process one timer tick. More...

Private Attributes
Wt::Signal< void >	done_

int	start_

int	stop_

int	current_

WTimer *	timer_

Additional Inherited Members
Public Types inherited from Wt::WObject
typedef void(WObject::*	Method) ()

Static Public Member Functions inherited from Wt::WWebWidget
static std::string	jsStringLiteral (const std::string &v, char delimiter='\'')

Static Public Member Functions inherited from Wt::WWidget
static WString	tr (const char *key)

Protected Member Functions inherited from Wt::WText
virtual void	render (WFlags< RenderFlag > flags) override

Protected Member Functions inherited from Wt::WInteractWidget
virtual void	propagateSetEnabled (bool enabled) override

Protected Member Functions inherited from Wt::WWebWidget
virtual void	enableAjax () override

virtual WStatelessSlot *	getStateless (Method method) override

Protected Member Functions inherited from Wt::WWidget
void	setLayoutSizeAware (bool sizeAware)

virtual void	layoutSizeChanged (int width, int height)

	WWidget ()

virtual void	dropEvent (WDropEvent dropEvent)

virtual int	boxPadding (Orientation orientation) const

virtual int	boxBorder (Orientation orientation) const

void	scheduleRender (WFlags< RepaintFlag > flags=None)

Detailed Description

A widget which displays a decrementing number.

Definition at line 25 of file CountDownWidget.h.

Constructor & Destructor Documentation

◆ CountDownWidget()

CountDownWidget::CountDownWidget	(	int	start,
		int	stop,
		unsigned	msec,
		WContainerWidget *	parent = `0`
	)

Create a new CountDownWidget.

The widget will count down from start to stop, decrementing the number every msec milliseconds.

Definition at line 12 of file CountDownWidget.C.

   : WText(parent),
     done_(this),
     start_(start),
     stop_(stop)
 {
   stop_ = std::min(start_ - 1, stop_);  // stop must be smaller than start
   current_ = start_;

   timer_ = new WTimer(this);
   timer_->setInterval(msec);
   timer_->timeout().connect(this, &CountDownWidget::timerTick);
   timer_->start();

   setText(boost::lexical_cast<std::string>(current_));
 }

Member Function Documentation

◆ cancel()

void CountDownWidget::cancel ( )

Cancel the count down.

Definition at line 30 of file CountDownWidget.C.

 {
   timer_->stop();
 }

◆ done()

Wt::Signal<void>& CountDownWidget::done ( )

inline

Signal emitted when the countdown reached stop.

Definition at line 38 of file CountDownWidget.h.

38 { return done_; }

CountDownWidget::done_

Wt::Signal< void > done_

Definition: CountDownWidget.h:45

◆ timerTick()

void CountDownWidget::timerTick ( )

private

Process one timer tick.

Definition at line 35 of file CountDownWidget.C.

 {
   setText(boost::lexical_cast<std::string>(--current_));

   if (current_ <= stop_) {
     timer_->stop();
     done_.emit();
   }
 }

Member Data Documentation

◆ current_

int CountDownWidget::current_

private

Definition at line 49 of file CountDownWidget.h.

◆ done_

Wt::Signal<void> CountDownWidget::done_

private

Definition at line 45 of file CountDownWidget.h.

◆ start_

int CountDownWidget::start_

private

Definition at line 46 of file CountDownWidget.h.

◆ stop_

int CountDownWidget::stop_

private

Definition at line 47 of file CountDownWidget.h.

◆ timer_

WTimer* CountDownWidget::timer_

private

Definition at line 51 of file CountDownWidget.h.

The documentation for this class was generated from the following files:

/home/roel/project/wt/public-git/wt/examples/mission/CountDownWidget.h
/home/roel/project/wt/public-git/wt/examples/mission/CountDownWidget.C

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ CountDownWidget()

Member Function Documentation

◆ cancel()

◆ done()

◆ timerTick()

Member Data Documentation

◆ current_

◆ done_

◆ start_

◆ stop_

◆ timer_
