An icon pair (identical to WIconPair) More...

#include <IconPair.h>

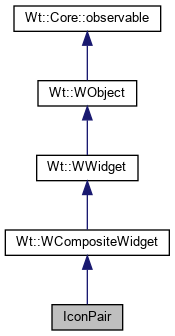

Inheritance diagram for IconPair:

[legend]

Public Member Functions
	IconPair (const std::string icon1URI, const std::string icon2URI, bool clickIsSwitch=true, Wt::WContainerWidget *parent=0)
	Construct a two-state icon widget. More...

void	setState (int num)
	Set which icon should be visible. More...

int	state () const
	Get the current state. More...

Wt::WImage *	icon1 () const
	Get the first icon image. More...

Wt::WImage *	icon2 () const
	Get the second icon image. More...

void	showIcon1 ()
	Set state to 0 (show icon 1). More...

void	showIcon2 ()
	Set state to 1 (show icon 2). More...

Public Member Functions inherited from Wt::WCompositeWidget
	WCompositeWidget ()

	WCompositeWidget (std::unique_ptr< WWidget > implementation)

virtual std::vector< WWidget *>	children () const override

virtual std::unique_ptr< WWidget >	removeWidget (WWidget *widget) override

virtual void	setObjectName (const std::string &name) override

virtual std::string	objectName () const override

virtual const std::string	id () const override

virtual void	setPositionScheme (PositionScheme scheme) override

virtual PositionScheme	positionScheme () const override

virtual void	setOffsets (const WLength &offset, WFlags< Side > sides=AllSides) override

virtual WLength	offset (Side s) const override

virtual void	resize (const WLength &width, const WLength &height) override

virtual WLength	width () const override

virtual WLength	height () const override

virtual void	setMinimumSize (const WLength &width, const WLength &height) override

virtual WLength	minimumWidth () const override

virtual WLength	minimumHeight () const override

virtual void	setMaximumSize (const WLength &width, const WLength &height) override

virtual WLength	maximumWidth () const override

virtual WLength	maximumHeight () const override

virtual void	setLineHeight (const WLength &height) override

virtual WLength	lineHeight () const override

virtual void	setFloatSide (Side s) override

virtual Side	floatSide () const override

virtual void	setClearSides (WFlags< Side > sides) override

virtual WFlags< Side >	clearSides () const override

virtual void	setMargin (const WLength &margin, WFlags< Side > sides=AllSides) override

virtual WLength	margin (Side side) const override

virtual void	setHiddenKeepsGeometry (bool enabled) override

virtual bool	hiddenKeepsGeometry () const override

virtual void	setHidden (bool hidden, const WAnimation &animation=WAnimation()) override

virtual bool	isHidden () const override

virtual bool	isVisible () const override

virtual void	setDisabled (bool disabled) override

virtual bool	isDisabled () const override

virtual bool	isEnabled () const override

virtual void	setPopup (bool popup) override

virtual bool	isPopup () const override

virtual void	setInline (bool isInline) override

virtual bool	isInline () const override

virtual void	setDecorationStyle (const WCssDecorationStyle &style) override

virtual WCssDecorationStyle &	decorationStyle () override

virtual void	setStyleClass (const WString &styleClass) override

virtual WString	styleClass () const override

virtual void	addStyleClass (const WString &styleClass, bool force=false) override

virtual void	removeStyleClass (const WString &styleClass, bool force=false) override

virtual bool	hasStyleClass (const WString &styleClass) const override

virtual void	setVerticalAlignment (AlignmentFlag alignment, const WLength &length=WLength::Auto) override

virtual AlignmentFlag	verticalAlignment () const override

virtual WLength	verticalAlignmentLength () const override

virtual void	setToolTip (const WString &text, TextFormat textFormat=TextFormat::Plain) override

virtual WString	toolTip () const override

virtual void	setDeferredToolTip (bool enable, TextFormat textFormat=TextFormat::Plain) override

virtual void	refresh () override

virtual void	setAttributeValue (const std::string &name, const WString &value) override

virtual WString	attributeValue (const std::string &name) const override

virtual void	setJavaScriptMember (const std::string &name, const std::string &value) override

virtual std::string	javaScriptMember (const std::string &name) const override

virtual void	callJavaScriptMember (const std::string &name, const std::string &args) override

virtual void	load () override

virtual bool	loaded () const override

virtual void	setCanReceiveFocus (bool enabled) override

virtual bool	canReceiveFocus () const override

virtual void	setFocus (bool focus) override

virtual bool	setFirstFocus () override

virtual bool	hasFocus () const override

virtual void	setTabIndex (int index) override

virtual int	tabIndex () const override

virtual void	setId (const std::string &id) override

virtual WWidget *	find (const std::string &name) override

virtual WWidget *	findById (const std::string &name) override

virtual void	setSelectable (bool selectable) override

virtual void	doJavaScript (const std::string &js) override

virtual void	propagateSetEnabled (bool enabled) override

virtual bool	scrollVisibilityEnabled () const final override

virtual void	setScrollVisibilityEnabled (bool enabled) final override

virtual int	scrollVisibilityMargin () const final override

virtual void	setScrollVisibilityMargin (int margin) final override

virtual Signal< bool > &	scrollVisibilityChanged () final override

virtual bool	isScrollVisible () const final override

virtual void	setThemeStyleEnabled (bool enabled) final override

virtual bool	isThemeStyleEnabled () const final override

Public Member Functions inherited from Wt::WWidget
virtual	~WWidget ()

WWidget *	parent () const

std::unique_ptr< Widget >	removeWidget (Widget *widget)

std::unique_ptr< WWidget >	removeFromParent ()

void	setWidth (const WLength &width)

void	setHeight (const WLength &height)

virtual void	positionAt (const WWidget *widget, Orientation orientation=Orientation::Vertical)

virtual void	toggleStyleClass (const WString &styleClass, bool add, bool force=false)

std::string	jsRef () const

void	setFocus ()

virtual void	acceptDrops (const std::string &mimeType, const WString &hoverStyleClass=WString())

virtual void	stopAcceptDrops (const std::string &mimeType)

virtual void	htmlText (std::ostream &out)

bool	isRendered () const

void	hide ()

void	animateHide (const WAnimation &animation)

void	show ()

void	animateShow (const WAnimation &animation)

void	enable ()

void	disable ()

bool	layoutSizeAware () const

Public Member Functions inherited from Wt::WObject
void	addChild (std::unique_ptr< WObject > child)

Child *	addChild (std::unique_ptr< Child > child)

std::unique_ptr< WObject >	removeChild (WObject *child)

std::unique_ptr< Child >	removeChild (Child *child)

void	resetLearnedSlots ()

void	resetLearnedSlot (void(T::*method)())

WStatelessSlot *	implementStateless (void(T::*method)())

WStatelessSlot *	implementStateless (void(T::method)(), void(T::undoMethod)())

void	isNotStateless ()

WStatelessSlot *	implementJavaScript (void(T::*method)(), const std::string &jsCode)

Public Member Functions inherited from Wt::Core::observable
	observable () noexcept

virtual	~observable ()

auto	bindSafe (void(C::*method)(Args...)) noexcept

auto	bindSafe (void(C::*method)(Args...) const) const noexcept

auto	bindSafe (const Function &function) noexcept

Public Attributes
Wt::EventSignal< Wt::WMouseEvent > &	icon1Clicked
	Signal emitted when clicked while in state 0 (icon 1 is shown). More...

Wt::EventSignal< Wt::WMouseEvent > &	icon2Clicked
	Signal emitted when clicked while in state 1 (icon 2 is shown). More...

Private Member Functions
void	undoShowIcon1 ()
	Undo function for prelearning showIcon1() More...

void	undoShowIcon2 ()
	Undo function for prelearning showIcon2() More...

Private Attributes
Wt::WContainerWidget *	impl_

Wt::WImage *	icon1_
	First icon. More...

Wt::WImage *	icon2_
	Second icon. More...

int	previousState_
	Undo state for prelearning stateless showIcon1() and showIcon2() slots. More...

Additional Inherited Members
Public Types inherited from Wt::WObject
typedef void(WObject::*	Method) ()

Static Public Member Functions inherited from Wt::WWidget
static WString	tr (const char *key)

Protected Member Functions inherited from Wt::WCompositeWidget
virtual void	enableAjax () override

void	setImplementation (std::unique_ptr< WWidget > widget)

Widget *	setImplementation (std::unique_ptr< Widget > widget)

W *	setNewImplementation (Args &&... args)

WWidget *	implementation ()

virtual int	boxPadding (Orientation orientation) const override

virtual int	boxBorder (Orientation orientation) const override

virtual void	render (WFlags< RenderFlag > flags) override

Protected Member Functions inherited from Wt::WWidget
void	setLayoutSizeAware (bool sizeAware)

virtual void	layoutSizeChanged (int width, int height)

	WWidget ()

virtual void	dropEvent (WDropEvent dropEvent)

void	scheduleRender (WFlags< RepaintFlag > flags=None)

virtual WStatelessSlot *	getStateless (Method method) override

Detailed Description

An icon pair (identical to WIconPair)

This widget manages two images, only one of which is shown at a single time.

The widget may also react to click events, by changing state.

This widget is part of the Wt treelist example, where it is used to represent the expand/collapse icons, and the corresponding map open/close icon.

See also: TreeNode

Definition at line 34 of file IconPair.h.

Constructor & Destructor Documentation

◆ IconPair()

IconPair::IconPair	(	const std::string	icon1URI,
		const std::string	icon2URI,
		bool	clickIsSwitch = `true`,
		Wt::WContainerWidget *	parent = `0`
	)

Construct a two-state icon widget.

The constructor takes the URI of the two icons. When clickIsSwitch is set true, clicking on the icon will switch state.

Definition at line 12 of file IconPair.C.

   : Wt::WCompositeWidget(parent),
     impl_(new Wt::WContainerWidget()),
     icon1_(new Wt::WImage(icon1URI, impl_)),
     icon2_(new Wt::WImage(icon2URI, impl_)),
     icon1Clicked(icon1_->clicked()),
     icon2Clicked(icon2_->clicked())
 {
   setImplementation(impl_);

   implementStateless(&IconPair::showIcon1, &IconPair::undoShowIcon1);
   implementStateless(&IconPair::showIcon2, &IconPair::undoShowIcon2);

   setInline(true);

   icon2_->hide();

   if (clickIsSwitch) {
     icon1_->clicked().connect(icon1_, &Wt::WImage::hide);
     icon1_->clicked().connect(icon2_, &Wt::WImage::show);

     icon2_->clicked().connect(icon2_, &Wt::WImage::hide);
     icon2_->clicked().connect(icon1_, &Wt::WImage::show); //

     decorationStyle().setCursor(Wt::PointingHandCursor);
   }
 } //

Member Function Documentation

◆ icon1()

Wt::WImage* IconPair::icon1 ( ) const

inline

Get the first icon image.

Definition at line 61 of file IconPair.h.

61 { return icon1_; }

IconPair::icon1_

Wt::WImage * icon1_

First icon.

Definition: IconPair.h:79

◆ icon2()

Wt::WImage* IconPair::icon2 ( ) const

inline

Get the second icon image.

Definition at line 65 of file IconPair.h.

65 { return icon2_; }

IconPair::icon2_

Wt::WImage * icon2_

Second icon.

Definition: IconPair.h:82

◆ setState()

void IconPair::setState ( int num )

Set which icon should be visible.

The first icon has number 0, and the second icon has number 1.

See also: state()

Definition at line 41 of file IconPair.C.

 {
   if (num == 0) {
     icon1_->show();
     icon2_->hide();
   } else {
     icon1_->hide();
     icon2_->show();
   }
 }

◆ showIcon1()

void IconPair::showIcon1 ( )

Set state to 0 (show icon 1).

Definition at line 57 of file IconPair.C.

 {
   previousState_ = (icon1_->isHidden() ? 1 : 0);
   setState(0);
 }

◆ showIcon2()

void IconPair::showIcon2 ( )

Set state to 1 (show icon 2).

Definition at line 63 of file IconPair.C.

 {
   previousState_ = (icon1_->isHidden() ? 1 : 0);
   setState(1);
 }

◆ state()

int IconPair::state ( ) const

Get the current state.

See also: setState()

Definition at line 52 of file IconPair.C.

 {
   return (icon1_->isHidden() ? 1 : 0);
 }

◆ undoShowIcon1()

void IconPair::undoShowIcon1 ( )

private

Undo function for prelearning showIcon1()

Definition at line 69 of file IconPair.C.

 {
   setState(previousState_);
 }

◆ undoShowIcon2()

void IconPair::undoShowIcon2 ( )

private

Undo function for prelearning showIcon2()

Definition at line 74 of file IconPair.C.

 {
   setState(previousState_);
 } //

Member Data Documentation

◆ icon1_

Wt::WImage* IconPair::icon1_

private

First icon.

Definition at line 79 of file IconPair.h.

◆ icon1Clicked

Wt::EventSignal<Wt::WMouseEvent>& IconPair::icon1Clicked

Signal emitted when clicked while in state 0 (icon 1 is shown).

Definition at line 88 of file IconPair.h.

◆ icon2_

Wt::WImage* IconPair::icon2_

private

Second icon.

Definition at line 82 of file IconPair.h.

◆ icon2Clicked

Wt::EventSignal<Wt::WMouseEvent>& IconPair::icon2Clicked

Signal emitted when clicked while in state 1 (icon 2 is shown).

Definition at line 93 of file IconPair.h.

◆ impl_

Wt::WContainerWidget* IconPair::impl_

private

Definition at line 76 of file IconPair.h.

◆ previousState_

int IconPair::previousState_

private

Undo state for prelearning stateless showIcon1() and showIcon2() slots.

Definition at line 97 of file IconPair.h.

The documentation for this class was generated from the following files:

/home/roel/project/wt/public-git/wt/examples/treelist/IconPair.h
/home/roel/project/wt/public-git/wt/examples/treelist/IconPair.C

Public Member Functions

Public Attributes

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IconPair()

Member Function Documentation

◆ icon1()

◆ icon2()

◆ setState()

◆ showIcon1()

◆ showIcon2()

◆ state()

◆ undoShowIcon1()

◆ undoShowIcon2()

Member Data Documentation

◆ icon1_

◆ icon1Clicked

◆ icon2_

◆ icon2Clicked

◆ impl_

◆ previousState_
