Wt::WTabWidget Class Reference

A widget that organizes contents in tab panes. More...

#include <Wt/WTabWidget>

Inheritance diagram for Wt::WTabWidget:
Inheritance graph
[legend]

Public Types

enum  LoadPolicy { LazyLoading, PreLoading }
 Enumeration to indicate when the contents should be loaded. More...

- Public Types inherited from Wt::WObject
typedef void(WObject::* Method) ()
 Typedef for a WObject method without arguments.


Public Member Functions

 WTabWidget (WContainerWidget *parent=0)
 Creates a new tab widget.

WMenuItemaddTab (WWidget *child, const WString &label, LoadPolicy=LazyLoading)
 Adds a new tab, with child as content, and the given label. More...

WMenuIteminsertTab (int index, WWidget *child, const WString &label, LoadPolicy=LazyLoading)
 Inserts a new tab, with child as content, and the given label. More...

void removeTab (WWidget *widget)
 Removes a tab item. More...

int count () const
 Returns the number of tabs.

WWidgetwidget (int index) const
 Returns the content widget at the given tab index.

WMenuItemitemAt (int index) const
 Returns the item at the given tab index.

int indexOf (WWidget *widget) const
 Returns the index of the tab of the given content widget. More...

void setCurrentIndex (int index)
 Activates the tab at index.

int currentIndex () const
 Returns the index of the activated tab.

void setCurrentWidget (WWidget *widget)
 Activates the tab showing the given widget

WWidgetcurrentWidget () const
 Returns the widget of the activated tab.

WMenuItemcurrentItem () const
 Returns the item of the activated tab.

void setTabEnabled (int index, bool enable)
 Enables or disables a tab. More...

bool isTabEnabled (int index) const
 Returns whether a tab is enabled. More...

void setTabHidden (int index, bool hidden)
 Hides or shows a tab. More...

bool isTabHidden (int index) const
 Returns whether a tab is hidden.

void setTabCloseable (int index, bool closeable)
 Make it possible to close a tab interactively or by closeTab. More...

bool isTabCloseable (int index)
 Returns whether a tab is closeable. More...

void setTabText (int index, const WString &label)
 Changes the label for a tab.

const WStringtabText (int index) const
 Returns the label for a tab. More...

void setTabToolTip (int index, const WString &tip)
 Sets the tooltip for a tab. More...

WString tabToolTip (int index) const
 Returns the tooltip for a tab. More...

void setInternalPathEnabled (const std::string &basePath="")
 Enables internal paths for items. More...

bool internalPathEnabled () const
 Returns whether internal paths are enabled. More...

void setInternalBasePath (const std::string &path)
 Sets the internal base path. More...

const std::string & internalBasePath () const
 Returns the internal base path. More...

Signal< int > & currentChanged ()
 Signal emitted when the user activates a tab. More...

void closeTab (int index)
 Closes a tab at index. More...

Signal< int > & tabClosed ()
 Signal emitted when the user closes a tab. More...

WStackedWidgetcontentsStack () const
 Returns the contents stack. More...

void setOverflow (WContainerWidget::Overflow overflow, WFlags< Orientation > orientation=(Horizontal|Vertical))
 Sets how overflow of contained children must be handled. More...

- Public Member Functions inherited from Wt::WCompositeWidget
 WCompositeWidget (WContainerWidget *parent=0)
 Creates a WCompositeWidget. More...

 WCompositeWidget (WWidget *implementation, WContainerWidget *parent)
 Creates a WCompositeWidget with given implementation. More...

virtual void setObjectName (const std::string &name)
 Sets an object name. More...

virtual std::string objectName () const
 Returns the object name. More...

virtual const std::string id () const
 Returns the (unique) identifier for this object. More...

virtual void setPositionScheme (PositionScheme scheme)
 Sets the CSS position scheme. More...

virtual PositionScheme positionScheme () const
 Returns the CSS position scheme. More...

virtual void setOffsets (const WLength &offset, WFlags< Side > sides=All)
 Sets CSS offsets for a non-statically positioned widget. More...

virtual WLength offset (Side s) const
 Returns a CSS offset. More...

virtual void resize (const WLength &width, const WLength &height)
 Resizes the widget. More...

virtual WLength width () const
 Returns the width. More...

virtual WLength height () const
 Returns the height. More...

virtual void setMinimumSize (const WLength &width, const WLength &height)
 Sets a minimum size. More...

virtual WLength minimumWidth () const
 Returns the minimum width. More...

virtual WLength minimumHeight () const
 Returns the minimum height. More...

virtual void setMaximumSize (const WLength &width, const WLength &height)
 Sets a maximum size. More...

virtual WLength maximumWidth () const
 Returns the maximum width. More...

virtual WLength maximumHeight () const
 Returns the maximum height. More...

virtual void setLineHeight (const WLength &height)
 Sets the CSS line height for contained text.

virtual WLength lineHeight () const
 Returns the CSS line height for contained text. More...

virtual void setFloatSide (Side s)
 Specifies a CSS float side. More...

virtual Side floatSide () const
 Returns the CSS float side. More...

virtual void setClearSides (WFlags< Side > sides)
 Sets the sides that should be cleared of floats. More...

virtual WFlags< SideclearSides () const
 Returns the sides that should remain empty. More...

virtual void setMargin (const WLength &margin, WFlags< Side > sides=All)
 Sets CSS margins around the widget. More...

virtual WLength margin (Side side) const
 Returns a CSS margin set. More...

virtual void setHiddenKeepsGeometry (bool enabled)
 Sets whether the widget keeps its geometry when hidden. More...

virtual bool hiddenKeepsGeometry () const
 Returns whether the widget keeps its geometry when hidden. More...

virtual void setHidden (bool hidden, const WAnimation &animation=WAnimation())
 Hides or shows the widget. More...

virtual bool isHidden () const
 Returns whether the widget is set hidden. More...

virtual bool isVisible () const
 Returns whether the widget is visible. More...

virtual void setDisabled (bool disabled)
 Sets whether the widget is disabled. More...

virtual bool isDisabled () const
 Returns whether the widget is set disabled. More...

virtual bool isEnabled () const
 Returns whether the widget is enabled. More...

virtual void setPopup (bool popup)
 Lets the widget overlay over other sibling widgets. More...

virtual bool isPopup () const
 Returns whether the widget is overlayed. More...

virtual void setInline (bool isInline)
 Sets whether the widget is displayed inline or as a block. More...

virtual bool isInline () const
 Returns whether the widget is displayed inline or as block. More...

virtual void setDecorationStyle (const WCssDecorationStyle &style)
 Sets a CSS decoration style. More...

virtual WCssDecorationStyledecorationStyle ()
 Returns the decoration style of this widget. More...

virtual void setStyleClass (const WString &styleClass)
 Sets (one or more) CSS style classes. More...

virtual WString styleClass () const
 Returns the CSS style class. More...

virtual void addStyleClass (const WString &styleClass, bool force=false)
 Adds a CSS style class. More...

virtual void removeStyleClass (const WString &styleClass, bool force=false)
 Removes a CSS style class. More...

virtual bool hasStyleClass (const WString &styleClass) const
 Returns whether the widget has a style class.

virtual void setVerticalAlignment (AlignmentFlag alignment, const WLength &length=WLength::Auto)
 Sets the vertical alignment. More...

virtual AlignmentFlag verticalAlignment () const
 Returns the vertical alignment. More...

virtual WLength verticalAlignmentLength () const
 Returns the fixed vertical alignment that was set. More...

virtual void setToolTip (const WString &text, TextFormat textFormat=PlainText)
 Sets a tooltip. More...

virtual WString toolTip () const
 Returns the tooltip.

virtual void setDeferredToolTip (bool enable, TextFormat textFormat=PlainText)
 Enable deferred tooltip. More...

virtual void refresh ()
 Refresh the widget. More...

virtual void setAttributeValue (const std::string &name, const WString &value)
 Sets an attribute value. More...

virtual WString attributeValue (const std::string &name) const
 Returns an attribute value. More...

virtual void setJavaScriptMember (const std::string &name, const std::string &value)
 Sets a JavaScript member. More...

virtual std::string javaScriptMember (const std::string &name) const
 Returns the value of a JavaScript member. More...

virtual void callJavaScriptMember (const std::string &name, const std::string &args)
 Calls a JavaScript member. More...

virtual void load ()
 Loads content just before the widget is used. More...

virtual bool loaded () const
 Returns whether this widget has been loaded. More...

virtual void setCanReceiveFocus (bool enabled)
 Sets whether the widget can receive focus. More...

virtual bool canReceiveFocus () const
 Returns whether the widget can receive focus. More...

virtual void setFocus (bool focus)
 Sets focus. More...

virtual bool setFirstFocus ()
 Set focus on the widget's first descendant. More...

virtual bool hasFocus () const
 Returns whether the widget currently has the focus.

virtual void setTabIndex (int index)
 Sets the tab index. More...

virtual int tabIndex () const
 Returns the tab index. More...

virtual void setId (const std::string &id)
 Sets the CSS Id. More...

virtual WWidgetfind (const std::string &name)
 Finds a descendent widget by name. More...

virtual WWidgetfindById (const std::string &name)
 Finds a descendent widget by id.

virtual void setSelectable (bool selectable)
 Sets as selectable. More...

virtual void doJavaScript (const std::string &js)
 Executes the given JavaScript statements when the widget is rendered or updated. More...

virtual void propagateSetEnabled (bool enabled)
 Propagates that a widget was enabled or disabled through children. More...

virtual bool scrollVisibilityEnabled () const WT_CXX11ONLY(final override)
 Returns whether scroll visibility detection is enabled for this widget. More...

virtual void setScrollVisibilityEnabled (bool enabled) WT_CXX11ONLY(final override)
 Sets whether scroll visibility detection is enabled for this widget. More...

virtual int scrollVisibilityMargin () const WT_CXX11ONLY(final override)
 Returns the margin around the viewport within which the widget is considered visible. More...

virtual void setScrollVisibilityMargin (int margin) WT_CXX11ONLY(final override)
 Sets the margin around the viewport within which the widget is considered visible. More...

virtual Signal< bool > & scrollVisibilityChanged () WT_CXX11ONLY(final override)
 Signal triggered when the scroll visibility of this widget changes. More...

virtual bool isScrollVisible () const WT_CXX11ONLY(final override)
 Returns whether this widget is currently considered scroll visible. More...

virtual void setThemeStyleEnabled (bool enabled)
 Sets whether theme styling for a widget is enabled or disabled. More...

virtual bool isThemeStyleEnabled () const
 Returns whether this widget is currently styled by the chosen theme. More...

- Public Member Functions inherited from Wt::WWidget
virtual ~WWidget ()
 Destructor. More...

WWidgetparent () const
 Returns the parent widget. More...

virtual void removeChild (WObject *child)
 Removes a child object. More...

void setWidth (const WLength &width)
 Sets the width. More...

void setHeight (const WLength &height)
 Sets the height. More...

virtual void positionAt (const WWidget *widget, Orientation orientation=Vertical)
 Positions a widget next to another widget. More...

virtual void toggleStyleClass (const WString &styleClass, bool add, bool force=false)
 Toggles a CSS style class.

std::string jsRef () const
 Returns a JavaScript expression to the corresponding DOM node. More...

void setFocus ()
 Sets focus. More...

virtual void acceptDrops (const std::string &mimeType, const WString &hoverStyleClass=WString())
 Sets a mime type to be accepted for dropping. More...

virtual void stopAcceptDrops (const std::string &mimeType)
 Indicates that a mime type is no longer accepted for dropping. More...

virtual void htmlText (std::ostream &out)
 Streams the (X)HTML representation. More...

bool isRendered () const
 Returns whether the widget is rendered. More...

void hide ()
 Hides the widget. More...

void animateHide (const WAnimation &animation)
 Hides the widget using an animation. More...

void show ()
 Shows the widget. More...

void animateShow (const WAnimation &animation)
 Shows the widget using an animation. More...

void enable ()
 Enables the widget. More...

void disable ()
 Disable thes widget. More...

bool layoutSizeAware () const
 Returns whether the widget is layout size aware. More...

- Public Member Functions inherited from Wt::WObject
 WObject (WObject *parent=0)
 Create a WObject with a given parent object. More...

virtual ~WObject ()
 Destructor. More...

void resetLearnedSlots ()
 Resets learned stateless slot implementations. More...

template<class T >
void resetLearnedSlot (void(T::*method)())
 Resets a learned stateless slot implementation. More...

template<class T >
WStatelessSlot * implementStateless (void(T::*method)())
 Declares a slot to be stateless and learn client-side behaviour on first invocation. More...

template<class T >
WStatelessSlot * implementStateless (void(T::*method)(), void(T::*undoMethod)())
 Declares a slot to be stateless and learn client-side behaviour in advance. More...

void isNotStateless ()
 Marks the current function as not stateless. More...

template<class T >
WStatelessSlot * implementJavaScript (void(T::*method)(), const std::string &jsCode)
 Provides a JavaScript implementation for a method. More...

void addChild (WObject *child)
 Adds a child object. More...

const std::vector< WObject * > & children () const
 Returns the children.

WObjectparent () const
 Returns the parent object.


Additional Inherited Members

- Static Public Member Functions inherited from Wt::WWidget
static WString tr (const char *key)
 Short hand for WString::tr() More...

- Protected Member Functions inherited from Wt::WCompositeWidget
virtual void enableAjax ()
 Progresses to an Ajax-enabled widget. More...

void setImplementation (WWidget *widget)
 Set the implementation widget. More...

WWidgetimplementation ()
 Get the implementation widget. More...

virtual int boxPadding (Orientation orientation) const
 Returns the widget's built-in padding. More...

virtual int boxBorder (Orientation orientation) const
 Returns the widget's built-in border width. More...

virtual void render (WFlags< RenderFlag > flags)
 Renders the widget. More...

- Protected Member Functions inherited from Wt::WWidget
void setLayoutSizeAware (bool sizeAware)
 Sets the widget to be aware of its size set by a layout manager. More...

virtual void layoutSizeChanged (int width, int height)
 Virtual method that indicates a size change. More...

 WWidget (WContainerWidget *parent=0)
 Creates a widget. More...

virtual void dropEvent (WDropEvent dropEvent)
 Handles a drop event. More...

void scheduleRender (WFlags< RepaintFlag > flags=0)
 Schedules rerendering of the widget. More...

virtual WStatelessSlot * getStateless (Method method)
 On-demand stateless slot implementation. More...

- Static Protected Member Functions inherited from Wt::WObject
static WObjectsender ()
 Returns the sender of the current slot call. More...


Detailed Description

A widget that organizes contents in tab panes.

This widget combines a horizontal WMenu with a WStackedWidget, and a tab-like look.

A tab widget will place the tab bar on top of the contents, and fit the contents below it.

Usage example:

Wt::WTabWidget *examples = new Wt::WTabWidget(this);
examples->addTab(helloWorldExample(), "Hello World");
examples->addTab(chartExample(), "Charts");
examples->addTab(new Wt::WText("A WText"), "WText");
examples->currentChanged().connect(this, &MyClass::logInternalPath);
examples->setInternalBasePath("/examples");

CSS

The tab widget is styled by the current CSS theme.

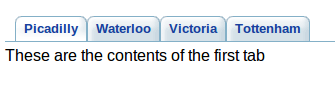

An example WTabWidget (default)

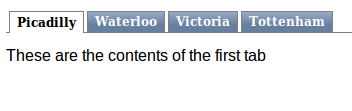

An example WTabWidget (polished)

Member Enumeration Documentation

◆ LoadPolicy

Enumeration to indicate when the contents should be loaded.

Enumerator
LazyLoading

Lazy loading: on first use.

PreLoading

Pre-loading: before first use.

Member Function Documentation

◆ addTab()

WMenuItem * Wt::WTabWidget::addTab ( WWidget child,
const WString label,
LoadPolicy  loadPolicy = LazyLoading
)

Adds a new tab, with child as content, and the given label.

Returns the menu item that implements the tab item.

◆ closeTab()

void Wt::WTabWidget::closeTab ( int  index)

Closes a tab at index.

A tab that has been closed is marked as hidden, but not removed from the menu.

See also
removeTab(), setTabHidden()

◆ contentsStack()

WStackedWidget * Wt::WTabWidget::contentsStack ( ) const

Returns the contents stack.

The tab widget is implemented as a WMenu + WStackedWidget which displays the contents. This method returns a reference to this contents stack.

◆ currentChanged()

Signal<int>& Wt::WTabWidget::currentChanged ( )

Signal emitted when the user activates a tab.

The index of the newly activated tab is passed as an argument.

◆ indexOf()

int Wt::WTabWidget::indexOf ( WWidget widget) const

Returns the index of the tab of the given content widget.

If the widget is not in this tab widget, then -1 is returned.

◆ insertTab()

WMenuItem * Wt::WTabWidget::insertTab ( int  index,
WWidget child,
const WString label,
LoadPolicy  loadPolicy = LazyLoading
)

Inserts a new tab, with child as content, and the given label.

Returns the menu item that implements the tab item.

◆ internalBasePath()

const std::string & Wt::WTabWidget::internalBasePath ( ) const

Returns the internal base path.

The default value is the application's internalPath (WApplication::internalPath()) that was recorded when setInternalPathEnabled() was called, and together with each WMenuItem::pathComponent() determines the paths for each item.

For example, if internalBasePath() is "/examples/" and pathComponent() for a particular item is "charts/", then the internal path for that item will be "/examples/charts/".

See also
setInternalPathEnabled()

◆ internalPathEnabled()

bool Wt::WTabWidget::internalPathEnabled ( ) const

Returns whether internal paths are enabled.

See also
setInternalPathEnabled()

◆ isTabCloseable()

bool Wt::WTabWidget::isTabCloseable ( int  index)

Returns whether a tab is closeable.

See also
setTabCloseable()

◆ isTabEnabled()

bool Wt::WTabWidget::isTabEnabled ( int  index) const

Returns whether a tab is enabled.

See also
WMenu::enableItem(), WMenu::disableItem()

◆ removeTab()

void Wt::WTabWidget::removeTab ( WWidget widget)

Removes a tab item.

The widget itself is not deleted.

See also
WMenu::removeItem()

◆ setInternalBasePath()

void Wt::WTabWidget::setInternalBasePath ( const std::string &  path)

Sets the internal base path.

A '/' is appended to turn it into a folder, if needed.

See also
setInternalPathEnabled(), internalBasePath()

◆ setInternalPathEnabled()

void Wt::WTabWidget::setInternalPathEnabled ( const std::string &  basePath = "")

Enables internal paths for items.

The menu participates in the internal path by changing the internal path when an item has been selected, and listening for path changes to react to path selections. As a consequence this allows the user to bookmark the current menu selection and revisit it later, use back/forward buttons to navigate through history of visited menu items, and allows indexing of pages.

For each menu item, WMenuItem::pathComponent() is appended to the basePath, which defaults to the internal path (WApplication::internalPath()). A '/' is appended to the base path, to turn it into a folder, if needed.

By default, menu interaction does not change the application internal path.

See also
WMenuItem::setPathComponent().

◆ setOverflow()

void Wt::WTabWidget::setOverflow ( WContainerWidget::Overflow  overflow,
WFlags< Orientation orientation = (Horizontal | Vertical)
)

Sets how overflow of contained children must be handled.

This is an alternative (CSS-ish) way to configure scroll bars on a container widget, compared to wrapping inside a WScrollArea.

Unlike WScrollArea, horizontal scrolling does not work reliably when the container widget is inserted in a layout manager: the layout manager will overflow rather than use scrollbars for this this widget. A solution then is to use WScrollArea instead.

See also
WScrollArea

◆ setTabCloseable()

void Wt::WTabWidget::setTabCloseable ( int  index,
bool  closeable
)

Make it possible to close a tab interactively or by closeTab.

A tab that has been closed is marked as hidden, but not removed from the menu.

See also
removeTab()

◆ setTabEnabled()

void Wt::WTabWidget::setTabEnabled ( int  index,
bool  enable
)

Enables or disables a tab.

Enables or disables the tab at index. A disabled tab cannot be activated.

◆ setTabHidden()

void Wt::WTabWidget::setTabHidden ( int  index,
bool  hidden
)

Hides or shows a tab.

Hides or shows the tab at index.

◆ setTabToolTip()

void Wt::WTabWidget::setTabToolTip ( int  index,
const WString tip
)

Sets the tooltip for a tab.

The tooltip is shown when the user hovers over the label.

◆ tabClosed()

Signal<int>& Wt::WTabWidget::tabClosed ( )

Signal emitted when the user closes a tab.

The index of the closed tab is passed as an argument.

See also
closeTab(), setTabCloseable()

◆ tabText()

const WString & Wt::WTabWidget::tabText ( int  index) const

Returns the label for a tab.

See also
setTabText()

◆ tabToolTip()

WString Wt::WTabWidget::tabToolTip ( int  index) const

Returns the tooltip for a tab.

See also
setTabToolTip()

Generated on Tue Dec 15 2020 for the C++ Web Toolkit (Wt) by doxygen 1.8.13
