Class representing grid-based data for on a 3D chart. More...

#include <WAbstractGridData.h>

Inheritance diagram for Wt::Chart::WAbstractGridData:

Public Member Functions
	WAbstractGridData (std::shared_ptr< WAbstractItemModel > model)
	Constructor.

virtual double	minimum (Axis axis) const override=0
	Returns the computed minimum value of this dataseries along the given axis. More...

virtual double	maximum (Axis axis) const override=0
	Returns the computed maximum value of this dataseries along the given axis. More...

void	setType (Series3DType type)
	Sets the type of representation that will be used for the data. More...

virtual Series3DType	type () const
	Returns the type of representation that will be used for the data. More...

void	setSurfaceMeshEnabled (bool enabled=true)
	Enables or disables a mesh for when a surface is drawn. More...

bool	isSurfaceMeshEnabled ()
	Returns whether the surface-mesh is enabled for this dataseries. More...

void	setBarWidth (double xWidth, double yWidth)
	Sets the bar-width. More...

double	barWidthX ()
	Returns the bar-width in the X-axis direction. More...

double	barWidthY ()
	Returns the bar-width in the Y-axis direction. More...

void	setPen (const WPen &pen)
	Sets the WPen that is used for drawing the mesh. More...

WPen	pen () const
	Returns the pen that is used for drawing the mesh. More...

std::vector< WSurfaceSelection >	pickSurface (int x, int y) const
	Find all points on the surface that are projected to the given pixel. More...

WBarSelection	pickBar (int x, int y) const
	Return the bar that is closest to the look point at the given pixel. More...

void	setIsoLevels (const std::vector< double > &isoLevels)
	Set isoline levels. More...

const std::vector< double > &	isoLevels () const
	Get all of the isoline levels. More...

void	setIsoColorMap (const std::shared_ptr< WAbstractColorMap > &colormap)
	Set the color map for the isolines. More...

std::shared_ptr< WAbstractColorMap >	isoColorMap () const
	Get the color map for the isolines. More...

void	setClippingMin (Axis axis, float v)
	Set the value below which the data series will be clipped on the given axis. More...

float	clippingMin (Axis axis) const
	Gets the value below which the data series will be clipped on the given axis. More...

JSlot &	changeClippingMin (Axis axis)
	JSlot to change the value below which the data series will be clipped on the given axis. More...

void	setClippingMax (Axis axis, float v)
	Set the value above which the data series will be clipped on the given axis. More...

float	clippingMax (Axis axis) const
	Gets the value above which the data series will be clipped on the given axis. More...

JSlot &	changeClippingMax (Axis axis)
	JSlot to change the value above which the data series will be clipped on the given axis. More...

void	setClippingLinesEnabled (bool clippingLinesEnabled)
	Sets whether clipping lines should be drawn where a surface is clipped. More...

bool	clippingLinesEnabled () const
	Returns whether clipping lines are enabled. More...

void	setClippingLinesColor (WColor color)
	Sets the color of the clipping lines. More...

WColor	clippingLinesColor () const
	Gets the color of the clipping lines. More...

virtual void	initializeGL () override
	Initialize GL resources. More...

virtual void	paintGL () const override
	Update the client-side painting function. More...

virtual void	updateGL () override
	Update GL resources. More...

virtual void	resizeGL () override
	Act on resize events. More...

virtual void	deleteAllGLResources () override
	Delete GL resources. More...

Public Member Functions inherited from Wt::Chart::WAbstractDataSeries3D
	WAbstractDataSeries3D (std::shared_ptr< WAbstractItemModel > model)
	Constructor. More...

void	setTitle (const WString &name)
	Sets the title of this dataseries. More...

const WString &	title () const
	Returns the title of this dataseries. More...

void	setModel (const std::shared_ptr< WAbstractItemModel > &model)
	Sets a model from which the dataseries gets its data. More...

std::shared_ptr< WAbstractItemModel >	model () const
	Returns a pointer to the model used by this dataseries. More...

const WCartesian3DChart *	chart () const
	Returns a const pointer to the WCartesian3DChart on which the dataseries is drawn.

void	setPointSize (double size)
	Sets the pointsize for drawing this dataseries. More...

double	pointSize () const
	Returns the pointsize for drawing this dataseries. More...

void	setPointSprite (const std::string &image)
	Set the point sprite used for drawing this dataseries. More...

const std::string &	pointSprite () const
	Returns the point sprite used for drawing this dataseries. More...

void	setColorMap (const std::shared_ptr< WAbstractColorMap > &colormap)
	Sets the colormap for this dataseries. More...

const WAbstractColorMap *	colorMap () const
	Returns the colormap used by this dataseries. More...

void	setColorMapVisible (bool enabled=true)
	Sets whether the colormap that is used should be shown alongside the chart in the form of a legend. More...

bool	colorMapVisible () const
	Returns whether the colormap is shown alongside the chart in the form of a legend. More...

void	setColorMapSide (Side side)
	Sets whether the colormap is shown on the left or right. More...

Side	colorMapSide () const
	Returns on which side the colormap is shown. More...

void	setLegendEnabled (bool enabled=true)
	Sets whether this dataseries is included in the chart-legend. More...

bool	isLegendEnabled () const
	Returns whether this dataseries is included in the chart-legend. More...

void	setHidden (bool enabled=true)
	Sets if this dataseries is hidden. More...

bool	isHidden () const
	Returns if this dataseries is hidden. More...

Public Member Functions inherited from Wt::WObject
void	addChild (std::unique_ptr< WObject > child)
	Add a child WObject whose lifetime is determined by this WObject.

template<typename Child >
Child *	addChild (std::unique_ptr< Child > child)
	Add a child WObject, returning a raw pointer. More...

std::unique_ptr< WObject >	removeChild (WObject *child)
	Remove a child WObject, so its lifetime is no longer determined by this WObject.

template<typename Child >
std::unique_ptr< Child >	removeChild (Child *child)
	Remove a child WObject, so its lifetime is no longer determined by this WObject. More...

virtual const std::string	id () const
	Returns the (unique) identifier for this object. More...

virtual void	setObjectName (const std::string &name)
	Sets an object name. More...

virtual std::string	objectName () const
	Returns the object name. More...

void	resetLearnedSlots ()
	Resets learned stateless slot implementations. More...

template<class T >
void	resetLearnedSlot (void(T::*method)())
	Resets a learned stateless slot implementation. More...

template<class T >
WStatelessSlot *	implementStateless (void(T::*method)())
	Declares a slot to be stateless and learn client-side behaviour on first invocation. More...

template<class T >
WStatelessSlot *	implementStateless (void(T::method)(), void(T::undoMethod)())
	Declares a slot to be stateless and learn client-side behaviour in advance. More...

void	isNotStateless ()
	Marks the current function as not stateless. More...

template<class T >
WStatelessSlot *	implementJavaScript (void(T::*method)(), const std::string &jsCode)
	Provides a JavaScript implementation for a method. More...

Public Member Functions inherited from Wt::Core::observable
	observable () noexcept
	Default constructor.

virtual	~observable ()
	Destructor. More...

template<typename... Args, typename C >
auto	bindSafe (void(C::*method)(Args...)) noexcept
	Protects a method call against object destruction. More...

template<typename... Args, typename C >
auto	bindSafe (void(C::*method)(Args...) const) const noexcept
	Protects a const method call against object destruction. More...

template<typename Function >
auto	bindSafe (const Function &function) noexcept
	Protects a function against object destruction. More...

Additional Inherited Members
Public Types inherited from Wt::WObject
typedef void(WObject::*	Method) ()
	Typedef for a WObject method without arguments.

Protected Member Functions inherited from Wt::WObject
virtual WStatelessSlot *	getStateless (Method method)
	On-demand stateless slot implementation. More...

Detailed Description

Class representing grid-based data for on a 3D chart.

General information can be found at WAbstractDataSeries3D. Information on how the model is structured is provided in the subclasses. GridData can be represented in three ways. This is indicated by Series3DType and can be either Series3DType::Point, Series3DType::Surface or Series3DType::Bar. Note that points and surfaces can only be added to charts of type ChartType::Scatter, while bars can only be added to charts of type ChartType::Category.

When the data is shown as a surface, a mesh can be added to the surface. This draws lines over the surface at the positions of the x- and y-values. For bar-series data, it is possible to adjust the width of the bars in both directions.

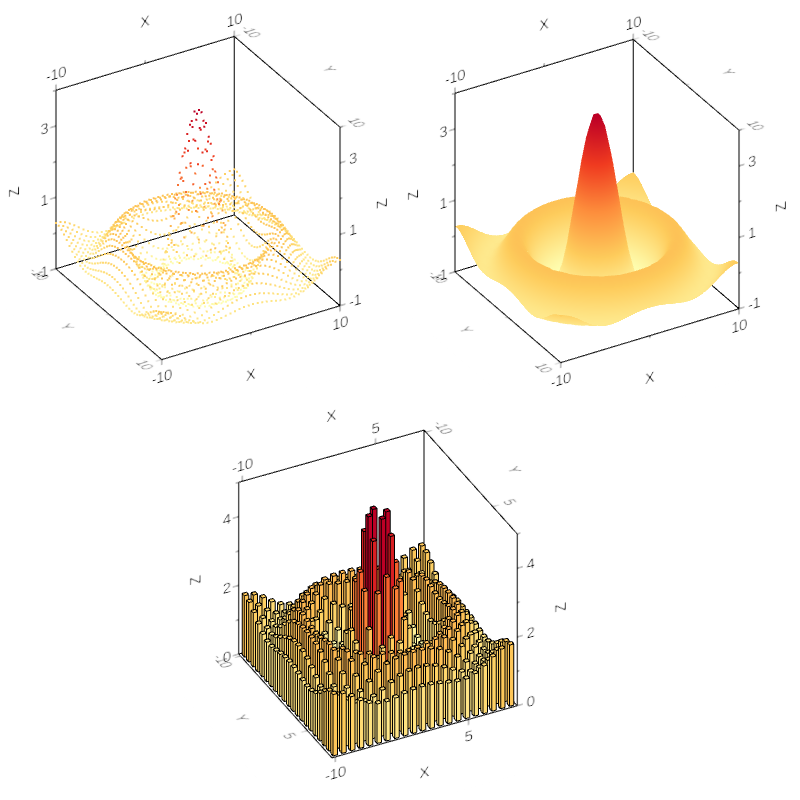

The three types of data-representation are illustrated below.

The three representation types of grid-based data

Member Function Documentation

◆ barWidthX()

double Wt::Chart::WAbstractGridData::barWidthX ( )

Returns the bar-width in the X-axis direction.

See also: setBarWidth()

◆ barWidthY()

double Wt::Chart::WAbstractGridData::barWidthY ( )

Returns the bar-width in the Y-axis direction.

See also: setBarWidth()

◆ changeClippingMax()

JSlot & Wt::Chart::WAbstractGridData::changeClippingMax ( Axis axis )

JSlot to change the value above which the data series will be clipped on the given axis.

The JSlot takes one extra argument: the value to clip below.

The jsRef() of this JSlot is only valid when this WAbstractGridData has been added to a WCartesian3DChart. If this WAbstractGridData moves to another WCartesian3DChart, the jsRef() of the JSlot changes.

See also: setClippingMax()

◆ changeClippingMin()

JSlot & Wt::Chart::WAbstractGridData::changeClippingMin ( Axis axis )

JSlot to change the value below which the data series will be clipped on the given axis.

The JSlot takes one extra argument: the value to clip below.

The jsRef() of this JSlot is only valid when this WAbstractGridData has been added to a WCartesian3DChart. If this WAbstractGridData moves to another WCartesian3DChart, the jsRef() of the JSlot changes.

See also: setClippingMin()

◆ clippingLinesColor()

WColor Wt::Chart::WAbstractGridData::clippingLinesColor ( ) const

Gets the color of the clipping lines.

See also: setClippingLinesColor(), setClippingLinesEnabled()

◆ clippingLinesEnabled()

bool Wt::Chart::WAbstractGridData::clippingLinesEnabled ( ) const

Returns whether clipping lines are enabled.

See also: setClippingLinesEnabled()

◆ clippingMax()

float Wt::Chart::WAbstractGridData::clippingMax ( Axis axis ) const

Gets the value above which the data series will be clipped on the given axis.

See also: setClippingMax()

◆ clippingMin()

float Wt::Chart::WAbstractGridData::clippingMin ( Axis axis ) const

Gets the value below which the data series will be clipped on the given axis.

See also: setClippingMin()

◆ deleteAllGLResources()

void Wt::Chart::WAbstractGridData::deleteAllGLResources ( )

overridevirtual

Delete GL resources.

This function is called by updateGL() in the chart to which this dataseries was added.

Implements Wt::Chart::WAbstractDataSeries3D.

◆ initializeGL()

void Wt::Chart::WAbstractGridData::initializeGL ( )

overridevirtual

Initialize GL resources.

This function is called by initializeGL() in the chart to which this dataseries was added.

Implements Wt::Chart::WAbstractDataSeries3D.

◆ isoColorMap()

std::shared_ptr<WAbstractColorMap> Wt::Chart::WAbstractGridData::isoColorMap ( ) const

Get the color map for the isolines.

See also: setIsoColorMap()

◆ isoLevels()

const std::vector< double > & Wt::Chart::WAbstractGridData::isoLevels ( ) const

Get all of the isoline levels.

See also: addIsoLevel()

◆ isSurfaceMeshEnabled()

bool Wt::Chart::WAbstractGridData::isSurfaceMeshEnabled ( )

Returns whether the surface-mesh is enabled for this dataseries.

See also: setSurfaceMeshEnabled()

◆ maximum()

virtual double Wt::Chart::WAbstractGridData::maximum ( Axis axis ) const

overridepure virtual

Returns the computed maximum value of this dataseries along the given axis.

See also: minimum()

Implements Wt::Chart::WAbstractDataSeries3D.

Implemented in Wt::Chart::WGridData, and Wt::Chart::WEquidistantGridData.

◆ minimum()

virtual double Wt::Chart::WAbstractGridData::minimum ( Axis axis ) const

overridepure virtual

Returns the computed minimum value of this dataseries along the given axis.

See also: maximum()

Implements Wt::Chart::WAbstractDataSeries3D.

Implemented in Wt::Chart::WGridData, and Wt::Chart::WEquidistantGridData.

◆ paintGL()

void Wt::Chart::WAbstractGridData::paintGL ( ) const

overridevirtual

Update the client-side painting function.

This function is called by paintGL() in the chart to which this dataseries was added.

Implements Wt::Chart::WAbstractDataSeries3D.

◆ pen()

WPen Wt::Chart::WAbstractGridData::pen ( ) const

Returns the pen that is used for drawing the mesh.

See also: setPen()

◆ pickBar()

WBarSelection Wt::Chart::WAbstractGridData::pickBar	(	int	x,
		int	y
	)		const

Return the bar that is closest to the look point at the given pixel.

A ray is cast from the given pixel's x,y position (from the top left of the chart, in screen coordinates), and the closest bar on this WAbstractGridData is returned, along with its distance from the look point.

Note that if this WAbstractGridData is hidden, this method still returns the closest bar as if it was visible. Also, if multiple bars are on the same bar chart, the bar that is returned may be behind another data series. Use the distance field of the returned WBarSelection to determine which data series is in front from the given angle.

If there is no bar at the given pixel, then a selection with an invalid WModelIndex is returned. The distance is then set to positive infinity.

◆ pickSurface()

std::vector< WSurfaceSelection > Wt::Chart::WAbstractGridData::pickSurface	(	int	x,
		int	y
	)		const

Find all points on the surface that are projected to the given pixel.

A ray is cast from the given pixel's x,y position (from the top left of the chart, in screen coordinates) and every intersection with the surface is returned, along with its distance from the look point. Note that the coordinates of the intersection points are interpolated between the data points that make up the surface.

◆ resizeGL()

void Wt::Chart::WAbstractGridData::resizeGL ( )

overridevirtual

Act on resize events.

This function is called by resizeGL() in the chart to which this dataseries was added.

Implements Wt::Chart::WAbstractDataSeries3D.

◆ setBarWidth()

void Wt::Chart::WAbstractGridData::setBarWidth	(	double	xWidth,
		double	yWidth
	)

Sets the bar-width.

This option only takes effect when the type of this WGridData is Series3DType::Bar. The values provided should be between 0 and 1, where 1 lets the bars each take up 1/(nb of x/y-values) of the axis.

The default bar-width is 0.5 in both directions.

◆ setClippingLinesColor()

void Wt::Chart::WAbstractGridData::setClippingLinesColor ( WColor color )

Sets the color of the clipping lines.

See also: setClippingLinesEnabled()

◆ setClippingLinesEnabled()

void Wt::Chart::WAbstractGridData::setClippingLinesEnabled ( bool clippingLinesEnabled )

Sets whether clipping lines should be drawn where a surface is clipped.

Clipping lines are disabled by default. Note that rendering will be significantly slower when enabled.

◆ setClippingMax()

void Wt::Chart::WAbstractGridData::setClippingMax	(	Axis	axis,
		float	v
	)

Set the value above which the data series will be clipped on the given axis.

This only affects data series whose type is Series3DType::Surface.

◆ setClippingMin()

void Wt::Chart::WAbstractGridData::setClippingMin	(	Axis	axis,
		float	v
	)

Set the value below which the data series will be clipped on the given axis.

This only affects data series whose type is Series3DType::Surface.

◆ setIsoColorMap()

void Wt::Chart::WAbstractGridData::setIsoColorMap ( const std::shared_ptr< WAbstractColorMap > & colormap )

Set the color map for the isolines.

When no color map is defined for the isolines, i.e. isoColorMap() is set to NULL, the color map of this WAbstractGridData will be used.

The isolines are only drawn if the type is Series3DType::Surface.

See also: addIsoLevel(), setColorMap()

◆ setIsoLevels()

void Wt::Chart::WAbstractGridData::setIsoLevels ( const std::vector< double > & isoLevels )

Set isoline levels.

Isolines are drawn on the top or ground plane of the chart. Only applies if the type is Series3DType::Surface.

The isoline levels are set in the coordinate system of the item model.

◆ setPen()

void Wt::Chart::WAbstractGridData::setPen ( const WPen & pen )

Sets the WPen that is used for drawing the mesh.

Used when drawing the mesh on a surface or the lines around bars. The default is a default constructed WPen (black and one pixel wide).

Note: only the width and color of this WPen are used.

See also: setSurfaceMeshEnabled()

◆ setSurfaceMeshEnabled()

void Wt::Chart::WAbstractGridData::setSurfaceMeshEnabled ( bool enabled = true )

Enables or disables a mesh for when a surface is drawn.

The default value is false. This option only takes effect when the type of this WGridData is Series3DType::Surface. The mesh is drawn at the position of the x-axis and y-axis values.

◆ setType()

void Wt::Chart::WAbstractGridData::setType ( Series3DType type )

Sets the type of representation that will be used for the data.

All representations in Series3DType are possible for the data. Note that Series3DType::Point and Series3DType::Surface can only be used on a chart that is configured as a ChartType::Scatter and Series3DType::Bar can only be used on a chart that is configured to be a ChartType::Category.

The default value is Series3DType::Point.

◆ type()

virtual Series3DType Wt::Chart::WAbstractGridData::type ( ) const

virtual

Returns the type of representation that will be used for the data.

See also: setType()

◆ updateGL()

void Wt::Chart::WAbstractGridData::updateGL ( )

overridevirtual

Update GL resources.

This function is called by updateGL() in the chart to which this dataseries was added. Before this function is called, deleteAllGLResources() is called.

See also: deleteAllGLResources()

Implements Wt::Chart::WAbstractDataSeries3D.

Public Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ barWidthX()

◆ barWidthY()

◆ changeClippingMax()

◆ changeClippingMin()

◆ clippingLinesColor()

◆ clippingLinesEnabled()

◆ clippingMax()

◆ clippingMin()

◆ deleteAllGLResources()

◆ initializeGL()

◆ isoColorMap()

◆ isoLevels()

◆ isSurfaceMeshEnabled()

◆ maximum()

◆ minimum()

◆ paintGL()

◆ pen()

◆ pickBar()

◆ pickSurface()

◆ resizeGL()

◆ setBarWidth()

◆ setClippingLinesColor()

◆ setClippingLinesEnabled()

◆ setClippingMax()

◆ setClippingMin()

◆ setIsoColorMap()

◆ setIsoLevels()

◆ setPen()

◆ setSurfaceMeshEnabled()

◆ setType()

◆ type()

◆ updateGL()
