Class representing a collection of points for on a 3D chart. More...

#include <WScatterData.h>

Inheritance diagram for Wt::Chart::WScatterData:

Public Member Functions
	WScatterData (std::shared_ptr< WAbstractItemModel > model)
	Constructor.

void	setDroplinesEnabled (bool enable=true)
	Enables or disables droplines for all points. More...

bool	droplinesEnabled () const
	Returns whether droplines are enabled. More...

void	setDroplinesPen (const WPen &pen)
	Sets the pen that is used to draw droplines. More...

WPen	droplinesPen () const
	Returns the pen that is used to draw droplines. More...

void	setXSeriesColumn (int columnNumber)
	Sets the column-index from the model that is used for the x-coordinate of all points. More...

int	XSeriesColumn () const
	Returns the column-index from the model that is used for the x-coordinate of all points. More...

void	setYSeriesColumn (int columnNumber)
	Sets the column-index from the model that is used for the y-coordinate of all points. More...

int	YSeriesColumn () const
	Returns the column-index from the model that is used for the y-coordinate of all points. More...

void	setZSeriesColumn (int columnNumber)
	Sets the column-index from the model that is used for the z-coordinate of all points. More...

int	ZSeriesColumn () const
	Returns the column-index from the model that is used for the z-coordinate of all points. More...

void	setColorColumn (int columnNumber, ItemDataRole role=ItemDataRole::Display)
	Configure a column in the model to be used for the color of the points. More...

void	setSizeColumn (int columnNumber, ItemDataRole role=ItemDataRole::Display)
	Configure a column in the model to be used for the size of the points. More...

std::vector< WPointSelection >	pickPoints (int x, int y, int radius) const
	Pick points on this WScatterData using a single pixel. More...

std::vector< WPointSelection >	pickPoints (int x1, int y1, int x2, int y2) const
	Pick points on this WScatterData inside of a rectangle. More...

virtual double	minimum (Axis axis) const override
	Returns the computed minimum value of this dataseries along the given axis. More...

virtual double	maximum (Axis axis) const override
	Returns the computed maximum value of this dataseries along the given axis. More...

virtual void	initializeGL () override
	Initialize GL resources. More...

virtual void	paintGL () const override
	Update the client-side painting function. More...

virtual void	updateGL () override
	Update GL resources. More...

virtual void	resizeGL () override
	Act on resize events. More...

virtual void	deleteAllGLResources () override
	Delete GL resources. More...

Public Member Functions inherited from Wt::Chart::WAbstractDataSeries3D
	WAbstractDataSeries3D (std::shared_ptr< WAbstractItemModel > model)
	Constructor. More...

void	setTitle (const WString &name)
	Sets the title of this dataseries. More...

const WString &	title () const
	Returns the title of this dataseries. More...

void	setModel (const std::shared_ptr< WAbstractItemModel > &model)
	Sets a model from which the dataseries gets its data. More...

std::shared_ptr< WAbstractItemModel >	model () const
	Returns a pointer to the model used by this dataseries. More...

const WCartesian3DChart *	chart () const
	Returns a const pointer to the WCartesian3DChart on which the dataseries is drawn.

void	setPointSize (double size)
	Sets the pointsize for drawing this dataseries. More...

double	pointSize () const
	Returns the pointsize for drawing this dataseries. More...

void	setPointSprite (const std::string &image)
	Set the point sprite used for drawing this dataseries. More...

const std::string &	pointSprite () const
	Returns the point sprite used for drawing this dataseries. More...

void	setColorMap (const std::shared_ptr< WAbstractColorMap > &colormap)
	Sets the colormap for this dataseries. More...

const WAbstractColorMap *	colorMap () const
	Returns the colormap used by this dataseries. More...

void	setColorMapVisible (bool enabled=true)
	Sets whether the colormap that is used should be shown alongside the chart in the form of a legend. More...

bool	colorMapVisible () const
	Returns whether the colormap is shown alongside the chart in the form of a legend. More...

void	setColorMapSide (Side side)
	Sets whether the colormap is shown on the left or right. More...

Side	colorMapSide () const
	Returns on which side the colormap is shown. More...

void	setLegendEnabled (bool enabled=true)
	Sets whether this dataseries is included in the chart-legend. More...

bool	isLegendEnabled () const
	Returns whether this dataseries is included in the chart-legend. More...

void	setHidden (bool enabled=true)
	Sets if this dataseries is hidden. More...

bool	isHidden () const
	Returns if this dataseries is hidden. More...

Public Member Functions inherited from Wt::WObject
void	addChild (std::unique_ptr< WObject > child)
	Add a child WObject whose lifetime is determined by this WObject.

template<typename Child >
Child *	addChild (std::unique_ptr< Child > child)
	Add a child WObject, returning a raw pointer. More...

std::unique_ptr< WObject >	removeChild (WObject *child)
	Remove a child WObject, so its lifetime is no longer determined by this WObject.

template<typename Child >
std::unique_ptr< Child >	removeChild (Child *child)
	Remove a child WObject, so its lifetime is no longer determined by this WObject. More...

virtual const std::string	id () const
	Returns the (unique) identifier for this object. More...

virtual void	setObjectName (const std::string &name)
	Sets an object name. More...

virtual std::string	objectName () const
	Returns the object name. More...

void	resetLearnedSlots ()
	Resets learned stateless slot implementations. More...

template<class T >
void	resetLearnedSlot (void(T::*method)())
	Resets a learned stateless slot implementation. More...

template<class T >
WStatelessSlot *	implementStateless (void(T::*method)())
	Declares a slot to be stateless and learn client-side behaviour on first invocation. More...

template<class T >
WStatelessSlot *	implementStateless (void(T::method)(), void(T::undoMethod)())
	Declares a slot to be stateless and learn client-side behaviour in advance. More...

void	isNotStateless ()
	Marks the current function as not stateless. More...

template<class T >
WStatelessSlot *	implementJavaScript (void(T::*method)(), const std::string &jsCode)
	Provides a JavaScript implementation for a method. More...

Public Member Functions inherited from Wt::Core::observable
	observable () noexcept
	Default constructor.

virtual	~observable ()
	Destructor. More...

template<typename... Args, typename C >
auto	bindSafe (void(C::*method)(Args...)) noexcept
	Protects a method call against object destruction. More...

template<typename... Args, typename C >
auto	bindSafe (void(C::*method)(Args...) const) const noexcept
	Protects a const method call against object destruction. More...

template<typename Function >
auto	bindSafe (const Function &function) noexcept
	Protects a function against object destruction. More...

Additional Inherited Members
Public Types inherited from Wt::WObject
typedef void(WObject::*	Method) ()
	Typedef for a WObject method without arguments.

Protected Member Functions inherited from Wt::WObject
virtual WStatelessSlot *	getStateless (Method method)
	On-demand stateless slot implementation. More...

Detailed Description

Class representing a collection of points for on a 3D chart.

General information can be found at WAbstractDataSeries3D. The model should be structured as a table where every row represents a point. In the simplest case, there are three columns representing the x-, y- and z-values. By default, this is column 0 for X, column 1 for Y and column 2 for Z. It is also possible to provide an additional column containing information on the color for each point. The same is possible for the size. Color-information in the model should be present as a WColor.

If these extra columns are not included, the ItemDataRole::MarkerBrushColor and ItemDataRole::MarkerScaleFactor can still be used to style individual points. These dataroles should be set on the values in the column containing the z-values.

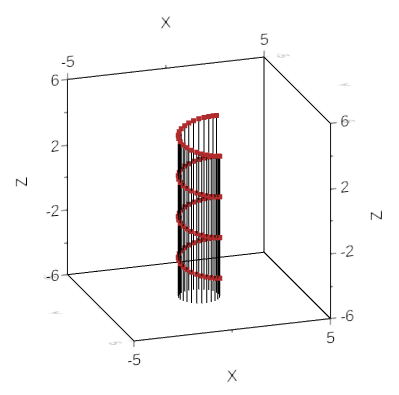

The figure below shows an upward spiral of points, with droplines enabled and a pointsize of 5 pixels.

An example of WScatterData

Member Function Documentation

◆ deleteAllGLResources()

void Wt::Chart::WScatterData::deleteAllGLResources ( )

overridevirtual

Delete GL resources.

This function is called by updateGL() in the chart to which this dataseries was added.

Implements Wt::Chart::WAbstractDataSeries3D.

◆ droplinesEnabled()

bool Wt::Chart::WScatterData::droplinesEnabled ( ) const

Returns whether droplines are enabled.

See also: setDroplinesEnabled(), setDroplinesPen()

◆ droplinesPen()

WPen Wt::Chart::WScatterData::droplinesPen ( ) const

Returns the pen that is used to draw droplines.

See also: setDroplinesEnabled(), setDroplinesPen()

◆ initializeGL()

virtual void Wt::Chart::WScatterData::initializeGL ( )

overridevirtual

Initialize GL resources.

This function is called by initializeGL() in the chart to which this dataseries was added.

Implements Wt::Chart::WAbstractDataSeries3D.

◆ maximum()

double Wt::Chart::WScatterData::maximum ( Axis axis ) const

overridevirtual

Returns the computed maximum value of this dataseries along the given axis.

See also: minimum()

Implements Wt::Chart::WAbstractDataSeries3D.

◆ minimum()

double Wt::Chart::WScatterData::minimum ( Axis axis ) const

overridevirtual

Returns the computed minimum value of this dataseries along the given axis.

See also: maximum()

Implements Wt::Chart::WAbstractDataSeries3D.

◆ paintGL()

void Wt::Chart::WScatterData::paintGL ( ) const

overridevirtual

Update the client-side painting function.

This function is called by paintGL() in the chart to which this dataseries was added.

Implements Wt::Chart::WAbstractDataSeries3D.

◆ pickPoints() [1/2]

std::vector< WPointSelection > Wt::Chart::WScatterData::pickPoints	(	int	x,
		int	y,
		int	radius
	)		const

Pick points on this WScatterData using a single pixel.

x,y are the screen coordinates of the pixel from the top left of the chart, and radius is the radius in pixels around that pixel. All points around the ray projected through the pixel within the given radius will be returned.

◆ pickPoints() [2/2]

std::vector< WPointSelection > Wt::Chart::WScatterData::pickPoints	(	int	x1,
		int	y1,
		int	x2,
		int	y2
	)		const

Pick points on this WScatterData inside of a rectangle.

The screen coordinates (x1, y1) and (x2, y2) from the top left of the chart define a rectangle within which the points should be selected.

◆ resizeGL()

void Wt::Chart::WScatterData::resizeGL ( )

overridevirtual

Act on resize events.

This function is called by resizeGL() in the chart to which this dataseries was added.

Implements Wt::Chart::WAbstractDataSeries3D.

◆ setColorColumn()

void Wt::Chart::WScatterData::setColorColumn	(	int	columnNumber,
		ItemDataRole	role = `ItemDataRole::Display`
	)

Configure a column in the model to be used for the color of the points.

By default, the color-column is set to -1. This means there is no column which specifies color-values. Also, the basic mechanism of using the ItemDataRole::MarkerBrushColor (if present) is then active. The Z-seriescolumn is checked for the presence of this Role.

See also: setZSeriesColumn()

◆ setDroplinesEnabled()

void Wt::Chart::WScatterData::setDroplinesEnabled ( bool enable = true )

Enables or disables droplines for all points.

Enabling droplines will cause a line to be drawn from every point to the the ground-plane of the chart's plotcube. By default the droplines are disabled.

See also: setDroplinesPen()

◆ setDroplinesPen()

void Wt::Chart::WScatterData::setDroplinesPen ( const WPen & pen )

Sets the pen that is used to draw droplines.

The default pen is a default constructed WPen.

Note: only the width and color of the pen are used.

See also: setDroplinesEnabled()

◆ setSizeColumn()

void Wt::Chart::WScatterData::setSizeColumn	(	int	columnNumber,
		ItemDataRole	role = `ItemDataRole::Display`
	)

Configure a column in the model to be used for the size of the points.

By default, the size-column is set to -1. This means there is no column which specifies size-values. Also, the basic mechanism of using the ItemDataRole::MarkerScaleFactor (if present) is then active. The Z-seriescolumn is checked for the presence of this Role.

See also: setZSeriesColumn()

◆ setXSeriesColumn()

void Wt::Chart::WScatterData::setXSeriesColumn ( int columnNumber )

Sets the column-index from the model that is used for the x-coordinate of all points.

The default X column index is 0.

◆ setYSeriesColumn()

void Wt::Chart::WScatterData::setYSeriesColumn ( int columnNumber )

Sets the column-index from the model that is used for the y-coordinate of all points.

The default X column index is 1.

◆ setZSeriesColumn()

void Wt::Chart::WScatterData::setZSeriesColumn ( int columnNumber )

Sets the column-index from the model that is used for the z-coordinate of all points.

The default Z column index is 2.

Note that this column is also used to check for a ItemDataRole::MarkerBrushColor and a ItemDataRole::MarkerScaleFactor is no color-column or size-column are set.

See also: setColorColumn(), setSizeColumn()

◆ updateGL()

void Wt::Chart::WScatterData::updateGL ( )

overridevirtual

Update GL resources.

This function is called by updateGL() in the chart to which this dataseries was added. Before this function is called, deleteAllGLResources() is called.

See also: deleteAllGLResources()

Implements Wt::Chart::WAbstractDataSeries3D.

◆ XSeriesColumn()

int Wt::Chart::WScatterData::XSeriesColumn ( ) const

Returns the column-index from the model that is used for the x-coordinate of all points.

See also: setXSeriesColumn()

◆ YSeriesColumn()

int Wt::Chart::WScatterData::YSeriesColumn ( ) const

Returns the column-index from the model that is used for the y-coordinate of all points.

See also: setYSeriesColumn()

◆ ZSeriesColumn()

int Wt::Chart::WScatterData::ZSeriesColumn ( ) const

Returns the column-index from the model that is used for the z-coordinate of all points.

See also: setZSeriesColumn()

Public Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ deleteAllGLResources()

◆ droplinesEnabled()

◆ droplinesPen()

◆ initializeGL()

◆ maximum()

◆ minimum()

◆ paintGL()

◆ pickPoints() [1/2]

◆ pickPoints() [2/2]

◆ resizeGL()

◆ setColorColumn()

◆ setDroplinesEnabled()

◆ setDroplinesPen()

◆ setSizeColumn()

◆ setXSeriesColumn()

◆ setYSeriesColumn()

◆ setZSeriesColumn()

◆ updateGL()

◆ XSeriesColumn()

◆ YSeriesColumn()

◆ ZSeriesColumn()
