CountDownWidget Class Reference
Timer example

A widget which displays a decrementing number. More...

#include <CountDownWidget.h>

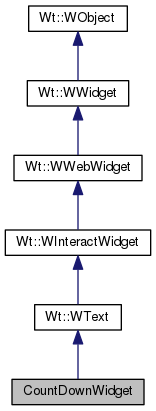

Inheritance diagram for CountDownWidget:
Inheritance graph
[legend]

Public Member Functions

 CountDownWidget (int start, int stop, unsigned msec, WContainerWidget *parent=0)
 Create a new CountDownWidget. More...

Wt::Signal< void > & done ()
 Signal emitted when the countdown reached stop. More...

void cancel ()
 Cancel the count down. More...

- Public Member Functions inherited from Wt::WText
 WText (WContainerWidget *parent=0)

 WText (const WString &text, WContainerWidget *parent=0)

 WText (const WString &text, TextFormat textFormat, WContainerWidget *parent=0)

 ~WText ()

const WString & text () const

bool setText (const WString &text)

bool setTextFormat (TextFormat format)

TextFormat textFormat () const

void setWordWrap (bool wordWrap)

bool wordWrap () const

void setTextAlignment (AlignmentFlag textAlignment)

AlignmentFlag textAlignment () const

void setPadding (const WLength &padding, WFlags< Side > sides=Left|Right)

WLength padding (Side side) const

void setInternalPathEncoding (bool enabled)

bool hasInternalPathEncoding () const

virtual void refresh ()

- Public Member Functions inherited from Wt::WInteractWidget
 WInteractWidget (WContainerWidget *parent=0)

EventSignal< WKeyEvent > & keyWentDown ()

EventSignal< WKeyEvent > & keyPressed ()

EventSignal< WKeyEvent > & keyWentUp ()

EventSignal & enterPressed ()

EventSignal & escapePressed ()

EventSignal< WMouseEvent > & clicked ()

EventSignal< WMouseEvent > & doubleClicked ()

EventSignal< WMouseEvent > & mouseWentDown ()

EventSignal< WMouseEvent > & mouseWentUp ()

EventSignal< WMouseEvent > & mouseWentOut ()

EventSignal< WMouseEvent > & mouseWentOver ()

EventSignal< WMouseEvent > & mouseMoved ()

EventSignal< WMouseEvent > & mouseDragged ()

EventSignal< WMouseEvent > & mouseWheel ()

EventSignal< WTouchEvent > & touchStarted ()

EventSignal< WTouchEvent > & touchEnded ()

EventSignal< WTouchEvent > & touchMoved ()

EventSignal< WGestureEvent > & gestureStarted ()

EventSignal< WGestureEvent > & gestureChanged ()

EventSignal< WGestureEvent > & gestureEnded ()

void setDraggable (const std::string &mimeType, WWidget *dragWidget=0, bool isDragWidgetOnly=false, WObject *sourceWidget=0)

void unsetDraggable ()

void setMouseOverDelay (int delay)

int mouseOverDelay () const

virtual void setPopup (bool popup)

virtual void load ()

virtual bool isEnabled () const

- Public Member Functions inherited from Wt::WWebWidget
 WWebWidget (WContainerWidget *parent=0)

virtual void setPositionScheme (PositionScheme scheme)

virtual PositionScheme positionScheme () const

virtual void setOffsets (const WLength &offset, WFlags< Side > sides=All)

virtual WLength offset (Side s) const

virtual void resize (const WLength &width, const WLength &height)

virtual WLength width () const

virtual WLength height () const

virtual void setMinimumSize (const WLength &width, const WLength &height)

virtual WLength minimumWidth () const

virtual WLength minimumHeight () const

virtual void setMaximumSize (const WLength &width, const WLength &height)

virtual WLength maximumWidth () const

virtual WLength maximumHeight () const

virtual void setLineHeight (const WLength &height)

virtual WLength lineHeight () const

virtual void setFloatSide (Side s)

virtual Side floatSide () const

virtual void setClearSides (WFlags< Side > sides)

virtual WFlags< Side > clearSides () const

virtual void setMargin (const WLength &margin, WFlags< Side > sides=All)

virtual WLength margin (Side side) const

virtual void setHiddenKeepsGeometry (bool enabled)

virtual bool hiddenKeepsGeometry () const

virtual void setHidden (bool hidden, const WAnimation &animation=WAnimation())

virtual bool isHidden () const

virtual bool isVisible () const

virtual void setDisabled (bool disabled)

virtual bool isDisabled () const

virtual bool isPopup () const

virtual void setInline (bool isInline)

virtual bool isInline () const

virtual void setDecorationStyle (const WCssDecorationStyle &style)

virtual WCssDecorationStyle & decorationStyle ()

virtual void setStyleClass (const WString &styleClass)

virtual WString styleClass () const

virtual void addStyleClass (const WString &styleClass, bool force=false)

virtual void removeStyleClass (const WString &styleClass, bool force=false)

virtual bool hasStyleClass (const WString &styleClass) const

virtual void setVerticalAlignment (AlignmentFlag alignment, const WLength &length=WLength())

virtual AlignmentFlag verticalAlignment () const

virtual WLength verticalAlignmentLength () const

virtual void setToolTip (const WString &text, TextFormat textFormat=PlainText)

virtual void setDeferredToolTip (bool enable, TextFormat textFormat=PlainText)

virtual WString toolTip () const

virtual void setAttributeValue (const std::string &name, const WString &value)

virtual WString attributeValue (const std::string &name) const

virtual void setJavaScriptMember (const std::string &name, const std::string &value)

virtual std::string javaScriptMember (const std::string &name) const

virtual void callJavaScriptMember (const std::string &name, const std::string &args)

virtual bool loaded () const

virtual void setId (const std::string &id)

virtual WWidget * find (const std::string &name)

virtual WWidget * findById (const std::string &id)

virtual void setSelectable (bool selectable)

virtual void doJavaScript (const std::string &javascript)

virtual const std::string id () const

void setLoadLaterWhenInvisible (bool)

std::string htmlTagName () const

void setHtmlTagName (const std::string &tag)

const std::vector< WWidget * > & children () const

Signal & childrenChanged ()

virtual void setCanReceiveFocus (bool enabled)

virtual bool canReceiveFocus () const

virtual bool setFirstFocus ()

virtual void setFocus (bool focus)

virtual bool hasFocus () const

virtual void setTabIndex (int index)

virtual int tabIndex () const

EventSignal & blurred ()

EventSignal & focussed ()

virtual bool scrollVisibilityEnabled () const WT_CXX11ONLY(finaloverride)

virtual void setScrollVisibilityEnabled (bool enabled) WT_CXX11ONLY(finaloverride)

virtual int scrollVisibilityMargin () const WT_CXX11ONLY(finaloverride)

virtual void setScrollVisibilityMargin (int margin) WT_CXX11ONLY(finaloverride)

virtual Signal< bool > & scrollVisibilityChanged () WT_CXX11ONLY(finaloverride)

virtual bool isScrollVisible () const WT_CXX11ONLY(finaloverride)

virtual void setThemeStyleEnabled (bool enabled)

virtual bool isThemeStyleEnabled () const

- Public Member Functions inherited from Wt::WWidget
virtual ~WWidget ()

WWidget * parent () const

virtual void removeChild (WObject *child)

void setWidth (const WLength &width)

void setHeight (const WLength &height)

virtual void positionAt (const WWidget *widget, Orientation orientation=Vertical)

virtual void toggleStyleClass (const WString &styleClass, bool add, bool force=false)

std::string jsRef () const

void setFocus ()

virtual void acceptDrops (const std::string &mimeType, const WString &hoverStyleClass=WString())

virtual void stopAcceptDrops (const std::string &mimeType)

virtual void setObjectName (const std::string &name)

virtual void htmlText (std::ostream &out)

bool isRendered () const

void hide ()

void animateHide (const WAnimation &animation)

void show ()

void animateShow (const WAnimation &animation)

void enable ()

void disable ()

bool layoutSizeAware () const

- Public Member Functions inherited from Wt::WObject
 WObject (WObject *parent=0)

virtual ~WObject ()

virtual std::string objectName () const

void resetLearnedSlots ()

void resetLearnedSlot (void(T::*method)())

WStatelessSlot * implementStateless (void(T::*method)())

WStatelessSlot * implementStateless (void(T::*method)(), void(T::*undoMethod)())

void isNotStateless ()

WStatelessSlot * implementJavaScript (void(T::*method)(), const std::string &jsCode)

void addChild (WObject *child)

const std::vector< WObject * > & children () const

WObject * parent () const


Private Member Functions

void timerTick ()
 Process one timer tick. More...


Private Attributes

Wt::Signal< void > done_

int start_

int stop_

int current_

WTimer * timer_


Additional Inherited Members

- Public Types inherited from Wt::WObject
typedef void(WObject::* Method) ()

- Static Public Member Functions inherited from Wt::WWebWidget
static WString escapeText (const WString &text, bool newlinesToo=false)

static std::string & escapeText (std::string &text, bool newlinestoo=false)

static bool removeScript (WString &text)

static std::string jsStringLiteral (const std::string &v, char delimiter= '\'')

- Static Public Member Functions inherited from Wt::WWidget
static WString tr (const char *key)

- Protected Member Functions inherited from Wt::WText
virtual void render (WFlags< RenderFlag > flags)

- Protected Member Functions inherited from Wt::WInteractWidget
virtual void propagateSetEnabled (bool enabled)

- Protected Member Functions inherited from Wt::WWebWidget
virtual void enableAjax ()

virtual WStatelessSlot * getStateless (Method method)

- Protected Member Functions inherited from Wt::WWidget
void setLayoutSizeAware (bool sizeAware)

virtual void layoutSizeChanged (int width, int height)

 WWidget (WContainerWidget *parent=0)

virtual void dropEvent (WDropEvent dropEvent)

virtual int boxPadding (Orientation orientation) const

virtual int boxBorder (Orientation orientation) const

void scheduleRender (WFlags< RepaintFlag > flags=0)

- Static Protected Member Functions inherited from Wt::WObject
static WObject * sender ()


Detailed Description

A widget which displays a decrementing number.

Definition at line 25 of file CountDownWidget.h.

Constructor & Destructor Documentation

CountDownWidget::CountDownWidget ( int  start,
int  stop,
unsigned  msec,
WContainerWidget *  parent = 0
)

Create a new CountDownWidget.

The widget will count down from start to stop, decrementing the number every msec milliseconds.

Definition at line 12 of file CountDownWidget.C.

14  : WText(parent),
15  done_(this),
16  start_(start),
17  stop_(stop)
18 {
19  stop_ = std::min(start_ - 1, stop_); // stop must be smaller than start
20  current_ = start_;
21
22  timer_ = new WTimer(this);
23  timer_->setInterval(msec);
24  timer_->timeout().connect(this, &CountDownWidget::timerTick);
25  timer_->start();
26
27  setText(boost::lexical_cast<std::string>(current_));
28 }
Wt::WText::WText
WText(WContainerWidget *parent=0)
Wt::WTimer::start
void start()
Wt::WText::setText
bool setText(const WString &text)
Wt::WTimer::timeout
EventSignal< WMouseEvent > & timeout()
Wt::WTimer::setInterval
void setInterval(int msec)
CountDownWidget::timerTick
void timerTick()
Process one timer tick.
Definition: CountDownWidget.C:35
CountDownWidget::done_
Wt::Signal< void > done_
Definition: CountDownWidget.h:45

Member Function Documentation

void CountDownWidget::cancel ( )

Cancel the count down.

Definition at line 30 of file CountDownWidget.C.

31 {
32  timer_->stop();
33 }
Wt::WTimer::stop
void stop()
Wt::Signal<void>& CountDownWidget::done ( )
inline

Signal emitted when the countdown reached stop.

Definition at line 38 of file CountDownWidget.h.

38 { return done_; }
CountDownWidget::done_
Wt::Signal< void > done_
Definition: CountDownWidget.h:45
void CountDownWidget::timerTick ( )
private

Process one timer tick.

Definition at line 35 of file CountDownWidget.C.

36 {
37  setText(boost::lexical_cast<std::string>(--current_));
38
39  if (current_ <= stop_) {
40  timer_->stop();
41  done_.emit();
42  }
43 }
Wt::Signal::emit
void emit(A1 a1=NoClass::none, A2 a2=NoClass::none, A3 a3=NoClass::none, A4 a4=NoClass::none, A5 a5=NoClass::none, A6 a6=NoClass::none) const
Wt::WTimer::stop
void stop()
Wt::WText::setText
bool setText(const WString &text)
CountDownWidget::done_
Wt::Signal< void > done_
Definition: CountDownWidget.h:45

Member Data Documentation

int CountDownWidget::current_
private

Definition at line 49 of file CountDownWidget.h.

Wt::Signal<void> CountDownWidget::done_
private

Definition at line 45 of file CountDownWidget.h.

int CountDownWidget::start_
private

Definition at line 46 of file CountDownWidget.h.

int CountDownWidget::stop_
private

Definition at line 47 of file CountDownWidget.h.

WTimer* CountDownWidget::timer_
private

Definition at line 51 of file CountDownWidget.h.

The documentation for this class was generated from the following files:
Generated on Mon Sep 4 2017 for the C++ Web Toolkit (Wt) by doxygen 1.8.11
