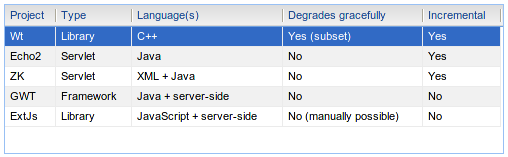

A widget that displays data in a table. More...

#include <Wt/Ext/TableView>

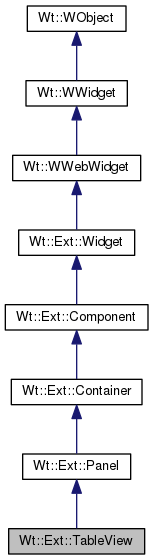

Inheritance diagram for Wt::Ext::TableView:

[legend]

Public Member Functions
	TableView (WContainerWidget *parent=0)
	Create a new table view. More...

void	setModel (WAbstractItemModel *model)
	Specify the model. More...

WAbstractItemModel *	model () const
	Return the model. More...

void	resizeColumnsToContents (bool onResize=false)
	Let the table view resize columns to fit their contents. More...

void	setAutoExpandColumn (int column, int minWidth=50, int maxWidth=1000)
	Set the column which will auto-expand to take the remaining space. More...

int	autoExpandColumn () const
	Return the column index of the column that auto-expands.

void	setDataLocation (DataLocation dataLocation)
	Configure the location of the data. More...

void	setColumnsMovable (bool movable)
	Allow the user to move columns using drag and drop. More...

bool	columnsMovable () const
	Return if columns are movable. More...

void	setAlternatingRowColors (bool enable)
	Render rows with alternating colors. More...

bool	alternatingRowColors () const
	Return if rows are rendered with alternating colors. More...

void	setHighlightMouseOver (bool highlight)
	Configure if the row under the mouse will be highlighted. More...

bool	highlightMouseOver () const
	Return if the row under the mouse will be highlighted.

void	setColumnHidden (int column, bool hide)
	Change the visibility of a column. More...

bool	isColumnHidden (int column) const
	Return if a column is hidden. More...

void	hideColumn (int column)
	Hide a column. More...

void	showColumn (int column)
	Show a column. More...

void	setColumnWidth (int column, int pixels)
	Set the column width (in pixels) for a column. More...

int	columnWidth (int column) const
	Return the column width. More...

void	setColumnAlignment (int column, AlignmentFlag alignment)
	Set the horizontal content alignment of a column. More...

AlignmentFlag	columnAlignment (int column) const
	Return the horizontal content alignment of a column. More...

void	setColumnSortable (int column, bool sortable)
	Allow a column to be sorted by the user. More...

bool	isColumnSortable (int column) const
	Return if a column is sortable. More...

void	enableColumnHiding (int column, bool enable)
	Allow a column to be hidden through its context menu. More...

bool	isColumnHidingEnabled (int column) const
	Return if a column may be hidden through its context menu. More...

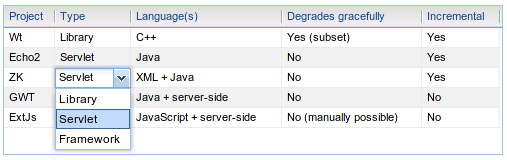

void	setEditor (int column, FormField *editor)
	Configure an editor for the given column. More...

void	setRenderer (int column, const std::string &rendererJS)
	Configure a custom renderer for the given column. More...

void	setPageSize (int pageSize)
	Configure a page size to browse the data page by page. More...

int	pageSize () const
	Return the page size. More...

ToolBar *	createPagingToolBar ()
	Create a paging tool bar. More...

virtual void	refresh ()
	Refresh the widget. More...

void	setCurrentCell (int row, int column)
	Give a cell focus. More...

int	currentRow () const
	Return the index of the row currently selected. More...

int	currentColumn () const
	Return the index of the column currently selected. More...

const std::vector< int > &	selectedRows ()
	The list of rows that are currently selected. More...

void	clearSelection ()
	Clear the current selection. More...

SelectionMode	selectionMode () const
	Return the current selection mode. More...

void	setSelectionMode (SelectionMode mode)
	Set the selection mode. More...

void	setSelectionBehavior (SelectionBehavior behavior)
	Set the selection behaviour. More...

SelectionBehavior	selectionBehavior () const
	Return the current selection behaviour. More...

Signal< int, int > &	cellClicked ()
	Signal emitted when a cell is clicked. More...

Signal< int, int, int, int > &	currentCellChanged ()
	Signal emitted when a new cell received focus. More...

Signal &	itemSelectionChanged ()
	Signal emitted when the selection changes. More...

Public Member Functions inherited from Wt::Ext::Panel
	Panel (WContainerWidget *parent=0)
	Create a new panel. More...

	~Panel ()
	Destruct a panel.

void	setTopToolBar (ToolBar *toolBar)
	Set a tool bar at the top of the panel. More...

ToolBar *	topToolBar () const
	Return the top tool bar. More...

void	setBottomToolBar (ToolBar *bottomBar)
	Set a tool bar at the bottom of the panel. More...

ToolBar *	bottomToolBar () const
	Return the top tool bar. More...

void	addFooterButton (Button *button)
	Add a button to the footer of the panel. More...

void	removeFooterButton (Button *button)
	Remove a button from the footer of the panel. More...

const std::vector< Button * > &	footerButtons () const
	Retrn the list of footer buttons. More...

void	setTitle (const WString &title)
	Set a title. More...

const WString &	title () const
	Get the title. More...

void	setTitleBar (bool enable)
	Show or hide a title bar for the panel. More...

bool	titleBar () const
	Get the title bar. More...

void	setAnimate (bool on)
	Set to use animations for the expand/collapse operation. More...

bool	animate () const
	Return if using animations for expand/collapse. More...

void	setAutoScrollBars (bool on)
	Option to show scroll bars when needed. More...

bool	autoScrollBars () const
	Return if showing scroll bars when needed. More...

void	setBorder (bool show)
	Change the border around the panel. More...

bool	border () const
	Get the border setting. More...

void	setCollapsed (bool on)
	Set the panel expanded or callapsed. More...

void	collapse ()
	Collapse the panel. More...

void	expand ()
	Expand the panel. More...

bool	isCollapsed () const
	Return if the panel is collapsed. More...

void	setCollapsible (bool on)
	Allow the user to collapse/expand the panel. More...

bool	isCollapsible () const
	Return if the user may collapse/expand the panel. More...

void	setResizable (bool on)
	Allow the user to resize the panel. More...

bool	isResizable () const
	Return if the user may resize the panel. More...

JSignal &	collapsed ()
	Signal emitted when the panel is collapsed. More...

JSignal &	expanded ()
	Signal emitted when the panel is expanded. More...

Public Member Functions inherited from Wt::Ext::Container
	Container (WContainerWidget *parent=0)
	Create a new container. More...

virtual	~Container ()
	Destroy the container.

void	setLayout (WLayout *layout)
	Set a layout manager for the container. More...

WLayout *	layout ()
	Get the layout manager that was set for the container. More...

Public Member Functions inherited from Wt::Ext::Component
void	setEnabled (bool how)
	Enables or disables the widget. More...

void	enable ()
	Enables the widget.

void	disable ()
	Disables the widget.

Public Member Functions inherited from Wt::Ext::Widget
	~Widget ()
	Delete a widget.

virtual void	setHidden (bool hidden, const WAnimation &animation=WAnimation())
	Hides or shows the widget. More...

Public Member Functions inherited from Wt::WWebWidget
	WWebWidget (WContainerWidget *parent=0)
	Construct a WebWidget with a given parent. More...

virtual void	setPositionScheme (PositionScheme scheme)
	Sets the CSS position scheme. More...

virtual PositionScheme	positionScheme () const
	Returns the CSS position scheme. More...

virtual void	setOffsets (const WLength &offset, WFlags< Side > sides=All)
	Sets CSS offsets for a non-statically positioned widget. More...

virtual WLength	offset (Side s) const
	Returns a CSS offset. More...

virtual void	resize (const WLength &width, const WLength &height)
	Resizes the widget. More...

virtual WLength	width () const
	Returns the width. More...

virtual WLength	height () const
	Returns the height. More...

virtual void	setMinimumSize (const WLength &width, const WLength &height)
	Sets a minimum size. More...

virtual WLength	minimumWidth () const
	Returns the minimum width. More...

virtual WLength	minimumHeight () const
	Returns the minimum height. More...

virtual void	setMaximumSize (const WLength &width, const WLength &height)
	Sets a maximum size. More...

virtual WLength	maximumWidth () const
	Returns the maximum width. More...

virtual WLength	maximumHeight () const
	Returns the maximum height. More...

virtual void	setLineHeight (const WLength &height)
	Sets the CSS line height for contained text.

virtual WLength	lineHeight () const
	Returns the CSS line height for contained text. More...

virtual void	setFloatSide (Side s)
	Specifies a CSS float side. More...

virtual Side	floatSide () const
	Returns the CSS float side. More...

virtual void	setClearSides (WFlags< Side > sides)
	Sets the sides that should be cleared of floats. More...

virtual WFlags< Side >	clearSides () const
	Returns the sides that should remain empty. More...

virtual void	setMargin (const WLength &margin, WFlags< Side > sides=All)
	Sets CSS margins around the widget. More...

virtual WLength	margin (Side side) const
	Returns a CSS margin set. More...

virtual void	setHiddenKeepsGeometry (bool enabled)
	Sets whether the widget keeps its geometry when hidden. More...

virtual bool	hiddenKeepsGeometry () const
	Returns whether the widget keeps its geometry when hidden. More...

virtual bool	isHidden () const
	Returns whether the widget is set hidden. More...

virtual bool	isVisible () const
	Returns whether the widget is visible. More...

virtual void	setDisabled (bool disabled)
	Sets whether the widget is disabled. More...

virtual bool	isDisabled () const
	Returns whether the widget is set disabled. More...

virtual bool	isEnabled () const
	Returns whether the widget is enabled. More...

virtual void	setPopup (bool popup)
	Lets the widget overlay over other sibling widgets. More...

virtual bool	isPopup () const
	Returns whether the widget is overlayed. More...

virtual void	setInline (bool isInline)
	Sets whether the widget is displayed inline or as a block. More...

virtual bool	isInline () const
	Returns whether the widget is displayed inline or as block. More...

virtual void	setDecorationStyle (const WCssDecorationStyle &style)
	Sets a CSS decoration style. More...

virtual WCssDecorationStyle &	decorationStyle ()
	Returns the decoration style of this widget. More...

virtual void	setStyleClass (const WString &styleClass)
	Sets (one or more) CSS style classes. More...

virtual WString	styleClass () const
	Returns the CSS style class. More...

virtual void	addStyleClass (const WString &styleClass, bool force=false)
	Adds a CSS style class. More...

virtual void	removeStyleClass (const WString &styleClass, bool force=false)
	Removes a CSS style class. More...

virtual bool	hasStyleClass (const WString &styleClass) const
	Returns whether the widget has a style class.

virtual void	setVerticalAlignment (AlignmentFlag alignment, const WLength &length=WLength())
	Sets the vertical alignment. More...

virtual AlignmentFlag	verticalAlignment () const
	Returns the vertical alignment. More...

virtual WLength	verticalAlignmentLength () const
	Returns the fixed vertical alignment that was set. More...

virtual void	setToolTip (const WString &text, TextFormat textFormat=PlainText)
	Sets a tooltip. More...

virtual void	setDeferredToolTip (bool enable, TextFormat textFormat=PlainText)
	Enable deferred tooltip. More...

virtual WString	toolTip () const
	Returns the tooltip.

virtual void	setAttributeValue (const std::string &name, const WString &value)
	Sets an attribute value. More...

virtual WString	attributeValue (const std::string &name) const
	Returns an attribute value. More...

virtual void	setJavaScriptMember (const std::string &name, const std::string &value)
	Sets a JavaScript member. More...

virtual std::string	javaScriptMember (const std::string &name) const
	Returns the value of a JavaScript member. More...

virtual void	callJavaScriptMember (const std::string &name, const std::string &args)
	Calls a JavaScript member. More...

virtual void	load ()
	Loads content just before the widget is used. More...

virtual bool	loaded () const
	Returns whether this widget has been loaded. More...

virtual void	setId (const std::string &id)
	Sets the CSS Id. More...

virtual WWidget *	find (const std::string &name)
	Finds a descendent widget by name. More...

virtual WWidget *	findById (const std::string &id)
	Finds a descendent widget by id.

virtual void	setSelectable (bool selectable)
	Sets as selectable. More...

virtual void	doJavaScript (const std::string &javascript)
	Executes the given JavaScript statements when the widget is rendered or updated. More...

virtual const std::string	id () const
	Returns the (unique) identifier for this object. More...

void	setLoadLaterWhenInvisible (bool)
	Change the way the widget is loaded when invisible. More...

std::string	htmlTagName () const
	returns the current html tag name More...

void	setHtmlTagName (const std::string &tag)
	set the custom HTML tag name More...

const std::vector< WWidget * > &	children () const
	Returns contained widgets. More...

Signal &	childrenChanged ()
	Signal emitted when children have been added or removed. More...

virtual void	setCanReceiveFocus (bool enabled)
	Sets whether the widget can receive focus. More...

virtual bool	canReceiveFocus () const
	Returns whether the widget can receive focus. More...

virtual bool	setFirstFocus ()
	Set focus on the widget's first descendant. More...

virtual void	setFocus (bool focus)
	Sets focus. More...

virtual bool	hasFocus () const
	Returns whether the widget currently has the focus.

virtual void	setTabIndex (int index)
	Sets the tab index. More...

virtual int	tabIndex () const
	Returns the tab index. More...

EventSignal &	blurred ()
	Signal emitted when the widget lost focus. More...

EventSignal &	focussed ()
	Signal emitted when the widget recieved focus. More...

virtual bool	scrollVisibilityEnabled () const WT_CXX11ONLY(finaloverride)
	Returns whether scroll visibility detection is enabled for this widget. More...

virtual void	setScrollVisibilityEnabled (bool enabled) WT_CXX11ONLY(finaloverride)
	Sets whether scroll visibility detection is enabled for this widget. More...

virtual int	scrollVisibilityMargin () const WT_CXX11ONLY(finaloverride)
	Returns the margin around the viewport within which the widget is considered visible. More...

virtual void	setScrollVisibilityMargin (int margin) WT_CXX11ONLY(finaloverride)
	Sets the margin around the viewport within which the widget is considered visible. More...

virtual Signal< bool > &	scrollVisibilityChanged () WT_CXX11ONLY(finaloverride)
	Signal triggered when the scroll visibility of this widget changes. More...

virtual bool	isScrollVisible () const WT_CXX11ONLY(finaloverride)
	Returns whether this widget is currently considered scroll visible. More...

virtual void	setThemeStyleEnabled (bool enabled)
	Sets whether theme styling for a widget is enabled or disabled. More...

virtual bool	isThemeStyleEnabled () const
	Returns whether this widget is currently styled by the chosen theme. More...

Public Member Functions inherited from Wt::WWidget
virtual	~WWidget ()
	Destructor. More...

WWidget *	parent () const
	Returns the parent widget. More...

virtual void	removeChild (WObject *child)
	Removes a child object. More...

void	setWidth (const WLength &width)
	Sets the width. More...

void	setHeight (const WLength &height)
	Sets the height. More...

virtual void	positionAt (const WWidget *widget, Orientation orientation=Vertical)
	Positions a widget next to another widget. More...

virtual void	toggleStyleClass (const WString &styleClass, bool add, bool force=false)
	Toggles a CSS style class.

std::string	jsRef () const
	Returns a JavaScript expression to the corresponding DOM node. More...

void	setFocus ()
	Sets focus. More...

virtual void	acceptDrops (const std::string &mimeType, const WString &hoverStyleClass=WString())
	Sets a mime type to be accepted for dropping. More...

virtual void	stopAcceptDrops (const std::string &mimeType)
	Indicates that a mime type is no longer accepted for dropping. More...

virtual void	setObjectName (const std::string &name)
	Sets an object name. More...

virtual void	htmlText (std::ostream &out)
	Streams the (X)HTML representation. More...

bool	isRendered () const
	Returns whether the widget is rendered. More...

void	hide ()
	Hides the widget. More...

void	animateHide (const WAnimation &animation)
	Hides the widget using an animation. More...

void	show ()
	Shows the widget. More...

void	animateShow (const WAnimation &animation)
	Shows the widget using an animation. More...

void	enable ()
	Enables the widget. More...

void	disable ()
	Disable thes widget. More...

bool	layoutSizeAware () const
	Returns whether the widget is layout size aware. More...

Public Member Functions inherited from Wt::WObject
	WObject (WObject *parent=0)
	Create a WObject with a given parent object. More...

virtual	~WObject ()
	Destructor. More...

virtual std::string	objectName () const
	Returns the object name. More...

void	resetLearnedSlots ()
	Resets learned stateless slot implementations. More...

template<class T >
void	resetLearnedSlot (void(T::*method)())
	Resets a learned stateless slot implementation. More...

template<class T >
WStatelessSlot *	implementStateless (void(T::*method)())
	Declares a slot to be stateless and learn client-side behaviour on first invocation. More...

template<class T >
WStatelessSlot *	implementStateless (void(T::method)(), void(T::undoMethod)())
	Declares a slot to be stateless and learn client-side behaviour in advance. More...

void	isNotStateless ()
	Marks the current function as not stateless. More...

template<class T >
WStatelessSlot *	implementJavaScript (void(T::*method)(), const std::string &jsCode)
	Provides a JavaScript implementation for a method. More...

void	addChild (WObject *child)
	Adds a child object. More...

const std::vector< WObject * > &	children () const
	Returns the children.

WObject *	parent () const
	Returns the parent object.

Static Public Member Functions
static std::string	dateRenderer (const WString &format)
	Create a date renderer for the given format. More...

Static Public Member Functions inherited from Wt::WWebWidget
static WString	escapeText (const WString &text, bool newlinesToo=false)
	Escape HTML control characters in the text, to display literally (deprecated). More...

static std::string &	escapeText (std::string &text, bool newlinestoo=false)
	Escape HTML control characters in the text, to display literally (deprecated). More...

static bool	removeScript (WString &text)
	Remove tags/attributes from text that are not passive (deprecated). More...

static std::string	jsStringLiteral (const std::string &v, char delimiter= '\'')
	Turn a UTF8 encoded string into a JavaScript string literal. More...

Static Public Member Functions inherited from Wt::WWidget
static WString	tr (const char *key)
	Short hand for WString::tr() More...

Additional Inherited Members
Public Types inherited from Wt::WObject
typedef void(WObject::*	Method) ()
	Typedef for a WObject method without arguments.

Protected Member Functions inherited from Wt::Ext::Component
virtual void	propagateSetEnabled (bool enabled)
	Propagates that a widget was enabled or disabled through children. More...

Protected Member Functions inherited from Wt::WWebWidget
virtual void	enableAjax ()
	Progresses to an Ajax-enabled widget. More...

virtual WStatelessSlot *	getStateless (Method method)
	On-demand stateless slot implementation. More...

virtual void	render (WFlags< RenderFlag > flags)
	Renders the widget. More...

Protected Member Functions inherited from Wt::WWidget
void	setLayoutSizeAware (bool sizeAware)
	Sets the widget to be aware of its size set by a layout manager. More...

virtual void	layoutSizeChanged (int width, int height)
	Virtual method that indicates a size change. More...

	WWidget (WContainerWidget *parent=0)
	Creates a widget. More...

virtual void	dropEvent (WDropEvent dropEvent)
	Handles a drop event. More...

virtual int	boxPadding (Orientation orientation) const
	Returns the widget's built-in padding. More...

virtual int	boxBorder (Orientation orientation) const
	Returns the widget's built-in border width. More...

void	scheduleRender (WFlags< RepaintFlag > flags=0)
	Schedules rerendering of the widget. More...

Static Protected Member Functions inherited from Wt::WObject
static WObject *	sender ()
	Returns the sender of the current slot call. More...

Detailed Description

A widget that displays data in a table.

This class is an MVC view widget, which works in conjunction with a WAbstractItemModel for the data. The model may be set (and changed) using setModel().

The widget may be configured to allow the user to hide or resize columns, sort on column data, or reorder columns using drag&drop.

By default, the table is not editable. Use setEditor() to specify a form field that may be used for inline editing for a particular column. Changes are then reflected in the model().

The table supports single and multiple selection modes, that work on a row-level, or cell-level. The latter option is enforced when the table is editable.

By default, the data of the model is stored client-side, but this may be changed using setDataLocation() to be server-side. The latter option allows, in conjunction with a paging tool bar (see createPagingToolBar()) to support viewing (and editing) of large data sets.

Although TableView inherits from Container (through Panel), specifying a layout for adding or removing widgets is not supported. The Panel methods to specify tool bars, titles, and buttons are however supported.

Example of a TableView

Example of a editing in a TableView using a ComboBox

CSS

A TableView has the table.x-grid3-row-table style classes.

Constructor & Destructor Documentation

Wt::Ext::TableView::TableView ( WContainerWidget * parent = 0 )

Create a new table view.

You should specify a model using setModel(WAbstractItemModel *).

Member Function Documentation

bool Wt::Ext::TableView::alternatingRowColors ( ) const

Return if rows are rendered with alternating colors.

See also: setAlternatingRowColors(bool)

Signal<int, int>& Wt::Ext::TableView::cellClicked ( )

Signal emitted when a cell is clicked.

The signal arguments are row and column of the cell that is clicked.

See also: currentCellChanged()

void Wt::Ext::TableView::clearSelection ( )

Clear the current selection.

See also: setCurrentCell(int, int)

AlignmentFlag Wt::Ext::TableView::columnAlignment ( int column ) const

Return the horizontal content alignment of a column.

See also: setColumnAlignment(int, AlignmentFlag)

bool Wt::Ext::TableView::columnsMovable ( ) const

Return if columns are movable.

See also: setColumnsMovable(bool)

int Wt::Ext::TableView::columnWidth ( int column ) const

Return the column width.

See also: setColumnWidth(int, int)

ToolBar * Wt::Ext::TableView::createPagingToolBar ( )

Create a paging tool bar.

Create a toolbar that provides paging controls for this table. You should configure the page size using setPageSize(int).

See also: setPageSize(int), setDataLocation(DataLocation); setBottomToolBar(ToolBar *), setTopToolBar(ToolBar *)

Signal<int, int, int, int>& Wt::Ext::TableView::currentCellChanged ( )

Signal emitted when a new cell received focus.

This signal is only emitted when selectionBehavior() is SelectItems. The four arguments are row, column, prevrow, prevcolumn which hold respectively the location of the new focussed cell, and the previously focussed cell.

Values of -1 indicate 'no selection'.

int Wt::Ext::TableView::currentColumn ( ) const

Return the index of the column currently selected.

See also: currentRow(), setCurrentCell(int, int)

int Wt::Ext::TableView::currentRow ( ) const

Return the index of the row currently selected.

See also: currentColumn(), setCurrentCell(int, int)

std::string Wt::Ext::TableView::dateRenderer ( const WString & format )

static

Create a date renderer for the given format.

The result is a JavaScript function that renders WDate (or more precisely, Ext.Date) values according to the given format, for use in setRenderer()

See also: setRenderer(); WDate::toString(const WString& format)

void Wt::Ext::TableView::enableColumnHiding	(	int	column,
		bool	enable
	)

Allow a column to be hidden through its context menu.

See also: isColumnHidingEnabled(int)

void Wt::Ext::TableView::hideColumn ( int column )

Hide a column.

See also: showColumn(int), setColumnHidden(int, bool)

bool Wt::Ext::TableView::isColumnHidden ( int column ) const

Return if a column is hidden.

See also: setColumnHidden(int, bool)

bool Wt::Ext::TableView::isColumnHidingEnabled ( int column ) const

Return if a column may be hidden through its context menu.

See also: enableColumnHiding(int, bool)

bool Wt::Ext::TableView::isColumnSortable ( int column ) const

Return if a column is sortable.

See also: setColumnSortable(int, bool)

Signal& Wt::Ext::TableView::itemSelectionChanged ( )

Signal emitted when the selection changes.

See also: currentRow(), currentColumn() when selectionBehavior() is SelectItems; selectedRows() when selectionBehavior() is SelectRows.

WAbstractItemModel* Wt::Ext::TableView::model ( ) const

Return the model.

See also: setModel(WAbstractItemModel *)

int Wt::Ext::TableView::pageSize ( ) const

Return the page size.

See also: setPageSize(int)

void Wt::Ext::TableView::refresh ( )

virtual

Refresh the widget.

The refresh method is invoked when the locale is changed using WApplication::setLocale() or when the user hit the refresh button.

The widget must actualize its contents in response.

Note: This does *not* rerender the widget! Calling refresh() usually does not have any effect (unless you've reimplemented refresh() to attach to it an effect).

Reimplemented from Wt::Ext::Panel.

void Wt::Ext::TableView::resizeColumnsToContents ( bool onResize = false )

Let the table view resize columns to fit their contents.

By default, columns are sized using the column sizes that are provided. Using this method, this is changed to let columns expand to fit the entire table. By setting onResize, this is done also whenever the entire table or one of the columns is resized.

const std::vector<int>& Wt::Ext::TableView::selectedRows ( )

The list of rows that are currently selected.

This is the way to retrieve the list of currently selected rows when selectionBehavior() is SelectRows. This list is always empty when selectionBehavior() is SelectItems and you should use currentRow() and currentColumn() instead.

SelectionBehavior Wt::Ext::TableView::selectionBehavior ( ) const

Return the current selection behaviour.

See also: selectionBehavior()

SelectionMode Wt::Ext::TableView::selectionMode ( ) const

Return the current selection mode.

See also: setSelectionMode(SelectionMode)

void Wt::Ext::TableView::setAlternatingRowColors ( bool enable )

Render rows with alternating colors.

By defaults, all rows are rendered using the same color.

See also: alternatingRowColors()

void Wt::Ext::TableView::setAutoExpandColumn	(	int	column,
		int	minWidth = `50`,
		int	maxWidth = `1000`
	)

Set the column which will auto-expand to take the remaining space.

By default the last column will do that.

void Wt::Ext::TableView::setColumnAlignment	(	int	column,
		AlignmentFlag	alignment
	)

Set the horizontal content alignment of a column.

The default value is AlignLeft. The alignment parameter is a horizontal alignment flag.

void Wt::Ext::TableView::setColumnHidden	(	int	column,
		bool	hide
	)

Change the visibility of a column.

See also: isColumnHidden(int), enableColumnHiding(int, bool)

void Wt::Ext::TableView::setColumnsMovable ( bool movable )

Allow the user to move columns using drag and drop.

Setting movable to true, enables the user to move columns around by drag and drop.

Note: this currently breaks the CellSelection mode to record the view column number, but not the data column number.

See also: columnsMovable()

void Wt::Ext::TableView::setColumnSortable	(	int	column,
		bool	sortable
	)

Allow a column to be sorted by the user.

See also: isColumnSortable(int)

void Wt::Ext::TableView::setColumnWidth	(	int	column,
		int	pixels
	)

Set the column width (in pixels) for a column.

See also: columnWidth(int)

void Wt::Ext::TableView::setCurrentCell	(	int	row,
		int	column
	)

Give a cell focus.

When selectionBehavior() is SelectRows, only the row argument is used, and the effect is to select a particular row.

Even when selectionMode() is ExtendedSelection, this method will first clear selection, and the result is that the given row,column will be the only selected cell.

See also: currentRow(), currentColumn(), currentCellChanged() signal; setSelectionMode(SelectionMode), setSelectionBehavior(SelectionBehavior)

void Wt::Ext::TableView::setDataLocation ( DataLocation dataLocation )

Configure the location of the data.

By default, data is stored at the client, and therefore entirely transmitted when rendering the table for the first time. Alternatively, the data may be kept at the server. Unless a paging tool bar is configured however, this will still cause the entire table to be anyway, after the table is rendered. When a paging tool bar is configured, only a single page of data is displayed, and transmitted, giving the best performance for big data sets.

See also: createPagingToolBar()

void Wt::Ext::TableView::setEditor	(	int	column,
		FormField *	editor
	)

Configure an editor for the given column.

Sets an inline editor that will be used to edit values in this column. The edited value will be reflected in the data model.

When configuring an editor, the selectionBehaviour() is set to SelectItems mode.

See also: LineEdit, NumberField, DateField, ComboBox

void Wt::Ext::TableView::setHighlightMouseOver ( bool highlight )

Configure if the row under the mouse will be highlighted.

By default, the row under the mouse is not highlighted.

See also: highlightMouseOver()

void Wt::Ext::TableView::setModel ( WAbstractItemModel * model )

Specify the model.

You can change the model at any time, with the contraint that you should keep the same column configuration.

You may also reset the same model. This will result in retransmission of the model from scratch. In some cases, this could result in a higher preformance when you have removed many rows or modified a lot of data.

void Wt::Ext::TableView::setPageSize ( int pageSize )

Configure a page size to browse the data page by page.

By setting a pageSize that is different from -1, the table view will display only single pages of the whole data set. You should probably add a paging tool bar to allow the user to scroll through the pages.

See also: pageSize(), createPagingToolBar()

void Wt::Ext::TableView::setRenderer	(	int	column,
		const std::string &	rendererJS
	)

Configure a custom renderer for the given column.

Sets a JavaScript function to render values in the given column. The JavaScript function takes one argument (the value), which has a type that corresponds to the C++ type:

C++ type	JavaScript type
WString	string
WDate	Ext.Date
number type	number

An example of rendererJS for numerical data, which renders positive values in green and negative values in red could be:

function change(val) {
  if (val > 0){
    return '<span style="color:green;">' + val + '</span>';
  } else if(val < 0) {
    return '<span style="color:red;">' + val + '</span>';
  }
  return val;
}

See also: dateRenderer()

void Wt::Ext::TableView::setSelectionBehavior ( SelectionBehavior behavior )

Set the selection behaviour.

The selection behavior defines the unit of selection. The selection behavior also determines the set of methods that must be used to inspect the current selection.

You may either:

use SelectRows to only select whole rows, and use the method selectedRows() to inspect the current selection.
or use SelectItems to select (a single) individual item, and use the methods currentColumn(), currentRow(), setCurrentCell() to inspect and modify the current selection.

void Wt::Ext::TableView::setSelectionMode ( SelectionMode mode )

Set the selection mode.

The selection mode determines if no, only one, or multiple items may be selected.

When selectionBehavior() is SelectItems, ExtendedSelection is not supported.

void Wt::Ext::TableView::showColumn ( int column )

Show a column.

See also: hideColumn(int), setColumnHidden(int, bool)

Public Member Functions

Static Public Member Functions

Additional Inherited Members

Detailed Description

CSS

Constructor & Destructor Documentation

Member Function Documentation
