Wt::WTable Class Reference

A container widget which provides layout of children in a table grid. More...

#include <Wt/WTable>

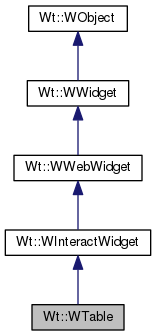

Inheritance diagram for Wt::WTable:

Public Member Functions
	WTable (WContainerWidget *parent=0)
	Creates an empty table.
virtual	~WTable ()
	Deletes the table and its entire contents.
WTableCell *	elementAt (int row, int column)
	Accesses the table element at the given row and column. More...
WTableRow *	rowAt (int row)
	Returns the row object for the given row. More...
WTableColumn *	columnAt (int column)
	Returns the column object for the given column. More...
void	removeCell (WTableCell *item)
	Deletes a table cell and its contents. More...
virtual void	removeCell (int row, int column)
	Deletes the table cell at the given position. More...
virtual WTableRow *	insertRow (int row, WTableRow *tableRow=0)
	Inserts an empty row.
virtual void	deleteRow (int row)
	Deletes a row and all its contents. More...
virtual WTableColumn *	insertColumn (int column, WTableColumn *tableColumn=0)
	Inserts an empty column.
virtual void	deleteColumn (int column)
	Delete a column and all its contents.
virtual void	clear ()
	Clears the entire table. More...
int	rowCount () const
	Returns the number of rows in the table.
int	columnCount () const
	Returns the number of columns in the table.
void	setHeaderCount (int count, Orientation orientation=Horizontal)
	Sets the number of header rows or columns. More...
int	headerCount (Orientation orientation=Horizontal)
	Returns the number of header rows or columns. More...
virtual void	moveRow (int from, int to)
	Move a table row from its original position to a new position. More...
virtual void	moveColumn (int from, int to)
	Move a table column from its original position to a new position. More...
Public Member Functions inherited from Wt::WInteractWidget
	WInteractWidget (WContainerWidget *parent=0)
	Create an InteractWidget with optional parent.
EventSignal< WKeyEvent > &	keyWentDown ()
	Event signal emitted when a keyboard key is pushed down. More...
EventSignal< WKeyEvent > &	keyPressed ()
	Event signal emitted when a "character" was entered. More...
EventSignal< WKeyEvent > &	keyWentUp ()
	Event signal emitted when a keyboard key is released. More...
EventSignal &	enterPressed ()
	Event signal emitted when enter was pressed. More...
EventSignal &	escapePressed ()
	Event signal emitted when escape was pressed. More...
EventSignal< WMouseEvent > &	clicked ()
	Event signal emitted when a mouse key was clicked on this widget. More...
EventSignal< WMouseEvent > &	doubleClicked ()
	Event signal emitted when a mouse key was double clicked on this widget. More...
EventSignal< WMouseEvent > &	mouseWentDown ()
	Event signal emitted when a mouse key was pushed down on this widget. More...
EventSignal< WMouseEvent > &	mouseWentUp ()
	Event signal emitted when a mouse key was released on this widget. More...
EventSignal< WMouseEvent > &	mouseWentOut ()
	Event signal emitted when the mouse went out of this widget. More...
EventSignal< WMouseEvent > &	mouseWentOver ()
	Event signal emitted when the mouse entered this widget. More...
EventSignal< WMouseEvent > &	mouseMoved ()
	Event signal emitted when the mouse moved over this widget. More...
EventSignal< WMouseEvent > &	mouseDragged ()
	Event signal emitted when the mouse is dragged over this widget. More...
EventSignal< WMouseEvent > &	mouseWheel ()
	Event signal emitted when the mouse scroll wheel was used. More...
EventSignal< WTouchEvent > &	touchStarted ()
	Event signal emitted when a finger is placed on the screen. More...
EventSignal< WTouchEvent > &	touchEnded ()
	Event signal emitted when a finger is removed from the screen. More...
EventSignal< WTouchEvent > &	touchMoved ()
	Event signal emitted when a finger, which is already placed on the screen, is moved across the screen. More...
EventSignal< WGestureEvent > &	gestureStarted ()
	Event signal emitted when a gesture is started. More...
EventSignal< WGestureEvent > &	gestureChanged ()
	Event signal emitted when a gesture is changed. More...
EventSignal< WGestureEvent > &	gestureEnded ()
	Event signal emitted when a gesture is ended. More...
void	setDraggable (const std::string &mimeType, WWidget *dragWidget=0, bool isDragWidgetOnly=false, WObject *sourceWidget=0)
	Configure dragging for drag and drop. More...
void	unsetDraggable ()
	Disable drag & drop for this widget. More...
void	setMouseOverDelay (int delay)
	Sets a delay for the mouse over event. More...
int	mouseOverDelay () const
	Returns the mouse over signal delay. More...
virtual void	setPopup (bool popup)
	Lets the widget overlay over other sibling widgets. More...
virtual void	load ()
	Loads content just before the widget is used. More...
virtual bool	isEnabled () const
	Returns whether the widget is enabled. More...
Public Member Functions inherited from Wt::WWebWidget
	WWebWidget (WContainerWidget *parent=0)
	Construct a WebWidget with a given parent. More...
virtual void	setPositionScheme (PositionScheme scheme)
	Sets the CSS position scheme. More...
virtual PositionScheme	positionScheme () const
	Returns the CSS position scheme. More...
virtual void	setOffsets (const WLength &offset, WFlags< Side > sides=All)
	Sets CSS offsets for a non-statically positioned widget. More...
virtual WLength	offset (Side s) const
	Returns a CSS offset. More...
virtual void	resize (const WLength &width, const WLength &height)
	Resizes the widget. More...
virtual WLength	width () const
	Returns the width. More...
virtual WLength	height () const
	Returns the height. More...
virtual void	setMinimumSize (const WLength &width, const WLength &height)
	Sets a minimum size. More...
virtual WLength	minimumWidth () const
	Returns the minimum width. More...
virtual WLength	minimumHeight () const
	Returns the minimum height. More...
virtual void	setMaximumSize (const WLength &width, const WLength &height)
	Sets a maximum size. More...
virtual WLength	maximumWidth () const
	Returns the maximum width. More...
virtual WLength	maximumHeight () const
	Returns the maximum height. More...
virtual void	setLineHeight (const WLength &height)
	Sets the CSS line height for contained text.
virtual WLength	lineHeight () const
	Returns the CSS line height for contained text. More...
virtual void	setFloatSide (Side s)
	Specifies a CSS float side. More...
virtual Side	floatSide () const
	Returns the CSS float side. More...
virtual void	setClearSides (WFlags< Side > sides)
	Sets the sides that should be cleared of floats. More...
virtual WFlags< Side >	clearSides () const
	Returns the sides that should remain empty. More...
virtual void	setMargin (const WLength &margin, WFlags< Side > sides=All)
	Sets CSS margins around the widget. More...
virtual WLength	margin (Side side) const
	Returns a CSS margin set. More...
virtual void	setHiddenKeepsGeometry (bool enabled)
	Sets whether the widget keeps its geometry when hidden. More...
virtual bool	hiddenKeepsGeometry () const
	Returns whether the widget keeps its geometry when hidden. More...
virtual void	setHidden (bool hidden, const WAnimation &animation=WAnimation())
	Hides or shows the widget. More...
virtual bool	isHidden () const
	Returns whether the widget is set hidden. More...
virtual bool	isVisible () const
	Returns whether the widget is visible. More...
virtual void	setDisabled (bool disabled)
	Sets whether the widget is disabled. More...
virtual bool	isDisabled () const
	Returns whether the widget is set disabled. More...
virtual bool	isPopup () const
	Returns whether the widget is overlayed. More...
virtual void	setInline (bool isInline)
	Sets whether the widget is displayed inline or as a block. More...
virtual bool	isInline () const
	Returns whether the widget is displayed inline or as block. More...
virtual void	setDecorationStyle (const WCssDecorationStyle &style)
	Sets a CSS decoration style. More...
virtual WCssDecorationStyle &	decorationStyle ()
	Returns the decoration style of this widget. More...
virtual void	setStyleClass (const WString &styleClass)
	Sets (one or more) CSS style classes. More...
virtual WString	styleClass () const
	Returns the CSS style class. More...
virtual void	addStyleClass (const WString &styleClass, bool force=false)
	Adds a CSS style class. More...
virtual void	removeStyleClass (const WString &styleClass, bool force=false)
	Removes a CSS style class. More...
virtual bool	hasStyleClass (const WString &styleClass) const
	Returns whether the widget has a style class.
virtual void	setVerticalAlignment (AlignmentFlag alignment, const WLength &length=WLength())
	Sets the vertical alignment. More...
virtual AlignmentFlag	verticalAlignment () const
	Returns the vertical alignment. More...
virtual WLength	verticalAlignmentLength () const
	Returns the fixed vertical alignment that was set. More...
virtual void	setToolTip (const WString &text, TextFormat textFormat=PlainText)
	Sets a tooltip. More...
virtual void	setDeferredToolTip (bool enable, TextFormat textFormat=PlainText)
	Enable deferred tooltip. More...
virtual WString	toolTip () const
	Returns the tooltip.
virtual void	refresh ()
	Refresh the widget. More...
virtual void	setAttributeValue (const std::string &name, const WString &value)
	Sets an attribute value. More...
virtual WString	attributeValue (const std::string &name) const
	Returns an attribute value. More...
virtual void	setJavaScriptMember (const std::string &name, const std::string &value)
	Sets a JavaScript member. More...
virtual std::string	javaScriptMember (const std::string &name) const
	Returns the value of a JavaScript member. More...
virtual void	callJavaScriptMember (const std::string &name, const std::string &args)
	Calls a JavaScript member. More...
virtual bool	loaded () const
	Returns whether this widget has been loaded. More...
virtual void	setId (const std::string &id)
	Sets the CSS Id. More...
virtual WWidget *	find (const std::string &name)
	Finds a descendent widget by name. More...
virtual WWidget *	findById (const std::string &id)
	Finds a descendent widget by id.
virtual void	setSelectable (bool selectable)
	Sets as selectable. More...
virtual void	doJavaScript (const std::string &javascript)
	Executes the given JavaScript statements when the widget is rendered or updated. More...
virtual const std::string	id () const
	Returns the (unique) identifier for this object. More...
void	setLoadLaterWhenInvisible (bool)
	Change the way the widget is loaded when invisible. More...
std::string	htmlTagName () const
	returns the current html tag name More...
void	setHtmlTagName (const std::string &tag)
	set the custom HTML tag name More...
const std::vector< WWidget * > &	children () const
	Returns contained widgets. More...
Signal &	childrenChanged ()
	Signal emitted when children have been added or removed. More...
virtual void	setCanReceiveFocus (bool enabled)
	Sets whether the widget can receive focus. More...
virtual bool	canReceiveFocus () const
	Returns whether the widget can receive focus. More...
virtual bool	setFirstFocus ()
	Set focus on the widget's first descendant. More...
virtual void	setFocus (bool focus)
	Sets focus. More...
virtual bool	hasFocus () const
	Returns whether the widget currently has the focus.
virtual void	setTabIndex (int index)
	Sets the tab index. More...
virtual int	tabIndex () const
	Returns the tab index. More...
EventSignal &	blurred ()
	Signal emitted when the widget lost focus. More...
EventSignal &	focussed ()
	Signal emitted when the widget recieved focus. More...
virtual bool	scrollVisibilityEnabled () const WT_CXX11ONLY(finaloverride)
	Returns whether scroll visibility detection is enabled for this widget. More...
virtual void	setScrollVisibilityEnabled (bool enabled) WT_CXX11ONLY(finaloverride)
	Sets whether scroll visibility detection is enabled for this widget. More...
virtual int	scrollVisibilityMargin () const WT_CXX11ONLY(finaloverride)
	Returns the margin around the viewport within which the widget is considered visible. More...
virtual void	setScrollVisibilityMargin (int margin) WT_CXX11ONLY(finaloverride)
	Sets the margin around the viewport within which the widget is considered visible. More...
virtual Signal< bool > &	scrollVisibilityChanged () WT_CXX11ONLY(finaloverride)
	Signal triggered when the scroll visibility of this widget changes. More...
virtual bool	isScrollVisible () const WT_CXX11ONLY(finaloverride)
	Returns whether this widget is currently considered scroll visible. More...
virtual void	setThemeStyleEnabled (bool enabled)
	Sets whether theme styling for a widget is enabled or disabled. More...
virtual bool	isThemeStyleEnabled () const
	Returns whether this widget is currently styled by the chosen theme. More...
Public Member Functions inherited from Wt::WWidget
virtual	~WWidget ()
	Destructor. More...
WWidget *	parent () const
	Returns the parent widget. More...
virtual void	removeChild (WObject *child)
	Removes a child object. More...
void	setWidth (const WLength &width)
	Sets the width. More...
void	setHeight (const WLength &height)
	Sets the height. More...
virtual void	positionAt (const WWidget *widget, Orientation orientation=Vertical)
	Positions a widget next to another widget. More...
virtual void	toggleStyleClass (const WString &styleClass, bool add, bool force=false)
	Toggles a CSS style class.
std::string	jsRef () const
	Returns a JavaScript expression to the corresponding DOM node. More...
void	setFocus ()
	Sets focus. More...
virtual void	acceptDrops (const std::string &mimeType, const WString &hoverStyleClass=WString())
	Sets a mime type to be accepted for dropping. More...
virtual void	stopAcceptDrops (const std::string &mimeType)
	Indicates that a mime type is no longer accepted for dropping. More...
virtual void	setObjectName (const std::string &name)
	Sets an object name. More...
virtual void	htmlText (std::ostream &out)
	Streams the (X)HTML representation. More...
bool	isRendered () const
	Returns whether the widget is rendered. More...
void	hide ()
	Hides the widget. More...
void	animateHide (const WAnimation &animation)
	Hides the widget using an animation. More...
void	show ()
	Shows the widget. More...
void	animateShow (const WAnimation &animation)
	Shows the widget using an animation. More...
void	enable ()
	Enables the widget. More...
void	disable ()
	Disable thes widget. More...
bool	layoutSizeAware () const
	Returns whether the widget is layout size aware. More...
Public Member Functions inherited from Wt::WObject
	WObject (WObject *parent=0)
	Create a WObject with a given parent object. More...
virtual	~WObject ()
	Destructor. More...
virtual std::string	objectName () const
	Returns the object name. More...
void	resetLearnedSlots ()
	Resets learned stateless slot implementations. More...
template<class T >
void	resetLearnedSlot (void(T::*method)())
	Resets a learned stateless slot implementation. More...
template<class T >
WStatelessSlot *	implementStateless (void(T::*method)())
	Declares a slot to be stateless and learn client-side behaviour on first invocation. More...
template<class T >
WStatelessSlot *	implementStateless (void(T::*method)(), void(T::*undoMethod)())
	Declares a slot to be stateless and learn client-side behaviour in advance. More...
void	isNotStateless ()
	Marks the current function as not stateless. More...
template<class T >
WStatelessSlot *	implementJavaScript (void(T::*method)(), const std::string &jsCode)
	Provides a JavaScript implementation for a method. More...
void	addChild (WObject *child)
	Adds a child object. More...
const std::vector< WObject * > &	children () const
	Returns the children.
WObject *	parent () const
	Returns the parent object.

Protected Member Functions
virtual WTableCell *	createCell (int row, int column)
	Creates a table cell. More...
virtual WTableRow *	createRow (int row)
	Creates a table row. More...
virtual WTableColumn *	createColumn (int column)
	Creates a table column. More...
Protected Member Functions inherited from Wt::WInteractWidget
virtual void	propagateSetEnabled (bool enabled)
	Propagates that a widget was enabled or disabled through children. More...
Protected Member Functions inherited from Wt::WWebWidget
virtual void	enableAjax ()
	Progresses to an Ajax-enabled widget. More...
virtual WStatelessSlot *	getStateless (Method method)
	On-demand stateless slot implementation. More...
virtual void	render (WFlags< RenderFlag > flags)
	Renders the widget. More...
Protected Member Functions inherited from Wt::WWidget
void	setLayoutSizeAware (bool sizeAware)
	Sets the widget to be aware of its size set by a layout manager. More...
virtual void	layoutSizeChanged (int width, int height)
	Virtual method that indicates a size change. More...
	WWidget (WContainerWidget *parent=0)
	Creates a widget. More...
virtual void	dropEvent (WDropEvent dropEvent)
	Handles a drop event. More...
virtual int	boxPadding (Orientation orientation) const
	Returns the widget's built-in padding. More...
virtual int	boxBorder (Orientation orientation) const
	Returns the widget's built-in border width. More...
void	scheduleRender (WFlags< RepaintFlag > flags=0)
	Schedules rerendering of the widget. More...

Additional Inherited Members
Public Types inherited from Wt::WObject
typedef void(WObject::*	Method) ()
	Typedef for a WObject method without arguments.
Static Public Member Functions inherited from Wt::WWebWidget
static WString	escapeText (const WString &text, bool newlinesToo=false)
	Escape HTML control characters in the text, to display literally (deprecated). More...
static std::string &	escapeText (std::string &text, bool newlinestoo=false)
	Escape HTML control characters in the text, to display literally (deprecated). More...
static bool	removeScript (WString &text)
	Remove tags/attributes from text that are not passive (deprecated). More...
static std::string	jsStringLiteral (const std::string &v, char delimiter= '\'')
	Turn a UTF8 encoded string into a JavaScript string literal. More...
Static Public Member Functions inherited from Wt::WWidget
static WString	tr (const char *key)
	Short hand for WString::tr() More...
Static Protected Member Functions inherited from Wt::WObject
static WObject *	sender ()
	Returns the sender of the current slot call. More...

Detailed Description

A container widget which provides layout of children in a table grid.

A WTable arranges its children in a table.

To insert or access contents, use elementAt(int row, int column) to access the cell at a particular location in the table. The WTable expands automatically to create the indexed (row, column) as necessary.

It is possible to insert and delete entire rows or columns from the table using the insertColumn(int column), insertRow(int row), deleteColumn(int column), or deleteRow(int row) methods.

You may indicate a number of rows and columns that act as headers using setHeaderCount(). Header cells are rendered as <th> instead of <td> elements. By default, no rows or columns are configured as headers.

WTable is displayed as a block.

Usage example:

Wt::WTable *table = new Wt::WTable(this);
table->elementAt(0, 0)->addWidget(new Wt::WText("Item @ row 0, column 0"));
table->elementAt(0, 1)->addWidget(new Wt::WText("Item @ row 0, column 1"));
table->elementAt(1, 0)->addWidget(new Wt::WText("Item @ row 1, column 0"));
table->elementAt(1, 1)->addWidget(new Wt::WText("Item @ row 1, column 1"));

Wt::WTableCell *cell = table->elementAt(2, 0);
cell->addWidget(new Wt::WText("Item @ row 2"));
cell->setColumnSpan(2);

CSS

The widget corresponds to the HTML <table> tag and does not provide styling. It can be styled using inline or external CSS as appropriate.

See also

WTableCell, WTableRow, WTableColumn

Member Function Documentation

void Wt::WTable::clear ( )

virtual

Clears the entire table.

This method clears the entire table: all cells and their contents are deleted.

WTableColumn * Wt::WTable::columnAt

(

int

column

)

Returns the column object for the given column.

Like with elementAt(), the table expands automatically when the column is beyond the current table dimensions.

See also

elementAt(int, int), rowAt(int)

WTableCell * Wt::WTable::createCell ( int  row, int  column  )

protectedvirtual

Creates a table cell.

You may want to override this method if you want your table to contain specialized cells.

WTableColumn * Wt::WTable::createColumn ( int  column )

protectedvirtual

Creates a table column.

You may want to override this method if you want your table to contain specialized columns.

WTableRow * Wt::WTable::createRow ( int  row )

protectedvirtual

Creates a table row.

You may want to override this method if you want your table to contain specialized rows.

void Wt::WTable::deleteRow ( int  row )

virtual

Deletes a row and all its contents.

Rows below the given row are shifted up.

WTableCell * Wt::WTable::elementAt	(	int	row,
		int	column
	)

Accesses the table element at the given row and column.

If the row/column is beyond the current table dimensions, then the table is expanded automatically.

int Wt::WTable::headerCount

(

Orientation

orientation = Horizontal

)

Returns the number of header rows or columns.

See also

setHeaderCount()

void Wt::WTable::moveColumn ( int  from, int  to  )

virtual

Move a table column from its original position to a new position.

The table expands automatically when the to column is beyond the current table dimensions.

See also

moveRow()

void Wt::WTable::moveRow ( int  from, int  to  )

virtual

Move a table row from its original position to a new position.

The table expands automatically when the to row is beyond the current table dimensions.

See also

moveColumn()

void Wt::WTable::removeCell

(

WTableCell *

item

)

Deletes a table cell and its contents.

The table cell at that position is recreated.

See also

removeCell(int int)

void Wt::WTable::removeCell ( int  row, int  column  )

virtual

Deletes the table cell at the given position.

See also

removeCell(WTableCell *)

WTableRow * Wt::WTable::rowAt

(

int

row

)

Returns the row object for the given row.

Like with elementAt(), the table expands automatically when the row is beyond the current table dimensions.

See also

elementAt(int, int), columnAt(int)

void Wt::WTable::setHeaderCount	(	int	count,
		Orientation	orientation = Horizontal
	)

Sets the number of header rows or columns.

The default values are 0.

Note

This must be set before the initial rendering and cannot be changed later.
