A cartesian chart. More...

#include <Wt/Chart/WCartesianChart.h>

Inheritance diagram for Wt::Chart::WCartesianChart:

Public Member Functions
	WCartesianChart ()
	Creates a new cartesian chart. More...

	WCartesianChart (ChartType type)
	Creates a new cartesian chart. More...

void	setType (ChartType type)
	Sets the chart type. More...

ChartType	type () const
	Returns the chart type. More...

void	setOrientation (Orientation orientation)
	Sets the chart orientation. More...

Orientation	orientation () const
	Returns the chart orientation. More...

void	setXSeriesColumn (int modelColumn)
	Sets the the model column for the X series. More...

void	setTextPen (const WPen &pen)
	set the pen used to render the labels More...

int	XSeriesColumn () const
	Returns the model column for the X series. More...

void	addSeries (std::unique_ptr< WDataSeries > series)
	Adds a data series. More...

std::unique_ptr< WDataSeries >	removeSeries (WDataSeries *series)
	Removes a data series. More...

void	setSeries (std::vector< std::unique_ptr< WDataSeries > > series)
	Sets all data series. More...

WDataSeries &	series (int modelColumn)
	Returns a data series corresponding to a data column. More...

const WDataSeries &	series (int modelColumn) const
	Returns a data series corresponding to a data column. More...

const std::vector< std::unique_ptr< WDataSeries > > &	series () const
	Returns a list with the current data series. More...

WAxis &	axis (Axis axis)
	Returns a chart axis. More...

const WAxis &	axis (Axis axis) const
	Accesses a chart axis. More...

void	setAxis (std::unique_ptr< WAxis > waxis, Axis axis)
	Sets an axis. More...

std::vector< WAxis * >	xAxes ()
	Returns a vector of all X axes associated with this chart. More...

std::vector< const WAxis * >	xAxes () const
	Returns a vector of all X axes associated with this chart. More...

std::vector< WAxis * >	yAxes ()
	Returns a vector of all Y axes associated with this chart. More...

std::vector< const WAxis * >	yAxes () const
	Returns a vector of all Y axes associated with this chart. More...

int	xAxisCount () const
	Returns the number of X axes associated with this chart.

int	yAxisCount () const
	Returns the number of Y axes associated with this chart.

WAxis &	xAxis (int i)
	Retrieves the X axis at index i. More...

const WAxis &	xAxis (int i) const
	Retrieves the X axis at index i. More...

WAxis &	yAxis (int i)
	Retrieves the Y axis at index i. More...

const WAxis &	yAxis (int i) const
	Retrieves the Y axis at index i. More...

int	addXAxis (std::unique_ptr< WAxis > waxis)
	Adds a X axis to this chart. More...

int	addYAxis (std::unique_ptr< WAxis > waxis)
	Adds a Y axis to this chart. More...

std::unique_ptr< WAxis >	removeXAxis (int xAxisId)
	Removes the X axis with the given id. More...

std::unique_ptr< WAxis >	removeYAxis (int yAxisId)
	Removes the Y axis with the given id. More...

void	clearXAxes ()
	Clears all X axes. More...

void	clearYAxes ()
	Clears all Y axes. More...

void	setBarMargin (double margin)
	Sets the margin between bars of different series. More...

double	barMargin () const
	Returns the margin between bars of different series. More...

void	setLegendEnabled (bool enabled)
	Enables the legend. More...

bool	isLegendEnabled () const
	Returns whether the legend is enabled. More...

void	setLegendLocation (LegendLocation location, Side side, AlignmentFlag alignment)
	Configures the legend location. More...

void	setLegendStyle (const WFont &font, const WPen &border, const WBrush &background)
	Configures the legend decoration. More...

LegendLocation	legendLocation () const
	Returns the legend location. More...

Side	legendSide () const
	Returns the legend side. More...

AlignmentFlag	legendAlignment () const
	Returns the legend alignment. More...

int	legendColumns () const
	Returns the legend columns. More...

WLength	legendColumnWidth () const
	Returns the legend column width. More...

WFont	legendFont () const
	Returns the legend font. More...

WPen	legendBorder () const
	Returns the legend border pen. More...

WBrush	legendBackground () const
	Returns the legend background brush. More...

void	setLegendColumns (int columns, const WLength &width)
	Configures multiple legend columns. More...

virtual void	paint (WPainter &painter, const WRectF &rectangle=WRectF()) const override
	Paint the chart in a rectangle of the given painter. More...

virtual void	drawMarker (const WDataSeries &series, WPainterPath &result) const
	Draws the marker for a given data series. More...

virtual void	renderLegendIcon (WPainter &painter, const WPointF &pos, const WDataSeries &series) const
	Renders the legend icon for a given data series. More...

virtual void	renderLegendItem (WPainter &painter, const WPointF &pos, const WDataSeries &series) const
	Renders the legend item for a given data series. More...

WPointF	mapFromDevice (const WPointF &point, Axis ordinateAxis=Axis::Ordinate) const
	Maps from device coordinates to model coordinates. More...

WPointF	mapFromDevice (const WPointF &point, int ordinateAxis) const
	Maps from device coordinates to model coordinates. More...

WPointF	mapFromDeviceWithoutTransform (const WPointF &point, Axis ordinateAxis=Axis::Ordinate) const
	Maps from device coordinates to model coordinates, ignoring the current zoom range. More...

WPointF	mapFromDevice (const WPointF &point, const WAxis &xAxis, const WAxis &yAxis) const
	Maps from device coordinates to model coordinates. More...

WPointF	mapFromDeviceWithoutTransform (const WPointF &point, int ordinateAxis) const
	Maps from device coordinates to model coordinates, ignoring the current zoom range. More...

WPointF	mapFromDeviceWithoutTransform (const WPointF &point, const WAxis &xAxis, const WAxis &yAxis) const
	Maps from device coordinates to model coordinates, ignoring the current zoom range. More...

WPointF	mapToDevice (const cpp17::any &xValue, const cpp17::any &yValue, Axis axis=Axis::Ordinate, int xSegment=0, int ySegment=0) const
	Maps model values onto chart coordinates. More...

WPointF	mapToDevice (const cpp17::any &xValue, const cpp17::any &yValue, int yAxis, int xSegment=0, int ySegment=0) const
	Maps model values onto chart coordinates. More...

WPointF	mapToDevice (const cpp17::any &xValue, const cpp17::any &yValue, const WAxis &xAxis, const WAxis &yAxis, int xSegment=0, int ySegment=0) const
	Maps model values onto chart coordinates. More...

WPointF	mapToDeviceWithoutTransform (const cpp17::any &xValue, const cpp17::any &yValue, Axis axis=Axis::Ordinate, int xSegment=0, int ySegment=0) const
	Maps model values onto chart coordinates, ignoring the current zoom range. More...

WPointF	mapToDeviceWithoutTransform (const cpp17::any &xValue, const cpp17::any &yValue, int yAxis, int xSegment=0, int ySegment=0) const
	Maps model values onto chart coordinates, ignoring the current zoom range. More...

WPointF	mapToDeviceWithoutTransform (const cpp17::any &xValue, const cpp17::any &yValue, const WAxis &xAxis, const WAxis &yAxis, int xSegment=0, int ySegment=0) const
	Maps model values onto chart coordinates, ignoring the current zoom range. More...

bool	initLayout (const WRectF &rectangle=WRectF(), WPaintDevice *device=nullptr) const
	Initializes the chart layout. More...

std::unique_ptr< WWidget >	createLegendItemWidget (int index)
	Creates a widget which renders the a legend item. More...

virtual void	addDataPointArea (const WDataSeries &series, int xRow, int xColumn, std::unique_ptr< WAbstractArea > area)
	Adds a data point area (used for displaying e.g. tooltips). More...

void	setAxisPadding (int axisPadding)
	Sets the padding between the chart area and the axes. More...

int	axisPadding () const
	Returns the padding between the chart area and the axes. More...

void	setBorderPen (const WPen &pen)
	Sets the pen of the border to be drawn around the chart area. More...

const WPen &	borderPen () const
	Returns the pen used to draw the border around the chart area. More...

void	addCurveLabel (const CurveLabel &label)
	Add a curve label. More...

void	setCurveLabels (const std::vector< CurveLabel > &labels)
	Configure all curve labels at once. More...

void	clearCurveLabels ()
	Clear all curve labels. More...

const std::vector< CurveLabel > &	curveLabels () const
	Get all of the registered curve labels. More...

Client side interaction
These methods allow to activate the client side interactive features of a WCartesianChart. Note Client side interaction is only available if the chart is drawn on an HTML canvas. This is the default rendering method on modern browsers, see WPaintedWidget::setPreferredMethod() Some features are currently not supported in interactive mode: Axes set at AxisValue::Zero position will not always be drawn correctly. They may be clipped off outside of the chart area, and when zooming, the axis ticks will change size. WAxis::setBreak() is incompatible with interactive mode
bool	isInteractive () const
	Returns whether this chart is interactive. More...

void	setZoomEnabled (bool zoom=true)
	Enables zoom functionality. More...

bool	zoomEnabled () const
	Returns whether zoom is enabled. More...

void	setPanEnabled (bool pan=true)
	Enables pan functionality. More...

bool	panEnabled () const
	Returns whether pan is enabled. More...

void	setCrosshairEnabled (bool crosshair=true)
	Enables the crosshair functionality. More...

bool	crosshairEnabled () const
	Returns whether the crosshair is enabled. More...

void	setCrosshairColor (const WColor &color)
	Sets the crosshair color. More...

const WColor &	crosshairColor () const
	Returns the crosshair color. More...

void	setCrosshairXAxis (int xAxis)
	Sets the X axis to use for the crosshair. More...

int	crosshairXAxis () const
	Returns the X axis to use for the crosshair.

void	setCrosshairYAxis (int yAxis)
	Sets the Y axis to use for the crosshair. More...

int	crosshairYAxis () const
	Returns the Y axis to use for the crosshair.

void	setFollowCurve (int modelColumn)
	Enables the follow curve functionality for a data series. More...

void	setFollowCurve (const WDataSeries *series)
	Enabled the follow curve funtionality for a data series. More...

void	disableFollowCurve ()
	Disable the follow curve functionality. More...

const WDataSeries *	followCurve () const
	Returns the curve that is to be followed. More...

void	setRubberBandEffectEnabled (bool rubberBand=true)
	Enables/disables the inertial scrolling and rubberband effect. More...

bool	rubberBandEffectEnabled () const
	Checks whether the rubberband effect is enabled. More...

void	setWheelActions (WheelActions wheelActions)
	Sets the mapping of mouse wheel actions for interactive charts. More...

WheelActions	wheelActions () const
	Returns the current mouse wheel actions for interactive charts. More...

void	setSoftLabelClipping (bool enabled)
	Enables or disables soft label clipping on all axes. More...

void	setSeriesSelectionEnabled (bool enabled=true)
	Sets whether series selection is enabled. More...

bool	seriesSelectionEnabled () const
	Returns whether series selection is enabled. More...

Signal< const WDataSeries *, WPointF > &	seriesSelected ()
	A signal that notifies the selection of a new curve. More...

void	setSelectedSeries (const WDataSeries *series)
	Sets the series that is currently selected. More...

const WDataSeries *	selectedSeries () const
	Get the currently selected curve. More...

void	setCurveManipulationEnabled (bool enabled=true)
	Enable curve manipulation. More...

bool	curveManipulationEnabled () const
	Returns whether curve manipulation is enabled. More...

void	setOnDemandLoadingEnabled (bool enabled)
	Enable on-demand loading. More...

bool	onDemandLoadingEnabled () const
	Returns whether on-demand loading is enabled. More...

void	setLoadingBackground (const WBrush &brush)
	Set the background brush for the unloaded area. More...

const WBrush &	loadingBackground () const
	Returns the background brush for the unloaded area. More...

Public Member Functions inherited from Wt::Chart::WAbstractChart
virtual	~WAbstractChart ()
	Destructor.

void	setModel (const std::shared_ptr< WAbstractItemModel > &model)
	Sets the model. More...

void	setModel (const std::shared_ptr< WAbstractChartModel > &model)
	Sets the model. More...

std::shared_ptr< WAbstractChartModel >	model () const
	Returns the model. More...

std::shared_ptr< WAbstractItemModel >	itemModel () const
	Returns the model. More...

void	setBackground (const WBrush &background)
	Sets a background for the chart. More...

const WBrush &	background () const
	Returns the background of the chart. More...

void	setPalette (const std::shared_ptr< WChartPalette > &palette)
	Set a palette for the chart. More...

std::shared_ptr< WChartPalette >	palette () const
	Returns the palette for the chart. More...

void	setPlotAreaPadding (int padding, WFlags< Side > sides=AllSides)
	Set an internal margin for the main plot area. More...

int	plotAreaPadding (Side side) const
	Returns the internal margin for the main plot area. More...

void	setAutoLayoutEnabled (bool enabled=true)
	Configures the chart layout to be automatic. More...

bool	isAutoLayoutEnabled () const
	Returns whether chart layout is computed automatically. More...

void	setTitle (const WString &title)
	Set a chart title. More...

const WString &	title () const
	Return the chart title. More...

void	setTitleFont (const WFont &titleFont)
	Set the font for the chart title. More...

const WFont &	titleFont () const
	Returns the font for the chart title. More...

Public Member Functions inherited from Wt::WPaintedWidget
	WPaintedWidget ()
	Create a new painted widget.

	~WPaintedWidget ()
	Destructor.

void	setPreferredMethod (RenderMethod method)
	Sets the preferred rendering method. More...

RenderMethod	preferredMethod () const
	Returns the preferred rendering method. More...

void	update (WFlags< PaintFlag > flags=None)
	Lets the widget repaint itself. More...

virtual void	resize (const WLength &width, const WLength &height) override
	Resizes the widget. More...

void	addArea (std::unique_ptr< WAbstractArea > area)
	Adds an interactive area. More...

void	insertArea (int index, std::unique_ptr< WAbstractArea > area)
	Inserts an interactive area. More...

std::unique_ptr< WAbstractArea >	removeArea (WAbstractArea *area)
	Removes an interactive area. More...

WAbstractArea *	area (int index) const
	Returns the interactive area at the given index. More...

const std::vector< WAbstractArea * >	areas () const
	Returns the interactive areas set for this widget. More...

JSlot &	repaintSlot ()
	A JavaScript slot that repaints the widget when triggered. More...

Public Member Functions inherited from Wt::WInteractWidget
	WInteractWidget ()
	Create an InteractWidget.

EventSignal< WKeyEvent > &	keyWentDown ()
	Event signal emitted when a keyboard key is pushed down. More...

EventSignal< WKeyEvent > &	keyPressed ()
	Event signal emitted when a "character" was entered. More...

EventSignal< WKeyEvent > &	keyWentUp ()
	Event signal emitted when a keyboard key is released. More...

EventSignal &	enterPressed ()
	Event signal emitted when enter was pressed. More...

EventSignal &	escapePressed ()
	Event signal emitted when escape was pressed. More...

EventSignal< WMouseEvent > &	clicked ()
	Event signal emitted when the primary mouse button was clicked on this widget. More...

EventSignal< WMouseEvent > &	doubleClicked ()
	Event signal emitted when the primary mouse button was double clicked on this widget. More...

EventSignal< WMouseEvent > &	mouseWentDown ()
	Event signal emitted when a mouse button was pushed down on this widget. More...

EventSignal< WMouseEvent > &	mouseWentUp ()
	Event signal emitted when a mouse button was released on this widget. More...

EventSignal< WMouseEvent > &	mouseWentOut ()
	Event signal emitted when the mouse went out of this widget. More...

EventSignal< WMouseEvent > &	mouseWentOver ()
	Event signal emitted when the mouse entered this widget. More...

EventSignal< WMouseEvent > &	mouseMoved ()
	Event signal emitted when the mouse moved over this widget. More...

EventSignal< WMouseEvent > &	mouseDragged ()
	Event signal emitted when the mouse is dragged over this widget. More...

EventSignal< WMouseEvent > &	mouseWheel ()
	Event signal emitted when the mouse scroll wheel was used. More...

EventSignal< WTouchEvent > &	touchStarted ()
	Event signal emitted when a finger is placed on the screen. More...

EventSignal< WTouchEvent > &	touchEnded ()
	Event signal emitted when a finger is removed from the screen. More...

EventSignal< WTouchEvent > &	touchMoved ()
	Event signal emitted when a finger, which is already placed on the screen, is moved across the screen. More...

EventSignal< WGestureEvent > &	gestureStarted ()
	Event signal emitted when a gesture is started. More...

EventSignal< WGestureEvent > &	gestureChanged ()
	Event signal emitted when a gesture is changed. More...

EventSignal< WGestureEvent > &	gestureEnded ()
	Event signal emitted when a gesture is ended. More...

void	setDraggable (const std::string &mimeType, WWidget dragWidget=nullptr, bool isDragWidgetOnly=false, WObject sourceWidget=nullptr)
	Configure dragging for drag and drop. More...

void	unsetDraggable ()
	Disable drag & drop for this widget. More...

void	setMouseOverDelay (int delay)
	Sets a delay for the mouse over event. More...

int	mouseOverDelay () const
	Returns the mouse over signal delay. More...

virtual void	setPopup (bool popup) override
	Lets the widget overlay over other sibling widgets. More...

virtual void	load () override
	Loads content just before the widget is used. More...

virtual bool	isEnabled () const override
	Returns whether the widget is enabled. More...

Public Member Functions inherited from Wt::WWebWidget
	WWebWidget ()
	Construct a WebWidget.

virtual std::vector< WWidget * >	children () const override
	Returns child widgets. More...

Signal &	childrenChanged ()
	Signal emitted when children have been added or removed. More...

virtual void	setPositionScheme (PositionScheme scheme) override
	Sets the CSS position scheme. More...

virtual PositionScheme	positionScheme () const override
	Returns the CSS position scheme. More...

virtual void	setOffsets (const WLength &offset, WFlags< Side > sides=AllSides) override
	Sets CSS offsets for a non-statically positioned widget. More...

virtual WLength	offset (Side s) const override
	Returns a CSS offset. More...

virtual WLength	width () const override
	Returns the width. More...

virtual WLength	height () const override
	Returns the height. More...

virtual void	setMinimumSize (const WLength &width, const WLength &height) override
	Sets a minimum size. More...

virtual WLength	minimumWidth () const override
	Returns the minimum width. More...

virtual WLength	minimumHeight () const override
	Returns the minimum height. More...

virtual void	setMaximumSize (const WLength &width, const WLength &height) override
	Sets a maximum size. More...

virtual WLength	maximumWidth () const override
	Returns the maximum width. More...

virtual WLength	maximumHeight () const override
	Returns the maximum height. More...

virtual void	setLineHeight (const WLength &height) override
	Sets the CSS line height for contained text.

virtual WLength	lineHeight () const override
	Returns the CSS line height for contained text. More...

virtual void	setFloatSide (Side s) override
	Specifies a CSS float side. More...

virtual Side	floatSide () const override
	Returns the CSS float side. More...

virtual void	setClearSides (WFlags< Side > sides) override
	Sets the sides that should be cleared of floats. More...

virtual WFlags< Side >	clearSides () const override
	Returns the sides that should remain empty. More...

virtual void	setMargin (const WLength &margin, WFlags< Side > sides=AllSides) override
	Sets CSS margins around the widget. More...

virtual WLength	margin (Side side) const override
	Returns a CSS margin set. More...

virtual void	setHiddenKeepsGeometry (bool enabled) override
	Sets whether the widget keeps its geometry when hidden. More...

virtual bool	hiddenKeepsGeometry () const override
	Returns whether the widget keeps its geometry when hidden. More...

virtual void	setHidden (bool hidden, const WAnimation &animation=WAnimation()) override
	Hides or shows the widget. More...

virtual bool	isHidden () const override
	Returns whether the widget is set hidden. More...

virtual bool	isVisible () const override
	Returns whether the widget is visible. More...

virtual void	setDisabled (bool disabled) override
	Sets whether the widget is disabled. More...

virtual bool	isDisabled () const override
	Returns whether the widget is set disabled. More...

virtual bool	isPopup () const override
	Returns whether the widget is overlayed. More...

virtual void	setInline (bool isInline) override
	Sets whether the widget is displayed inline or as a block. More...

virtual bool	isInline () const override
	Returns whether the widget is displayed inline or as block. More...

virtual void	setDecorationStyle (const WCssDecorationStyle &style) override
	Sets a CSS decoration style. More...

virtual WCssDecorationStyle &	decorationStyle () override
	Returns the decoration style of this widget. More...

virtual void	setStyleClass (const WString &styleClass) override
	Sets (one or more) CSS style classes. More...

virtual WString	styleClass () const override
	Returns the CSS style class. More...

virtual void	addStyleClass (const WString &styleClass, bool force=false) override
	Adds a CSS style class. More...

virtual void	removeStyleClass (const WString &styleClass, bool force=false) override
	Removes a CSS style class. More...

virtual bool	hasStyleClass (const WString &styleClass) const override
	Returns whether the widget has a style class.

virtual void	setVerticalAlignment (AlignmentFlag alignment, const WLength &length=WLength()) override
	Sets the vertical alignment. More...

virtual AlignmentFlag	verticalAlignment () const override
	Returns the vertical alignment. More...

virtual WLength	verticalAlignmentLength () const override
	Returns the fixed vertical alignment that was set. More...

virtual void	setToolTip (const WString &text, TextFormat textFormat=TextFormat::Plain) override
	Sets a tooltip. More...

virtual void	setDeferredToolTip (bool enable, TextFormat textFormat=TextFormat::Plain) override
	Enable deferred tooltip. More...

virtual WString	toolTip () const override
	Returns the tooltip.

virtual void	refresh () override
	Refresh the widget. More...

virtual void	setAttributeValue (const std::string &name, const WString &value) override
	Sets an attribute value. More...

virtual WString	attributeValue (const std::string &name) const override
	Returns an attribute value. More...

virtual void	setJavaScriptMember (const std::string &name, const std::string &value) override
	Sets a JavaScript member. More...

virtual std::string	javaScriptMember (const std::string &name) const override
	Returns the value of a JavaScript member. More...

virtual void	callJavaScriptMember (const std::string &name, const std::string &args) override
	Calls a JavaScript member. More...

virtual bool	loaded () const override
	Returns whether this widget has been loaded. More...

virtual void	setId (const std::string &id) override
	Sets the CSS Id. More...

virtual WWidget *	find (const std::string &name) override
	Finds a descendent widget by name. More...

virtual WWidget *	findById (const std::string &id) override
	Finds a descendent widget by id.

virtual void	setSelectable (bool selectable) override
	Sets as selectable. More...

virtual void	doJavaScript (const std::string &javascript) override
	Executes the given JavaScript statements when the widget is rendered or updated. More...

virtual const std::string	id () const override
	Returns the (unique) identifier for this object. More...

void	setLoadLaterWhenInvisible (bool)
	Change the way the widget is loaded when invisible. More...

std::string	htmlTagName () const
	returns the current html tag name More...

void	setHtmlTagName (const std::string &tag)
	set the custom HTML tag name More...

virtual void	setCanReceiveFocus (bool enabled) override
	Sets whether the widget can receive focus. More...

virtual bool	canReceiveFocus () const override
	Returns whether the widget can receive focus. More...

virtual bool	setFirstFocus () override
	Set focus on the widget's first descendant. More...

virtual void	setFocus (bool focus) override
	Sets focus. More...

virtual bool	hasFocus () const override
	Returns whether the widget currently has the focus.

virtual void	setTabIndex (int index) override
	Sets the tab index. More...

virtual int	tabIndex () const override
	Returns the tab index. More...

EventSignal &	blurred ()
	Signal emitted when the widget lost focus. More...

EventSignal &	focussed ()
	Signal emitted when the widget recieved focus. More...

virtual bool	scrollVisibilityEnabled () const final override
	Returns whether scroll visibility detection is enabled for this widget. More...

virtual void	setScrollVisibilityEnabled (bool enabled) final override
	Sets whether scroll visibility detection is enabled for this widget. More...

virtual int	scrollVisibilityMargin () const final override
	Returns the margin around the viewport within which the widget is considered visible. More...

virtual void	setScrollVisibilityMargin (int margin) final override
	Sets the margin around the viewport within which the widget is considered visible. More...

virtual Signal< bool > &	scrollVisibilityChanged () final override
	Signal triggered when the scroll visibility of this widget changes. More...

virtual bool	isScrollVisible () const final override
	Returns whether this widget is currently considered scroll visible. More...

virtual void	setThemeStyleEnabled (bool enabled) final override
	Sets whether theme styling for a widget is enabled or disabled. More...

virtual bool	isThemeStyleEnabled () const final override
	Returns whether this widget is currently styled by the chosen theme. More...

virtual void	setObjectName (const std::string &name) override
	Sets an object name. More...

void	setFocus ()
	Sets focus. More...

virtual void	setFocus (bool focus)=0
	Sets focus. More...

Public Member Functions inherited from Wt::WWidget
virtual	~WWidget ()
	Destructor. More...

WWidget *	parent () const
	Returns the parent widget.

virtual std::unique_ptr< WWidget >	removeWidget (WWidget *widget)
	Removes a child widget.

template<typename Widget >
std::unique_ptr< Widget >	removeWidget (Widget *widget)
	Removes a child widget. More...

std::unique_ptr< WWidget >	removeFromParent ()
	Removes the widget from its parent. More...

void	setWidth (const WLength &width)
	Sets the width. More...

void	setHeight (const WLength &height)
	Sets the height. More...

virtual void	positionAt (const WWidget *widget, Orientation orientation=Orientation::Vertical)
	Positions a widget next to another widget. More...

virtual void	toggleStyleClass (const WString &styleClass, bool add, bool force=false)
	Toggles a CSS style class.

std::string	jsRef () const
	Returns a JavaScript expression to the corresponding DOM node. More...

void	setFocus ()
	Sets focus. More...

virtual void	acceptDrops (const std::string &mimeType, const WString &hoverStyleClass=WString())
	Sets a mime type to be accepted for dropping. More...

virtual void	stopAcceptDrops (const std::string &mimeType)
	Indicates that a mime type is no longer accepted for dropping. More...

virtual void	htmlText (std::ostream &out)
	Streams the (X)HTML representation. More...

bool	isRendered () const
	Returns whether the widget is rendered. More...

void	hide ()
	Hides the widget. More...

void	animateHide (const WAnimation &animation)
	Hides the widget using an animation. More...

void	show ()
	Shows the widget. More...

void	animateShow (const WAnimation &animation)
	Shows the widget using an animation. More...

void	enable ()
	Enables the widget. More...

void	disable ()
	Disable thes widget. More...

bool	layoutSizeAware () const
	Returns whether the widget is layout size aware. More...

Public Member Functions inherited from Wt::WObject
void	addChild (std::unique_ptr< WObject > child)
	Add a child WObject whose lifetime is determined by this WObject.

template<typename Child >
Child *	addChild (std::unique_ptr< Child > child)
	Add a child WObject, returning a raw pointer. More...

std::unique_ptr< WObject >	removeChild (WObject *child)
	Remove a child WObject, so its lifetime is no longer determined by this WObject.

template<typename Child >
std::unique_ptr< Child >	removeChild (Child *child)
	Remove a child WObject, so its lifetime is no longer determined by this WObject. More...

virtual std::string	objectName () const
	Returns the object name. More...

void	resetLearnedSlots ()
	Resets learned stateless slot implementations. More...

template<class T >
void	resetLearnedSlot (void(T::*method)())
	Resets a learned stateless slot implementation. More...

template<class T >
WStatelessSlot *	implementStateless (void(T::*method)())
	Declares a slot to be stateless and learn client-side behaviour on first invocation. More...

template<class T >
WStatelessSlot *	implementStateless (void(T::method)(), void(T::undoMethod)())
	Declares a slot to be stateless and learn client-side behaviour in advance. More...

void	isNotStateless ()
	Marks the current function as not stateless. More...

template<class T >
WStatelessSlot *	implementJavaScript (void(T::*method)(), const std::string &jsCode)
	Provides a JavaScript implementation for a method. More...

Public Member Functions inherited from Wt::Core::observable
	observable () noexcept
	Default constructor.

virtual	~observable ()
	Destructor. More...

template<typename... Args, typename C >
auto	bindSafe (void(C::*method)(Args...)) noexcept
	Protects a method call against object destruction. More...

template<typename... Args, typename C >
auto	bindSafe (void(C::*method)(Args...) const) const noexcept
	Protects a const method call against object destruction. More...

template<typename Function >
auto	bindSafe (const Function &function) noexcept
	Protects a function against object destruction. More...

Protected Member Functions
virtual void	render (WFlags< RenderFlag > flags) override
	Renders the widget. More...

WTransform	zoomRangeTransform (int yAxis=0) const
	Returns the current zoom range transform. More...

WTransform	zoomRangeTransform (const WAxis &xAxis, const WAxis &yAxis) const
	Returns the current zoom range transform. More...

Rendering logic
virtual void	paintEvent (WPaintDevice *paintDevice) override
	Paints the widget. More...

virtual void	render (WPainter &painter, const WRectF &rectangle) const
	Renders the chart. More...

virtual WPointF	map (double xValue, double yValue, Axis yAxis=Axis::Ordinate, int currentXSegment=0, int currentYSegment=0) const
	Map (x, y) value pair to chart coordinates coordinates. More...

virtual WPointF	map (double xValue, double yValue, int yAxis, int currentXSegment=0, int currentYSegment=0) const
	Map (x, y) value pair to chart coordinates coordinates. More...

virtual WPointF	map (double xValue, double yValue, const WAxis &xAxis, const WAxis &yAxis, int currentXSegment=0, int currentYSegment=0) const
	Map (x, y) value pair to chart coordinates coordinates. More...

virtual void	renderLabel (WPainter &painter, const WString &text, const WPointF &pos, WFlags< AlignmentFlag > flags, double angle, int margin) const
	Utility function for rendering text. More...

WPointF	hv (double x, double y) const
	Conversion between chart and painter coordinates. More...

WPointF	hv (const WPointF &f) const
	Conversion between chart and painter coordinates. More...

WRectF	hv (const WRectF &f) const
	Conversion between chart and painter coordinates. More...

WRectF	chartSegmentArea (const WAxis &yAxis, int xSegment, int ySegment) const
	Returns the segment area for a combination of X and Y segments. More...

WRectF	chartSegmentArea (const WAxis &xAxis, const WAxis &yAxis, int xSegment, int ySegment) const
	Returns the segment area for a combination of X and Y segments. More...

virtual void	calcChartArea () const
	Calculates the chart area. More...

virtual bool	prepareAxes (WPaintDevice *device) const
	Prepares the axes for rendering. More...

virtual void	renderBackground (WPainter &painter) const
	Renders the background. More...

virtual void	renderAxes (WPainter &painter, WFlags< AxisProperty > properties) const
	Renders one or more properties of the axes. More...

virtual void	renderBorder (WPainter &painter) const
	Renders the border of the chart area. More...

virtual void	renderCurveLabels (WPainter &painter) const
	Renders the curve labels. More...

virtual void	renderSeries (WPainter &painter) const
	Renders all series data, including value labels. More...

virtual void	renderLegend (WPainter &painter) const
	Renders the (default) legend and chart titles. More...

virtual void	renderAxis (WPainter &painter, const WAxis &axis, WFlags< AxisProperty > properties) const
	Renders properties of one axis. More...

virtual void	renderGrid (WPainter &painter, const WAxis &axis) const
	Renders grid lines along the ticks of the given axis. More...

virtual void	renderOther (WPainter &painter) const
	Renders other, user-defined things. More...

int	calcNumBarGroups ()
	Calculates the total number of bar groups.

Protected Member Functions inherited from Wt::WPaintedWidget
WJavaScriptHandle< WTransform >	createJSTransform ()
	Create a WTransform that is accessible from JavaScript, associated with this WPaintedWidget.

WJavaScriptHandle< WBrush >	createJSBrush ()
	Create a WBrush that is accessible from JavaScript, associated with this WPaintedWidget.

WJavaScriptHandle< WPen >	createJSPen ()
	Create a WPen that is accessible from JavaScript, associated with this WPaintedWidget.

WJavaScriptHandle< WPainterPath >	createJSPainterPath ()
	Create a WPainterPath that is accessible from JavaScript, associated with this WPaintedWidget.

WJavaScriptHandle< WRectF >	createJSRect ()
	Create a WRectF that is accessible from JavaScript, associated with this WPaintedWidget.

WJavaScriptHandle< WPointF >	createJSPoint ()
	Create a WPointF that is accessible from JavaScript, associated with this WPaintedWidget.

virtual void	layoutSizeChanged (int width, int height) override
	Virtual method that indicates a size change. More...

virtual RenderMethod	getMethod () const
	Returns the actual method used for rendering. More...

virtual std::unique_ptr< WPaintDevice >	createPaintDevice () const
	Creates a paint device. More...

virtual void	enableAjax () override
	Progresses to an Ajax-enabled widget. More...

std::string	objJsRef () const
	Returns a JavaScript reference to the client side representation of the WPaintedWidget. More...

Protected Member Functions inherited from Wt::WInteractWidget
virtual void	propagateSetEnabled (bool enabled) override
	Propagates that a widget was enabled or disabled through children. More...

Protected Member Functions inherited from Wt::WWebWidget
virtual WStatelessSlot *	getStateless (Method method) override
	On-demand stateless slot implementation. More...

Protected Member Functions inherited from Wt::WWidget
void	setLayoutSizeAware (bool sizeAware)
	Sets the widget to be aware of its size set by a layout manager. More...

	WWidget ()
	Creates a widget.

virtual void	dropEvent (WDropEvent dropEvent)
	Handles a drop event. More...

virtual int	boxPadding (Orientation orientation) const
	Returns the widget's built-in padding. More...

virtual int	boxBorder (Orientation orientation) const
	Returns the widget's built-in border width. More...

void	scheduleRender (WFlags< RepaintFlag > flags=None)
	Schedules rerendering of the widget. More...

Additional Inherited Members
Public Types inherited from Wt::WObject
typedef void(WObject::*	Method) ()
	Typedef for a WObject method without arguments.

Static Public Member Functions inherited from Wt::WWebWidget
static std::string	jsStringLiteral (const std::string &v, char delimiter='\'')
	Turn a CharEncoding::UTF8 encoded string into a JavaScript string literal. More...

Static Public Member Functions inherited from Wt::WWidget
static WString	tr (const char *key)
	Short hand for WString::tr() More...

Detailed Description

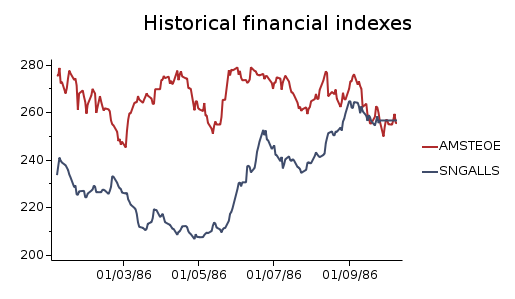

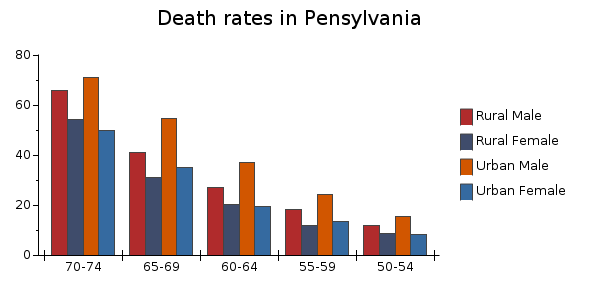

A cartesian chart.

A cartesian chart is a chart that uses X and Y axes. It can display one or multiple data series, which each may be rendered using bars, lines, areas, or points.

To use a cartesian chart, the minimum you need to do is set a model using setModel(), set the model column that holds the X data using setXSeriesColumn(int modelColumn), and add one or more series using addSeries(std::unique_ptr<WDataSeries>). Each series corresponds to one data column that holds Y data.

A cartesian chart is either a ChartType::Category or a ChartType::Scatter.

In a ChartType::Category, the X series represent different categories, which are listed consecutively in model row order. The X axis scale is set to AxisScale::Discrete.

A category chart with bar series

Each series may be rendered differently, and this is configured in the data series (see WDataSeries for more information).

In a ChartType::Scatter, the X series data are interpreted as numbers on a numerical scale. The scale for the X axis defaults to a AxisScale::Linear, but this may be changed to a AxisScale::Date when the X series contains dates (of type WDate) to create a time series chart, or to a AxisScale::Log. A ChartType::Scatter supports the same types of data series as a ChartType::Category, but does not support stacking. In a scatter plot, the X series do not need to be ordered in increasing values, and may be set differently for each dataseries using WDataSeries::setXSeriesColumn(int modelColumn).

A time series scatter plot with line series

Missing data in a model series Y values is interpreted as a break. For curve-like series, this breaks the curve (or line).

The cartesian chart has support for dual Y axes. Each data series may be bound to one of the two Y axes. By default, only the first Y axis is displayed. To show the second Y axis you will need to call:

chart->axis(Axis::Y2).setVisible(true);

Wt::Chart::Axis::Y2

@ Y2

Second Y Axis.

By default a chart has a horizontal X axis and a vertical Y axis, which corresponds to a Orientation::Vertical orientation. The orientation may be changed to Orientation::Horizontal using setOrientation().

The styling of the series data are dictated by a palette which may be set using setPalette(WChartPalette *), but may be overridden by settings in each data series.

CSS

Styling through CSS is not applicable.

See also: WDataSeries, WAxis; WPieChart

Constructor & Destructor Documentation

◆ WCartesianChart() [1/2]

Wt::Chart::WCartesianChart::WCartesianChart ( )

Creates a new cartesian chart.

Creates a cartesian chart of type ChartType::Category.

◆ WCartesianChart() [2/2]

Wt::Chart::WCartesianChart::WCartesianChart ( ChartType type )

Creates a new cartesian chart.

Creates a cartesian chart of the indicated type.

Member Function Documentation

◆ addCurveLabel()

void Wt::Chart::WCartesianChart::addCurveLabel ( const CurveLabel & label )

Add a curve label.

See also: CurveLabel::CurveLabel()

◆ addDataPointArea()

void Wt::Chart::WCartesianChart::addDataPointArea	(	const WDataSeries &	series,
		int	xRow,
		int	xColumn,
		std::unique_ptr< WAbstractArea >	area
	)

virtual

Adds a data point area (used for displaying e.g. tooltips).

You may want to specialize this is if you wish to modify (or ignore) the area.

Note: Currently, an area is only created if the Wt::ItemDataRole::ToolTip data at the data point is not empty.

◆ addSeries()

void Wt::Chart::WCartesianChart::addSeries ( std::unique_ptr< WDataSeries > series )

Adds a data series.

A single chart may display one or more data series. Each data series displays data from a single model column in the chart. Series are plotted in the order that they have been added to the chart.

The series column is reset to -1 when the model is set (or changed). Thus you need to set a model before configuring the series.

See also: removeSeries(), setSeries()

◆ addXAxis()

int Wt::Chart::WCartesianChart::addXAxis ( std::unique_ptr< WAxis > waxis )

Adds a X axis to this chart.

The first extra axis will have index 1, the next index 2,...

Returns the index of the added axis.

Note: This transfers ownership of the given WAxis to this chart.; Precondition: waxis is not null

◆ addYAxis()

int Wt::Chart::WCartesianChart::addYAxis ( std::unique_ptr< WAxis > waxis )

Adds a Y axis to this chart.

The first extra axis will have index 2, the next index 3,...

Returns the index of the added axis.

Note: This transfers ownership of the given WAxis to this chart.; Precondition: waxis is not null

◆ axis() [1/2]

WAxis & Wt::Chart::WCartesianChart::axis ( Axis axis )

Returns a chart axis.

Returns a reference to the specified axis.

◆ axis() [2/2]

const WAxis & Wt::Chart::WCartesianChart::axis ( Axis axis ) const

Accesses a chart axis.

Returns a const reference to the specified axis.

◆ axisPadding()

int Wt::Chart::WCartesianChart::axisPadding ( ) const

Returns the padding between the chart area and the axes.

This number may not reflect the actual padding of the individual axes, if another padding has been applied on the individual axes.

See also: setAxisPadding()

◆ barMargin()

double Wt::Chart::WCartesianChart::barMargin ( ) const

Returns the margin between bars of different series.

See also: setBarMargin(double)

◆ borderPen()

const WPen& Wt::Chart::WCartesianChart::borderPen ( ) const

Returns the pen used to draw the border around the chart area.

Defaults to PenStyle::None.

See also: setBorderPen()

◆ calcChartArea()

void Wt::Chart::WCartesianChart::calcChartArea ( ) const

protectedvirtual

Calculates the chart area.

This calculates the chartArea(), which is the rectangle (in chart coordinates) that bounds the actual chart (thus excluding axes, labels, titles, legend, etc...).

See also: plotAreaPadding()

◆ chartSegmentArea() [1/2]

WRectF Wt::Chart::WCartesianChart::chartSegmentArea	(	const WAxis &	xAxis,
		const WAxis &	yAxis,
		int	xSegment,
		int	ySegment
	)		const

protected

Returns the segment area for a combination of X and Y segments.

This segment area is used for clipping when rendering in a particular segment.

◆ chartSegmentArea() [2/2]

WRectF Wt::Chart::WCartesianChart::chartSegmentArea	(	const WAxis &	yAxis,
		int	xSegment,
		int	ySegment
	)		const

protected

Returns the segment area for a combination of X and Y segments.

This segment area is used for clipping when rendering in a particular segment.

◆ clearCurveLabels()

void Wt::Chart::WCartesianChart::clearCurveLabels ( )

Clear all curve labels.

See also: addCurveLabel()

◆ clearXAxes()

void Wt::Chart::WCartesianChart::clearXAxes ( )

Clears all X axes.

The effect is the same as repeatedly using removeYAxis() until are axes are removed, i.e. any WDataSeries will also be removed.

◆ clearYAxes()

void Wt::Chart::WCartesianChart::clearYAxes ( )

Clears all Y axes.

The effect is the same as repeatedly using removeYAxis() until are axes are removed, i.e. any WDataSeries will also be removed.

◆ createLegendItemWidget()

std::unique_ptr< WWidget > Wt::Chart::WCartesianChart::createLegendItemWidget ( int index )

Creates a widget which renders the a legend item.

The legend item widget will contain a text and a WPaintedWidget which draws the series' symbol.

◆ crosshairColor()

const WColor& Wt::Chart::WCartesianChart::crosshairColor ( ) const

Returns the crosshair color.

See also: setCrosshairEnabled(), setCrosshairColor()

◆ crosshairEnabled()

bool Wt::Chart::WCartesianChart::crosshairEnabled ( ) const

Returns whether the crosshair is enabled.

See also: setCrosshairEnabled()

◆ curveLabels()

const std::vector<CurveLabel>& Wt::Chart::WCartesianChart::curveLabels ( ) const

Get all of the registered curve labels.

See also: setCurveLabels()

◆ curveManipulationEnabled()

bool Wt::Chart::WCartesianChart::curveManipulationEnabled ( ) const

Returns whether curve manipulation is enabled.

See also: setCurveManipulationEnabled()

◆ disableFollowCurve()

void Wt::Chart::WCartesianChart::disableFollowCurve ( )

Disable the follow curve functionality.

See also: setFollowCurve()

◆ drawMarker()

void Wt::Chart::WCartesianChart::drawMarker	(	const WDataSeries &	series,
		WPainterPath &	result
	)		const

virtual

Draws the marker for a given data series.

Draws the marker for the indicated series in the result. This method is called while painting the chart, and you may want to reimplement this method if you wish to provide a custom marker for a particular data series.

See also: setLegendEnabled()

◆ followCurve()

const WDataSeries * Wt::Chart::WCartesianChart::followCurve ( ) const

Returns the curve that is to be followed.

If follow curve functionality is not enabled, returns -1.

See also: setFollowCurve()

◆ hv() [1/3]

WPointF Wt::Chart::WCartesianChart::hv ( const WPointF & f ) const

protected

Conversion between chart and painter coordinates.

Converts from chart coordinates to painter coordinates, taking into account the chart orientation.

◆ hv() [2/3]

WRectF Wt::Chart::WCartesianChart::hv ( const WRectF & f ) const

protected

Conversion between chart and painter coordinates.

Converts from chart coordinates to painter coordinates, taking into account the chart orientation.

◆ hv() [3/3]

WPointF Wt::Chart::WCartesianChart::hv	(	double	x,
		double	y
	)		const

protected

Conversion between chart and painter coordinates.

Converts from chart coordinates to painter coordinates, taking into account the chart orientation.

◆ initLayout()

bool Wt::Chart::WCartesianChart::initLayout	(	const WRectF &	rectangle = `WRectF()`,
		WPaintDevice *	device = `nullptr`
	)		const

Initializes the chart layout.

The mapping between model and device coordinates is only established after a rendering phase, or after calling initLayout manually.

You need a layout in order to use the mapFromDevice() and mapToDevice() methods.

Unless a specific chart rectangle is specified, the entire widget area is assumed.

◆ isInteractive()

bool Wt::Chart::WCartesianChart::isInteractive ( ) const

Returns whether this chart is interactive.

Return true iff one of the interactive features is enabled, and the chart is being rendered on an HTML canvas.

◆ isLegendEnabled()

bool Wt::Chart::WCartesianChart::isLegendEnabled ( ) const

Returns whether the legend is enabled.

See also: setLegendEnabled()

◆ legendAlignment()

AlignmentFlag Wt::Chart::WCartesianChart::legendAlignment ( ) const

Returns the legend alignment.

See also: setLegendLocation()

◆ legendBackground()

WBrush Wt::Chart::WCartesianChart::legendBackground ( ) const

Returns the legend background brush.

See also: setLegendStyle()

◆ legendBorder()

WPen Wt::Chart::WCartesianChart::legendBorder ( ) const

Returns the legend border pen.

See also: setLegendStyle()

◆ legendColumns()

int Wt::Chart::WCartesianChart::legendColumns ( ) const

Returns the legend columns.

See also: setLegendColumns()

◆ legendColumnWidth()

WLength Wt::Chart::WCartesianChart::legendColumnWidth ( ) const

Returns the legend column width.

See also: setLegendColumns()

◆ legendFont()

WFont Wt::Chart::WCartesianChart::legendFont ( ) const

Returns the legend font.

See also: setLegendStyle()

◆ legendLocation()

LegendLocation Wt::Chart::WCartesianChart::legendLocation ( ) const

Returns the legend location.

See also: setLegendLocation()

◆ legendSide()

Side Wt::Chart::WCartesianChart::legendSide ( ) const

Returns the legend side.

See also: setLegendLocation()

◆ loadingBackground()

const WBrush& Wt::Chart::WCartesianChart::loadingBackground ( ) const

Returns the background brush for the unloaded area.

See also: setOnDemandLoadingEnabled(); setLoadingBackground()

◆ map() [1/3]

WPointF Wt::Chart::WCartesianChart::map	(	double	xValue,
		double	yValue,
		Axis	yAxis = `Axis::Ordinate`,
		int	currentXSegment = `0`,
		int	currentYSegment = `0`
	)		const

protectedvirtual

Map (x, y) value pair to chart coordinates coordinates.

The result needs further transformation using hv() to painter coordinates.

The default implementation is:

return map(xValue, yValue, yAxis == Y1Axis ? 0 : 1, currentXSegment, currentYSegment);

Wt::Chart::WCartesianChart::yAxis

WAxis & yAxis(int i)

Retrieves the Y axis at index i.

Definition: WCartesianChart.C:1803

Wt::Chart::WCartesianChart::map

virtual WPointF map(double xValue, double yValue, Axis yAxis=Axis::Ordinate, int currentXSegment=0, int currentYSegment=0) const

Map (x, y) value pair to chart coordinates coordinates.

Definition: WCartesianChart.C:3635

◆ map() [2/3]

WPointF Wt::Chart::WCartesianChart::map	(	double	xValue,
		double	yValue,
		const WAxis &	xAxis,
		const WAxis &	yAxis,
		int	currentXSegment = `0`,
		int	currentYSegment = `0`
	)		const

protectedvirtual

Map (x, y) value pair to chart coordinates coordinates.

The result needs further transformation using hv() to painter coordinates.

◆ map() [3/3]

WPointF Wt::Chart::WCartesianChart::map	(	double	xValue,
		double	yValue,
		int	yAxis,
		int	currentXSegment = `0`,
		int	currentYSegment = `0`
	)		const

protectedvirtual

Map (x, y) value pair to chart coordinates coordinates.

The result needs further transformation using hv() to painter coordinates.

The default implementation is:

return map(xValue, yValue, xAxis(0), this->yAxis(yAxis), currentXSegment, currentYSegment);

Wt::Chart::WCartesianChart::xAxis

WAxis & xAxis(int i)

Retrieves the X axis at index i.

Definition: WCartesianChart.C:1793

◆ mapFromDevice() [1/3]

WPointF Wt::Chart::WCartesianChart::mapFromDevice	(	const WPointF &	point,
		Axis	ordinateAxis = `Axis::Ordinate`
	)		const

Maps from device coordinates to model coordinates.

Maps a position in the chart back to model coordinates.

This uses the axis dimensions that are based on the latest chart rendering. If you have not yet rendered the chart, or wish that the mapping already reflects model changes since the last rendering, you should call initLayout() first.

If the chart is interactive, mapFromDevice will correctly take the current zoom range into account.

See also: mapToDevice()

◆ mapFromDevice() [2/3]

WPointF Wt::Chart::WCartesianChart::mapFromDevice	(	const WPointF &	point,
		const WAxis &	xAxis,
		const WAxis &	yAxis
	)		const

Maps from device coordinates to model coordinates.

Maps a position in the chart back to model coordinates.

This uses the axis dimensions that are based on the latest chart rendering. If you have not yet rendered the chart, or wish that the mapping already reflects model changes since the last rendering, you should call initLayout() first.

If the chart is interactive, mapFromDevice will correctly take the current zoom range into account.

See also: mapToDevice()

◆ mapFromDevice() [3/3]

WPointF Wt::Chart::WCartesianChart::mapFromDevice	(	const WPointF &	point,
		int	ordinateAxis
	)		const

Maps from device coordinates to model coordinates.

Maps a position in the chart back to model coordinates.

This uses the axis dimensions that are based on the latest chart rendering. If you have not yet rendered the chart, or wish that the mapping already reflects model changes since the last rendering, you should call initLayout() first.

If the chart is interactive, mapFromDevice will correctly take the current zoom range into account.

See also: mapToDevice()

◆ mapFromDeviceWithoutTransform() [1/3]

WPointF Wt::Chart::WCartesianChart::mapFromDeviceWithoutTransform	(	const WPointF &	point,
		Axis	ordinateAxis = `Axis::Ordinate`
	)		const

Maps from device coordinates to model coordinates, ignoring the current zoom range.

Maps a position in the chart back to model coordinates, as if the chart was not zoomed in (nor panned).

This uses the axis dimensions that are based on the latest chart rendering. If you have not yet rendered the chart, or wish that the mapping already reflects model changes since the last rendering, you should call initLayout() first.

This function will not take the current zoom range into account. The mapping will be performed as if zoomRangeTransform() is the identity transform.

See also: mapToDeviceWithoutTransform()

◆ mapFromDeviceWithoutTransform() [2/3]

WPointF Wt::Chart::WCartesianChart::mapFromDeviceWithoutTransform	(	const WPointF &	point,
		const WAxis &	xAxis,
		const WAxis &	yAxis
	)		const

Maps from device coordinates to model coordinates, ignoring the current zoom range.

Maps a position in the chart back to model coordinates, as if the chart was not zoomed in (nor panned).

This uses the axis dimensions that are based on the latest chart rendering. If you have not yet rendered the chart, or wish that the mapping already reflects model changes since the last rendering, you should call initLayout() first.

This function will not take the current zoom range into account. The mapping will be performed as if zoomRangeTransform() is the identity transform.

See also: mapToDeviceWithoutTransform()

◆ mapFromDeviceWithoutTransform() [3/3]

WPointF Wt::Chart::WCartesianChart::mapFromDeviceWithoutTransform	(	const WPointF &	point,
		int	ordinateAxis
	)		const

Maps from device coordinates to model coordinates, ignoring the current zoom range.

Maps a position in the chart back to model coordinates, as if the chart was not zoomed in (nor panned).

This uses the axis dimensions that are based on the latest chart rendering. If you have not yet rendered the chart, or wish that the mapping already reflects model changes since the last rendering, you should call initLayout() first.

This function will not take the current zoom range into account. The mapping will be performed as if zoomRangeTransform() is the identity transform.

See also: mapToDeviceWithoutTransform()

◆ mapToDevice() [1/3]

WPointF Wt::Chart::WCartesianChart::mapToDevice	(	const cpp17::any &	xValue,
		const cpp17::any &	yValue,
		Axis	axis = `Axis::Ordinate`,
		int	xSegment = `0`,
		int	ySegment = `0`
	)		const

Maps model values onto chart coordinates.

This returns the chart device coordinates for a (x,y) pair of model values.

This uses the axis dimensions that are based on the latest chart rendering. If you have not yet rendered the chart, or wish that the mapping already reflects model changes since the last rendering, you should call initLayout() first.

The xSegment and ySegment arguments are relevant only when the corresponding axis is broken using WAxis::setBreak(). Then, its possible values may be 0 (below the break) or 1 (above the break).

If the chart is interactive, mapToDevice will correctly take the current zoom range into account.

See also: mapFromDevice()

◆ mapToDevice() [2/3]

WPointF Wt::Chart::WCartesianChart::mapToDevice	(	const cpp17::any &	xValue,
		const cpp17::any &	yValue,
		const WAxis &	xAxis,
		const WAxis &	yAxis,
		int	xSegment = `0`,
		int	ySegment = `0`
	)		const

Maps model values onto chart coordinates.

This returns the chart device coordinates for a (x,y) pair of model values.

This uses the axis dimensions that are based on the latest chart rendering. If you have not yet rendered the chart, or wish that the mapping already reflects model changes since the last rendering, you should call initLayout() first.

The xSegment and ySegment arguments are relevant only when the corresponding axis is broken using WAxis::setBreak(). Then, its possible values may be 0 (below the break) or 1 (above the break).

If the chart is interactive, mapToDevice will correctly take the current zoom range into account.

See also: mapFromDevice()

◆ mapToDevice() [3/3]

WPointF Wt::Chart::WCartesianChart::mapToDevice	(	const cpp17::any &	xValue,
		const cpp17::any &	yValue,
		int	yAxis,
		int	xSegment = `0`,
		int	ySegment = `0`
	)		const

Maps model values onto chart coordinates.

This returns the chart device coordinates for a (x,y) pair of model values.

This uses the axis dimensions that are based on the latest chart rendering. If you have not yet rendered the chart, or wish that the mapping already reflects model changes since the last rendering, you should call initLayout() first.

The xSegment and ySegment arguments are relevant only when the corresponding axis is broken using WAxis::setBreak(). Then, its possible values may be 0 (below the break) or 1 (above the break).

If the chart is interactive, mapToDevice will correctly take the current zoom range into account.

See also: mapFromDevice()

◆ mapToDeviceWithoutTransform() [1/3]

WPointF Wt::Chart::WCartesianChart::mapToDeviceWithoutTransform	(	const cpp17::any &	xValue,
		const cpp17::any &	yValue,
		Axis	axis = `Axis::Ordinate`,
		int	xSegment = `0`,
		int	ySegment = `0`
	)		const

Maps model values onto chart coordinates, ignoring the current zoom range.

This returns the chart device coordinates for a (x,y) pair of model values.

This uses the axis dimensions that are based on the latest chart rendering. If you have not yet rendered the chart, or wish that the mapping already reflects model changes since the last rendering, you should call initLayout() first.

The xSegment and ySegment arguments are relevant only when the corresponding axis is broken using WAxis::setBreak(). Then, its possible values may be 0 (below the break) or 1 (above the break).

This function will not take the current zoom range into account.The mapping will be performed as if zoomRangeTransform() is the identity transform.

See also: mapFromDeviceWithoutTransform()

◆ mapToDeviceWithoutTransform() [2/3]

WPointF Wt::Chart::WCartesianChart::mapToDeviceWithoutTransform	(	const cpp17::any &	xValue,
		const cpp17::any &	yValue,
		const WAxis &	xAxis,
		const WAxis &	yAxis,
		int	xSegment = `0`,
		int	ySegment = `0`
	)		const

Maps model values onto chart coordinates, ignoring the current zoom range.

This returns the chart device coordinates for a (x,y) pair of model values.

This uses the axis dimensions that are based on the latest chart rendering. If you have not yet rendered the chart, or wish that the mapping already reflects model changes since the last rendering, you should call initLayout() first.

The xSegment and ySegment arguments are relevant only when the corresponding axis is broken using WAxis::setBreak(). Then, its possible values may be 0 (below the break) or 1 (above the break).

This function will not take the current zoom range into account.The mapping will be performed as if zoomRangeTransform() is the identity transform.

See also: mapFromDeviceWithoutTransform()

◆ mapToDeviceWithoutTransform() [3/3]

WPointF Wt::Chart::WCartesianChart::mapToDeviceWithoutTransform	(	const cpp17::any &	xValue,
		const cpp17::any &	yValue,
		int	yAxis,
		int	xSegment = `0`,
		int	ySegment = `0`
	)		const

Maps model values onto chart coordinates, ignoring the current zoom range.

This returns the chart device coordinates for a (x,y) pair of model values.

This uses the axis dimensions that are based on the latest chart rendering. If you have not yet rendered the chart, or wish that the mapping already reflects model changes since the last rendering, you should call initLayout() first.

The xSegment and ySegment arguments are relevant only when the corresponding axis is broken using WAxis::setBreak(). Then, its possible values may be 0 (below the break) or 1 (above the break).

This function will not take the current zoom range into account.The mapping will be performed as if zoomRangeTransform() is the identity transform.

See also: mapFromDeviceWithoutTransform()

◆ onDemandLoadingEnabled()

bool Wt::Chart::WCartesianChart::onDemandLoadingEnabled ( ) const

Returns whether on-demand loading is enabled.

See also: setOnDemandLoadingEnabled()

◆ orientation()

Orientation Wt::Chart::WCartesianChart::orientation ( ) const

Returns the chart orientation.

See also: setOrientation()

◆ paint()

void Wt::Chart::WCartesianChart::paint	(	WPainter &	painter,
		const WRectF &	rectangle = `WRectF()`
	)		const

overridevirtual

Paint the chart in a rectangle of the given painter.

Paints the chart inside the painter, in the area indicated by rectangle. When rectangle is a null rectangle, the entire painter window is used.

Implements Wt::Chart::WAbstractChart.

◆ paintEvent()

void Wt::Chart::WCartesianChart::paintEvent ( WPaintDevice * paintDevice )

overrideprotectedvirtual

Paints the widget.

This calls render() to paint on the paint device.

Implements Wt::WPaintedWidget.

◆ panEnabled()

bool Wt::Chart::WCartesianChart::panEnabled ( ) const

Returns whether pan is enabled.

See also: setPanEnabled()

◆ prepareAxes()

bool Wt::Chart::WCartesianChart::prepareAxes ( WPaintDevice * device ) const

protectedvirtual

Prepares the axes for rendering.

Computes axis properties such as the range (if not manually specified), label interval (if not manually specified) and axis locations. These properties are stored within the axes.

See also: initLayout()

◆ removeSeries()

std::unique_ptr< WDataSeries > Wt::Chart::WCartesianChart::removeSeries ( WDataSeries * series )

Removes a data series.

This will disassociate the given series from any WAxisSliderWidgets.

See also: addSeries(), setSeries()

◆ removeXAxis()

std::unique_ptr< WAxis > Wt::Chart::WCartesianChart::removeXAxis ( int xAxisId )

Removes the X axis with the given id.

The indices of the axes with an id higher than xAxisId will be decremented.

Any WDataSeries associated with the removed axis are also removed.

Note: Precondition: 0 <= xAxisId < xAxisCount()

◆ removeYAxis()

std::unique_ptr< WAxis > Wt::Chart::WCartesianChart::removeYAxis ( int yAxisId )

Removes the Y axis with the given id.

The indices of the axes with an id higher than yAxisId will be decremented.

Any WDataSeries associated with the removed axis are also removed.

Note: Precondition: 0 <= yAxisId < yAxisCount()

◆ render() [1/2]

void Wt::Chart::WCartesianChart::render ( WFlags< RenderFlag > flags )

overrideprotectedvirtual

Renders the widget.

This function renders the widget (or an update for the widget), after this has been scheduled using scheduleRender().

The default implementation will render the widget by serializing changes to JavaScript and HTML. You may want to reimplement this widget if you have been postponing some of the layout / rendering implementation until the latest moment possible. In that case you should make sure you call the base implementation however.

Reimplemented from Wt::WPaintedWidget.

◆ render() [2/2]

void Wt::Chart::WCartesianChart::render	(	WPainter &	painter,
		const WRectF &	rectangle
	)		const

protectedvirtual

Renders the chart.

Renders the chart within the given rectangle. To accomodate both rendering of horizontal and vertically oriented charts, all rendering logic assumes horizontal. This "chart coordinates" space is transformed to painter coordinates using hv().

The default implementation looks like:

painter.save();
painter.translate(rectangle.topLeft());

if (initLayout(rectangle, painter.device())) {
  renderBackground(painter);
  renderGrid(painter, axis(Axis::X));
  for (int i = 0; i < yAxisCount(); ++i)
    renderGrid(painter, yAxis(i));
  renderAxes(painter, AxisProperty::Line);
  renderSeries(painter);
  renderAxes(painter, AxisProperty::Labels);
  renderBorder(painter);
  renderCurveLabels(painter);
  renderLegend(painter);
  renderOther(painter);
}

painter.restore();

◆ renderAxes()

void Wt::Chart::WCartesianChart::renderAxes	(	WPainter &	painter,
		WFlags< AxisProperty >	properties
	)		const

protectedvirtual

Renders one or more properties of the axes.

This calls renderAxis() for each axis.

See also: render()

◆ renderAxis()

void Wt::Chart::WCartesianChart::renderAxis	(	WPainter &	painter,
		const WAxis &	axis,
		WFlags< AxisProperty >	properties
	)		const

protectedvirtual

Renders properties of one axis.

See also: renderAxes()

◆ renderBackground()

void Wt::Chart::WCartesianChart::renderBackground ( WPainter & painter ) const

protectedvirtual

Renders the background.

See also: render()

◆ renderBorder()

void Wt::Chart::WCartesianChart::renderBorder ( WPainter & painter ) const

protectedvirtual

Renders the border of the chart area.

See also: render(); setBorderPen()

◆ renderCurveLabels()

void Wt::Chart::WCartesianChart::renderCurveLabels ( WPainter & painter ) const

protectedvirtual

Renders the curve labels.

See also: render(); addCurveLabel()

◆ renderGrid()

void Wt::Chart::WCartesianChart::renderGrid	(	WPainter &	painter,
		const WAxis &	axis
	)		const

protectedvirtual

Renders grid lines along the ticks of the given axis.

See also: render()

◆ renderLabel()

void Wt::Chart::WCartesianChart::renderLabel	(	WPainter &	painter,
		const WString &	text,
		const WPointF &	pos,
		WFlags< AlignmentFlag >	flags,
		double	angle,
		int	margin
	)		const

protectedvirtual

Utility function for rendering text.

This method renders text on the chart position pos, with a particular alignment flags. These are both specified in chart coordinates. The position is converted to painter coordinates using hv(), and the alignment flags are changed accordingly. The rotation, indicated by angle is specified in painter coordinates and thus an angle of 0 always indicates horizontal text, regardless of the chart orientation.

◆ renderLegend()

void Wt::Chart::WCartesianChart::renderLegend ( WPainter & painter ) const

protectedvirtual

Renders the (default) legend and chart titles.

See also: render()

◆ renderLegendIcon()

void Wt::Chart::WCartesianChart::renderLegendIcon	(	WPainter &	painter,
		const WPointF &	pos,
		const WDataSeries &	series
	)		const

virtual

Renders the legend icon for a given data series.

Renders the legend icon for the indicated series in the painter at position pos.

This method is called while rendering a legend item, and you may want to reimplement this method if you wish to provide a custom legend icon for a particular data series.

See also: renderLegendItem()

◆ renderLegendItem()

void Wt::Chart::WCartesianChart::renderLegendItem	(	WPainter &	painter,
		const WPointF &	pos,
		const WDataSeries &	series
	)		const

virtual

Renders the legend item for a given data series.

Renders the legend item for the indicated series in the painter at position pos. The default implementation draws the marker, and the series description to the right. The series description is taken from the model's header data for that series' data column.

This method is called while painting the chart, and you may want to reimplement this method if you wish to provide a custom marker for a particular data series.

See also: setLegendEnabled()

◆ renderOther()

void Wt::Chart::WCartesianChart::renderOther ( WPainter & painter ) const

protectedvirtual

Renders other, user-defined things.

The default implementation sets the painter's clip path to the chart area, but does not enable clipping.

This method can be overridden to draw extra content onto the chart.

Chart coordinates can be mapped to device coordinates with mapToDeviceWithoutTransform(). If these need to move and scale along with the zoom range, those points can be transformed with zoomRangeTransform().

This method is called last by default. If you want to render other things at some other moment, you can override render(WPainter&, const WRectF&).

◆ renderSeries()

void Wt::Chart::WCartesianChart::renderSeries ( WPainter & painter ) const

protectedvirtual

Renders all series data, including value labels.

See also: render()

◆ rubberBandEffectEnabled()

bool Wt::Chart::WCartesianChart::rubberBandEffectEnabled ( ) const

Checks whether the rubberband effect is enabled.

See also: setRubberBandEffectEnabled()

◆ selectedSeries()

const WDataSeries* Wt::Chart::WCartesianChart::selectedSeries ( ) const

Get the currently selected curve.

-1 means that no curve is currently selected.

See also: setSelectedSeries()

◆ series() [1/3]

const std::vector<std::unique_ptr<WDataSeries> >& Wt::Chart::WCartesianChart::series ( ) const

Returns a list with the current data series.

Returns the complete list of current data series.

See also: setSeries(const std::vector<WDataSeries>&)

◆ series() [2/3]

WDataSeries & Wt::Chart::WCartesianChart::series ( int modelColumn )

Returns a data series corresponding to a data column.

Returns a reference to the first data series that plots data from modelColumn.

◆ series() [3/3]

const WDataSeries & Wt::Chart::WCartesianChart::series ( int modelColumn ) const

Returns a data series corresponding to a data column.

Returns a const reference to the first data series that plots data from modelColumn.

◆ seriesSelected()

Signal<const WDataSeries *, WPointF>& Wt::Chart::WCartesianChart::seriesSelected ( )

A signal that notifies the selection of a new curve.

This signal is emitted if a series is selected using a mouse click or long press. The first argument is the selected series. The second argument is the point that was selected, in model coordinates.

See also: setSeriesSelectionEnabled()

◆ seriesSelectionEnabled()

bool Wt::Chart::WCartesianChart::seriesSelectionEnabled ( ) const

Returns whether series selection is enabled.

See also: setSeriesSelectionEnabled()

◆ setAxis()

void Wt::Chart::WCartesianChart::setAxis	(	std::unique_ptr< WAxis >	waxis,
		Axis	axis
	)

Sets an axis.

See also: axis(Axis axis)

◆ setAxisPadding()

void Wt::Chart::WCartesianChart::setAxisPadding ( int axisPadding )

Sets the padding between the chart area and the axes.

This calls WAxes::setPadding() on all axes.

See also: axisPadding()

◆ setBarMargin()

void Wt::Chart::WCartesianChart::setBarMargin ( double margin )

Sets the margin between bars of different series.

Use this method to change the margin that is set between bars of different series. The margin is specified as a fraction of the width. For example, a value of 0.1 adds a 10% margin between bars of each series. Negative values are also allowed. For example, use a margin of -1 to plot the bars of different series on top of each other.

The default value is 0.

◆ setBorderPen()

void Wt::Chart::WCartesianChart::setBorderPen ( const WPen & pen )

Sets the pen of the border to be drawn around the chart area.

See also: borderPen()

◆ setCrosshairColor()

void Wt::Chart::WCartesianChart::setCrosshairColor ( const WColor & color )

Sets the crosshair color.

The crosshair color is black by default.

See also: setCrosshairEnabled()

◆ setCrosshairEnabled()

void Wt::Chart::WCartesianChart::setCrosshairEnabled ( bool crosshair = true )

Enables the crosshair functionality.

When enabled, the crosshair will follow mouse movement, and show in the top right corner the coordinate (according to X axis and the first Y axis) corresponding to this position.

When using touch, the crosshair can be moved with a drag. If both panning and the crosshair are enabled, the crosshair will be moved when dragging close to the crosshair. Otherwise, the chart will pan.

◆ setCrosshairXAxis()

void Wt::Chart::WCartesianChart::setCrosshairXAxis ( int xAxis )

Sets the X axis to use for the crosshair.

Defaults to 0 (first X axis)

◆ setCrosshairYAxis()

void Wt::Chart::WCartesianChart::setCrosshairYAxis ( int yAxis )

Sets the Y axis to use for the crosshair.

Defaults to 0 (first Y axis)

◆ setCurveLabels()

void Wt::Chart::WCartesianChart::setCurveLabels ( const std::vector< CurveLabel > & labels )

Configure all curve labels at once.

See also: addCurveLabel()

◆ setCurveManipulationEnabled()

void Wt::Chart::WCartesianChart::setCurveManipulationEnabled ( bool enabled = true )

Enable curve manipulation.

If curve manipulation is enabled, the scale and offset of the selected curve can be manipulated interactively using drag, scroll, and pinch.

See also: WDataSeries::setOffset(); WDataSeries::setScale(); WDataSeries::selectedSeries()

◆ setFollowCurve() [1/2]

void Wt::Chart::WCartesianChart::setFollowCurve ( const WDataSeries * series )

Enabled the follow curve funtionality for a data series.

This enables follow curve functionality for the data series corresponding to the given column.

If the data series is of type SeriesType::Line or SeriesType::Curve, the crosshair can only be moved in the x direction. The y position of the crosshair will be determined by the value of the data series. The crosshair will snap to the nearest point that is defined in the data series.

When using the mouse, the x position will change on mouseover. When using touch, the x position can be moved with a drag. The follow curve functionality has priority over the crosshair functionality.

Set to null to disable the follow curve feature.

Note: The follow curve functionality requires that the X axis values of the data series are monotonically increasing or decreasing.

◆ setFollowCurve() [2/2]

void Wt::Chart::WCartesianChart::setFollowCurve ( int modelColumn )

Enables the follow curve functionality for a data series.

This enables follow curve functionality for the data series corresponding to the given column.

If the data series is of type SeriesType::Line or SeriesType::Curve, the crosshair can only be moved in the x direction. The y position of the crosshair will be determined by the value of the data series. The crosshair will snap to the nearest point that is defined in the data series.

When using the mouse, the x position will change on mouseover. When using touch, the x position can be moved with a drag. The follow curve functionality has priority over the crosshair functionality.

Use column index -1 or disableFollowCurve() to disable the follow curve feature.

Note: The follow curve functionality requires that the X axis values of the data series are monotonically increasing or decreasing.

Deprecated:: Use setFollowCurve(const WDataSeries*) instead

◆ setLegendColumns()

void Wt::Chart::WCartesianChart::setLegendColumns	(	int	columns,
		const WLength &	width
	)

Configures multiple legend columns.

Multiple columns are typically useful when placing the legend at the top or at the bottom of the chart.

The default value is a single column, 100 pixels wide.

When automatic chart layout is enabled, then the legend column width is computed automatically, and this setting is ignored.

See also: setAutoLayoutEnabled()

◆ setLegendEnabled()

void Wt::Chart::WCartesianChart::setLegendEnabled ( bool enabled )

Enables the legend.

The location of the legend can be configured using setLegendLocation(). Only series for which the legend is enabled are included in this legend.

The default value is false.

See also: see WDataSeries::isLegendEnabled(), setLegendLocation()

◆ setLegendLocation()

void Wt::Chart::WCartesianChart::setLegendLocation	(	LegendLocation	location,
		Side	side,
		AlignmentFlag	alignment
	)

Configures the legend location.

The legend can be renderd either inside or outside of the chart area. When location is Chart::LegendLocation::Inside, the legend will be rendered inside the chart. When location is Chart::LegendLocation::Outside, the legend is rendered outside the chart, in the chart padding area.

The provided side can either be Wt::Side::Left, Wt::Side::Right, Wt::Side::Top, Wt::Side::Bottom and configures the side of the chart at which the legend is displayed.

The alignment specifies how the legend is aligned. This can be a horizontal alignment flag (Wt::AlignmentFlag::Left, Wt::AlignmentFlag::Center, or Wt::AlignmentFlag::Right), when the side is Side::Bottom or Side::Top, or a vertical alignment flag (Wt::AlignmentFlag::Top, Wt::AlignmentFlag::Middle, or Wt::AlignmentFlag::Bottom) when the side is Side::Left or Side::Right.

The default location is Chart::LegendLocation::Outside, Wt::Side::Right and Wt::AlignmentFlag::Middle.

To have more control over the legend, you could reimplement the renderLegendItem() method to customize how one item in the legend is rendered, or, alternatively you can disable the legend generated by the chart itself, and reimplement the paint() method in which you use the renderLegendItem() method repeatedly to render a customized legend.

See also: WDataSeries::setLegendEnabled()

◆ setLegendStyle()

void Wt::Chart::WCartesianChart::setLegendStyle	(	const WFont &	font,
		const WPen &	border,
		const WBrush &	background
	)

Configures the legend decoration.

This configures the font, border and background for the legend.

The default font is a 10pt sans serif font (the same as the default axis label font), the default border is PenStyle::None and the default background is BrushStyle::None.

See also: setLegendEnabled()

◆ setLoadingBackground()

void Wt::Chart::WCartesianChart::setLoadingBackground ( const WBrush & brush )

Set the background brush for the unloaded area.

See also: setOnDemandLoadingEnabled(); loadingBackground()

◆ setOnDemandLoadingEnabled()

void Wt::Chart::WCartesianChart::setOnDemandLoadingEnabled ( bool enabled )

Enable on-demand loading.

By default, when on-demand loading is not enabled, the entire chart area is loaded, regardless of whether it is within the current zoom range of the X axis.

When on-demand loading is enabled only the currently visible area + some margin is loaded. As the visible area changes, different data is loaded. This improves performance for charts with a lot of data if not all of the data needs to be visible at the same time.

This feature is especially useful in combination with WAxis::setMaximumZoomRange() or WAxis::setMinZoom(), which makes it impossible for the user to view all of the data at the same time, because that would incur too much overhead.

Note: On-demand loading requires that the X axis data for all data series is sorted in ascending order. This feature is optimized for equidistant X axis data, but that's not a requirement.; If no minimum or maximum are set on the Y axis (or axes), then the chart will still have to scan all data of its data series to automatically determine the minimum and maximum Y axis values. If this performance hit is undesirable and the Y axis range is known or guaranteed to be within a certain range, make sure to set a range on the Y axis (or axes).

See also: onDemandLoadingEnabled()

◆ setOrientation()

void Wt::Chart::WCartesianChart::setOrientation ( Orientation orientation )

Sets the chart orientation.

Sets the chart orientation, which corresponds to the orientation of the Y axis: a Wt::Orientation::Vertical orientation corresponds to the conventional way of a horizontal X axis and vertical Y axis. A Wt::Orientation::Horizontal orientation is the other way around.

The default orientation is Wt::Orientation::Vertical.

See also: orientation()

◆ setPanEnabled()

void Wt::Chart::WCartesianChart::setPanEnabled ( bool pan = true )

Enables pan functionality.

When using the mouse, you can click and drag to pan the chart (if zoomed in), or use the scrollwheel.

When using touch, you can drag to pan the chart. If the rubberband effect is enabled, this is intertial (it will keep scrolling after you let go) and there is an overscroll and bounce back effect on the sides.

The default value is false.

See also: panEnabled()

◆ setRubberBandEffectEnabled()

void Wt::Chart::WCartesianChart::setRubberBandEffectEnabled ( bool rubberBand = true )

Enables/disables the inertial scrolling and rubberband effect.

See also: setPanEnabled()

◆ setSelectedSeries()

void Wt::Chart::WCartesianChart::setSelectedSeries ( const WDataSeries * series )

Sets the series that is currently selected.

The series with the given model column will be selected. The other series will be shown in a lighter color. The series that is currently selected is the one that can be manipulated if curve manipulation is enabled, and it is a SeriesType::Line or SeriesType::Curve.

The selected series can be changed using a long touch or mouse click.

If the argument provided is null or series selection is not enabled, no series will be selected.

See also: setCurveManipulationEnabled(); setSeriesSelectionEnabled()

◆ setSeries()

void Wt::Chart::WCartesianChart::setSeries ( std::vector< std::unique_ptr< WDataSeries > > series )

Sets all data series.

Replaces the current list of series with the new list.

See also: series(), addSeries(WDataSeries *), removeSeries(WDataSeries *)

◆ setSeriesSelectionEnabled()

void Wt::Chart::WCartesianChart::setSeriesSelectionEnabled ( bool enabled = true )

Sets whether series selection is enabled.

If series selection is enabled, series can be selected with a mouse click or long press. If the selected series is a SeriesType::Line or SeriesType::Curve, it can be manipulated if curve manipulation is enabled. The series that are not selected, will be shown in a lighter color.

◆ setSoftLabelClipping()

void Wt::Chart::WCartesianChart::setSoftLabelClipping ( bool enabled )

Enables or disables soft label clipping on all axes.

See also: WAxis::setSoftLabelClipping()

◆ setTextPen()

void Wt::Chart::WCartesianChart::setTextPen ( const WPen & pen )

set the pen used to render the labels

This method overwrites the pen for all axes

See also: WAxis::setTextPen()

◆ setType()

void Wt::Chart::WCartesianChart::setType ( ChartType type )

Sets the chart type.

The chart type determines how (x,y) data are interpreted. In a ChartType::Category, the X values are categories, and these are plotted consecutively, evenly spaced, and in row order. In a ChartType::Scatter, the X values are interpreted numerically (as for Y values).

The default chart type is a ChartType::Category.

See also: type(); WAxis::setScale(), axis(Axis)

◆ setWheelActions()

void Wt::Chart::WCartesianChart::setWheelActions ( WheelActions wheelActions )

Sets the mapping of mouse wheel actions for interactive charts.

See also: wheelActions()

◆ setXSeriesColumn()

void Wt::Chart::WCartesianChart::setXSeriesColumn ( int modelColumn )

Sets the the model column for the X series.

Use this method to specify the default data for the X series. For a ChartType::Scatter this is mandatory if an X series is not specified for every WDataSeries. For a ChartType::Category, if not specified, an increasing series of integer numbers will be used (1, 2, ...).

Scatterplot dataseries may each individually be given its own X series data using WDataSeries::setXSeriesColumn(int modelColumn)

The default value is -1 (not specified).

The series column is reset to -1 when the model is set (or changed). Thus you need to set a model before configuring the series.

See also: XSeriesColumn()

◆ setZoomEnabled()

void Wt::Chart::WCartesianChart::setZoomEnabled ( bool zoom = true )

Enables zoom functionality.

When using the mouse, press the ctrl key while scrolling to zoom in/out a specific point on the chart. If you press shift+ctrl, it will only zoom vertically. If you press alt+ctrl, it will only zoom horizontally. To change these default mappings, use setWheelActions().

When using touch, you can use a pinch gesture to zoom in/out. If the pinch gesture is vertical/horizontal, it will zoom only vertically/horizontally, otherwise it will zoom both axes equally.

The default value is false.

See also: zoomEnabled(); setWheelActions(WheelActions)

◆ type()

ChartType Wt::Chart::WCartesianChart::type ( ) const

Returns the chart type.

See also: setType()

◆ wheelActions()

WheelActions Wt::Chart::WCartesianChart::wheelActions ( ) const

Returns the current mouse wheel actions for interactive charts.

See also: setWheelActions()

◆ xAxes() [1/2]

std::vector< WAxis * > Wt::Chart::WCartesianChart::xAxes ( )

Returns a vector of all X axes associated with this chart.

This defaults to a vector of one axis.

◆ xAxes() [2/2]

std::vector< const WAxis * > Wt::Chart::WCartesianChart::xAxes ( ) const

Returns a vector of all X axes associated with this chart.

This defaults to a vector of one axis.

◆ xAxis() [1/2]

WAxis & Wt::Chart::WCartesianChart::xAxis ( int i )

Retrieves the X axis at index i.

The following expression is always true:

&axis(X) == &xAxis(0)

Note: Precondition: 0 <= i < xAxisCount()

◆ xAxis() [2/2]

const WAxis & Wt::Chart::WCartesianChart::xAxis ( int i ) const

Retrieves the X axis at index i.

The following expression is always true:

&axis(X) == &xAxis(0)

Note: Precondition: 0 <= i < xAxisCount()

◆ XSeriesColumn()

int Wt::Chart::WCartesianChart::XSeriesColumn ( ) const

Returns the model column for the X series.

See also: setXSeriesColumn()

◆ yAxes() [1/2]

std::vector< WAxis * > Wt::Chart::WCartesianChart::yAxes ( )

Returns a vector of all Y axes associated with this chart.

This defaults to a vector of two axes: the Y1 and Y2 axes. Y1 will be at index 0, and Y2 will be at index 1.

◆ yAxes() [2/2]

std::vector< const WAxis * > Wt::Chart::WCartesianChart::yAxes ( ) const

Returns a vector of all Y axes associated with this chart.

This defaults to a vector of two axes: the Y1 and Y2 axes. Y1 will be at index 0, and Y2 will be at index 1.

◆ yAxis() [1/2]

WAxis & Wt::Chart::WCartesianChart::yAxis ( int i )

Retrieves the Y axis at index i.

The following expressions are always true:

&axis(Y1) == &yAxis(0)

&axis(Y2) == &yAxis(1)

Note: Precondition: 0 <= i < yAxisCount()

◆ yAxis() [2/2]

const WAxis & Wt::Chart::WCartesianChart::yAxis ( int i ) const

Retrieves the Y axis at index i.

The following expressions are always true:

&axis(Y1) == &yAxis(0)

&axis(Y2) == &yAxis(1)

Note: Precondition: 0 <= i < yAxisCount()

◆ zoomEnabled()

bool Wt::Chart::WCartesianChart::zoomEnabled ( ) const

Returns whether zoom is enabled.

See also: setZoomEnabled()

◆ zoomRangeTransform() [1/2]

WTransform Wt::Chart::WCartesianChart::zoomRangeTransform	(	const WAxis &	xAxis,
		const WAxis &	yAxis
	)		const

protected

Returns the current zoom range transform.

This transform maps device coordinates from the fully zoomed out position to the current zoom range.

This transform is a JavaScript bound transform if this chart is interactive. Otherwise, this transform is just the identity transform.

See also: setZoomEnabled(); setPanEnabled; WAxis::setZoomRange()

◆ zoomRangeTransform() [2/2]

WTransform Wt::Chart::WCartesianChart::zoomRangeTransform ( int yAxis = 0 ) const

protected

Returns the current zoom range transform.

This transform maps device coordinates from the fully zoomed out position to the current zoom range.

This transform is a JavaScript bound transform if this chart is interactive. Otherwise, this transform is just the identity transform.

See also: setZoomEnabled(); setPanEnabled; WAxis::setZoomRange()

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

CSS

Constructor & Destructor Documentation

◆ WCartesianChart() [1/2]

◆ WCartesianChart() [2/2]

Member Function Documentation

◆ addCurveLabel()

◆ addDataPointArea()

◆ addSeries()

◆ addXAxis()

◆ addYAxis()

◆ axis() [1/2]

◆ axis() [2/2]

◆ axisPadding()

◆ barMargin()

◆ borderPen()

◆ calcChartArea()

◆ chartSegmentArea() [1/2]

◆ chartSegmentArea() [2/2]

◆ clearCurveLabels()

◆ clearXAxes()

◆ clearYAxes()

◆ createLegendItemWidget()

◆ crosshairColor()

◆ crosshairEnabled()

◆ curveLabels()

◆ curveManipulationEnabled()

◆ disableFollowCurve()

◆ drawMarker()

◆ followCurve()

◆ hv() [1/3]

◆ hv() [2/3]

◆ hv() [3/3]

◆ initLayout()

◆ isInteractive()

◆ isLegendEnabled()

◆ legendAlignment()

◆ legendBackground()

◆ legendBorder()

◆ legendColumns()

◆ legendColumnWidth()

◆ legendFont()

◆ legendLocation()

◆ legendSide()

◆ loadingBackground()

◆ map() [1/3]

◆ map() [2/3]

◆ map() [3/3]

◆ mapFromDevice() [1/3]

◆ mapFromDevice() [2/3]

◆ mapFromDevice() [3/3]

◆ mapFromDeviceWithoutTransform() [1/3]

◆ mapFromDeviceWithoutTransform() [2/3]

◆ mapFromDeviceWithoutTransform() [3/3]

◆ mapToDevice() [1/3]

◆ mapToDevice() [2/3]

◆ mapToDevice() [3/3]

◆ mapToDeviceWithoutTransform() [1/3]

◆ mapToDeviceWithoutTransform() [2/3]

◆ mapToDeviceWithoutTransform() [3/3]

◆ onDemandLoadingEnabled()

◆ orientation()

◆ paint()

◆ paintEvent()

◆ panEnabled()

◆ prepareAxes()

◆ removeSeries()

◆ removeXAxis()

◆ removeYAxis()

◆ render() [1/2]

◆ render() [2/2]

◆ renderAxes()

◆ renderAxis()

◆ renderBackground()

◆ renderBorder()

◆ renderCurveLabels()

◆ renderGrid()
