A user control that represents a radio button. More...
#include <Wt/WRadioButton>

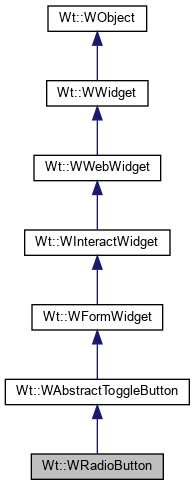

Inheritance diagram for Wt::WRadioButton:
Public Member Functions | |
| WRadioButton (WContainerWidget *parent=0) | |
| Creates an unchecked radio button with empty label and optional parent. | |
| WRadioButton (const WString &text, WContainerWidget *parent=0) | |
| Creates an unchecked radio button with given text and optional parent. | |
| ~WRadioButton () | |
| Destructor. | |
| WButtonGroup * | group () const |
| Returns the button group. More... | |
 Public Member Functions inherited from Wt::WAbstractToggleButton | |
| virtual | ~WAbstractToggleButton () |
| Destructor. | |
| void | setText (const WString &text) |
| Sets the label text. More... | |
| const WString | text () const |
| Returns the label text. More... | |
| bool | setTextFormat (TextFormat format) |
| Sets the text format. More... | |
| TextFormat | textFormat () const |
| Returns the text format. More... | |
| bool | isChecked () const |
| Returns the button state. More... | |
| void | setChecked (bool checked) |
| Sets the button state. More... | |
| virtual void | setChecked () |
| Checks the button. More... | |
| virtual void | setUnChecked () |
| Unchecks the button. More... | |
| virtual WString | valueText () const |
| Returns the current value. More... | |
| virtual void | setValueText (const WString &text) |
| Sets the current value. More... | |
| EventSignal & | checked () |
| Signal emitted when the button gets checked. More... | |
| EventSignal & | unChecked () |
| Signal emitted when the button gets un-checked. More... | |
| virtual void | refresh () |
| Refresh the widget. More... | |
| void | setWordWrap (bool wordWrap) |
| Configures word wrapping. More... | |
| bool | wordWrap () const |
| Returns whether word wrapping is on. More... | |
| Public Member Functions inherited from Wt::WFormWidget | |
| WFormWidget (WContainerWidget *parent=0) | |
| Creates a WFormWidget with an optional parent. | |
| ~WFormWidget () | |
| Destructor. More... | |
| WLabel * | label () const |
| Returns the label associated with this widget. More... | |
| virtual void | setHidden (bool hidden, const WAnimation &animation=WAnimation()) |
| Sets the hidden state of this widget. More... | |
| void | setValidator (WValidator *validator) |
| Sets a validator for this field. More... | |
| virtual WValidator * | validator () const |
| Returns the validator. | |
| virtual WValidator::State | validate () |
| Validates the field. More... | |
| void | setEnabled (bool enabled) |
| Sets whether the widget is enabled. More... | |
| virtual void | setReadOnly (bool readOnly) |
| Sets the element read-only. More... | |
| bool | isReadOnly () const |
| Returns whether the form element is read-only. More... | |
| void | setEmptyText (const WString &emptyText) |
| Sets the placeholder text (deprecated). More... | |
| const WString & | emptyText () const |
| Returns the placeholder text (deprecated). More... | |
| virtual void | setPlaceholderText (const WString &placeholder) |
| Sets the placeholder text. More... | |
| const WString & | placeholderText () const |
| Returns the placeholder text. More... | |
| EventSignal & | changed () |
| Signal emitted when the value was changed. More... | |
| EventSignal & | selected () |
| Signal emitted when ?? | |
| Signal< WValidator::Result > & | validated () |
| Signal emitted when the widget is being validated. More... | |
| virtual void | setToolTip (const WString &text, TextFormat textFormat=PlainText) |
| Sets a tooltip. More... | |
| virtual bool | canReceiveFocus () const |
| Returns whether the widget can receive focus. More... | |
| virtual int | tabIndex () const |
| Returns the tab index. More... | |
| Public Member Functions inherited from Wt::WInteractWidget | |
| WInteractWidget (WContainerWidget *parent=0) | |
| Create an InteractWidget with optional parent. | |
| EventSignal< WKeyEvent > & | keyWentDown () |
| Event signal emitted when a keyboard key is pushed down. More... | |
| EventSignal< WKeyEvent > & | keyPressed () |
| Event signal emitted when a "character" was entered. More... | |
| EventSignal< WKeyEvent > & | keyWentUp () |
| Event signal emitted when a keyboard key is released. More... | |
| EventSignal & | enterPressed () |
| Event signal emitted when enter was pressed. More... | |
| EventSignal & | escapePressed () |
| Event signal emitted when escape was pressed. More... | |
| EventSignal< WMouseEvent > & | clicked () |
| Event signal emitted when a mouse key was clicked on this widget. More... | |
| EventSignal< WMouseEvent > & | doubleClicked () |
| Event signal emitted when a mouse key was double clicked on this widget. More... | |
| EventSignal< WMouseEvent > & | mouseWentDown () |
| Event signal emitted when a mouse key was pushed down on this widget. More... | |
| EventSignal< WMouseEvent > & | mouseWentUp () |
| Event signal emitted when a mouse key was released on this widget. More... | |
| EventSignal< WMouseEvent > & | mouseWentOut () |
| Event signal emitted when the mouse went out of this widget. More... | |
| EventSignal< WMouseEvent > & | mouseWentOver () |
| Event signal emitted when the mouse entered this widget. More... | |
| EventSignal< WMouseEvent > & | mouseMoved () |
| Event signal emitted when the mouse moved over this widget. More... | |
| EventSignal< WMouseEvent > & | mouseDragged () |
| Event signal emitted when the mouse is dragged over this widget. More... | |
| EventSignal< WMouseEvent > & | mouseWheel () |
| Event signal emitted when the mouse scroll wheel was used. More... | |
| EventSignal< WTouchEvent > & | touchStarted () |
| Event signal emitted when a finger is placed on the screen. More... | |
| EventSignal< WTouchEvent > & | touchEnded () |
| Event signal emitted when a finger is removed from the screen. More... | |
| EventSignal< WTouchEvent > & | touchMoved () |
| Event signal emitted when a finger, which is already placed on the screen, is moved across the screen. More... | |
| EventSignal< WGestureEvent > & | gestureStarted () |
| Event signal emitted when a gesture is started. More... | |
| EventSignal< WGestureEvent > & | gestureChanged () |
| Event signal emitted when a gesture is changed. More... | |
| EventSignal< WGestureEvent > & | gestureEnded () |
| Event signal emitted when a gesture is ended. More... | |
| void | setDraggable (const std::string &mimeType, WWidget *dragWidget=0, bool isDragWidgetOnly=false, WObject *sourceWidget=0) |
| Configure dragging for drag and drop. More... | |
| void | unsetDraggable () |
| Disable drag & drop for this widget. More... | |
| void | setMouseOverDelay (int delay) |
| Sets a delay for the mouse over event. More... | |
| int | mouseOverDelay () const |
| Returns the mouse over signal delay. More... | |
| virtual void | setPopup (bool popup) |
| Lets the widget overlay over other sibling widgets. More... | |
| virtual void | load () |
| Loads content just before the widget is used. More... | |
| virtual bool | isEnabled () const |
| Returns whether the widget is enabled. More... | |
| Public Member Functions inherited from Wt::WWebWidget | |
| WWebWidget (WContainerWidget *parent=0) | |
| Construct a WebWidget with a given parent. More... | |
| virtual void | setPositionScheme (PositionScheme scheme) |
| Sets the CSS position scheme. More... | |
| virtual PositionScheme | positionScheme () const |
| Returns the CSS position scheme. More... | |
| virtual void | setOffsets (const WLength &offset, WFlags< Side > sides=All) |
| Sets CSS offsets for a non-statically positioned widget. More... | |
| virtual WLength | offset (Side s) const |
| Returns a CSS offset. More... | |
| virtual void | resize (const WLength &width, const WLength &height) |
| Resizes the widget. More... | |
| virtual WLength | width () const |
| Returns the width. More... | |
| virtual WLength | height () const |
| Returns the height. More... | |
| virtual void | setMinimumSize (const WLength &width, const WLength &height) |
| Sets a minimum size. More... | |
| virtual WLength | minimumWidth () const |
| Returns the minimum width. More... | |
| virtual WLength | minimumHeight () const |
| Returns the minimum height. More... | |
| virtual void | setMaximumSize (const WLength &width, const WLength &height) |
| Sets a maximum size. More... | |
| virtual WLength | maximumWidth () const |
| Returns the maximum width. More... | |
| virtual WLength | maximumHeight () const |
| Returns the maximum height. More... | |
| virtual void | setLineHeight (const WLength &height) |
| Sets the CSS line height for contained text. | |
| virtual WLength | lineHeight () const |
| Returns the CSS line height for contained text. More... | |
| virtual void | setFloatSide (Side s) |
| Specifies a CSS float side. More... | |
| virtual Side | floatSide () const |
| Returns the CSS float side. More... | |
| virtual void | setClearSides (WFlags< Side > sides) |
| Sets the sides that should be cleared of floats. More... | |
| virtual WFlags< Side > | clearSides () const |
| Returns the sides that should remain empty. More... | |
| virtual void | setMargin (const WLength &margin, WFlags< Side > sides=All) |
| Sets CSS margins around the widget. More... | |
| virtual WLength | margin (Side side) const |
| Returns a CSS margin set. More... | |
| virtual void | setHiddenKeepsGeometry (bool enabled) |
| Sets whether the widget keeps its geometry when hidden. More... | |
| virtual bool | hiddenKeepsGeometry () const |
| Returns whether the widget keeps its geometry when hidden. More... | |
| virtual bool | isHidden () const |
| Returns whether the widget is set hidden. More... | |
| virtual bool | isVisible () const |
| Returns whether the widget is visible. More... | |
| virtual void | setDisabled (bool disabled) |
| Sets whether the widget is disabled. More... | |
| virtual bool | isDisabled () const |
| Returns whether the widget is set disabled. More... | |
| virtual bool | isPopup () const |
| Returns whether the widget is overlayed. More... | |
| virtual void | setInline (bool isInline) |
| Sets whether the widget is displayed inline or as a block. More... | |
| virtual bool | isInline () const |
| Returns whether the widget is displayed inline or as block. More... | |
| virtual void | setDecorationStyle (const WCssDecorationStyle &style) |
| Sets a CSS decoration style. More... | |
| virtual WCssDecorationStyle & | decorationStyle () |
| Returns the decoration style of this widget. More... | |
| virtual void | setStyleClass (const WString &styleClass) |
| Sets (one or more) CSS style classes. More... | |
| virtual WString | styleClass () const |
| Returns the CSS style class. More... | |
| virtual void | addStyleClass (const WString &styleClass, bool force=false) |
| Adds a CSS style class. More... | |
| virtual void | removeStyleClass (const WString &styleClass, bool force=false) |
| Removes a CSS style class. More... | |
| virtual bool | hasStyleClass (const WString &styleClass) const |
| Returns whether the widget has a style class. | |
| virtual void | setVerticalAlignment (AlignmentFlag alignment, const WLength &length=WLength()) |
| Sets the vertical alignment. More... | |
| virtual AlignmentFlag | verticalAlignment () const |
| Returns the vertical alignment. More... | |
| virtual WLength | verticalAlignmentLength () const |
| Returns the fixed vertical alignment that was set. More... | |
| virtual void | setDeferredToolTip (bool enable, TextFormat textFormat=PlainText) |
| Enable deferred tooltip. More... | |
| virtual WString | toolTip () const |
| Returns the tooltip. | |
| virtual void | setAttributeValue (const std::string &name, const WString &value) |
| Sets an attribute value. More... | |
| virtual WString | attributeValue (const std::string &name) const |
| Returns an attribute value. More... | |
| virtual void | setJavaScriptMember (const std::string &name, const std::string &value) |
| Sets a JavaScript member. More... | |
| virtual std::string | javaScriptMember (const std::string &name) const |
| Returns the value of a JavaScript member. More... | |
| virtual void | callJavaScriptMember (const std::string &name, const std::string &args) |
| Calls a JavaScript member. More... | |
| virtual bool | loaded () const |
| Returns whether this widget has been loaded. More... | |
| virtual void | setId (const std::string &id) |
| Sets the CSS Id. More... | |
| virtual WWidget * | find (const std::string &name) |
| Finds a descendent widget by name. More... | |
| virtual WWidget * | findById (const std::string &id) |
| Finds a descendent widget by id. | |
| virtual void | setSelectable (bool selectable) |
| Sets as selectable. More... | |
| virtual void | doJavaScript (const std::string &javascript) |
| Executes the given JavaScript statements when the widget is rendered or updated. More... | |
| virtual const std::string | id () const |
| Returns the (unique) identifier for this object. More... | |
| void | setLoadLaterWhenInvisible (bool) |
| Change the way the widget is loaded when invisible. More... | |
| std::string | htmlTagName () const |
| returns the current html tag name More... | |
| void | setHtmlTagName (const std::string &tag) |
| set the custom HTML tag name More... | |
| const std::vector< WWidget * > & | children () const |
| Returns contained widgets. More... | |
| Signal & | childrenChanged () |
| Signal emitted when children have been added or removed. More... | |
| virtual void | setCanReceiveFocus (bool enabled) |
| Sets whether the widget can receive focus. More... | |
| virtual bool | setFirstFocus () |
| Set focus on the widget's first descendant. More... | |
| virtual void | setFocus (bool focus) |
| Sets focus. More... | |
| virtual bool | hasFocus () const |
| Returns whether the widget currently has the focus. | |
| virtual void | setTabIndex (int index) |
| Sets the tab index. More... | |
| EventSignal & | blurred () |
| Signal emitted when the widget lost focus. More... | |
| EventSignal & | focussed () |
| Signal emitted when the widget recieved focus. More... | |
| virtual bool | scrollVisibilityEnabled () const WT_CXX11ONLY(final override) |
| Returns whether scroll visibility detection is enabled for this widget. More... | |
| virtual void | setScrollVisibilityEnabled (bool enabled) WT_CXX11ONLY(final override) |
| Sets whether scroll visibility detection is enabled for this widget. More... | |
| virtual int | scrollVisibilityMargin () const WT_CXX11ONLY(final override) |
| Returns the margin around the viewport within which the widget is considered visible. More... | |
| virtual void | setScrollVisibilityMargin (int margin) WT_CXX11ONLY(final override) |
| Sets the margin around the viewport within which the widget is considered visible. More... | |
| virtual Signal< bool > & | scrollVisibilityChanged () WT_CXX11ONLY(final override) |
| Signal triggered when the scroll visibility of this widget changes. More... | |
| virtual bool | isScrollVisible () const WT_CXX11ONLY(final override) |
| Returns whether this widget is currently considered scroll visible. More... | |
| virtual void | setThemeStyleEnabled (bool enabled) |
| Sets whether theme styling for a widget is enabled or disabled. More... | |
| virtual bool | isThemeStyleEnabled () const |
| Returns whether this widget is currently styled by the chosen theme. More... | |
| Public Member Functions inherited from Wt::WWidget | |
| virtual | ~WWidget () |
| Destructor. More... | |
| WWidget * | parent () const |
| Returns the parent widget. More... | |
| virtual void | removeChild (WObject *child) |
| Removes a child object. More... | |
| void | setWidth (const WLength &width) |
| Sets the width. More... | |
| void | setHeight (const WLength &height) |
| Sets the height. More... | |
| virtual void | positionAt (const WWidget *widget, Orientation orientation=Vertical) |
| Positions a widget next to another widget. More... | |
| virtual void | toggleStyleClass (const WString &styleClass, bool add, bool force=false) |
| Toggles a CSS style class. | |
| std::string | jsRef () const |
| Returns a JavaScript expression to the corresponding DOM node. More... | |
| void | setFocus () |
| Sets focus. More... | |
| virtual void | acceptDrops (const std::string &mimeType, const WString &hoverStyleClass=WString()) |
| Sets a mime type to be accepted for dropping. More... | |
| virtual void | stopAcceptDrops (const std::string &mimeType) |
| Indicates that a mime type is no longer accepted for dropping. More... | |
| virtual void | setObjectName (const std::string &name) |
| Sets an object name. More... | |
| virtual void | htmlText (std::ostream &out) |
| Streams the (X)HTML representation. More... | |
| bool | isRendered () const |
| Returns whether the widget is rendered. More... | |
| void | hide () |
| Hides the widget. More... | |
| void | animateHide (const WAnimation &animation) |
| Hides the widget using an animation. More... | |
| void | show () |
| Shows the widget. More... | |
| void | animateShow (const WAnimation &animation) |
| Shows the widget using an animation. More... | |
| void | enable () |
| Enables the widget. More... | |
| void | disable () |
| Disable thes widget. More... | |
| bool | layoutSizeAware () const |
| Returns whether the widget is layout size aware. More... | |
| Public Member Functions inherited from Wt::WObject | |
| WObject (WObject *parent=0) | |
| Create a WObject with a given parent object. More... | |
| virtual | ~WObject () |
| Destructor. More... | |
| virtual std::string | objectName () const |
| Returns the object name. More... | |
| void | resetLearnedSlots () |
| Resets learned stateless slot implementations. More... | |
| template<class T > | |
| void | resetLearnedSlot (void(T::*method)()) |
| Resets a learned stateless slot implementation. More... | |
| template<class T > | |
| WStatelessSlot * | implementStateless (void(T::*method)()) |
| Declares a slot to be stateless and learn client-side behaviour on first invocation. More... | |
| template<class T > | |
| WStatelessSlot * | implementStateless (void(T::*method)(), void(T::*undoMethod)()) |
| Declares a slot to be stateless and learn client-side behaviour in advance. More... | |
| void | isNotStateless () |
| Marks the current function as not stateless. More... | |
| template<class T > | |
| WStatelessSlot * | implementJavaScript (void(T::*method)(), const std::string &jsCode) |
| Provides a JavaScript implementation for a method. More... | |
| void | addChild (WObject *child) |
| Adds a child object. More... | |
| const std::vector< WObject * > & | children () const |
| Returns the children. | |
| WObject * | parent () const |
| Returns the parent object. | |
Additional Inherited Members | |
| Public Types inherited from Wt::WObject | |
| typedef void(WObject::* | Method) () |
| Typedef for a WObject method without arguments. | |
| Static Public Member Functions inherited from Wt::WWebWidget | |
| static WString | escapeText (const WString &text, bool newlinesToo=false) |
| Escape HTML control characters in the text, to display literally (deprecated). More... | |
| static std::string & | escapeText (std::string &text, bool newlinestoo=false) |
| Escape HTML control characters in the text, to display literally (deprecated). More... | |
| static bool | removeScript (WString &text) |
| Remove tags/attributes from text that are not passive (deprecated). More... | |
| static std::string | jsStringLiteral (const std::string &v, char delimiter='\'') |
| Turn a UTF8 encoded string into a JavaScript string literal. More... | |
| Static Public Member Functions inherited from Wt::WWidget | |
| static WString | tr (const char *key) |
| Short hand for WString::tr() More... | |
| Protected Member Functions inherited from Wt::WAbstractToggleButton | |
| WAbstractToggleButton (WContainerWidget *parent=0) | |
| Creates an unchecked toggle button without label. | |
| WAbstractToggleButton (const WString &text, WContainerWidget *parent=0) | |
| Creates an unchecked toggle button with given text label. More... | |
| virtual WStatelessSlot * | getStateless (Method method) |
| On-demand stateless slot implementation. More... | |
| Protected Member Functions inherited from Wt::WFormWidget | |
| virtual void | enableAjax () |
| Progresses to an Ajax-enabled widget. More... | |
| virtual void | render (WFlags< RenderFlag > flags) |
| Renders the widget. More... | |
| virtual void | propagateSetEnabled (bool enabled) |
| Propagates that a widget was enabled or disabled through children. More... | |
| Protected Member Functions inherited from Wt::WWidget | |
| void | setLayoutSizeAware (bool sizeAware) |
| Sets the widget to be aware of its size set by a layout manager. More... | |
| virtual void | layoutSizeChanged (int width, int height) |
| Virtual method that indicates a size change. More... | |
| WWidget (WContainerWidget *parent=0) | |
| Creates a widget. More... | |
| virtual void | dropEvent (WDropEvent dropEvent) |
| Handles a drop event. More... | |
| virtual int | boxPadding (Orientation orientation) const |
| Returns the widget's built-in padding. More... | |
| virtual int | boxBorder (Orientation orientation) const |
| Returns the widget's built-in border width. More... | |
| void | scheduleRender (WFlags< RepaintFlag > flags=0) |
| Schedules rerendering of the widget. More... | |
| Static Protected Member Functions inherited from Wt::WObject | |
| static WObject * | sender () |
| Returns the sender of the current slot call. More... | |
Detailed Description
A user control that represents a radio button.
Use a WButtonGroup to group together radio buttons that reflect options that are mutually exclusive.
Usage example:
enum Vote { Republican = 1, Democrate = 2, NoVote = 10 };
// use a group box as widget container for 3 radio buttons, with a title
// use a button group to logically group the 3 options
Wt::WRadioButton *button;
new Wt::WBreak(container);
group->addButton(button, Republican);
new Wt::WBreak(container);
group->addButton(button, Democrate);
new Wt::WBreak(container);
group->addButton(button, NoVote);
group->setCheckedButton(group->button(NoVote));
WRadioButton is an inline widget.
CSS
This widget corresponds to the HTML <input type="radio"> tag. When a label is specified, the input element is nested in a <label>.
This widget does not provide styling, and can be styled using inline or external CSS as appropriate.
- See also
- WAbstractToggleButton, WButtonGroup
Member Function Documentation
◆ group()
| WButtonGroup* Wt::WRadioButton::group | ( | ) | const |
Returns the button group.
Returns the button group to which this button belongs.
