ChartConfig Class Reference
Charts example

A class that allows configuration of a cartesian chart. More...

#include <ChartConfig.h>

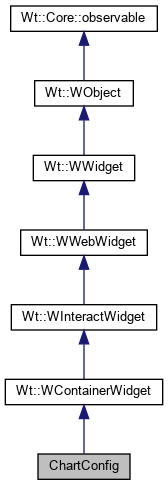

Inheritance diagram for ChartConfig:
Inheritance graph
[legend]

Classes

struct  AxisControl
 Struct that holds the controls for one axis. More...

struct  SeriesControl
 Struct that holds the controls for one series. More...


Public Member Functions

 ChartConfig (Wt::Chart::WCartesianChart *chart, Wt::WContainerWidget *parent)
 Constructor. More...

void setValueFill (Wt::Chart::FillRangeType fill)

- Public Member Functions inherited from Wt::WContainerWidget
 WContainerWidget ()

 ~WContainerWidget ()

void setLayout (std::unique_ptr< WLayout > layout)

Layout * setLayout (std::unique_ptr< Layout > layout)

WLayout * layout () const

virtual void addWidget (std::unique_ptr< WWidget > widget)

Widget * addWidget (std::unique_ptr< Widget > widget)

Widget * addNew (Args &&...args)

virtual void insertBefore (std::unique_ptr< WWidget > widget, WWidget *before)

Widget * insertBefore (std::unique_ptr< Widget > widget, WWidget *before)

virtual void insertWidget (int index, std::unique_ptr< WWidget > widget)

Widget * insertWidget (int index, std::unique_ptr< Widget > widget)

Widget * insertNew (int index, Args &&...args)

virtual std::unique_ptr< WWidget > removeWidget (WWidget *widget) override

virtual void clear ()

virtual int indexOf (WWidget *widget) const

virtual WWidget * widget (int index) const

virtual int count () const

void setContentAlignment (WFlags< AlignmentFlag > contentAlignment)

void setPadding (const WLength &padding, WFlags< Side > sides=AllSides)

WLength padding (Side side) const

WFlags< AlignmentFlag > contentAlignment () const

void setOverflow (Overflow overflow, WFlags< Orientation > orientation=(Orientation::Horizontal|Orientation::Vertical))

void setList (bool list, bool ordered=false)

bool isList () const

bool isUnorderedList () const

bool isOrderedList () const

EventSignal< WScrollEvent > & scrolled ()

int scrollTop () const

int scrollLeft () const

- Public Member Functions inherited from Wt::WInteractWidget
 WInteractWidget ()

EventSignal< WKeyEvent > & keyWentDown ()

EventSignal< WKeyEvent > & keyPressed ()

EventSignal< WKeyEvent > & keyWentUp ()

EventSignal & enterPressed ()

EventSignal & escapePressed ()

EventSignal< WMouseEvent > & clicked ()

EventSignal< WMouseEvent > & doubleClicked ()

EventSignal< WMouseEvent > & mouseWentDown ()

EventSignal< WMouseEvent > & mouseWentUp ()

EventSignal< WMouseEvent > & mouseWentOut ()

EventSignal< WMouseEvent > & mouseWentOver ()

EventSignal< WMouseEvent > & mouseMoved ()

EventSignal< WMouseEvent > & mouseDragged ()

EventSignal< WMouseEvent > & mouseWheel ()

EventSignal< WTouchEvent > & touchStarted ()

EventSignal< WTouchEvent > & touchEnded ()

EventSignal< WTouchEvent > & touchMoved ()

EventSignal< WGestureEvent > & gestureStarted ()

EventSignal< WGestureEvent > & gestureChanged ()

EventSignal< WGestureEvent > & gestureEnded ()

void setDraggable (const std::string &mimeType, WWidget *dragWidget=nullptr, bool isDragWidgetOnly=false, WObject *sourceWidget=nullptr)

void unsetDraggable ()

void setMouseOverDelay (int delay)

int mouseOverDelay () const

virtual void setPopup (bool popup) override

virtual void load () override

virtual bool isEnabled () const override

- Public Member Functions inherited from Wt::WWebWidget
 WWebWidget ()

virtual std::vector< WWidget *> children () const override

Signal & childrenChanged ()

virtual void setPositionScheme (PositionScheme scheme) override

virtual PositionScheme positionScheme () const override

virtual void setOffsets (const WLength &offset, WFlags< Side > sides=AllSides) override

virtual WLength offset (Side s) const override

virtual void resize (const WLength &width, const WLength &height) override

virtual WLength width () const override

virtual WLength height () const override

virtual void setMinimumSize (const WLength &width, const WLength &height) override

virtual WLength minimumWidth () const override

virtual WLength minimumHeight () const override

virtual void setMaximumSize (const WLength &width, const WLength &height) override

virtual WLength maximumWidth () const override

virtual WLength maximumHeight () const override

virtual void setLineHeight (const WLength &height) override

virtual WLength lineHeight () const override

virtual void setFloatSide (Side s) override

virtual Side floatSide () const override

virtual void setClearSides (WFlags< Side > sides) override

virtual WFlags< Side > clearSides () const override

virtual void setMargin (const WLength &margin, WFlags< Side > sides=AllSides) override

virtual WLength margin (Side side) const override

virtual void setHiddenKeepsGeometry (bool enabled) override

virtual bool hiddenKeepsGeometry () const override

virtual void setHidden (bool hidden, const WAnimation &animation=WAnimation()) override

virtual bool isHidden () const override

virtual bool isVisible () const override

virtual void setDisabled (bool disabled) override

virtual bool isDisabled () const override

virtual bool isPopup () const override

virtual void setInline (bool isInline) override

virtual bool isInline () const override

virtual void setDecorationStyle (const WCssDecorationStyle &style) override

virtual WCssDecorationStyle & decorationStyle () override

virtual void setStyleClass (const WString &styleClass) override

virtual WString styleClass () const override

virtual void addStyleClass (const WString &styleClass, bool force=false) override

virtual void removeStyleClass (const WString &styleClass, bool force=false) override

virtual bool hasStyleClass (const WString &styleClass) const override

virtual void setVerticalAlignment (AlignmentFlag alignment, const WLength &length=WLength()) override

virtual AlignmentFlag verticalAlignment () const override

virtual WLength verticalAlignmentLength () const override

virtual void setToolTip (const WString &text, TextFormat textFormat=TextFormat::Plain) override

virtual void setDeferredToolTip (bool enable, TextFormat textFormat=TextFormat::Plain) override

virtual WString toolTip () const override

virtual void refresh () override

virtual void setAttributeValue (const std::string &name, const WString &value) override

virtual WString attributeValue (const std::string &name) const override

virtual void setJavaScriptMember (const std::string &name, const std::string &value) override

virtual std::string javaScriptMember (const std::string &name) const override

virtual void callJavaScriptMember (const std::string &name, const std::string &args) override

virtual bool loaded () const override

virtual void setId (const std::string &id) override

virtual WWidget * find (const std::string &name) override

virtual WWidget * findById (const std::string &id) override

virtual void setSelectable (bool selectable) override

virtual void doJavaScript (const std::string &javascript) override

virtual const std::string id () const override

void setLoadLaterWhenInvisible (bool)

std::string htmlTagName () const

void setHtmlTagName (const std::string &tag)

virtual void setCanReceiveFocus (bool enabled) override

virtual bool canReceiveFocus () const override

virtual bool setFirstFocus () override

virtual void setFocus (bool focus) override

virtual bool hasFocus () const override

virtual void setTabIndex (int index) override

virtual int tabIndex () const override

EventSignal & blurred ()

EventSignal & focussed ()

virtual bool scrollVisibilityEnabled () const final override

virtual void setScrollVisibilityEnabled (bool enabled) final override

virtual int scrollVisibilityMargin () const final override

virtual void setScrollVisibilityMargin (int margin) final override

virtual Signal< bool > & scrollVisibilityChanged () final override

virtual bool isScrollVisible () const final override

virtual void setThemeStyleEnabled (bool enabled) final override

virtual bool isThemeStyleEnabled () const final override

virtual void setObjectName (const std::string &name) override

- Public Member Functions inherited from Wt::WWidget
virtual ~WWidget ()

WWidget * parent () const

std::unique_ptr< Widget > removeWidget (Widget *widget)

std::unique_ptr< WWidget > removeFromParent ()

void setWidth (const WLength &width)

void setHeight (const WLength &height)

virtual void positionAt (const WWidget *widget, Orientation orientation=Orientation::Vertical)

virtual void toggleStyleClass (const WString &styleClass, bool add, bool force=false)

std::string jsRef () const

void setFocus ()

virtual void acceptDrops (const std::string &mimeType, const WString &hoverStyleClass=WString())

virtual void stopAcceptDrops (const std::string &mimeType)

virtual void htmlText (std::ostream &out)

bool isRendered () const

void hide ()

void animateHide (const WAnimation &animation)

void show ()

void animateShow (const WAnimation &animation)

void enable ()

void disable ()

bool layoutSizeAware () const

- Public Member Functions inherited from Wt::WObject
void addChild (std::unique_ptr< WObject > child)

Child * addChild (std::unique_ptr< Child > child)

std::unique_ptr< WObject > removeChild (WObject *child)

std::unique_ptr< Child > removeChild (Child *child)

virtual std::string objectName () const

void resetLearnedSlots ()

void resetLearnedSlot (void(T::*method)())

WStatelessSlot * implementStateless (void(T::*method)())

WStatelessSlot * implementStateless (void(T::*method)(), void(T::*undoMethod)())

void isNotStateless ()

WStatelessSlot * implementJavaScript (void(T::*method)(), const std::string &jsCode)

- Public Member Functions inherited from Wt::Core::observable
 observable () noexcept

virtual ~observable ()

auto bindSafe (void(C::*method)(Args...)) noexcept

auto bindSafe (void(C::*method)(Args...) const) const noexcept

auto bindSafe (const Function &function) noexcept


Private Member Functions

void connectSignals (Wt::WFormWidget *w)

void update ()

void addXAxis ()

void addYAxis ()

void addAxis (Wt::Chart::Axis axis, int axisId)

void removeXAxis (const Wt::Chart::WAxis *axis)

void removeYAxis (const Wt::Chart::WAxis *axis)

void clearXAxes ()

void clearYAxes ()


Static Private Member Functions

static bool validate (Wt::WFormWidget *w)


Private Attributes

Wt::Chart::WCartesianChart * chart_

Wt::Chart::FillRangeType fill_

std::vector< SeriesControl > seriesControls_
 Controls for series. More...

std::vector< AxisControl > axisControls_
 Controls for axes. More...

Wt::WLineEdit * titleEdit_

Wt::WLineEdit * chartWidthEdit_

Wt::WLineEdit * chartHeightEdit_

Wt::WComboBox * chartOrientationEdit_

Wt::WComboBox * legendLocationEdit_

Wt::WComboBox * legendSideEdit_

Wt::WComboBox * legendAlignmentEdit_

Wt::WCheckBox * borderEdit_

Wt::WStandardItemModel * xAxesModel_

Wt::WStandardItemModel * yAxesModel_

Wt::WStandardItemModel * xScales_

Wt::WStandardItemModel * yScales_

Wt::WTable * axisConfig_

Wt::WValidator * anyNumberValidator_

Wt::WValidator * angleValidator_


Additional Inherited Members

- Public Types inherited from Wt::WObject
typedef void(WObject::* Method) ()

- Static Public Member Functions inherited from Wt::WWebWidget
static std::string jsStringLiteral (const std::string &v, char delimiter='\'')

- Static Public Member Functions inherited from Wt::WWidget
static WString tr (const char *key)

- Protected Member Functions inherited from Wt::WInteractWidget
virtual void propagateSetEnabled (bool enabled) override

- Protected Member Functions inherited from Wt::WWebWidget
virtual void enableAjax () override

virtual WStatelessSlot * getStateless (Method method) override

virtual void render (WFlags< RenderFlag > flags) override

- Protected Member Functions inherited from Wt::WWidget
void setLayoutSizeAware (bool sizeAware)

virtual void layoutSizeChanged (int width, int height)

 WWidget ()

virtual void dropEvent (WDropEvent dropEvent)

virtual int boxPadding (Orientation orientation) const

virtual int boxBorder (Orientation orientation) const

void scheduleRender (WFlags< RepaintFlag > flags=None)


Detailed Description

A class that allows configuration of a cartesian chart.

This widget provides forms for configuring chart, series, and axis properties and manipulates the chart according to user settings.

This widget is part of the Wt charts example.

Definition at line 40 of file ChartConfig.h.

Constructor & Destructor Documentation

◆ ChartConfig()

ChartConfig::ChartConfig ( Wt::Chart::WCartesianChart *  chart,
Wt::WContainerWidget *  parent
)

Constructor.

Definition at line 77 of file ChartConfig.C.

78  : WContainerWidget(parent),
79  chart_(chart),
80  fill_(MinimumValueFill)
81 {
82  chart_->setLegendStyle(chart_->legendFont(), WPen(black),
83  WBrush(WColor(0xFF, 0xFA, 0xE5)));
84
85  PanelList *list = new PanelList(this);
86
87  WIntValidator *sizeValidator = new WIntValidator(200, 2000, this);
88  sizeValidator->setMandatory(true);
89
90  anyNumberValidator_ = new WDoubleValidator(this);
91  anyNumberValidator_->setMandatory(true);
92
93  angleValidator_ = new WDoubleValidator(-90, 90, this);
94  angleValidator_->setMandatory(true);
95
96  // ---- Chart properties ----
97
98  WStandardItemModel *orientation = new WStandardItemModel(0, 1, this);
99  addEntry(orientation, "Vertical");
100  addEntry(orientation, "Horizontal");
101
102  WStandardItemModel *legendLocation = new WStandardItemModel(0, 1, this);
103  addEntry(legendLocation, "Outside");
104  addEntry(legendLocation, "Inside");
105
106  WStandardItemModel *legendSide = new WStandardItemModel(0, 1, this);
107  addEntry(legendSide, "Top");
108  addEntry(legendSide, "Right");
109  addEntry(legendSide, "Bottom");
110  addEntry(legendSide, "Left");
111
112  WStandardItemModel *legendAlignment = new WStandardItemModel(0, 1, this);
113  addEntry(legendAlignment, "AlignLeft");
114  addEntry(legendAlignment, "AlignCenter");
115  addEntry(legendAlignment, "AlignRight");
116  addEntry(legendAlignment, "AlignTop");
117  addEntry(legendAlignment, "AlignMiddle");
118  addEntry(legendAlignment, "AlignBottom");
119
120  WTable *chartConfig = new WTable();
121  chartConfig->setMargin(WLength::Auto, Left | Right);
122
123  int row = 0;
124  chartConfig->elementAt(row, 0)->addWidget(new WText("Title:"));
125  titleEdit_ = new WLineEdit(chartConfig->elementAt(row, 1));
126  connectSignals(titleEdit_);
127  ++row;
128
129  chartConfig->elementAt(row, 0)->addWidget(new WText("Width:"));
130  chartWidthEdit_ = new WLineEdit(chartConfig->elementAt(row, 1));
131  chartWidthEdit_
132  ->setText(WLocale::currentLocale().toString(chart_->width().value()));
133  chartWidthEdit_->setValidator(sizeValidator);
134  chartWidthEdit_->setMaxLength(4);
135  connectSignals(chartWidthEdit_);
136  ++row;
137
138  chartConfig->elementAt(row, 0)->addWidget(new WText("Height:"));
139  chartHeightEdit_ = new WLineEdit(chartConfig->elementAt(row, 1));
140  chartHeightEdit_
141  ->setText(WLocale::currentLocale().toString(chart_->height().value()));
142  chartHeightEdit_->setValidator(sizeValidator);
143  chartHeightEdit_->setMaxLength(4);
144  connectSignals(chartHeightEdit_);
145  ++row;
146
147  chartConfig->elementAt(row, 0)->addWidget(new WText("Orientation:"));
148  chartOrientationEdit_ = new WComboBox(chartConfig->elementAt(row, 1));
149  chartOrientationEdit_->setModel(orientation);
150  chartOrientationEdit_->setCurrentIndex(0);
151  connectSignals(chartOrientationEdit_);
152  ++row;
153
154  chartConfig->elementAt(row, 0)->addWidget(new WText("Legend location:"));
155  legendLocationEdit_ = new WComboBox(chartConfig->elementAt(row, 1));
156  legendLocationEdit_->setModel(legendLocation);
157  legendLocationEdit_->setCurrentIndex(0);
158  connectSignals(legendLocationEdit_);
159  ++row;
160
161  chartConfig->elementAt(row, 0)->addWidget(new WText("Legend side:"));
162  legendSideEdit_ = new WComboBox(chartConfig->elementAt(row, 1));
163  legendSideEdit_->setModel(legendSide);
164  legendSideEdit_->setCurrentIndex(1);
165  connectSignals(legendSideEdit_);
166  ++row;
167
168  chartConfig->elementAt(row, 0)->addWidget(new WText("Legend alignment:"));
169  legendAlignmentEdit_ = new WComboBox(chartConfig->elementAt(row, 1));
170  legendAlignmentEdit_->setModel(legendAlignment);
171  legendAlignmentEdit_->setCurrentIndex(4);
172  connectSignals(legendAlignmentEdit_);
173  ++row;
174
175  chartConfig->elementAt(row, 0)->addWidget(new WText("Border:"));
176  borderEdit_ = new WCheckBox(chartConfig->elementAt(row, 1));
177  borderEdit_->setChecked(false);
178  connectSignals(borderEdit_);
179  ++row;
180
181  for (int i = 0; i < chartConfig->rowCount(); ++i) {
182  chartConfig->elementAt(i, 0)->setStyleClass("tdhead");
183  chartConfig->elementAt(i, 1)->setStyleClass("tddata");
184  }
185
186  WPanel *p = list->addWidget("Chart properties", chartConfig);
187  p->setMargin(WLength::Auto, Left | Right);
188  p->resize(1160, WLength::Auto);
189  p->setMargin(20, Top | Bottom);
190
191  // ---- Series properties ----
192
193  WStandardItemModel *types = new WStandardItemModel(0, 1, this);
194  addEntry(types, "Points");
195  addEntry(types, "Line");
196  addEntry(types, "Curve");
197  addEntry(types, "Bar");
198  addEntry(types, "Line Area");
199  addEntry(types, "Curve Area");
200  addEntry(types, "Stacked Bar");
201  addEntry(types, "Stacked Line Area");
202  addEntry(types, "Stacked Curve Area");
203
204  WStandardItemModel *markers = new WStandardItemModel(0, 1, this);
205  addEntry(markers, "None");
206  addEntry(markers, "Square");
207  addEntry(markers, "Circle");
208  addEntry(markers, "Cross");
209  addEntry(markers, "X cross");
210  addEntry(markers, "Triangle");
211  addEntry(markers, "Pipe");
212  addEntry(markers, "Star");
213  addEntry(markers, "Inverted triangle");
214  addEntry(markers, "Asterisk");
215  addEntry(markers, "Diamond");
216
217  xAxesModel_ = new WStandardItemModel(0, 1, this);
218  addEntry(xAxesModel_, axisName(XAxis, 0));
219
220  yAxesModel_ = new WStandardItemModel(0, 1, this);
221  addEntry(yAxesModel_, axisName(YAxis, 0));
222  addEntry(yAxesModel_, axisName(YAxis, 1));
223
224  WStandardItemModel *labels = new WStandardItemModel(0, 1, this);
225  addEntry(labels, "None");
226  addEntry(labels, "X");
227  addEntry(labels, "Y");
228  addEntry(labels, "X: Y");
229
230  WTable *seriesConfig = new WTable();
231  seriesConfig->setMargin(WLength::Auto, Left | Right);
232
233  ::addHeader(seriesConfig, "Name");
234  ::addHeader(seriesConfig, "Enabled");
235  ::addHeader(seriesConfig, "Type");
236  ::addHeader(seriesConfig, "Marker");
237  ::addHeader(seriesConfig, "X axis");
238  ::addHeader(seriesConfig, "Y axis");
239  ::addHeader(seriesConfig, "Legend");
240  ::addHeader(seriesConfig, "Shadow");
241  ::addHeader(seriesConfig, "Value labels");
242
243  seriesConfig->rowAt(0)->setStyleClass("trhead");
244
245  for (int j = 1; j < chart->model()->columnCount(); ++j) {
246  SeriesControl sc;
247
248  new WText(chart->model()->headerData(j),
249  seriesConfig->elementAt(j, 0));
250
251  sc.enabledEdit = new WCheckBox(seriesConfig->elementAt(j, 1));
252  connectSignals(sc.enabledEdit);
253
254  sc.typeEdit = new WComboBox(seriesConfig->elementAt(j, 2));
255  sc.typeEdit->setModel(types);
256  sc.typeEdit->setCurrentIndex(0);
257  connectSignals(sc.typeEdit);
258
259  sc.markerEdit = new WComboBox(seriesConfig->elementAt(j, 3));
260  sc.markerEdit->setModel(markers);
261  sc.markerEdit->setCurrentIndex(0);
262  connectSignals(sc.markerEdit);
263
264  sc.xAxisEdit = new WComboBox(seriesConfig->elementAt(j, 4));
265  sc.xAxisEdit->setModel(xAxesModel_);
266  sc.xAxisEdit->setCurrentIndex(0);
267  connectSignals(sc.xAxisEdit);
268
269  sc.yAxisEdit = new WComboBox(seriesConfig->elementAt(j, 5));
270  sc.yAxisEdit->setModel(yAxesModel_);
271  sc.yAxisEdit->setCurrentIndex(0);
272  connectSignals(sc.yAxisEdit);
273
274  sc.legendEdit = new WCheckBox(seriesConfig->elementAt(j, 6));
275  connectSignals(sc.legendEdit);
276
277  sc.shadowEdit = new WCheckBox(seriesConfig->elementAt(j, 7));
278  connectSignals(sc.shadowEdit);
279
280  sc.labelsEdit = new WComboBox(seriesConfig->elementAt(j, 8));
281  sc.labelsEdit->setModel(labels);
282  sc.labelsEdit->setCurrentIndex(0);
283  connectSignals(sc.labelsEdit);
284
285  int si = seriesIndexOf(chart, j);
286
287  if (si != -1) {
288  sc.enabledEdit->setChecked();
289  const WDataSeries& s = chart_->series(j);
290  switch (s.type()) {
291  case PointSeries:
292  sc.typeEdit->setCurrentIndex(0); break;
293  case LineSeries:
294  sc.typeEdit->setCurrentIndex(s.fillRange() != NoFill ?
295  (s.isStacked() ? 7 : 4) : 1); break;
296  case CurveSeries:
297  sc.typeEdit->setCurrentIndex(s.fillRange() != NoFill ?
298  (s.isStacked() ? 8 : 5) : 2); break;
299  case BarSeries:
300  sc.typeEdit->setCurrentIndex(s.isStacked() ? 6 : 3);
301  }
302
303  sc.markerEdit->setCurrentIndex((int)s.marker());
304  sc.legendEdit->setChecked(s.isLegendEnabled());
305  sc.shadowEdit->setChecked(s.shadow() != WShadow());
306  }
307
308  seriesControls_.push_back(sc);
309
310  seriesConfig->rowAt(j)->setStyleClass("trdata");
311  }
312
313  p = list->addWidget("Series properties", seriesConfig);
314  p->expand();
315  p->setMargin(WLength::Auto, Left | Right);
316  p->resize(1160, WLength::Auto);
317  p->setMargin(20, Top | Bottom);
318
319  // ---- Axis properties ----
320
321  yScales_ = new WStandardItemModel(0, 1, this);
322  addEntry(yScales_, "Linear scale");
323  addEntry(yScales_, "Log scale");
324
325  xScales_ = new WStandardItemModel(0, 1, this);
326  addEntry(xScales_, "Categories");
327  addEntry(xScales_, "Linear scale");
328  addEntry(xScales_, "Log scale");
329  addEntry(xScales_, "Date scale");
330
331  WContainerWidget *axisConfig = new WContainerWidget();
332  axisConfig_ = new WTable(axisConfig);
333  axisConfig_->setMargin(WLength::Auto, Left | Right);
334
335  ::addHeader(axisConfig_, "Axis");
336  ::addHeader(axisConfig_, "Visible");
337  ::addHeader(axisConfig_, "Scale");
338  ::addHeader(axisConfig_, "Automatic");
339  ::addHeader(axisConfig_, "Minimum");
340  ::addHeader(axisConfig_, "Maximum");
341  ::addHeader(axisConfig_, "Gridlines");
342  ::addHeader(axisConfig_, "Label angle");
343  ::addHeader(axisConfig_, "Title");
344  ::addHeader(axisConfig_, "Title orientation");
345  ::addHeader(axisConfig_, "Tick direction");
346  ::addHeader(axisConfig_, "Location");
347
348  axisConfig_->rowAt(0)->setStyleClass("trhead");
349
350  addAxis(XAxis, 0);
351  addAxis(YAxis, 0);
352  addAxis(YAxis, 1);
353
354  WPushButton *addXAxisBtn =
355  new WPushButton(Wt::utf8("Add X axis"), axisConfig);
356  addXAxisBtn->clicked().connect(this, &ChartConfig::addXAxis);
357  WPushButton *clearXAxesBtn =
358  new WPushButton(Wt::utf8("Clear X axes"), axisConfig);
359  clearXAxesBtn->clicked().connect(this, &ChartConfig::clearXAxes);
360  WPushButton *addYAxisBtn =
361  new WPushButton(Wt::utf8("Add Y axis"), axisConfig);
362  addYAxisBtn->clicked().connect(this, &ChartConfig::addYAxis);
363  WPushButton *clearYAxesBtn =
364  new WPushButton(Wt::utf8("Clear Y axes"), axisConfig);
365  clearYAxesBtn->clicked().connect(this, &ChartConfig::clearYAxes);
366
367  p = list->addWidget("Axis properties", axisConfig);
368  p->setMargin(WLength::Auto, Left | Right);
369  p->resize(1160, WLength::Auto);
370  p->setMargin(20, Top | Bottom);
371
372  /*
373  * If we do not have JavaScript, then add a button to reflect changes to
374  * the chart.
375  */
376  if (!WApplication::instance()->environment().javaScript()) {
377  WPushButton *b = new WPushButton(this);
378  b->setText("Update chart");
379  b->setInline(false); // so we can add margin to center horizontally
380  b->setMargin(WLength::Auto, Left | Right);
381  b->clicked().connect(this, &ChartConfig::update);
382  }
383 }
Wt::WPanel::expand
void expand()
ChartConfig::borderEdit_
Wt::WCheckBox * borderEdit_
Definition: ChartConfig.h:93
Wt::WWebWidget::setStyleClass
virtual void setStyleClass(const WString &styleClass) override
Wt::Chart::WDataSeries::marker
MarkerType marker() const
Wt::WLineEdit::setText
virtual void setText(const WString &text)
ChartConfig::angleValidator_
Wt::WValidator * angleValidator_
Definition: ChartConfig.h:97
Key::Left
ChartConfig::fill_
Wt::Chart::FillRangeType fill_
Definition: ChartConfig.h:51
ChartConfig::anyNumberValidator_
Wt::WValidator * anyNumberValidator_
Definition: ChartConfig.h:97
Wt::WInteractWidget::clicked
EventSignal< WMouseEvent > & clicked()
ChartConfig::titleEdit_
Wt::WLineEdit * titleEdit_
Definition: ChartConfig.h:86
ChartConfig::chart_
Wt::Chart::WCartesianChart * chart_
Definition: ChartConfig.h:50
Key::Right
Wt::Chart::WDataSeries::fillRange
FillRangeType fillRange() const
ChartConfig::axisConfig_
Wt::WTable * axisConfig_
Definition: ChartConfig.h:96
ChartConfig::connectSignals
void connectSignals(Wt::WFormWidget *w)
Definition: ChartConfig.C:658
Wt::Chart::WCartesianChart::setLegendStyle
void setLegendStyle(const WFont &font, const WPen &border, const WBrush &background)
ChartConfig::xAxesModel_
Wt::WStandardItemModel * xAxesModel_
Definition: ChartConfig.h:95
ChartConfig::xScales_
Wt::WStandardItemModel * xScales_
Definition: ChartConfig.h:95
Wt::WComboBox::setModel
void setModel(const std::shared_ptr< WAbstractItemModel > model)
Wt::Chart::WDataSeries::isLegendEnabled
bool isLegendEnabled() const
Wt::WPushButton::setText
bool setText(const WString &text)
Wt::WWebWidget::height
virtual WLength height() const override
Wt::WWebWidget::setMargin
virtual void setMargin(const WLength &margin, WFlags< Side > sides=AllSides) override
ChartConfig::chartWidthEdit_
Wt::WLineEdit * chartWidthEdit_
Definition: ChartConfig.h:87
Wt::WTable::elementAt
WTableCell * elementAt(int row, int column)
PanelList::addWidget
Wt::WPanel * addWidget(const Wt::WString &text, Wt::WWidget *w)
Definition: PanelList.C:17
ChartConfig::chartOrientationEdit_
Wt::WComboBox * chartOrientationEdit_
Definition: ChartConfig.h:89
Wt::WFormWidget::setValidator
void setValidator(const std::shared_ptr< WValidator > &validator)
Wt::WWebWidget::width
virtual WLength width() const override
ChartConfig::legendLocationEdit_
Wt::WComboBox * legendLocationEdit_
Definition: ChartConfig.h:90
ChartConfig::seriesControls_
std::vector< SeriesControl > seriesControls_
Controls for series.
Definition: ChartConfig.h:66
Wt::WComboBox::setCurrentIndex
void setCurrentIndex(int index)
ChartConfig::addXAxis
void addXAxis()
Definition: ChartConfig.C:665
ChartConfig::clearXAxes
void clearXAxes()
Definition: ChartConfig.C:813
Wt::WTableRow::setStyleClass
void setStyleClass(const WString &style)
Wt::Chart::WCartesianChart::series
WDataSeries & series(int modelColumn)
Wt::WLineEdit::setMaxLength
void setMaxLength(int length)
ChartConfig::legendSideEdit_
Wt::WComboBox * legendSideEdit_
Definition: ChartConfig.h:91
ChartConfig::update
void update()
Definition: ChartConfig.C:390
ChartConfig::yAxesModel_
Wt::WStandardItemModel * yAxesModel_
Definition: ChartConfig.h:95
Wt::WTable::rowCount
int rowCount() const
Wt::Chart::WAbstractChart::model
std::shared_ptr< WAbstractChartModel > model() const
Wt::Chart::WDataSeries::type
SeriesType type() const
ChartConfig::yScales_
Wt::WStandardItemModel * yScales_
Definition: ChartConfig.h:95
Wt::WValidator::setMandatory
void setMandatory(bool how)
Wt::Chart::WDataSeries::isStacked
bool isStacked() const
Wt::WCompositeWidget::resize
virtual void resize(const WLength &width, const WLength &height) override
Wt::WLength::value
double value() const
ChartConfig::addYAxis
void addYAxis()
Definition: ChartConfig.C:674
Wt::WCompositeWidget::setMargin
virtual void setMargin(const WLength &margin, WFlags< Side > sides=AllSides) override
ChartConfig::legendAlignmentEdit_
Wt::WComboBox * legendAlignmentEdit_
Definition: ChartConfig.h:92
Wt::WAbstractToggleButton::setChecked
void setChecked(bool checked)
ChartConfig::clearYAxes
void clearYAxes()
Definition: ChartConfig.C:830
Wt::WTable::rowAt
WTableRow * rowAt(int row)
Wt::WContainerWidget::addWidget
virtual void addWidget(std::unique_ptr< WWidget > widget)
Wt::WWebWidget::setInline
virtual void setInline(bool isInline) override
Wt::Chart::WDataSeries::shadow
const WShadow & shadow() const
ChartConfig::chartHeightEdit_
Wt::WLineEdit * chartHeightEdit_
Definition: ChartConfig.h:88
ChartConfig::addAxis
void addAxis(Wt::Chart::Axis axis, int axisId)
Definition: ChartConfig.C:683

Member Function Documentation

◆ addAxis()

void ChartConfig::addAxis ( Wt::Chart::Axis  axis,
int  axisId
)
private

Definition at line 683 of file ChartConfig.C.

684 {
685  int j = ax == XAxis ? 1 + axisId : 1 + chart_->xAxisCount() + axisId;
686
687  const WAxis& axis = ax == XAxis ? chart_->xAxis(axisId) : chart_->yAxis(axisId);
688  AxisControl sc;
689
690  axisConfig_->insertRow(j);
691  new WText(axisName(axis.id(), ax == XAxis ? axis.xAxisId() : axis.yAxisId()), axisConfig_->elementAt(j, 0));
692
693  sc.visibleEdit = new WCheckBox(axisConfig_->elementAt(j, 1));
694  sc.visibleEdit->setChecked(axis.isVisible());
695  connectSignals(sc.visibleEdit);
696
697  sc.scaleEdit = new WComboBox(axisConfig_->elementAt(j, 2));
698  if (axis.scale() == CategoryScale)
699  sc.scaleEdit->addItem("Category scale");
700  else {
701  if (axis.id() == XAxis) {
702  sc.scaleEdit->setModel(xScales_);
703  sc.scaleEdit->setCurrentIndex(axis.scale());
704  } else {
705  sc.scaleEdit->setModel(yScales_);
706  sc.scaleEdit->setCurrentIndex(axis.scale() - 1);
707  }
708  }
709  connectSignals(sc.scaleEdit);
710
711  bool autoValues = axis.autoLimits() == (MinimumValue | MaximumValue);
712
713  sc.minimumEdit = new WLineEdit(axisConfig_->elementAt(j, 4));
714  sc.minimumEdit->setText(WLocale::currentLocale()
715  .toString(axis.minimum()));
716  sc.minimumEdit->setValidator(anyNumberValidator_);
717  sc.minimumEdit->setEnabled(!autoValues);
718  connectSignals(sc.minimumEdit);
719
720  sc.maximumEdit = new WLineEdit(axisConfig_->elementAt(j, 5));
721  sc.maximumEdit->setText(WLocale::currentLocale()
722  .toString(axis.maximum()));
723  sc.maximumEdit->setValidator(anyNumberValidator_);
724  sc.maximumEdit->setEnabled(!autoValues);
725  connectSignals(sc.maximumEdit);
726
727  sc.autoEdit = new WCheckBox(axisConfig_->elementAt(j, 3));
728  sc.autoEdit->setChecked(autoValues);
729  connectSignals(sc.autoEdit);
730  sc.autoEdit->checked().connect(sc.maximumEdit, &WLineEdit::disable);
731  sc.autoEdit->unChecked().connect(sc.maximumEdit, &WLineEdit::enable);
732  sc.autoEdit->checked().connect(sc.minimumEdit, &WLineEdit::disable);
733  sc.autoEdit->unChecked().connect(sc.minimumEdit, &WLineEdit::enable);
734
735  sc.gridLinesEdit = new WCheckBox(axisConfig_->elementAt(j, 6));
736  connectSignals(sc.gridLinesEdit);
737
738  sc.labelAngleEdit = new WLineEdit(axisConfig_->elementAt(j, 7));
739  sc.labelAngleEdit->setText("0");
740  sc.labelAngleEdit->setValidator(angleValidator_);
741  connectSignals(sc.labelAngleEdit);
742
743  sc.titleEdit = new WLineEdit(axisConfig_->elementAt(j, 8));
744  sc.titleEdit->setText("");
745  connectSignals(sc.titleEdit);
746
747  sc.titleOrientationEdit = new WComboBox(axisConfig_->elementAt(j, 9));
748  sc.titleOrientationEdit->addItem("Horizontal");
749  sc.titleOrientationEdit->addItem("Vertical");
750  sc.titleOrientationEdit->setCurrentIndex(0);
751  connectSignals(sc.titleOrientationEdit);
752
753  sc.tickDirectionEdit = new WComboBox(axisConfig_->elementAt(j, 10));
754  sc.tickDirectionEdit->addItem("Outwards");
755  sc.tickDirectionEdit->addItem("Inwards");
756  sc.tickDirectionEdit->setCurrentIndex(0);
757  connectSignals(sc.tickDirectionEdit);
758
759  sc.locationEdit = new WComboBox(axisConfig_->elementAt(j, 11));
760  sc.locationEdit->addItem("Minimum value");
761  sc.locationEdit->addItem("Maximum value");
762  sc.locationEdit->addItem("Zero value");
763  sc.locationEdit->addItem("Both sides");
764  sc.locationEdit->setCurrentIndex(0);
765  if (axis.location() == MaximumValue) {
766  sc.locationEdit->setCurrentIndex(1);
767  } else if (axis.location() == ZeroValue) {
768  sc.locationEdit->setCurrentIndex(2);
769  }
770  connectSignals(sc.locationEdit);
771
772  WPushButton *removeAxisButton =
773  new WPushButton(Wt::utf8("x"), axisConfig_->elementAt(j, 12));
774  if (ax == XAxis) {
775  removeAxisButton->clicked().connect(boost::bind(&ChartConfig::removeXAxis, this, &axis));
776  } else {
777  removeAxisButton->clicked().connect(boost::bind(&ChartConfig::removeYAxis, this, &axis));
778  }
779
780  axisConfig_->rowAt(j)->setStyleClass("trdata");
781
782  axisControls_.insert(axisControls_.begin() + j - 1, sc);
783 }
Wt::Chart::WAxis::yAxisId
int yAxisId() const
Wt::WLineEdit::setText
virtual void setText(const WString &text)
ChartConfig::angleValidator_
Wt::WValidator * angleValidator_
Definition: ChartConfig.h:97
FillRangeType::ZeroValue
ChartConfig::anyNumberValidator_
Wt::WValidator * anyNumberValidator_
Definition: ChartConfig.h:97
Wt::WInteractWidget::clicked
EventSignal< WMouseEvent > & clicked()
ChartConfig::removeXAxis
void removeXAxis(const Wt::Chart::WAxis *axis)
Definition: ChartConfig.C:785
ChartConfig::chart_
Wt::Chart::WCartesianChart * chart_
Definition: ChartConfig.h:50
Wt::WComboBox::addItem
void addItem(const WString &text)
Wt::Chart::WAxis::id
Axis id() const
Wt::Chart::WAxis::minimum
double minimum() const
ChartConfig::axisConfig_
Wt::WTable * axisConfig_
Definition: ChartConfig.h:96
ChartConfig::connectSignals
void connectSignals(Wt::WFormWidget *w)
Definition: ChartConfig.C:658
Wt::Chart::WAxis::isVisible
bool isVisible() const
ChartConfig::xScales_
Wt::WStandardItemModel * xScales_
Definition: ChartConfig.h:95
FillRangeType::MinimumValue
Wt::Chart::WAxis::xAxisId
int xAxisId() const
ChartConfig::removeYAxis
void removeYAxis(const Wt::Chart::WAxis *axis)
Definition: ChartConfig.C:799
Wt::WTable::elementAt
WTableCell * elementAt(int row, int column)
Wt::Chart::WAxis::autoLimits
WFlags< AxisValue > autoLimits() const
Wt::WTableRow::setStyleClass
void setStyleClass(const WString &style)
ChartConfig::axisControls_
std::vector< AxisControl > axisControls_
Controls for axes.
Definition: ChartConfig.h:84
FillRangeType::MaximumValue
ChartConfig::yScales_
Wt::WStandardItemModel * yScales_
Definition: ChartConfig.h:95
Wt::WTable::insertRow
virtual WTableRow * insertRow(int row, std::unique_ptr< WTableRow > tableRow=nullptr)
Wt::Chart::WAxis::scale
AxisScale scale() const
Wt::Chart::WAxis::location
AxisValue location() const
Wt::WAbstractToggleButton::setChecked
void setChecked(bool checked)
Wt::Chart::WAxis::maximum
double maximum() const
Wt::WTable::rowAt
WTableRow * rowAt(int row)

◆ addXAxis()

void ChartConfig::addXAxis ( )
private

Definition at line 665 of file ChartConfig.C.

666 {
667  int xAxis = chart_->addXAxis(new WAxis());
668  addAxis(XAxis, xAxis);
669  addEntry(xAxesModel_, axisName(XAxis, xAxis));
670  if (xAxis == 0)
671  update();
672 }
ChartConfig::chart_
Wt::Chart::WCartesianChart * chart_
Definition: ChartConfig.h:50
ChartConfig::xAxesModel_
Wt::WStandardItemModel * xAxesModel_
Definition: ChartConfig.h:95
ChartConfig::update
void update()
Definition: ChartConfig.C:390
Wt::Chart::WCartesianChart::addXAxis
int addXAxis(std::unique_ptr< WAxis > waxis)
ChartConfig::addAxis
void addAxis(Wt::Chart::Axis axis, int axisId)
Definition: ChartConfig.C:683

◆ addYAxis()

void ChartConfig::addYAxis ( )
private

Definition at line 674 of file ChartConfig.C.

675 {
676  int yAxis = chart_->addYAxis(new WAxis());
677  addAxis(YAxis, yAxis);
678  addEntry(yAxesModel_, axisName(YAxis, yAxis));
679  if (yAxis == 0)
680  update();
681 }
ChartConfig::chart_
Wt::Chart::WCartesianChart * chart_
Definition: ChartConfig.h:50
ChartConfig::update
void update()
Definition: ChartConfig.C:390
ChartConfig::yAxesModel_
Wt::WStandardItemModel * yAxesModel_
Definition: ChartConfig.h:95
Wt::Chart::WCartesianChart::addYAxis
int addYAxis(std::unique_ptr< WAxis > waxis)
ChartConfig::addAxis
void addAxis(Wt::Chart::Axis axis, int axisId)
Definition: ChartConfig.C:683

◆ clearXAxes()

void ChartConfig::clearXAxes ( )
private

Definition at line 813 of file ChartConfig.C.

814 {
815  if (chart_->xAxisCount() == 0)
816  return;
817
818  for (std::size_t i = 0; i < chart_->series().size(); ++i) {
819  chart_->series()[i]->bindToXAxis(-1);
820  }
821  const int xAxisCount = chart_->xAxisCount();
822  chart_->clearXAxes();
823  for (int i = 0; i < xAxisCount; ++i) {
824  axisConfig_->deleteRow(1);
825  }
826  xAxesModel_->clear();
827  axisControls_.erase(axisControls_.begin(), axisControls_.begin() + xAxisCount);
828 }
Wt::Chart::WDataSeries::bindToXAxis
void bindToXAxis(int xAxis)
ChartConfig::chart_
Wt::Chart::WCartesianChart * chart_
Definition: ChartConfig.h:50
ChartConfig::axisConfig_
Wt::WTable * axisConfig_
Definition: ChartConfig.h:96
ChartConfig::xAxesModel_
Wt::WStandardItemModel * xAxesModel_
Definition: ChartConfig.h:95
Wt::Chart::WCartesianChart::series
WDataSeries & series(int modelColumn)
ChartConfig::axisControls_
std::vector< AxisControl > axisControls_
Controls for axes.
Definition: ChartConfig.h:84

◆ clearYAxes()

void ChartConfig::clearYAxes ( )
private

Definition at line 830 of file ChartConfig.C.

831 {
832  if (chart_->yAxisCount() == 0)
833  return;
834
835  for (std::size_t i = 0; i < chart_->series().size(); ++i) {
836  chart_->series()[i]->bindToYAxis(-1);
837  }
838  const int yAxisCount = chart_->yAxisCount();
839  chart_->clearYAxes();
840  for (int i = 0; i < yAxisCount; ++i) {
841  axisConfig_->deleteRow(axisConfig_->rowCount() - 1);
842  }
843  yAxesModel_->clear();
844  axisControls_.resize(chart_->xAxisCount());
845 }
ChartConfig::chart_
Wt::Chart::WCartesianChart * chart_
Definition: ChartConfig.h:50
ChartConfig::axisConfig_
Wt::WTable * axisConfig_
Definition: ChartConfig.h:96
Wt::Chart::WCartesianChart::series
WDataSeries & series(int modelColumn)
ChartConfig::axisControls_
std::vector< AxisControl > axisControls_
Controls for axes.
Definition: ChartConfig.h:84
ChartConfig::yAxesModel_
Wt::WStandardItemModel * yAxesModel_
Definition: ChartConfig.h:95
Wt::WTable::rowCount
int rowCount() const
Wt::Chart::WDataSeries::bindToYAxis
void bindToYAxis(int yAxis)

◆ connectSignals()

void ChartConfig::connectSignals ( Wt::WFormWidget *  w)
private

Definition at line 658 of file ChartConfig.C.

659 {
660  w->changed().connect(this, &ChartConfig::update);
661  if (dynamic_cast<WLineEdit *>(w))
662  w->enterPressed().connect(this, &ChartConfig::update);
663 }
ChartConfig::update
void update()
Definition: ChartConfig.C:390
Wt::WInteractWidget::enterPressed
EventSignal & enterPressed()
Wt::WFormWidget::changed
EventSignal & changed()
Wt::EventSignal::connect
Wt::Signals::connection connect(F function)

◆ removeXAxis()

void ChartConfig::removeXAxis ( const Wt::Chart::WAxis *  axis)
private

Definition at line 785 of file ChartConfig.C.

786 {
787  int xAxis = axis->xAxisId();
788  for (std::size_t i = 0; i < chart_->series().size(); ++i) {
789  if (chart_->series()[i]->xAxis() == xAxis)
790  chart_->series()[i]->bindToXAxis(-1);
791  }
792  chart_->removeXAxis(xAxis);
793  axisConfig_->deleteRow(1 + xAxis);
794  xAxesModel_->removeRow(xAxis);
795  axisControls_.erase(axisControls_.begin() + xAxis);
796  update();
797 }
Wt::Chart::WDataSeries::bindToXAxis
void bindToXAxis(int xAxis)
ChartConfig::chart_
Wt::Chart::WCartesianChart * chart_
Definition: ChartConfig.h:50
ChartConfig::axisConfig_
Wt::WTable * axisConfig_
Definition: ChartConfig.h:96
ChartConfig::xAxesModel_
Wt::WStandardItemModel * xAxesModel_
Definition: ChartConfig.h:95
Wt::Chart::WCartesianChart::removeXAxis
std::unique_ptr< WAxis > removeXAxis(int xAxisId)
Wt::Chart::WAxis::xAxisId
int xAxisId() const
Wt::Chart::WCartesianChart::series
WDataSeries & series(int modelColumn)
ChartConfig::axisControls_
std::vector< AxisControl > axisControls_
Controls for axes.
Definition: ChartConfig.h:84
ChartConfig::update
void update()
Definition: ChartConfig.C:390
Wt::WAbstractItemModel::removeRow
bool removeRow(int row, const WModelIndex &parent=WModelIndex())

◆ removeYAxis()

void ChartConfig::removeYAxis ( const Wt::Chart::WAxis *  axis)
private

Definition at line 799 of file ChartConfig.C.

800 {
801  int yAxis = axis->yAxisId();
802  for (std::size_t i = 0; i < chart_->series().size(); ++i) {
803  if (chart_->series()[i]->yAxis() == yAxis)
804  chart_->series()[i]->bindToYAxis(-1);
805  }
806  chart_->removeYAxis(yAxis);
807  axisConfig_->deleteRow(1 + chart_->xAxisCount() + yAxis);
808  yAxesModel_->removeRow(yAxis);
809  axisControls_.erase(axisControls_.begin() + chart_->xAxisCount() + yAxis);
810  update();
811 }
Wt::Chart::WAxis::yAxisId
int yAxisId() const
ChartConfig::chart_
Wt::Chart::WCartesianChart * chart_
Definition: ChartConfig.h:50
ChartConfig::axisConfig_
Wt::WTable * axisConfig_
Definition: ChartConfig.h:96
Wt::Chart::WCartesianChart::series
WDataSeries & series(int modelColumn)
ChartConfig::axisControls_
std::vector< AxisControl > axisControls_
Controls for axes.
Definition: ChartConfig.h:84
ChartConfig::update
void update()
Definition: ChartConfig.C:390
ChartConfig::yAxesModel_
Wt::WStandardItemModel * yAxesModel_
Definition: ChartConfig.h:95
Wt::WAbstractItemModel::removeRow
bool removeRow(int row, const WModelIndex &parent=WModelIndex())
Wt::Chart::WCartesianChart::removeYAxis
std::unique_ptr< WAxis > removeYAxis(int yAxisId)
Wt::Chart::WDataSeries::bindToYAxis
void bindToYAxis(int yAxis)

◆ setValueFill()

void ChartConfig::setValueFill ( Wt::Chart::FillRangeType  fill)

Definition at line 385 of file ChartConfig.C.

386 {
387  fill_ = fill;
388 }
ChartConfig::fill_
Wt::Chart::FillRangeType fill_
Definition: ChartConfig.h:51

◆ update()

void ChartConfig::update ( )
private

Definition at line 390 of file ChartConfig.C.

391 {
392  bool haveLegend = false;
393  std::vector<WDataSeries *> series;
394
395  for (int i = 1; i < chart_->model()->columnCount(); ++i) {
396  SeriesControl& sc = seriesControls_[i-1];
397
398  if (sc.enabledEdit->isChecked()) {
399  WDataSeries *s = new WDataSeries(i);
400
401  switch (sc.typeEdit->currentIndex()) {
402  case 0:
403  s->setType(PointSeries);
404  if (sc.markerEdit->currentIndex() == 0)
405  sc.markerEdit->setCurrentIndex(1);
406  break;
407  case 1:
408  s->setType(LineSeries);
409  break;
410  case 2:
411  s->setType(CurveSeries);
412  break;
413  case 3:
414  s->setType(BarSeries);
415  break;
416  case 4:
417  s->setType(LineSeries);
418  s->setFillRange(fill_);
419  break;
420  case 5:
421  s->setType(CurveSeries);
422  s->setFillRange(fill_);
423  break;
424  case 6:
425  s->setType(BarSeries);
426  s->setStacked(true);
427  break;
428  case 7:
429  s->setType(LineSeries);
430  s->setFillRange(fill_);
431  s->setStacked(true);
432  break;
433  case 8:
434  s->setType(CurveSeries);
435  s->setFillRange(fill_);
436  s->setStacked(true);
437  }
438
439  //set WPainterPath to draw a pipe
440  if(sc.markerEdit->currentIndex() == CustomMarker){
441  WPainterPath pp = WPainterPath();
442  pp.moveTo(0, -6);
443  pp.lineTo(0, 6);
444  s->setCustomMarker(pp);
445  }
446
447  s->setMarker(static_cast<MarkerType>(sc.markerEdit->currentIndex()));
448
449  s->bindToXAxis(sc.xAxisEdit->currentIndex());
450  s->bindToYAxis(sc.yAxisEdit->currentIndex());
451
452  if (sc.legendEdit->isChecked()) {
453  s->setLegendEnabled(true);
454  haveLegend = true;
455  } else
456  s->setLegendEnabled(false);
457
458  if (sc.shadowEdit->isChecked()) {
459  s->setShadow(WShadow(3, 3, WColor(0, 0, 0, 127), 3));
460  } else
461  s->setShadow(WShadow());
462
463  switch (sc.labelsEdit->currentIndex()) {
464  case 1:
465  s->setLabelsEnabled(XAxis);
466  break;
467  case 2:
468  s->setLabelsEnabled(YAxis);
469  break;
470  case 3:
471  s->setLabelsEnabled(XAxis);
472  s->setLabelsEnabled(YAxis);
473  break;
474  }
475
476  series.push_back(s);
477  }
478  }
479
480  chart_->setSeries(series);
481
482  for (std::size_t i = 0; i < axisControls_.size(); ++i) {
483  AxisControl& sc = axisControls_[i];
484  WAxis& axis = static_cast<int>(i) < chart_->xAxisCount() ? chart_->xAxis(i) : chart_->yAxis(i - chart_->xAxisCount());
485
486  axis.setVisible(sc.visibleEdit->isChecked());
487
488  if (sc.scaleEdit->count() != 1) {
489  int k = sc.scaleEdit->currentIndex();
490  if (axis.id() != XAxis)
491  k += 1;
492  else {
493  if (k == 0)
494  chart_->setType(CategoryChart);
495  else
496  chart_->setType(ScatterPlot);
497  }
498
499  switch (k) {
500  case 1:
501  axis.setScale(LinearScale); break;
502  case 2:
503  axis.setScale(LogScale); break;
504  case 3:
505  axis.setScale(DateScale); break;
506  }
507  }
508
509  if (sc.autoEdit->isChecked())
510  axis.setAutoLimits(MinimumValue | MaximumValue);
511  else {
512  if (axis.autoLimits() & (MinimumValue | MaximumValue)) {
513  sc.minimumEdit->setText(WLocale::currentLocale()
514  .toString(axis.minimum()));
515  sc.maximumEdit->setText(WLocale::currentLocale()
516  .toString(axis.maximum()));
517  }
518  if (validate(sc.minimumEdit) && validate(sc.maximumEdit)) {
519  double min, max;
520  getDouble(sc.minimumEdit, min);
521  getDouble(sc.maximumEdit, max);
522
523  if (axis.scale() == LogScale)
524  if (min <= 0)
525  min = 0.0001;
526
527  if (axis.scale() == DateScale){
528  //the number of julian days until year 1986
529  WDate dMin = WDate(1900,1,1);
530  double gregDaysMin = (double)dMin.toJulianDay();
531  //the number of julian days until year 1988
532  WDate dMax = WDate(3000,1,1);
533  double gregDaysMax = (double)dMax.toJulianDay();
534
535  bool greg_year_validation =
536  (min > gregDaysMin &&
537  min < gregDaysMax &&
538  max > gregDaysMin &&
539  max < gregDaysMax);
540
541  if(!greg_year_validation){
542  min = gregDaysMin;
543  max = gregDaysMax;
544  }
545  }
546
547  axis.setRange(min, max);
548  }
549
550  }
551
552  if (validate(sc.labelAngleEdit)) {
553  double angle;
554  getDouble(sc.labelAngleEdit, angle);
555  axis.setLabelAngle(angle);
556  }
557
558  axis.setGridLinesEnabled(sc.gridLinesEdit->isChecked());
559
560  axis.setTitle(sc.titleEdit->text());
561
562  axis.setTitleOrientation(sc.titleOrientationEdit->currentIndex() == 0 ? Horizontal : Vertical);
563
564  axis.setTickDirection(sc.tickDirectionEdit->currentIndex() == 0 ? Outwards : Inwards);
565
566  switch (sc.locationEdit->currentIndex()) {
567  case 0:
568  axis.setLocation(MinimumValue);
569  break;
570  case 1:
571  axis.setLocation(MaximumValue);
572  break;
573  case 2:
574  axis.setLocation(ZeroValue);
575  break;
576  case 3:
577  axis.setLocation(BothSides);
578  break;
579  }
580  }
581
582  chart_->setTitle(titleEdit_->text());
583
584  if (validate(chartWidthEdit_) && validate(chartHeightEdit_)) {
585  double width, height;
586  getDouble(chartWidthEdit_, width);
587  getDouble(chartHeightEdit_, height);
588  chart_->resize(width, height);
589  }
590
591  switch (chartOrientationEdit_->currentIndex()) {
592  case 0:
593  chart_->setOrientation(Vertical); break;
594  case 1:
595  chart_->setOrientation(Horizontal); break;
596  }
597
598  chart_->setLegendEnabled(haveLegend);
599
600  if (haveLegend) {
601  LegendLocation location = LegendOutside;
602  Side side = Right;
603  AlignmentFlag alignment = AlignMiddle;
604  switch (legendLocationEdit_->currentIndex()) {
605  case 0: location = LegendOutside; break;
606  case 1: location = LegendInside; break;
607  }
608
609  switch (legendSideEdit_->currentIndex()) {
610  case 0: side = Top; break;
611  case 1: side = Right; break;
612  case 2: side = Bottom; break;
613  case 3: side = Left; break;
614  }
615
616  if (side == Left || side == Right) {
617  if (legendAlignmentEdit_->currentIndex() < 3)
618  legendAlignmentEdit_->setCurrentIndex(4);
619  } else {
620  if (legendAlignmentEdit_->currentIndex() >= 3)
621  legendAlignmentEdit_->setCurrentIndex(2);
622  }
623
624  switch (legendAlignmentEdit_->currentIndex()) {
625  case 0: alignment = AlignLeft; break;
626  case 1: alignment = AlignCenter; break;
627  case 2: alignment = AlignRight; break;
628  case 3: alignment = AlignTop; break;
629  case 4: alignment = AlignMiddle; break;
630  case 5: alignment = AlignBottom; break;
631  }
632
633  chart_->setLegendLocation(location, side, alignment);
634
635  chart_->setLegendColumns((side == Top || side == Bottom ) ? 2 : 1,
636  WLength(100));
637  }
638
639  if (borderEdit_->isChecked()) {
640  chart_->setBorderPen(WPen());
641  } else {
642  chart_->setBorderPen(NoPen);
643  }
644 }
Wt::Chart::WAxis::setVisible
void setVisible(bool visible)
ChartConfig::borderEdit_
Wt::WCheckBox * borderEdit_
Definition: ChartConfig.h:93
Wt::Chart::WDataSeries::setType
void setType(SeriesType t)
Wt::WPainterPath::lineTo
void lineTo(const WPointF &point)
Wt::WLineEdit::text
const WString & text() const
Key::Left
Wt::WDate::toJulianDay
int toJulianDay() const
FillRangeType::ZeroValue
ChartConfig::fill_
Wt::Chart::FillRangeType fill_
Definition: ChartConfig.h:51
Wt::Chart::WDataSeries::bindToXAxis
void bindToXAxis(int xAxis)
ChartConfig::titleEdit_
Wt::WLineEdit * titleEdit_
Definition: ChartConfig.h:86
Wt::Chart::WAxis::setGridLinesEnabled
void setGridLinesEnabled(bool enabled)
ChartConfig::chart_
Wt::Chart::WCartesianChart * chart_
Definition: ChartConfig.h:50
Key::Right
Wt::Chart::WAxis::setTickDirection
void setTickDirection(TickDirection direction)
Wt::Chart::WAxis::id
Axis id() const
Wt::Chart::WAxis::minimum
double minimum() const
Wt::Chart::WAxis::setLocation
void setLocation(AxisValue value)
Wt::Chart::WDataSeries::setShadow
void setShadow(const WShadow &shadow)
Wt::Chart::WCartesianChart::setType
void setType(ChartType type)
Wt::Chart::WDataSeries::setMarker
void setMarker(MarkerType marker)
Wt::AlignmentFlag
AlignmentFlag
Wt::Chart::WCartesianChart::setLegendLocation
void setLegendLocation(LegendLocation location, Side side, AlignmentFlag alignment)
FillRangeType::MinimumValue
Wt::WWebWidget::height
virtual WLength height() const override
Wt::Chart::WDataSeries::setLegendEnabled
void setLegendEnabled(bool enabled)
ChartConfig::chartWidthEdit_
Wt::WLineEdit * chartWidthEdit_
Definition: ChartConfig.h:87
Wt::Chart::WAxis::autoLimits
WFlags< AxisValue > autoLimits() const
ChartConfig::chartOrientationEdit_
Wt::WComboBox * chartOrientationEdit_
Definition: ChartConfig.h:89
Wt::WWebWidget::width
virtual WLength width() const override
ChartConfig::legendLocationEdit_
Wt::WComboBox * legendLocationEdit_
Definition: ChartConfig.h:90
ChartConfig::seriesControls_
std::vector< SeriesControl > seriesControls_
Controls for series.
Definition: ChartConfig.h:66
Wt::WComboBox::setCurrentIndex
void setCurrentIndex(int index)
Wt::Chart::WCartesianChart::setSeries
void setSeries(std::vector< std::unique_ptr< WDataSeries > > series)
Wt::WPaintedWidget::resize
virtual void resize(const WLength &width, const WLength &height) override
Wt::Chart::WAxis::setScale
void setScale(AxisScale scale)
Wt::Chart::LegendLocation
LegendLocation
Wt::Chart::WAxis::setTitleOrientation
void setTitleOrientation(const Orientation &orientation)
Wt::Chart::WDataSeries::setCustomMarker
void setCustomMarker(const WPainterPath &path)
Wt::Chart::WAxis::setAutoLimits
void setAutoLimits(WFlags< AxisValue > locations)
ChartConfig::legendSideEdit_
Wt::WComboBox * legendSideEdit_
Definition: ChartConfig.h:91
ChartConfig::axisControls_
std::vector< AxisControl > axisControls_
Controls for axes.
Definition: ChartConfig.h:84
Wt::Chart::WDataSeries::setLabelsEnabled
void setLabelsEnabled(Axis axis, bool enabled=true)
Wt::WPainterPath::moveTo
void moveTo(const WPointF &point)
Wt::Chart::WAbstractChart::model
std::shared_ptr< WAbstractChartModel > model() const
FillRangeType::MaximumValue
Wt::Chart::WDataSeries::setStacked
void setStacked(bool stacked)
Wt::Chart::WCartesianChart::setOrientation
void setOrientation(Orientation orientation)
Wt::Chart::WCartesianChart::setBorderPen
void setBorderPen(const WPen &pen)
Wt::WComboBox::currentIndex
int currentIndex() const
Wt::Chart::WAxis::setRange
void setRange(double minimum, double maximum)
Wt::Chart::WCartesianChart::setLegendEnabled
void setLegendEnabled(bool enabled)
Wt::Chart::WAxis::scale
AxisScale scale() const
ChartConfig::legendAlignmentEdit_
Wt::WComboBox * legendAlignmentEdit_
Definition: ChartConfig.h:92
Wt::Chart::WAxis::maximum
double maximum() const
Wt::Chart::WAbstractChart::setTitle
void setTitle(const WString &title)
Wt::Chart::WAxis::setLabelAngle
void setLabelAngle(double angle)
Wt::Chart::WDataSeries::setFillRange
void setFillRange(FillRangeType fillRange)
Wt::Chart::WCartesianChart::setLegendColumns
void setLegendColumns(int columns, const WLength &width)
ChartConfig::validate
static bool validate(Wt::WFormWidget *w)
Definition: ChartConfig.C:646
ChartConfig::chartHeightEdit_
Wt::WLineEdit * chartHeightEdit_
Definition: ChartConfig.h:88
Wt::Chart::WAxis::setTitle
void setTitle(const WString &title)
Wt::Chart::WDataSeries::bindToYAxis
void bindToYAxis(int yAxis)

◆ validate()

bool ChartConfig::validate ( Wt::WFormWidget *  w)
staticprivate

Definition at line 646 of file ChartConfig.C.

647 {
648  bool valid = w->validate() == WValidator::Valid;
649
650  if (!WApplication::instance()->environment().javaScript()) {
651  w->setStyleClass(valid ? "" : "Wt-invalid");
652  w->setToolTip(valid ? "" : "Invalid value");
653  }
654
655  return valid;
656 }
Wt::WWebWidget::setStyleClass
virtual void setStyleClass(const WString &styleClass) override
Wt::WFormWidget::setToolTip
virtual void setToolTip(const WString &text, TextFormat textFormat=TextFormat::Plain) override
Wt::WFormWidget::validate
virtual ValidationState validate()

Member Data Documentation

◆ angleValidator_

Wt::WValidator * ChartConfig::angleValidator_
private

Definition at line 97 of file ChartConfig.h.

◆ anyNumberValidator_

Wt::WValidator* ChartConfig::anyNumberValidator_
private

Definition at line 97 of file ChartConfig.h.

◆ axisConfig_

Wt::WTable* ChartConfig::axisConfig_
private

Definition at line 96 of file ChartConfig.h.

◆ axisControls_

std::vector<AxisControl> ChartConfig::axisControls_
private

Controls for axes.

Definition at line 84 of file ChartConfig.h.

◆ borderEdit_

Wt::WCheckBox* ChartConfig::borderEdit_
private

Definition at line 93 of file ChartConfig.h.

◆ chart_

Wt::Chart::WCartesianChart* ChartConfig::chart_
private

Definition at line 50 of file ChartConfig.h.

◆ chartHeightEdit_

Wt::WLineEdit* ChartConfig::chartHeightEdit_
private

Definition at line 88 of file ChartConfig.h.

◆ chartOrientationEdit_

Wt::WComboBox* ChartConfig::chartOrientationEdit_
private

Definition at line 89 of file ChartConfig.h.

◆ chartWidthEdit_

Wt::WLineEdit* ChartConfig::chartWidthEdit_
private

Definition at line 87 of file ChartConfig.h.

◆ fill_

Wt::Chart::FillRangeType ChartConfig::fill_
private

Definition at line 51 of file ChartConfig.h.

◆ legendAlignmentEdit_

Wt::WComboBox* ChartConfig::legendAlignmentEdit_
private

Definition at line 92 of file ChartConfig.h.

◆ legendLocationEdit_

Wt::WComboBox* ChartConfig::legendLocationEdit_
private

Definition at line 90 of file ChartConfig.h.

◆ legendSideEdit_

Wt::WComboBox* ChartConfig::legendSideEdit_
private

Definition at line 91 of file ChartConfig.h.

◆ seriesControls_

std::vector<SeriesControl> ChartConfig::seriesControls_
private

Controls for series.

Definition at line 66 of file ChartConfig.h.

◆ titleEdit_

Wt::WLineEdit* ChartConfig::titleEdit_
private

Definition at line 86 of file ChartConfig.h.

◆ xAxesModel_

Wt::WStandardItemModel* ChartConfig::xAxesModel_
private

Definition at line 95 of file ChartConfig.h.

◆ xScales_

Wt::WStandardItemModel * ChartConfig::xScales_
private

Definition at line 95 of file ChartConfig.h.

◆ yAxesModel_

Wt::WStandardItemModel * ChartConfig::yAxesModel_
private

Definition at line 95 of file ChartConfig.h.

◆ yScales_

Wt::WStandardItemModel * ChartConfig::yScales_
private

Definition at line 95 of file ChartConfig.h.

The documentation for this class was generated from the following files:
Generated on Tue Dec 15 2020 for the C++ Web Toolkit (Wt) by doxygen 1.8.13
